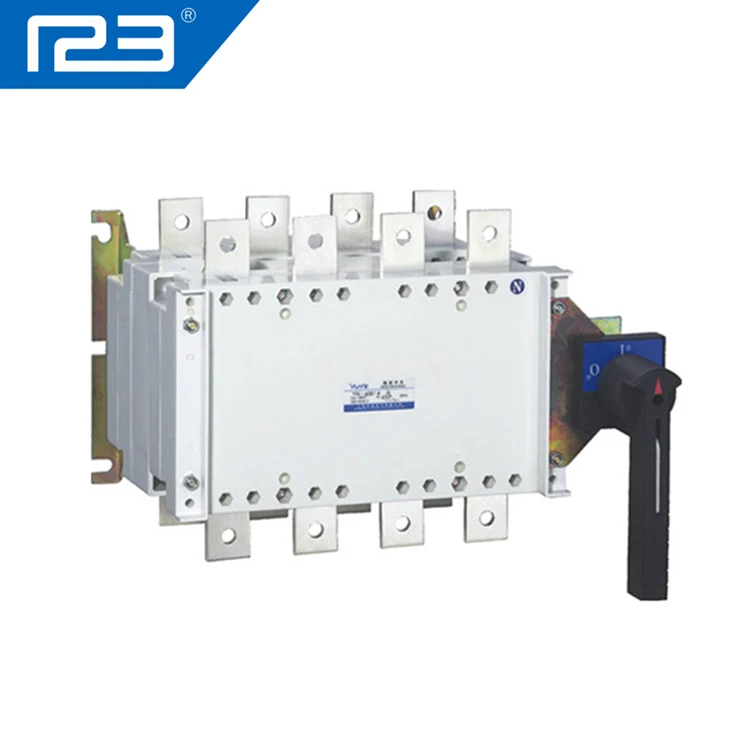

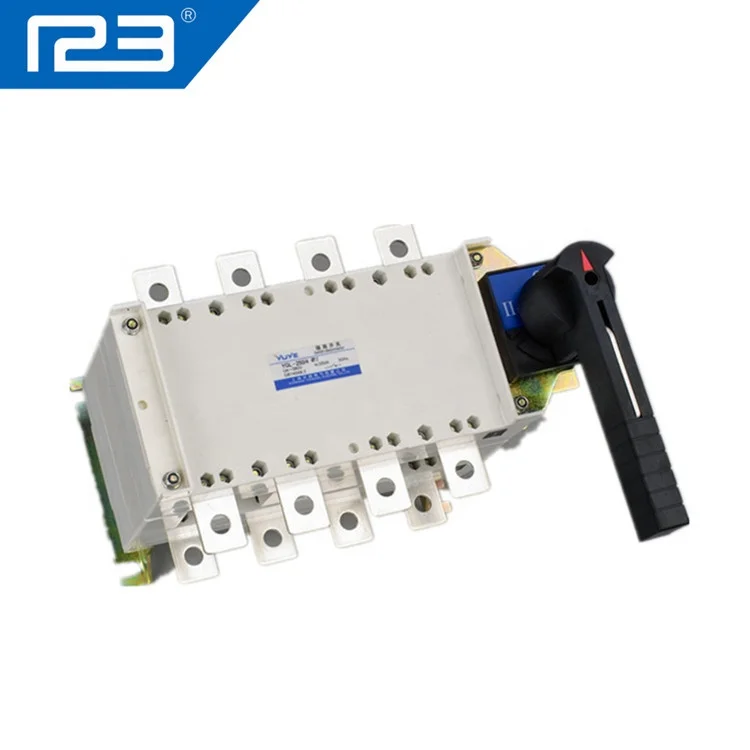

China OEM Price YUYE YGLZ1-630/4PJ 3P/4P socomec generator changeover switch load isolation switch
- Category: >>>
- Supplier: One,Two,Three,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Contact supplier
Products Description
Product summary:
YGL series load-isolation switch is applied in the circuit of AC 50Hz,rated voltage 690V
or below,and rated current to Max 3150A.It is used to connect and break circuit by not-
frequent manual operation.In addition,product with 690V is only used to electrical
isolation..
or below,and rated current to Max 3150A.It is used to connect and break circuit by not-
frequent manual operation.In addition,product with 690V is only used to electrical
isolation..
Operating conditions:
1.Altitude not more than 2000m;
2.The range of ambient temperature is from 5℃ to 40℃;
3.Relative humidity not more than 95%;
4.The environment without any explosive medium;
5.The environment without any rain or snow attacking
Note:If the product is expected to be used in the environment where temperature
is over +40℃ or below -5℃ to 40℃,users shall tell it to the manufacturer.
is over +40℃ or below -5℃ to 40℃,users shall tell it to the manufacturer.
Conventional rank | 63A | 100A | 100A | 3200M | 160A | 4000 | 250A | ||||||||
Rated current In(A) | 40 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | |||||||
Dielectric strength (V) | 5000 | ||||||||||||||
Rated surge-resistant voltage Uimp KV | 6 | ||||||||||||||
Rated breaking capability Icn (A Rms) AC230 380V | 320 | 504 | 640 | 800 | 1000 | 1000 | 1600 | 1600 | |||||||
Rated making capability Icn (A Rms) AC230 380V | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | |||||||
Rated short-current making capability Icm(kA peak value) | 2.84 | 13.6 | 17 | ||||||||||||
Mechanical durability 380V | 1700 | 1400 | |||||||||||||
Electrical curability 380V | 300 | 200 | |||||||||||||
Operation moment (Nm) | 1.2 | 6.5 | 10 | ||||||||||||
Weight(kg) | 0.37-0.41 | 1.3-1.5 | 2.2-2.6 | ||||||||||||
