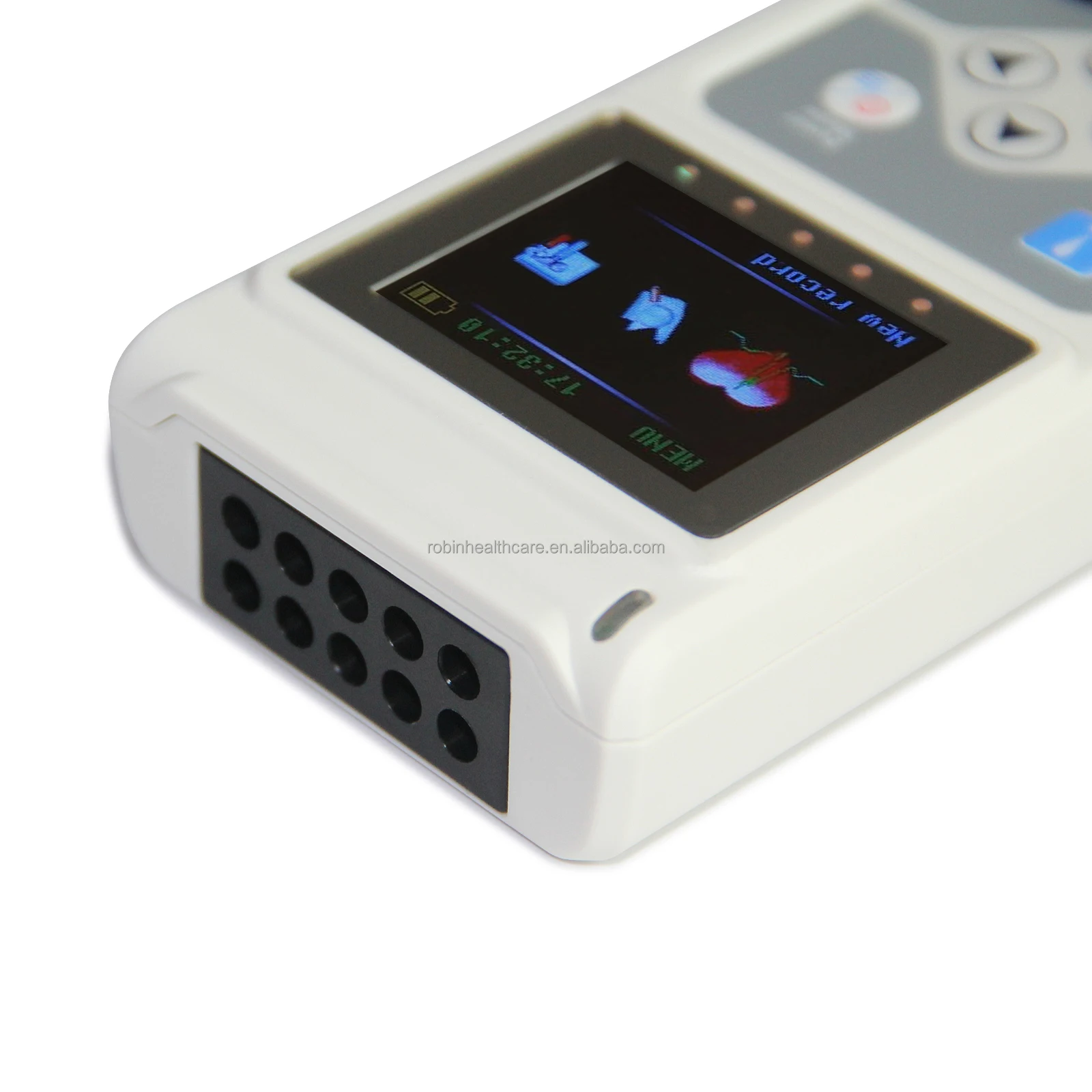

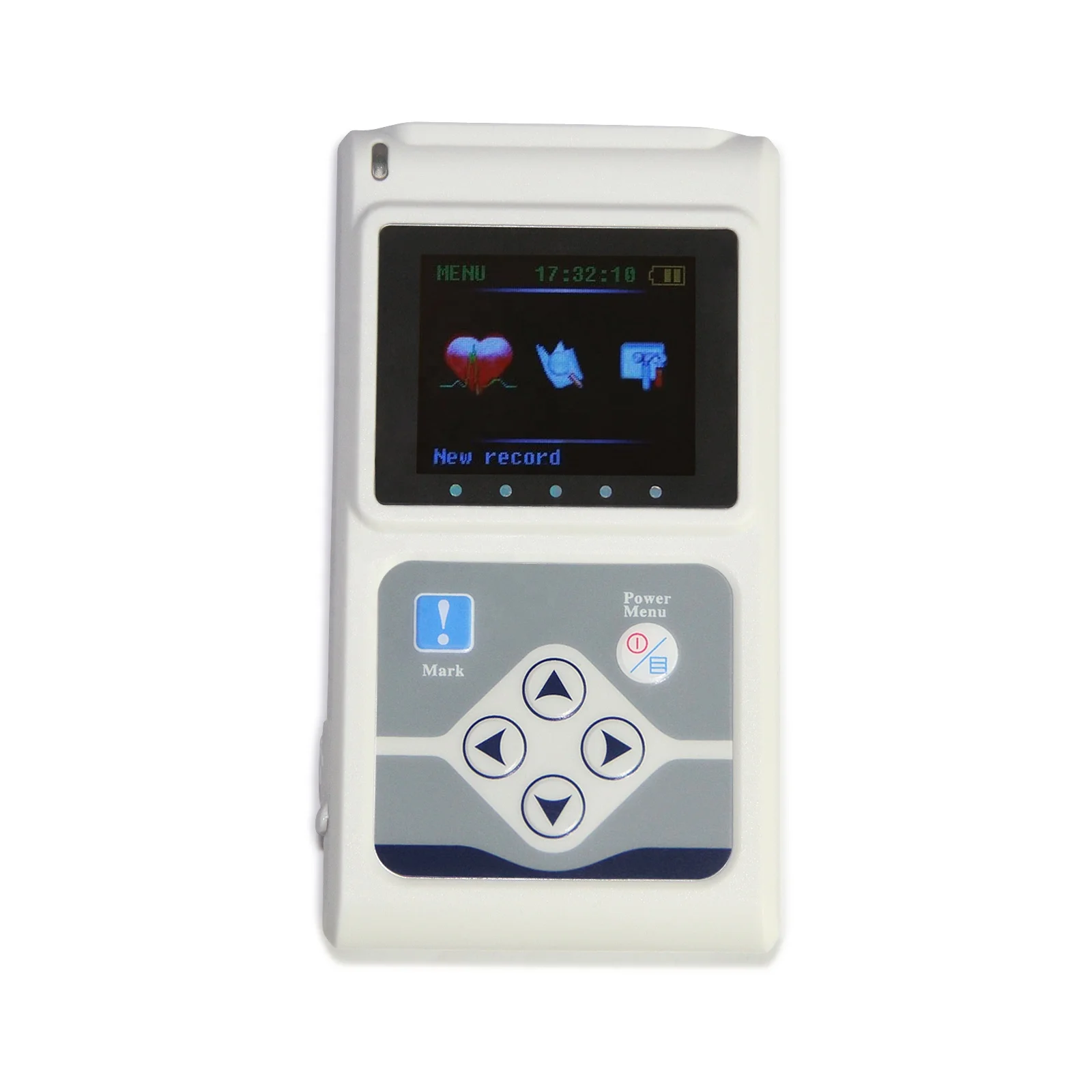

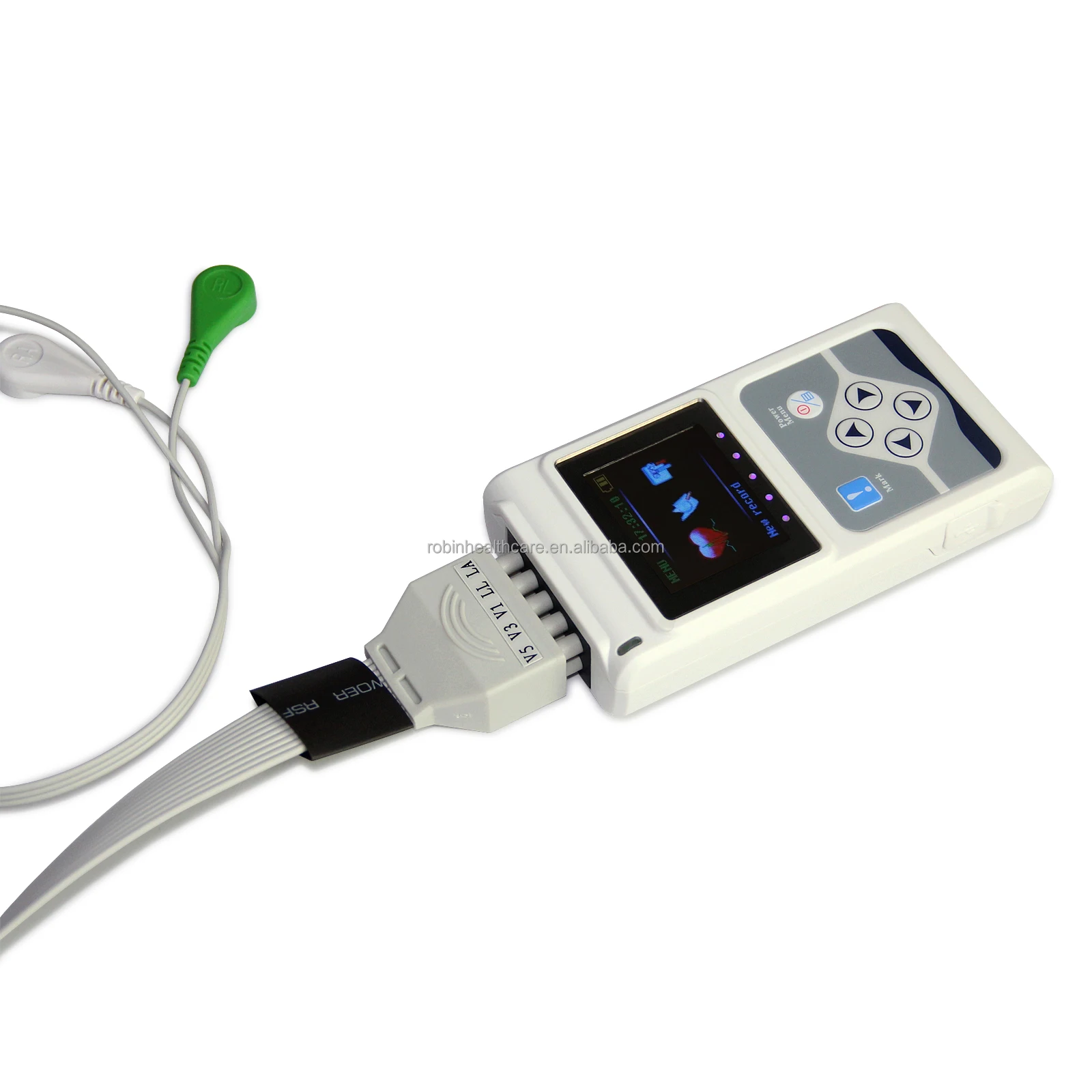

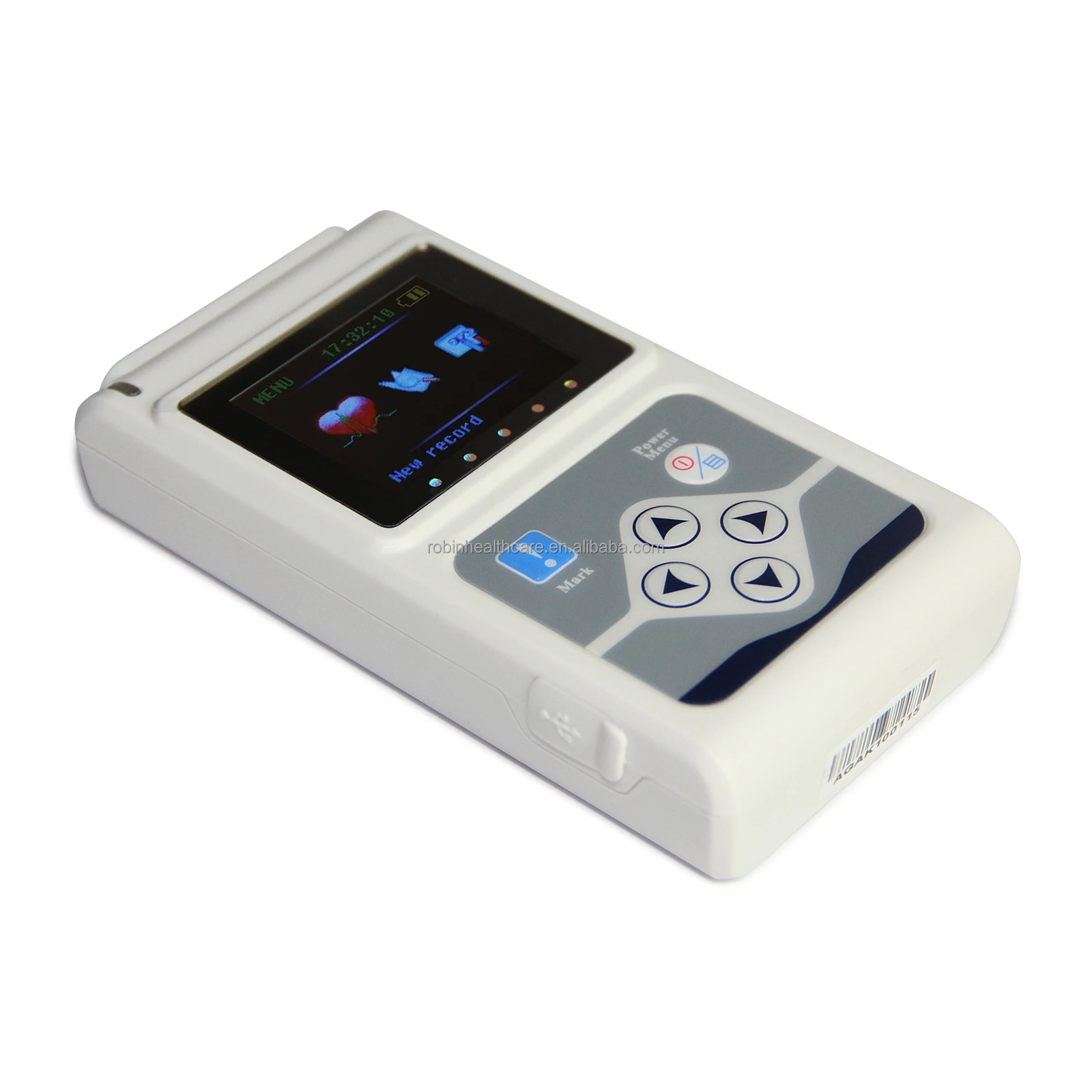

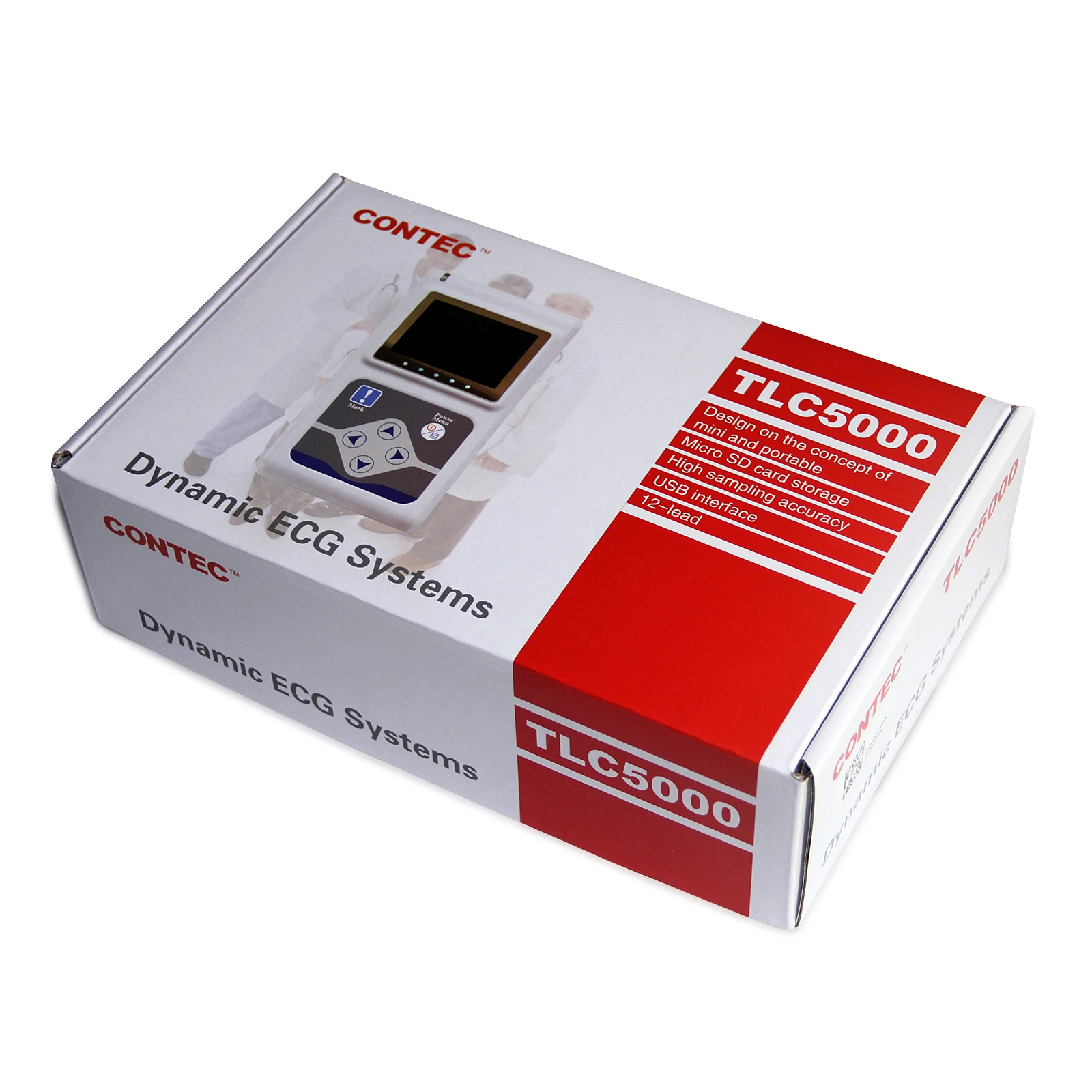

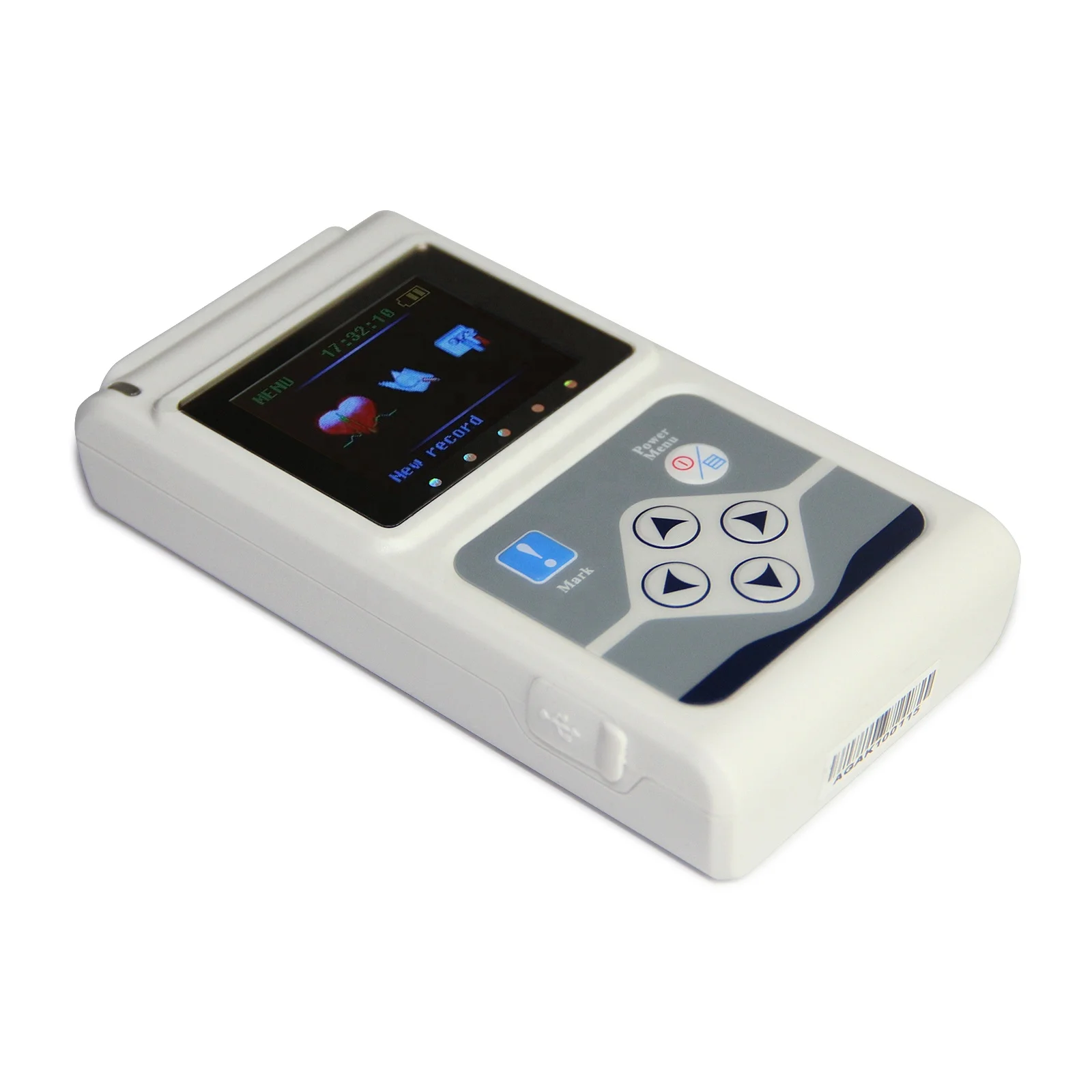

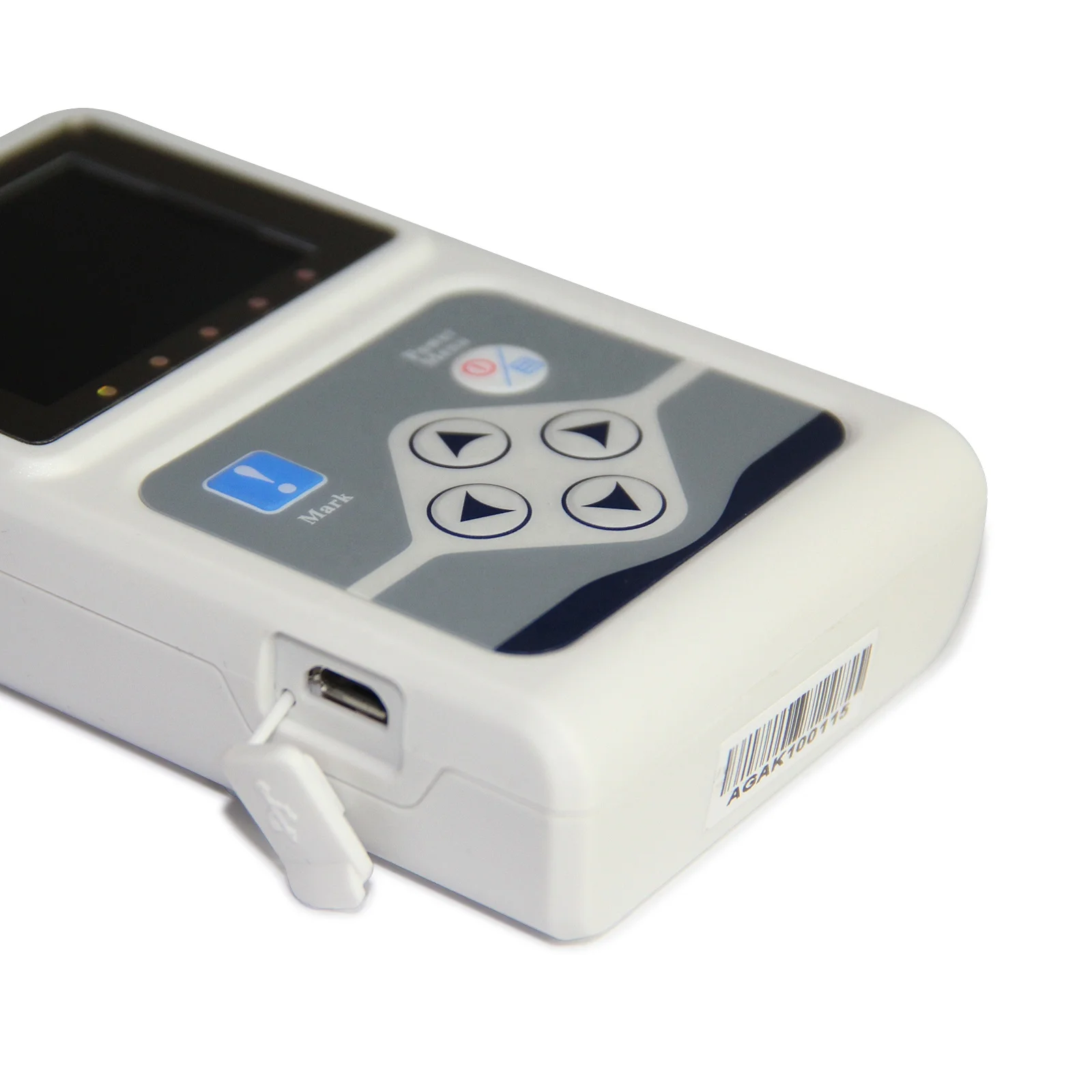

Handheld ECG TLC5000 24 Hours 12 lead Electric Pocket Holter ECG Device
- Category: >>>
- Supplier: Qingdao Robin Health Technology Co. Ltd.
Share on (1600226328367):
Product Overview
Description

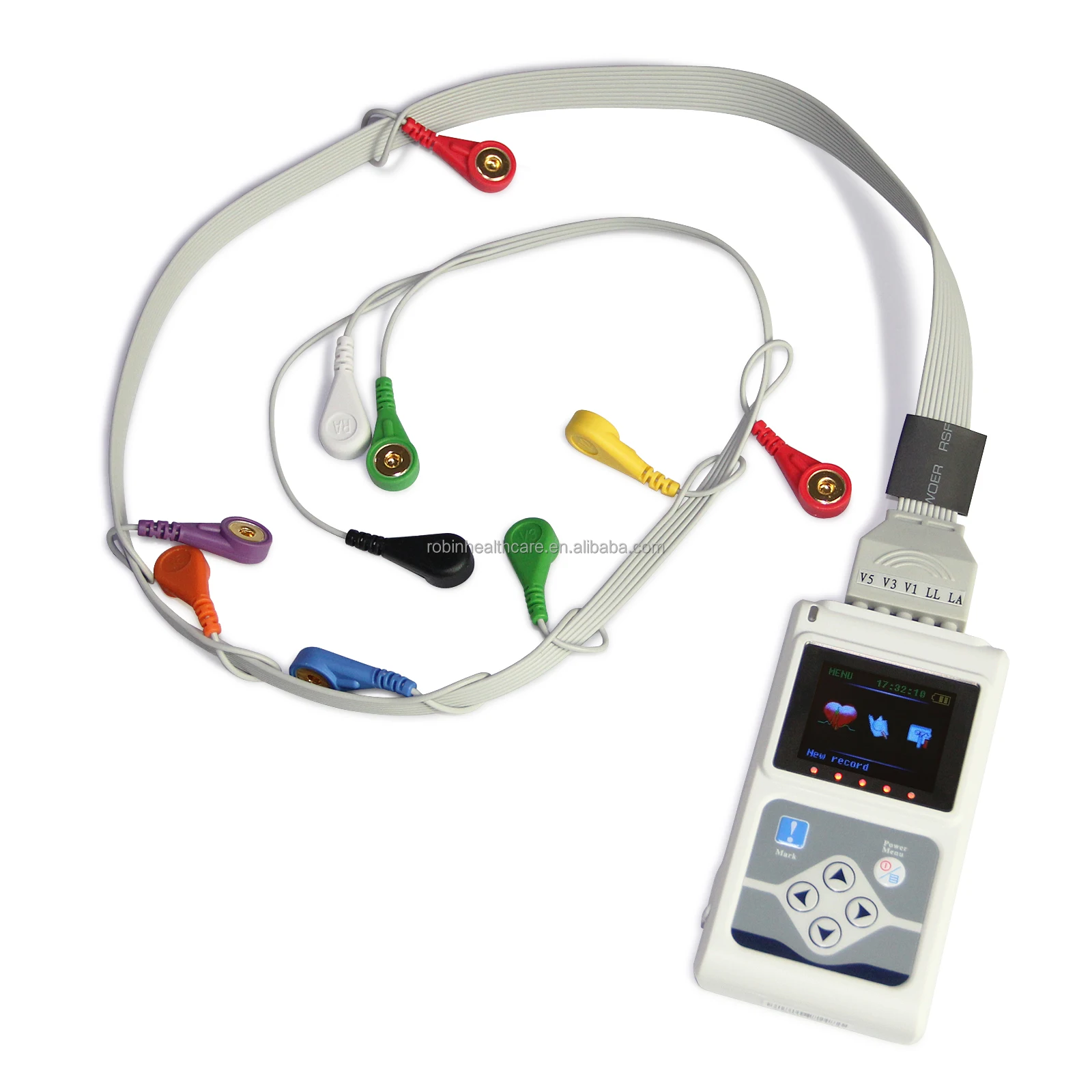

Dynamic ECG Systems adopt 12-lead system of international standard, which can continuously record ECG waveform for 24-hour and analyze ECG waveform by the PC software. It is applicable for use in medical institution and community.
Features
· The recorder can real-time store ECG data for 24-hour. · Arrhythmia analysis basing on MCSSTM and TMCATM can greatly reduce
doctor’s work.
doctor’s work.
· Sync analysis for 12-lead, which ensures that QRS waveform can be found accurately, and no distortion.
· With more than 10 templates(such as atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, etc.) and many user-defined modules, which can almost distinguish any kind of pathologic waveforms. · Flexible analysis channel selection
function, which ensures that any channels can be selected as the main analysis channel.
function, which ensures that any channels can be selected as the main analysis channel.
· Flexible atrial fibrillation analysis, which ensures that physicians can use the whole or segmented AUTO/manual analysis, more accurate in atrial fibrillation analysis.
· All pacemakers(such as AAI, VVI, DDD etc.) can be analyzed by the powerful pacemaker analysis function.
· All pacemakers(such as AAI, VVI, DDD etc.) can be analyzed by the powerful pacemaker analysis function.
With many pacing analysis templates, such as“Dual chamber pacing""Atrial pacing", “Ventricular pacing", “Ventriculan
Pseudofusion" and "Ventricular asynchronous pacing, etc.
SinaleorfuleadECGin anvtimebucketcan be reviewed b the fast review analvsis function
Withanalysis functions for 5-minute, 1-hour and 24-hour heart rate variability
One-key print, convenient and fast to print the reports.
Perfect case management function
Abnormal ST can beanalyzed accordingto the whole and event by the advanced ST segment analysis and total load of
myocardialischemia,which can help the doctors comprehensively judge mvocardial ischemia.
Pseudofusion" and "Ventricular asynchronous pacing, etc.
SinaleorfuleadECGin anvtimebucketcan be reviewed b the fast review analvsis function
Withanalysis functions for 5-minute, 1-hour and 24-hour heart rate variability
One-key print, convenient and fast to print the reports.
Perfect case management function
Abnormal ST can beanalyzed accordingto the whole and event by the advanced ST segment analysis and total load of
myocardialischemia,which can help the doctors comprehensively judge mvocardial ischemia.
The risk ofsleepbreathpause can bepredicted bvthe unique"Sleep breath pause syndrome analysis function
The death riskin patients withmyocardial infarction can be predicted by the "HRT" analysis function.
“TWavealternation"is animportantindex to predict the malignant arrhythmia and sudden cardiac death
WithQTD(QTdispersion)VCG(vectorcardiogram),VLP(ventricular late potential) and TVCG(time vector cardiogram
analysis modules, more valuable in analysis report.
The death riskin patients withmyocardial infarction can be predicted by the "HRT" analysis function.
“TWavealternation"is animportantindex to predict the malignant arrhythmia and sudden cardiac death
WithQTD(QTdispersion)VCG(vectorcardiogram),VLP(ventricular late potential) and TVCG(time vector cardiogram
analysis modules, more valuable in analysis report.
Number of channels | 12 channels |
Sampling rate | 10000Hz |
Sampling accuracy | 12bit |
Recording time | 24 h |

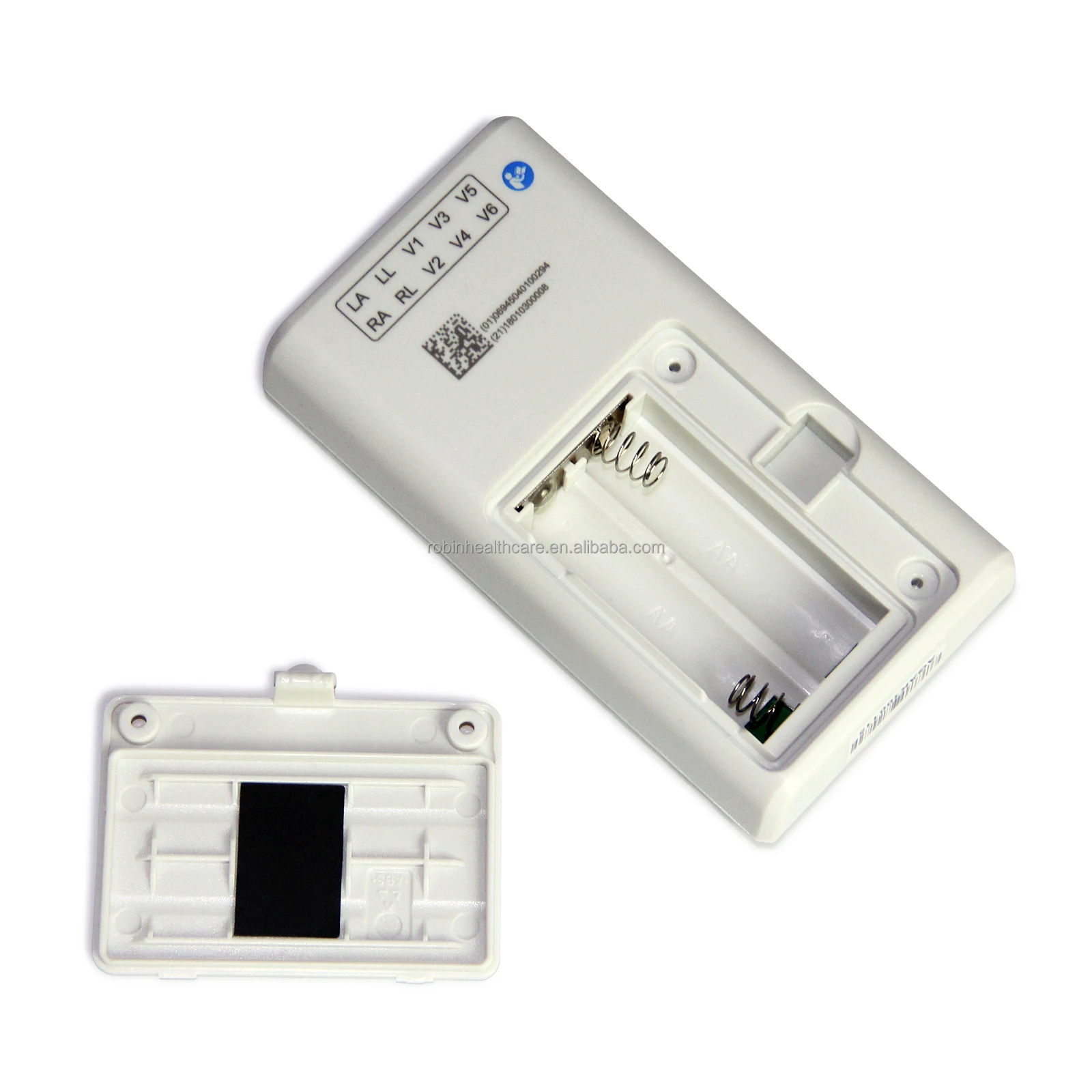

Power | 2 batteries in size 5 |
Interface | USB2.0 |
Scale voltage | 1mV±5% |
Standard Sensitivity | 10mm/mV±5% |
Noise level | ≤30μV |
CMRR | ≥60dB |
Feathers of low frequency | Time constant>3.2s |
Scan speed | 25mm/s+5% |
Enduring polarization voltage | ±300mV |
Least measure signal | 50 μV p-p |
Product safety type | Type B(lnternally powered) |
Size | 111mm(L)*60mm(W)*25mm(H) |
