30 to 150C Low Temperature Touch Screen Thermocouple Pt100 Bimetal Thermometer Dry Type Calibration Furnace
- Category: >>>
- Supplier: Beijing Shengruike Automation Equipment Co. Ltd.
Share on (1600226723918):
Product Overview
Description
Product Overview

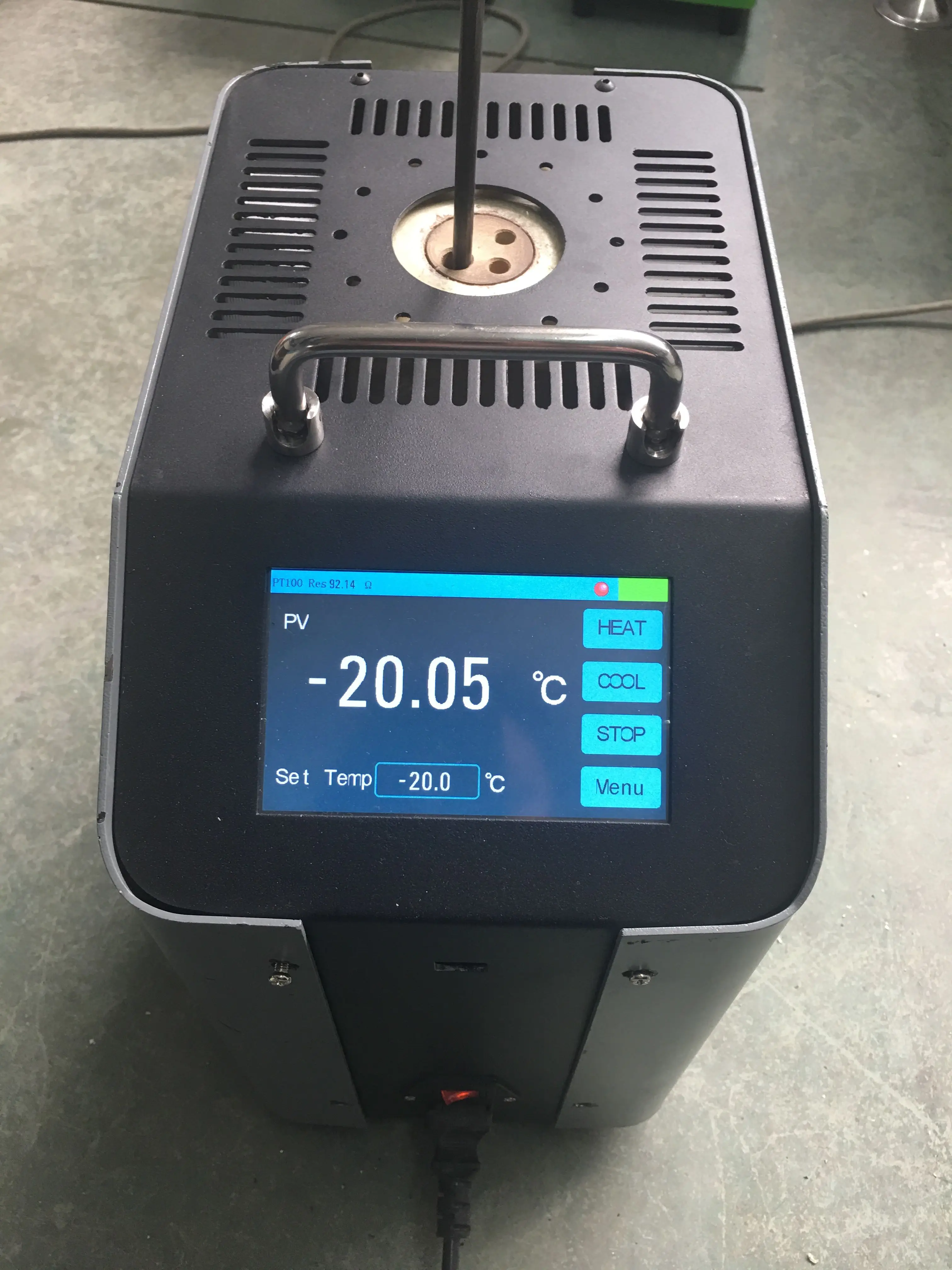

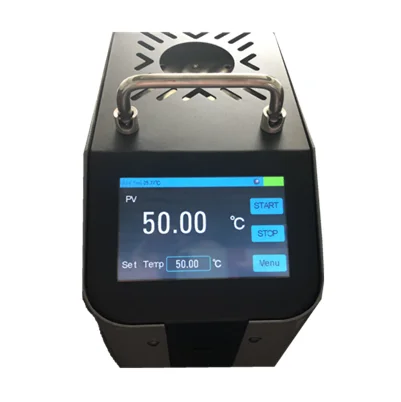

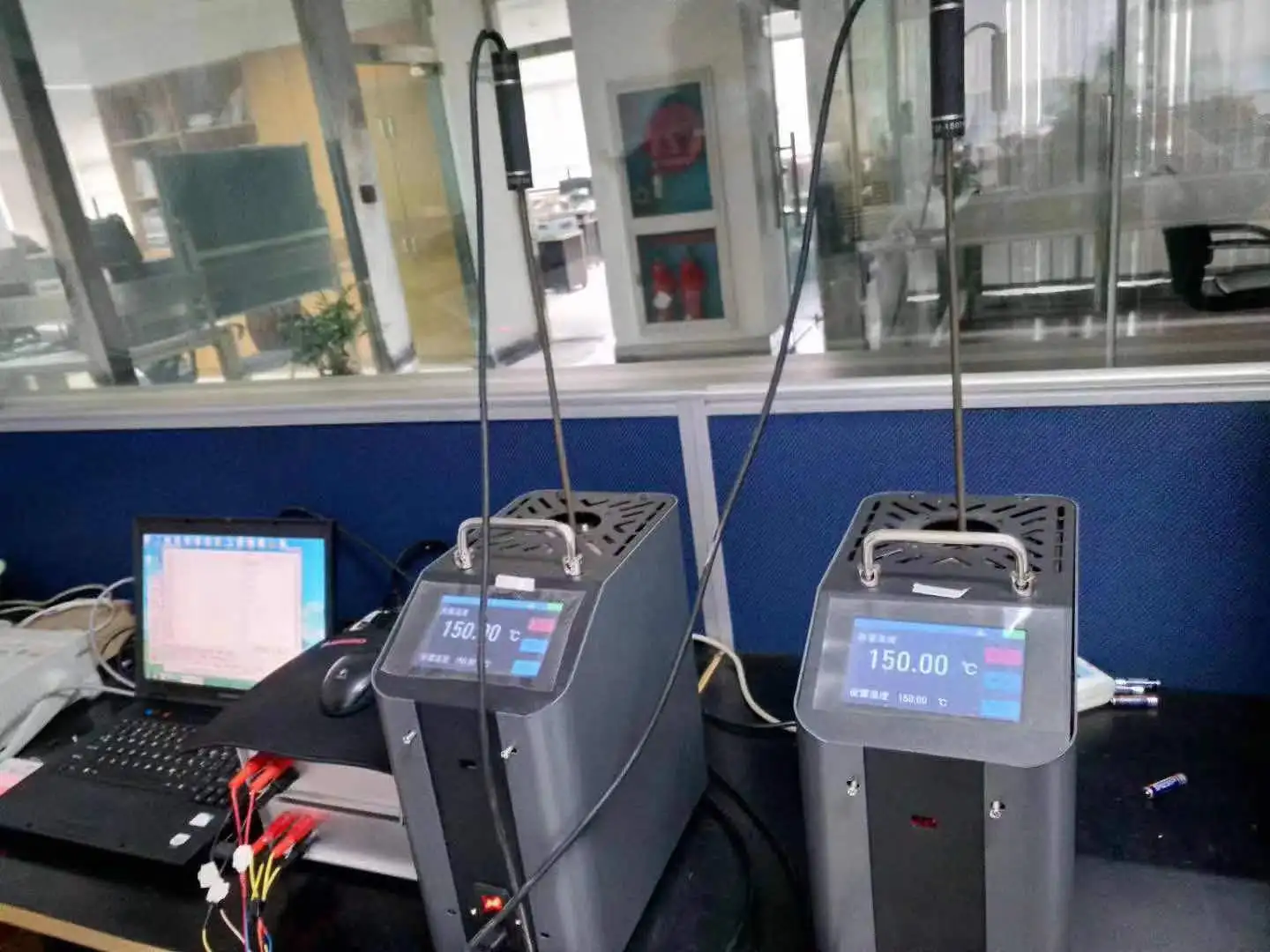

Touch Screen Dry Temperature Calibrator
Dry Temperature furnace is also called dry well, dry well furnace, dry metering furnace, temperature metering furnace, temperature calibrator, dry body temperature calibration furnace. Dry block furnace is a kind of convenient to carry, fast heating and cooling speed, very traditional on-site heat source (temperature field), the soaking block is made of alloy material with good heat conduction.
FEATURES AT A GLANCE
1.Small size, light weight, easy to carry;
2. Horizontal temperature and vertical temperature field;

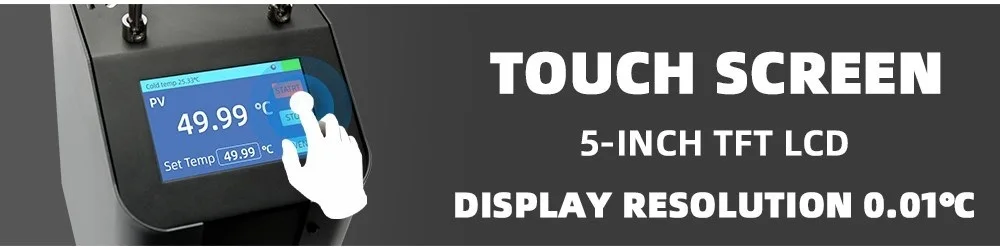

3.5 inches TFTLCD touch screen, 16 bit true color RGB display, full touch operation, intuitive use;
4. Fast cooling, easy to set, good temperature stability;
5.Hot and fast replacement;
6. With load short circuit, load switch, sensor protection and other functions.
2. Horizontal temperature and vertical temperature field;
3.5 inches TFTLCD touch screen, 16 bit true color RGB display, full touch operation, intuitive use;
4. Fast cooling, easy to set, good temperature stability;
5.Hot and fast replacement;
6. With load short circuit, load switch, sensor protection and other functions.
PRODUCT SPECIFICATIONS
Name | ToucchScreen Dry Temperature Calibrator |
Temperature | -30 to 150C |

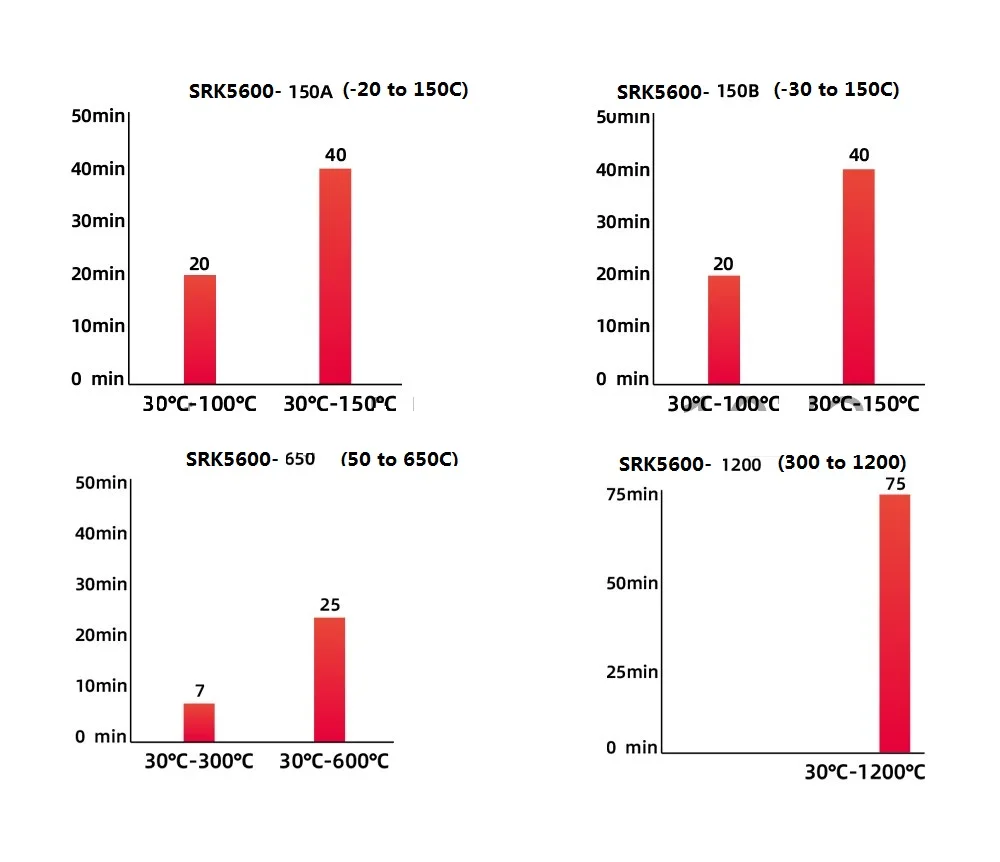

Heating Rate | 30~100:20min 30~150:40min |
Display accuracy | ≤±0.1℃ |
Insertion dept | 160mm |

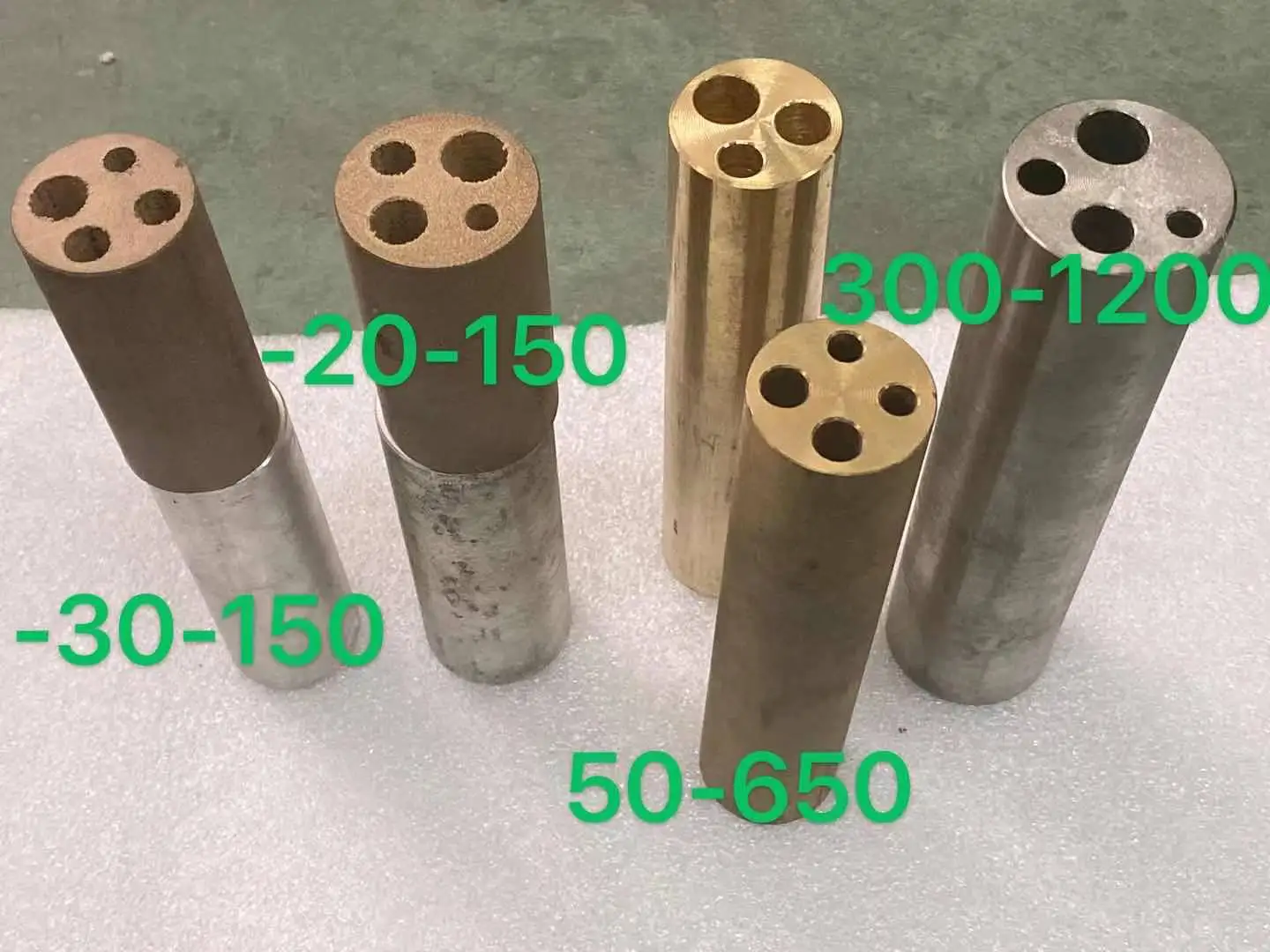

Average heat block diameter | 32mm |
Temperature field stability | ≤±0.02℃ |
Horizontal temperature field | ≤±0.05℃ |
Vertical temperature field | The deviation in the range of 50mm calculated from the bottom of the hole of the soaking block is 1 degree |
Temperature unit | C Or F |
Temp Accuracy | 0.1% or 0.2% |
Power Supply | 220VAC ± 10%, 45 ~ 60Hz, |
PRODUCT CONFIGURATION
Recommend Products
Name | Dry Temperature Calibrator |
Temperature | |
Average heat block diameter | 32mm |
Heating Rate | 30~100:20min 30~150:40min |
Temperature Display | C or F |
Power Supply | 220VAC ± 10%, 45 ~ 60Hz, |
Display resolution | 0.01C |

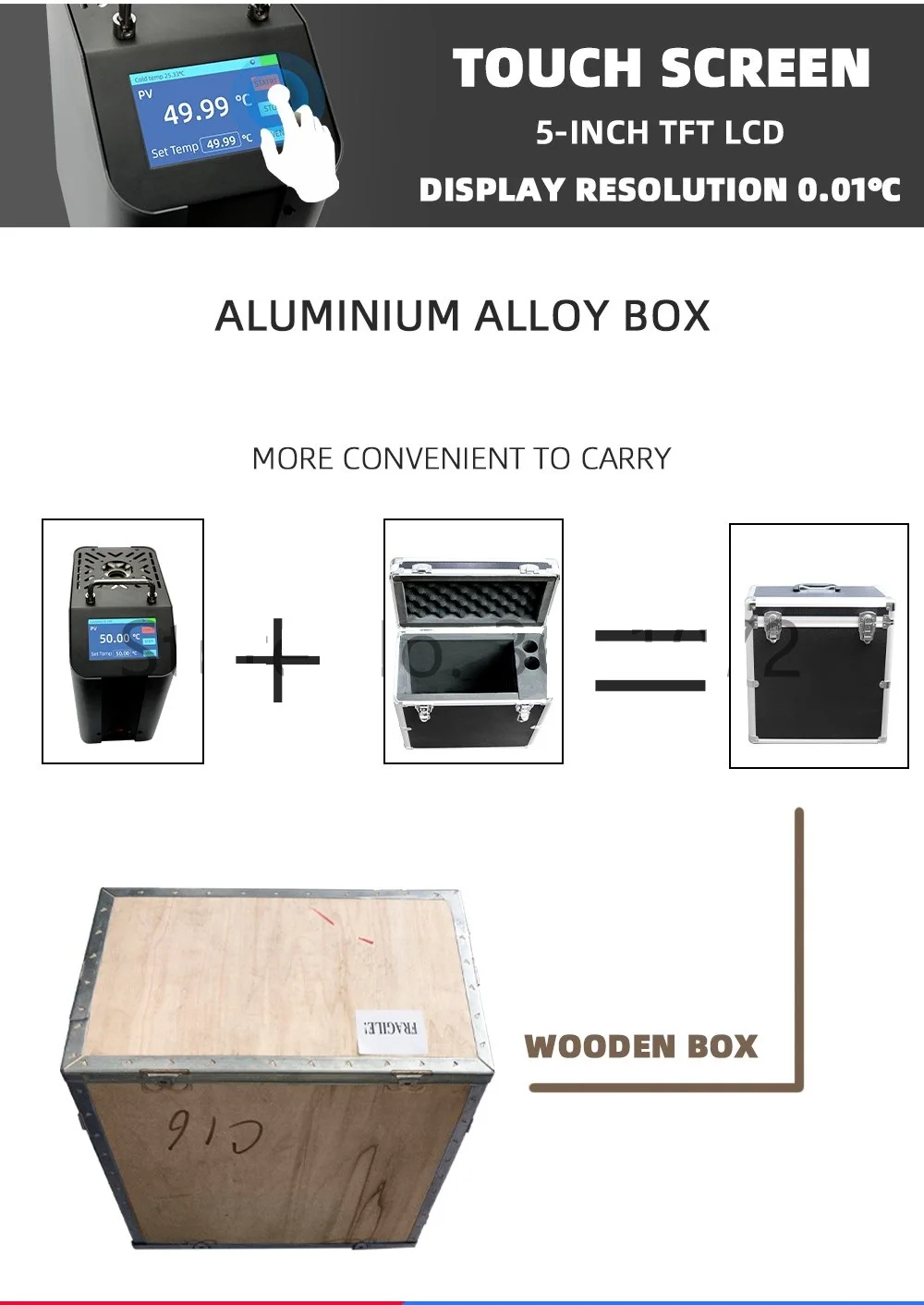

Shipping And Package
