PE or PVDF Coated ACP/ACM Sheet/ ACP Aluminum Composite Panel

Product Overview

Description

PE or PVDF Coated ACP/ACM Sheet/ ACP Aluminum Composite Panel

Competitive Advantages

1. Light and strong, High tensile, High shear strength, Lightweight, low density.
2. Green and environmentally friendly, energy-saving,100% Recyclable, long service life
3. Objectionable odor-free and formaldehyde-free
4. Waterproof and moisture dampening
5. With the excellent ability of waterproof, it can be well applied in the over-water buildings.
6. Corrosion-resistant, Strong resistance to chemicals, seawater Corrosion, superior weather resistance.
7. Sound isolation, efficient in reducing the damping vibration and absorbing the noises
8. Energy absorption, Special micro-foamed structure makes top bond excellent in absorbing energy, impact resistance and sharing the load.
9. Superior convenient installation, have superior performance, decrease the need for rivets

and sub-frames.

Protective film

A layer of PE plastic tape, to protect the panel surface from scratch or damage. The thickness and sticky standard are various upon different supplier.

Color coating

By function: PE & PVDF. PE is used for interior, with 10 year life-long expectancy; PVDF coating, with resistance on UV, acid and alkali, is more suitable for exterior usage, with 15-20 year guarantee.

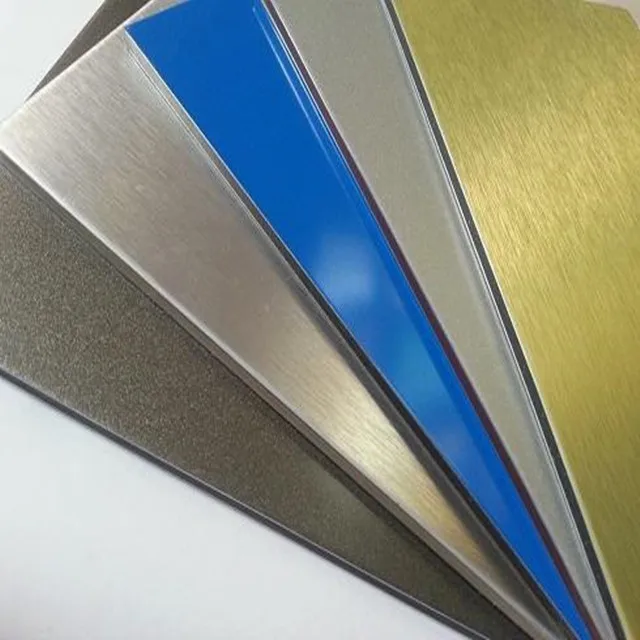

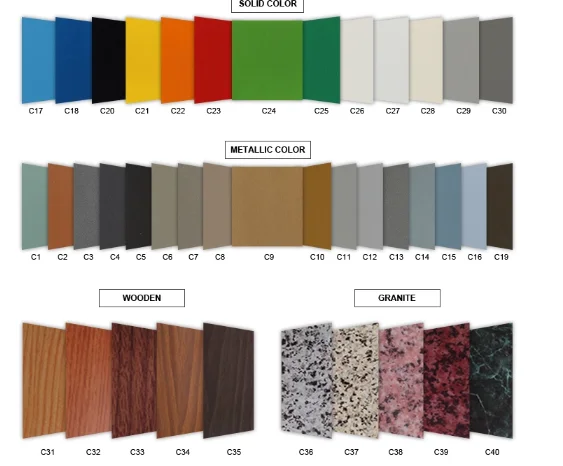

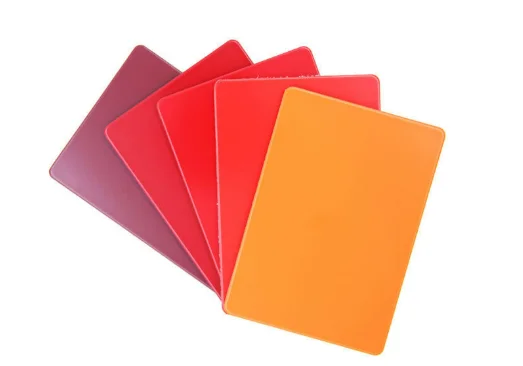

By color/pattern: solid color, metallic color, brushed finish, mirror finish, marble pattern, wooden pattern.

Aluminum skin

AA1100 and AA3003 are standard, other series are optional upon specified order.

Polyethylene core

By color: White PE core and Black PE core;

By function: Normal PE core, unbreakable PE core and fire-rated PE core.

Bottom coating

Mill finish or color service coating

Dimensions of Alucobond/Aluminum Composite Panel :
1) Thickness: 3mm, 4mm
2) Width: 1220mm
3) Length: 2440mm
4) Weight: 5.5kg/sqm based on 4mm thickness.
5) Standard size: 1220 x 2440mm
6) Nonstandard sizes are available according to requirement of customers

Material of Alucobond/Aluminum Composite Panel :
1) Front: aluminum alloy sheet coated with fluoro-carbon resin
(PVDF) and polyester resin (PE) roasting painting
2) Core: nontoxic polyethylene.
3) Back: aluminum alloy sheet coated with polyester resin painting
4) Surface finish: treated with PVDF and PE resin rolling roasting .
coating
5) Surface coating thickness: 30um
6 ) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm,
0.3mm, 0.4mm, 0.45mm, 0.5mm

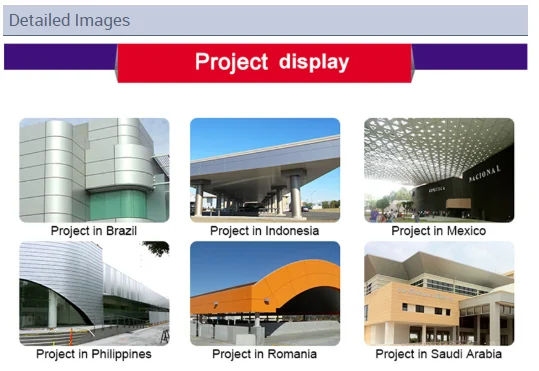

Application of Alucobond/Aluminum Composite Panel :
1) Building exterior curtain walls..
2) Decoration and renovation additions for old buildings
3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
4) Shop door decorations
5) Advertisement board display platforms and signboards
6) Wallboards and ceilings for tunnels..
7) Industrial materials, materials for vehicles and boats

Acm Sheet Aluminum Composite Material ACP Sandwich Panel for Building

Aluminum Alloy Type
Top & Bottom Alu. Skin : AA1100 , AA3003 series alloy
Coating Finishes : Aluminum Coil alloy (3003 Series) coated with KYNAR05OO based Fluorocarbon (PVDF utilizing a minimum 70% KDF resin).
PVDF Coating system offers Two or Three Layer coating depending on color selection such as Metallic colors and Normal RAL Colors.
Metallic Colors are normally Three (3) coat system consisting of a Primer, Color and Clear Top coat.
Normal RAL colors usually have Two (2) coat system composed of Primer and Color Coat.

Acm Sheet Aluminum Composite Material ACP Sandwich Panel for Building

1. Good weatherability, high strength and easy maintenance.
2. Convenient construction and short construction period.
3. Excellent processing, heat breaking, sound insulation and excellent fire performance.
4. Good plasticity, impact resistance, can reduce building load, good shock resistance.
5. Good leveling, light and strong.
6. Many colors are available.
7. Simple processing machines and tools can be processed locally.
8. Standards and standards can be customized
