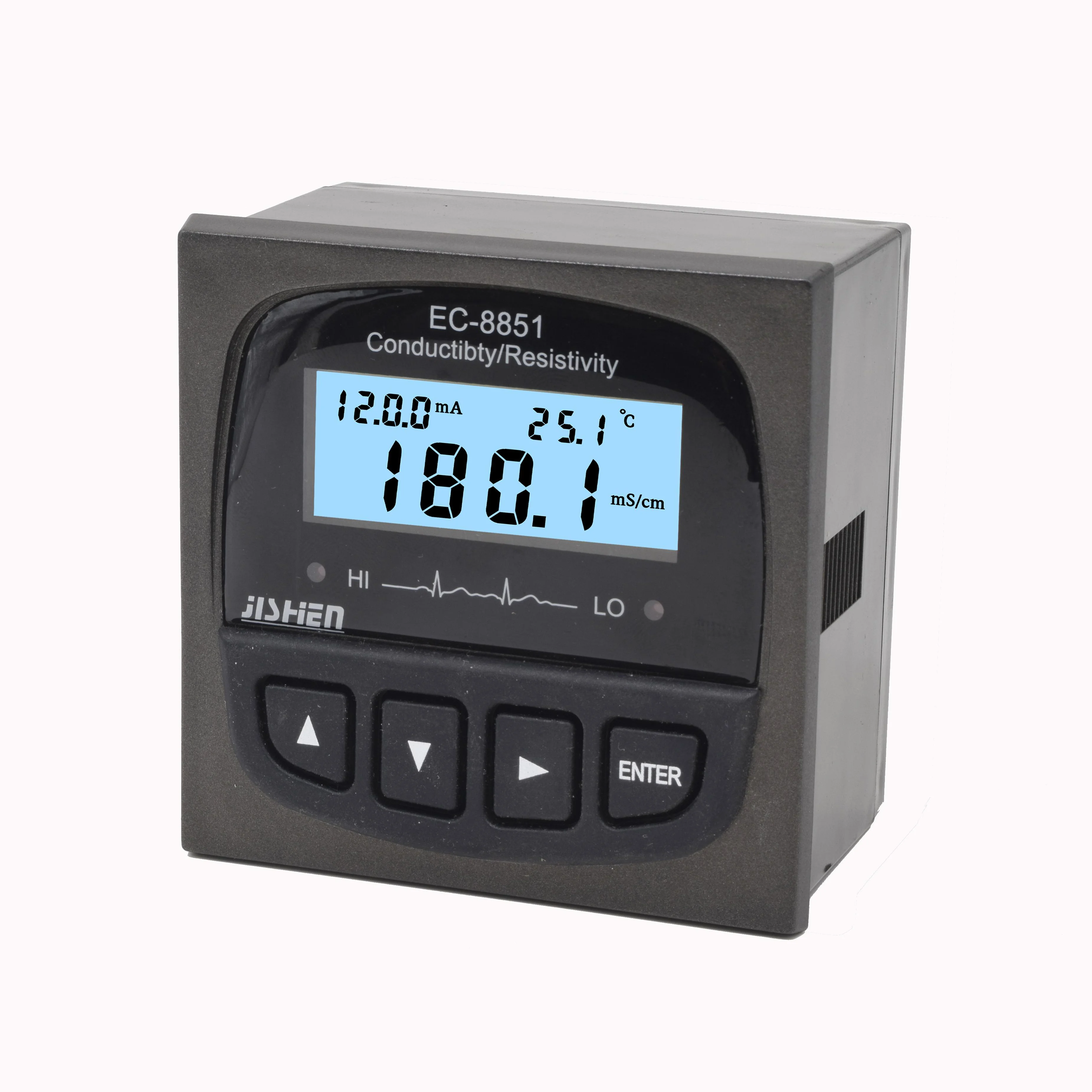

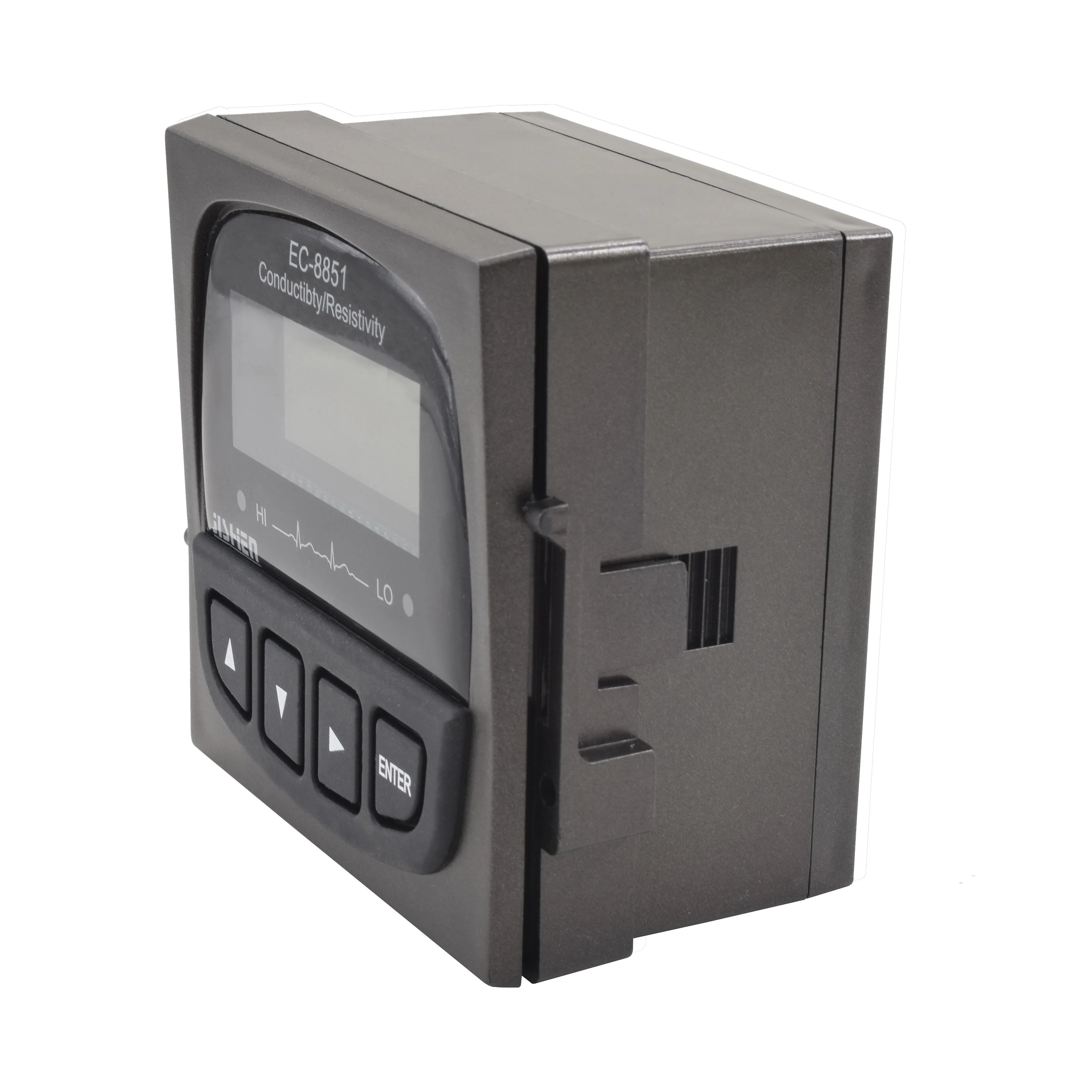

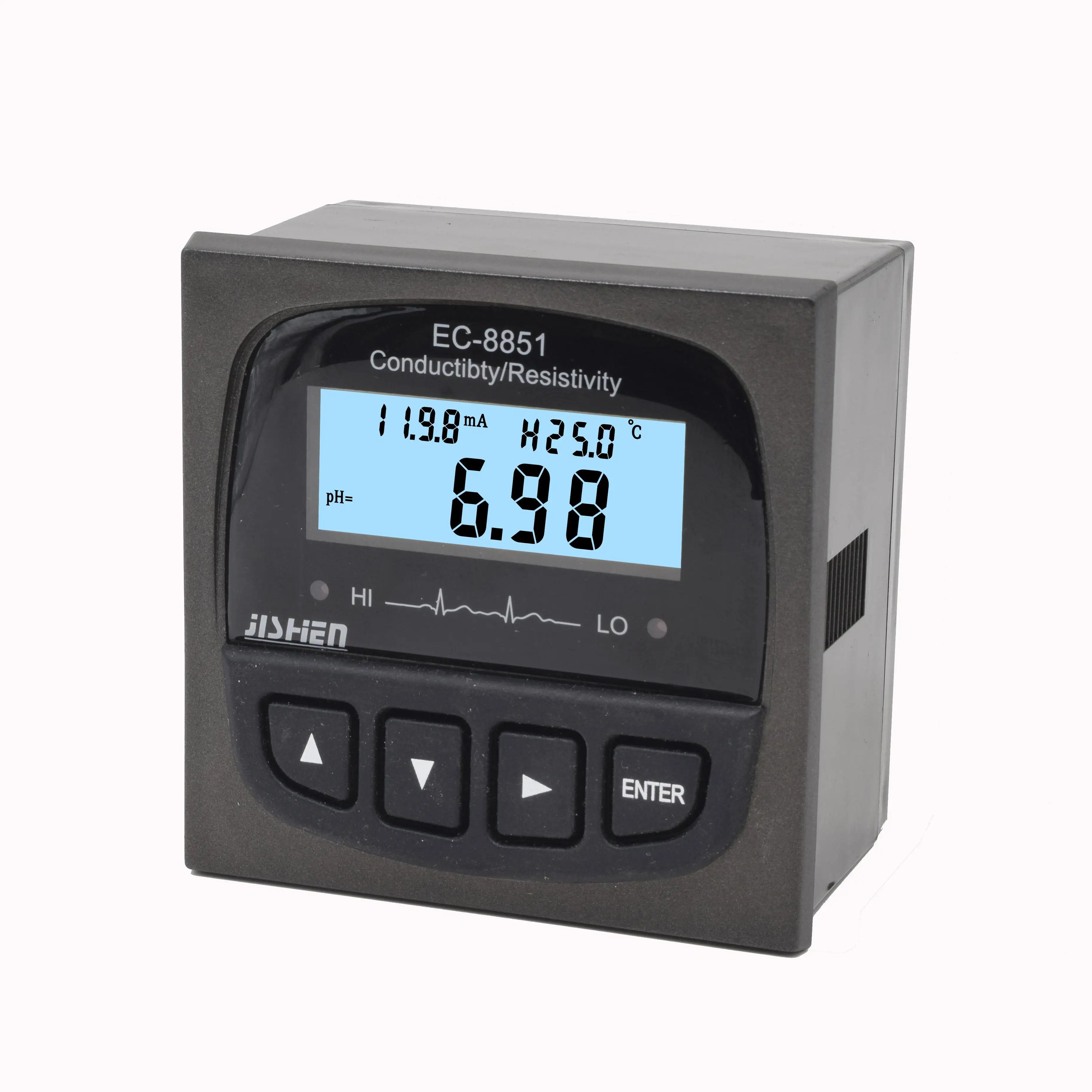

TDS Meter EC Controller Conductivity Controller with RS485
- Category: >>>
- Supplier: Shijiazhuang Jishen Tongchuang Technology Co. Ltd.
Share on (1600226895372):
Product Overview
Description
Products Description
Features
• Conductivity/temperature/TSD/mA value display measurement can be performed, switch display by pressing the key
• Upper and lower limit dual relay control, isolated 4-20mA output, settable range
• Character type LCD display
• Support high temperature conductivity measurement, the range is 0~120℃
• Standard DC24V power input, meeting EU export standards
• RS485 communication
• Relay output
• Upper and lower limit dual relay control, isolated 4-20mA output, settable range
• Character type LCD display
• Support high temperature conductivity measurement, the range is 0~120℃
• Standard DC24V power input, meeting EU export standards
• RS485 communication
• Relay output
Measuring range | 0.5~200uS;1~2000uS; |
2~4000uS;10~10.000uS | |
0.2~20.00mS;2~200.0mS | |
0.01~18.25MΩ | |
Accuracy | ±1.5%1FS |
Temperature range | Based on 25℃, automatic temperature compensation |
Medium temperature | The normal temperature 0~50℃ High temperature 0~120℃ |

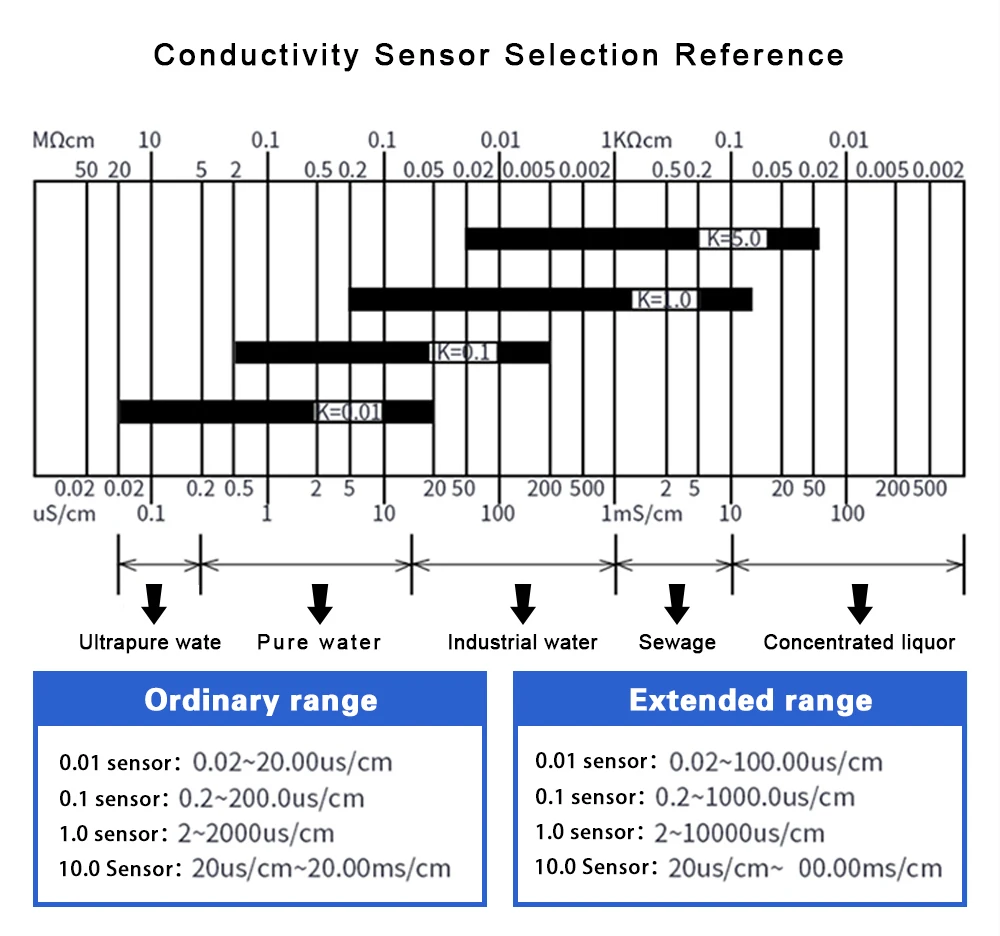

Cell constant | 0.01/0.02/0.1/1.0/10.0cm-¹ |
Online correction | Conductivity correction ±19.99uS Temperature correction±99.99℃ |
Dimension | 96*96*72mm(high*wide*long) |
Installation method | The embedded |
Recommend Products
Product Paramenters
Installation Instructions
Company Profile
Shijiazhuang Jishen Technology Co., Ltd. was founded in 2012 with the registered trademark of "Jishen Technology". In 2017, the company changed its name to Shijiazhuang Jishen Tongchuang Technology Co., Ltd after the internal administrative adjustment. And re-registered the trademark as "Jishentongchuang".
Jishentongchuang focuses on the business of water quality online analysis instruments and the research and development of electrochemical sensors in various water analysis-based industries. It is also an important birthplace of domestic analytical instruments. After ten years of hard work, it has gradually developed into one of the scientific instrument companies in the industry, integrating scientific instrument research and development, production, sales, application, integration and service.
"Jishentongchuang" focuses on water quality analysis, and its products include industrial online conductivity/resistivity meters, pH meters, ORP redox potentiometers, dissolved oxygen measurement and control instruments, residual chlorine measurement and control instruments, turbidity meters, impeller flow meters, RO reactors Infiltration program controllers, industrial PLC controllers and system integration, including many categories, are widely used in environmental protection, municipal water affairs, health and disease control, food and pharmaceuticals, education and scientific research, science and technology agriculture, petrochemicals, electric power, metallurgy, third-party testing And other fields.
We take "to improve people's quality of life, provide high-tech analytical instruments and high-quality services" as the mission, adhering to the core values of "integrity, truth-seeking, innovation, refinement, cooperation, and far-reaching", innovation-driven, pursuit of excellence, and striving for innovation World-class, determined to become a leading scientific instrument manufacturer and a provider of monitoring and traceability system solutions and operational services.
We take "to improve people's quality of life, provide high-tech analytical instruments and high-quality services" as the mission, adhering to the core values of "integrity, truth-seeking, innovation, refinement, cooperation, and far-reaching", innovation-driven, pursuit of excellence, and striving for innovation World-class, determined to become a leading scientific instrument manufacturer and a provider of monitoring and traceability system solutions and operational services.
