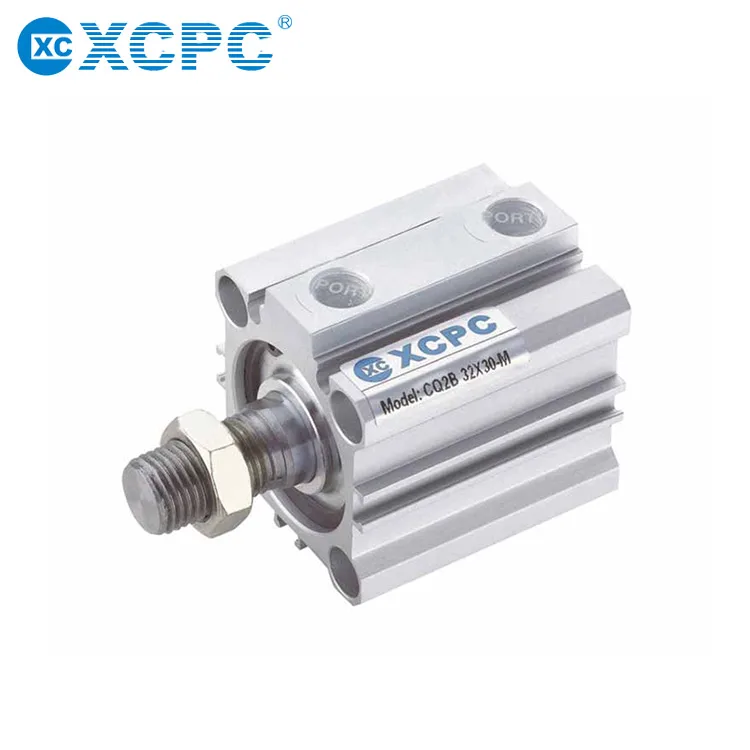

XCPC SDA Series inner thread Adjust stroke with magnet Compact Thin Type Pneumatic Cylinder
- Category: >>>
- Supplier: Ningbo Xinchao Automatization Component Co. Ltd.
Share on (1600226979271):
Product Overview
Description

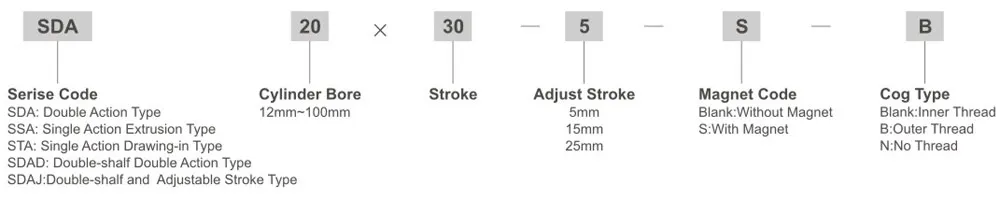

Ordering Code
Specification
| Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Motion Pattern | Double Acting | ||||||||||
| Single Action Extrusion type Single Action Drawing-in Type | - | ||||||||||
| Working Medium | Air | ||||||||||
| Operating Pressure Range | Double Action | 0.1~0.9MPa | |||||||||
| Single Action | 0.2~0.9MPa | - | |||||||||
| Ensured Pressure Resistance | 1.35MPa | ||||||||||
| Operating Temperature Range | -5~70℃ | ||||||||||
| Operating Speed Range | Double Action | 30~500mm/s | 30~350mm/s | 30~250mm/s | |||||||
| Single Action | 100~500mm/s | - | |||||||||
| Buffer Type | Fixed Type Buffer | ||||||||||
| Port Size | M5X0.8 | G1/8" | G1/4" | G3/8" | |||||||

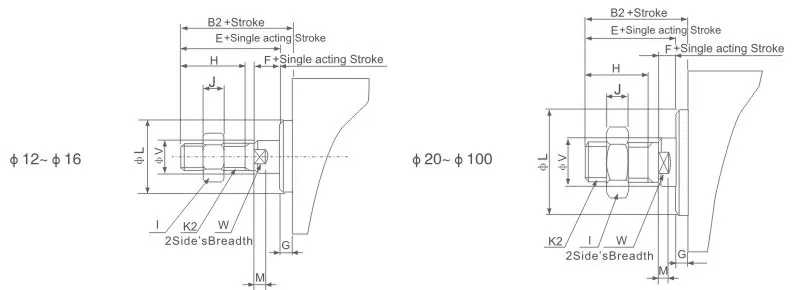

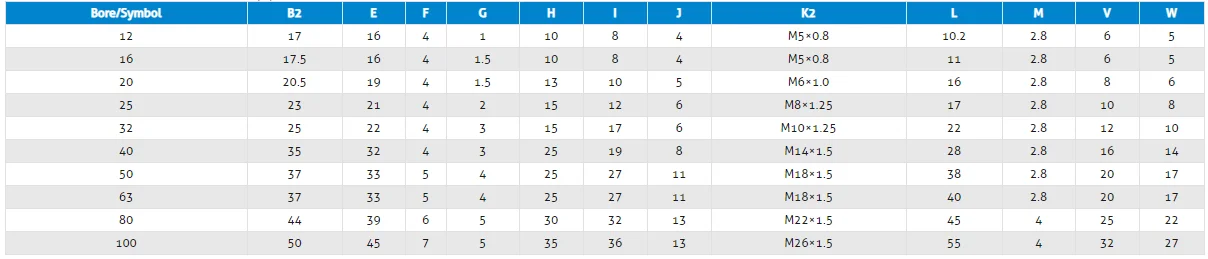

Overall Dimensions
Our Service

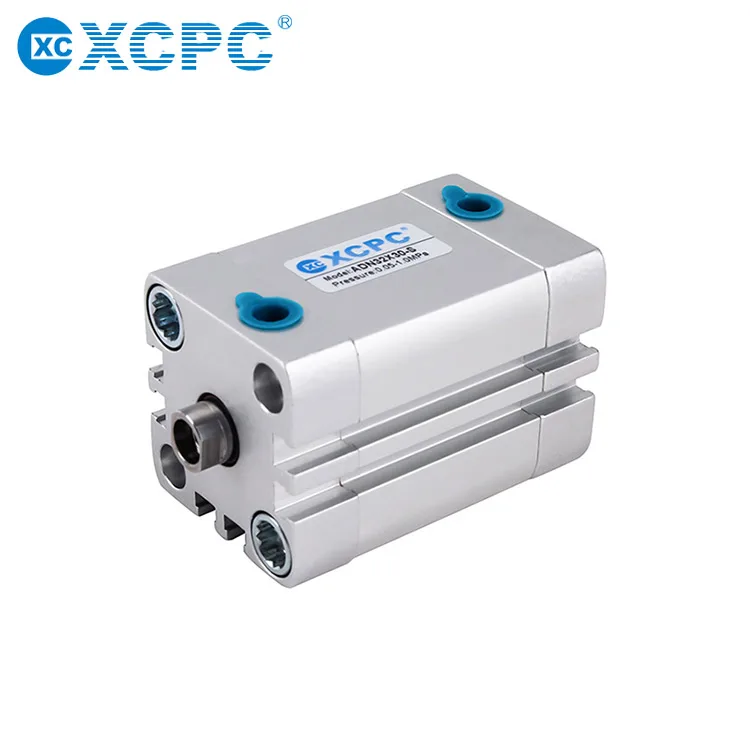

1.This time, we can supply ADN series pneumatic cylinder.
1). Bore size(mm): 12,16,20,25,32,40
2). Stroke(mm): 25-1000mm,50,63
2. We also can supply ADN series assembly kits, aluminum tubes and piston rod to all over the world clients.
3. In order to support our clients business, we also can send catalogues to them together with their orders.
Application
