Slope Reinforcement HDPE geocell

Product Overview

Description

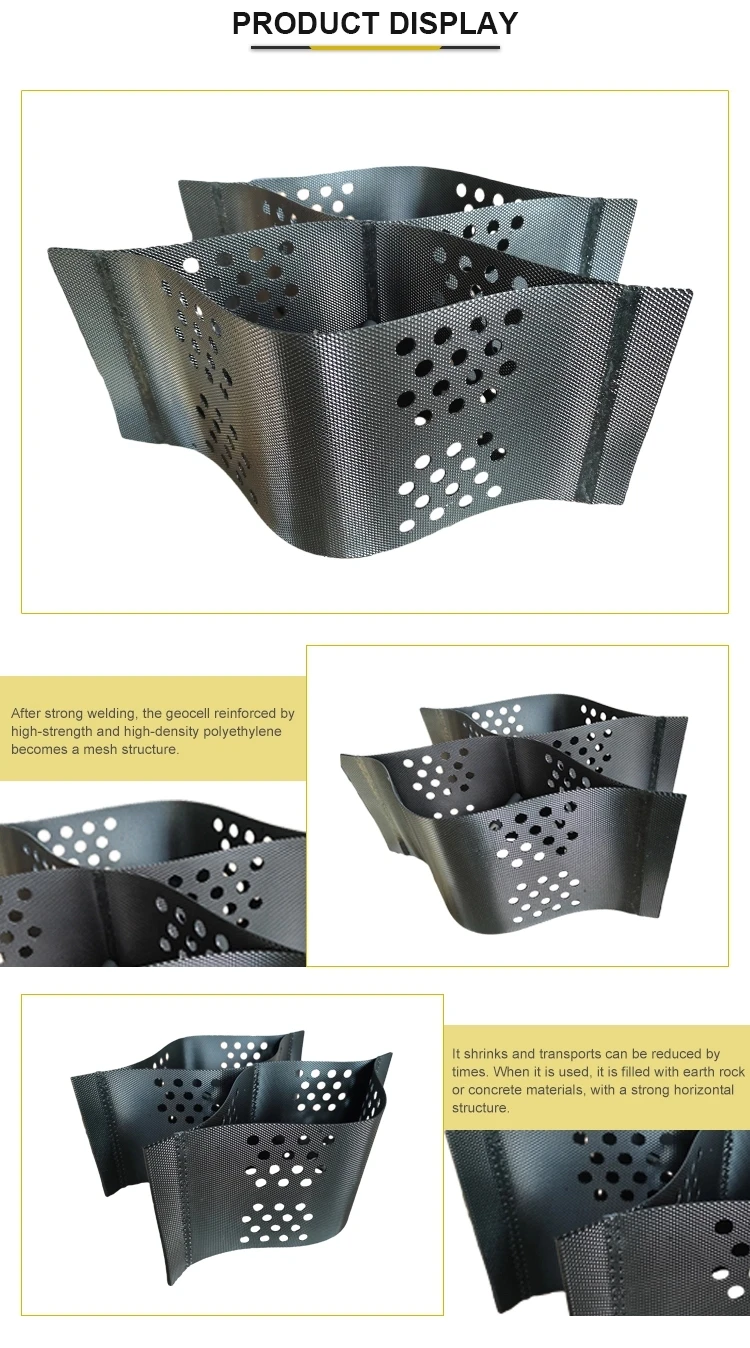

Slope Reinforcement HDPE geocell

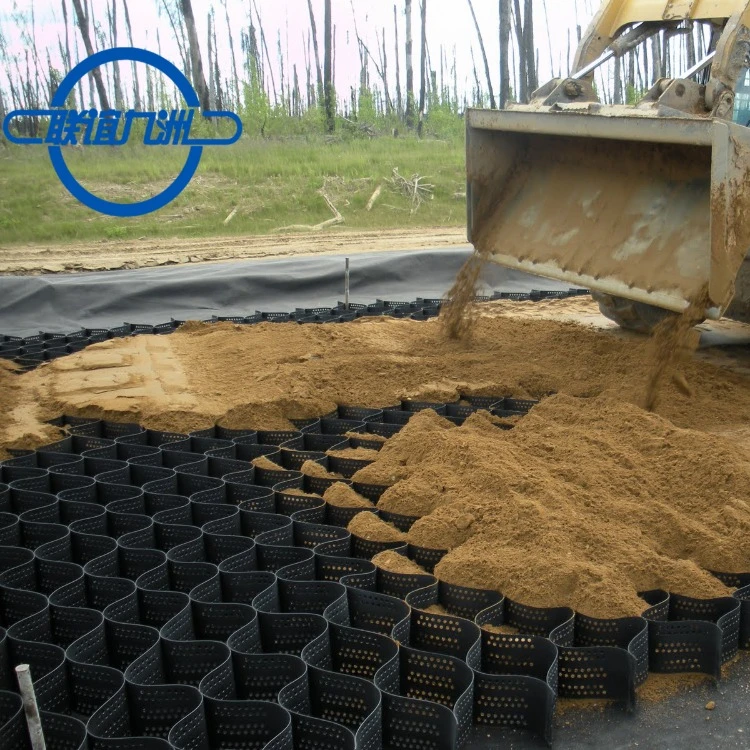

Geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with GB/T 19274-2003 implemenation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction,the geocell can be pull into a network and launched into a three-dimensional honeycomb grid.As it filled in sol,macadam,concrete or other gran

ular materials,constituted to be a construction which has strong sidewise restraint and high rate of stiffness.

Material	100% Original HDPE
Standard Color	Black  Green  Tan  White
Jointing	Ultrasonic Welding

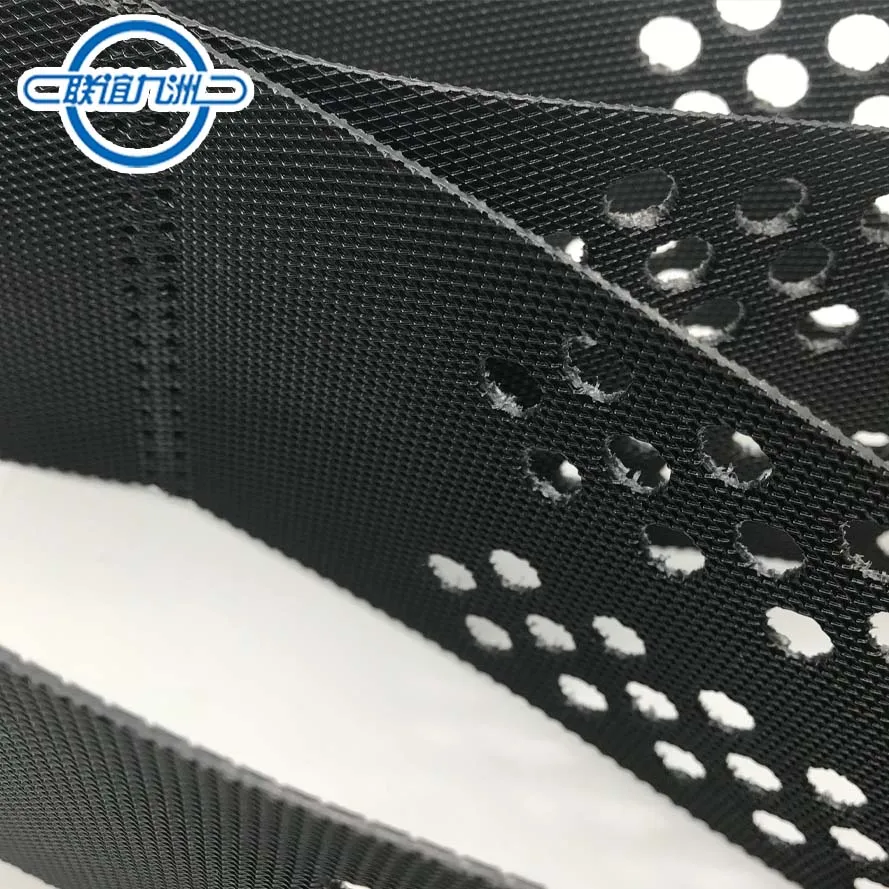

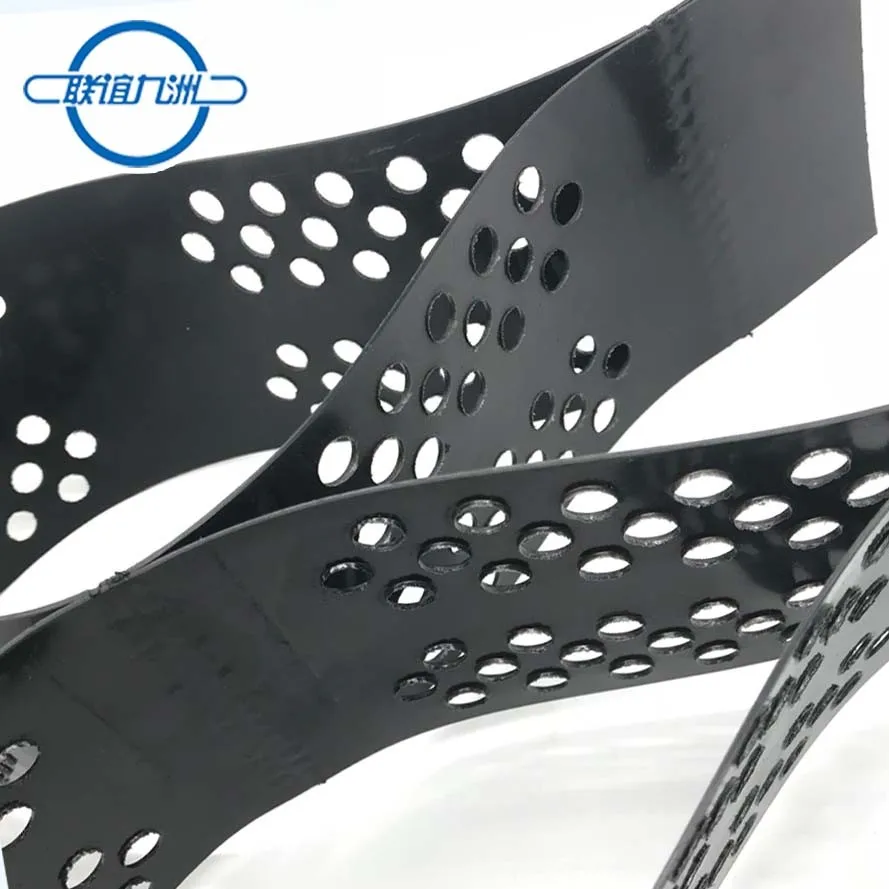

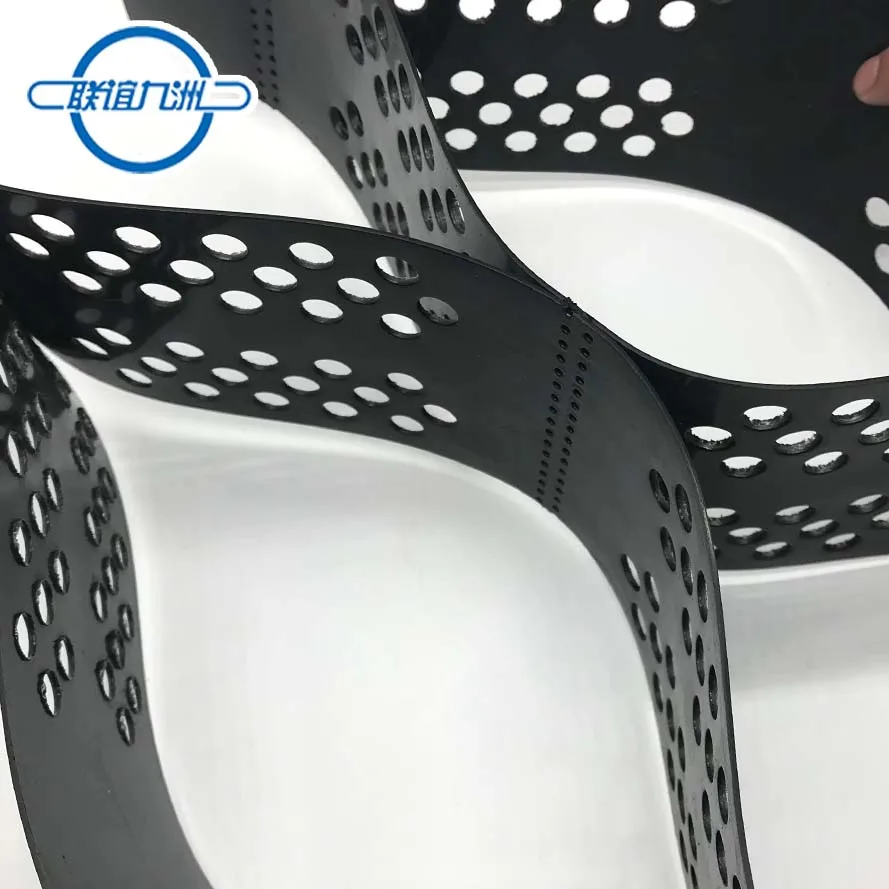

Surface	Smooth, Textured, Perforated, Non-Perforated
Density(g/cm3)	>0.94	ASTM D792
Carbon Black Content(%)	1.5~2.0~2.5	ASTM D 1603
Sheet Thickness(mm)	≥1.25 ≥1.50 ≥1.75	ASTM D 5199
Seam Peel Strength(KN/m)	≥14.2	COE GL-86-19
Low Temperature Brittleness(℃)	<-77	ASTM D 746
Environment Stress Crack Resistance(Hours)	>4000	ASTM D 1693
