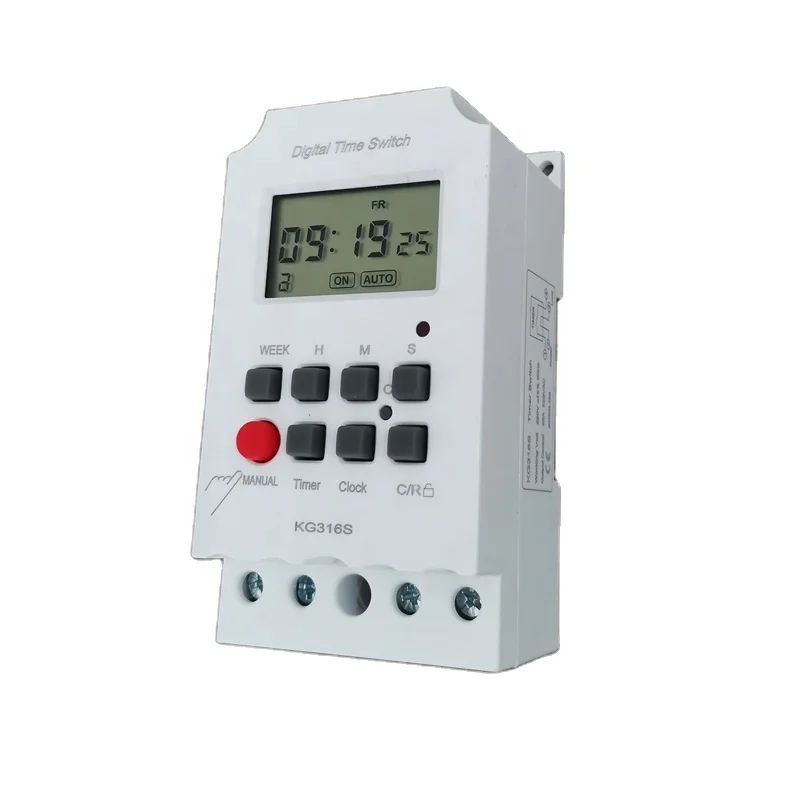

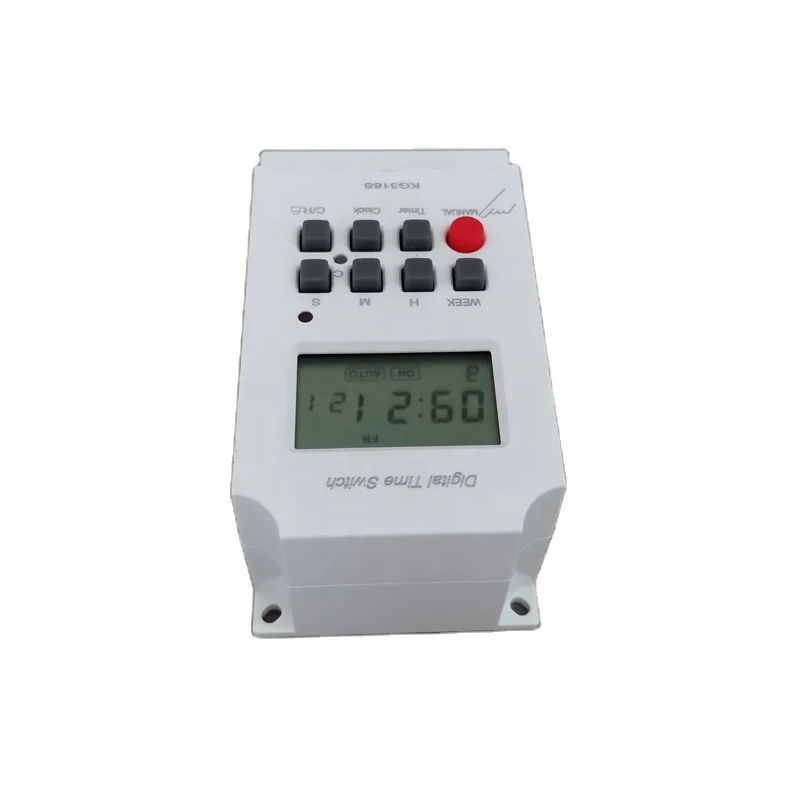

KG316S 32 ON 32 OFF minum setting seconds weekly programmable timers

Product Overview

Description

Description

Voltage: 220V 50-60HZ

customized: 110V, 12V,24V
Capacity: 25A  250VAC
Display: LCD
Programs:32 on/off each day or week
Timer range: 1min~168hrs
Mini interval: 1 mins
Hysteresis: 2s/day (25°C)
Average error: 1s/24h, 25°C
Battery power: 3 year
Power consumption 1 VA (MAX)
Temp.range: -25°C~+60°C

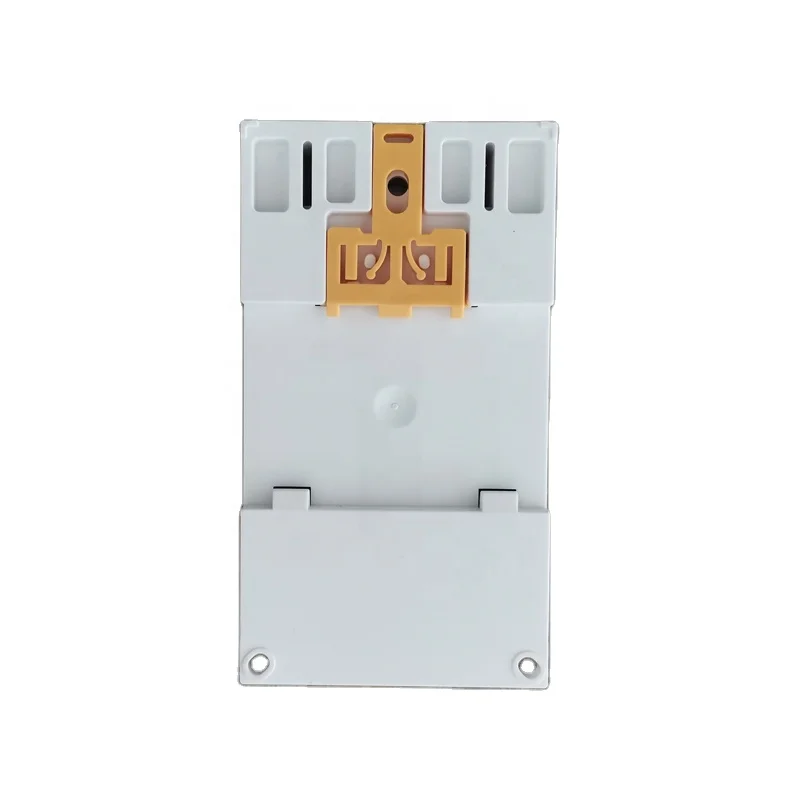

mounting: DIN rail or M3 screws



Application:

7 days 24hrs Programmable switch timer can automatically switch on and switch off various kinds of electric equipment at a preset time. It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. It has the features of low consumption, high-accuracy chip, strongly anti-jamming, simple and easy to set, confirms to IEC60367 and CE certificated.



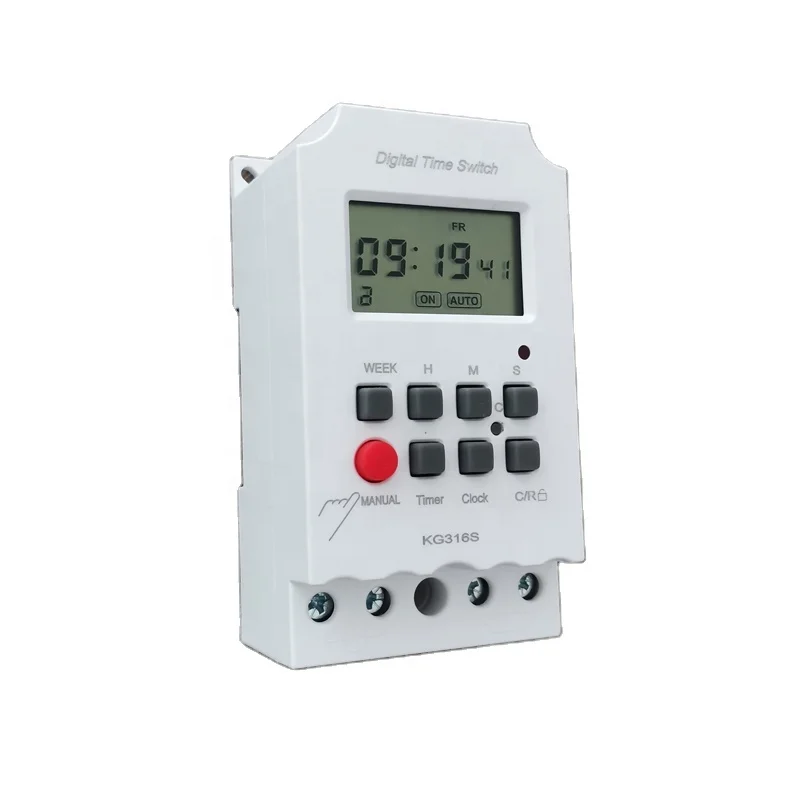

1> time clock operation manual:

press C for 3s	time switch starting up
press WEEK	set days in one week
press H	set hours in 24hrs
press M	set minutes in one hrs
pree S





2> timer setting Operation manual:

Press  TIMER	Setting 1 ON time (display 1 on)
Press H/M	Setting hours and minutes
Press WEEK	Select same everyday, different everyday, MO-FR, MO-SA, SA-SU, MO WE FR,TU TH SA, MO-WE, TH-SA.
press S	select seconds in one minutes
Press  TIMER	Setting 1 off time (display 1 off)
Press H/M	Setting hours and minutes turn off time
Press WEEK	select days as same as ON. If you want same set in every day, you need not press this key
Press S	Select seconds in one minute
Repeat step 1~8 Set	set other 2~32 ON/OFF time
Press  clock	finish the time setting
press manual	setting programs ON, AUTO ON, OFF, AUTO OFF
press C/R 4 times	lock the display, prevent anybody damage the setting. press 4 times again, unlock  the  display.

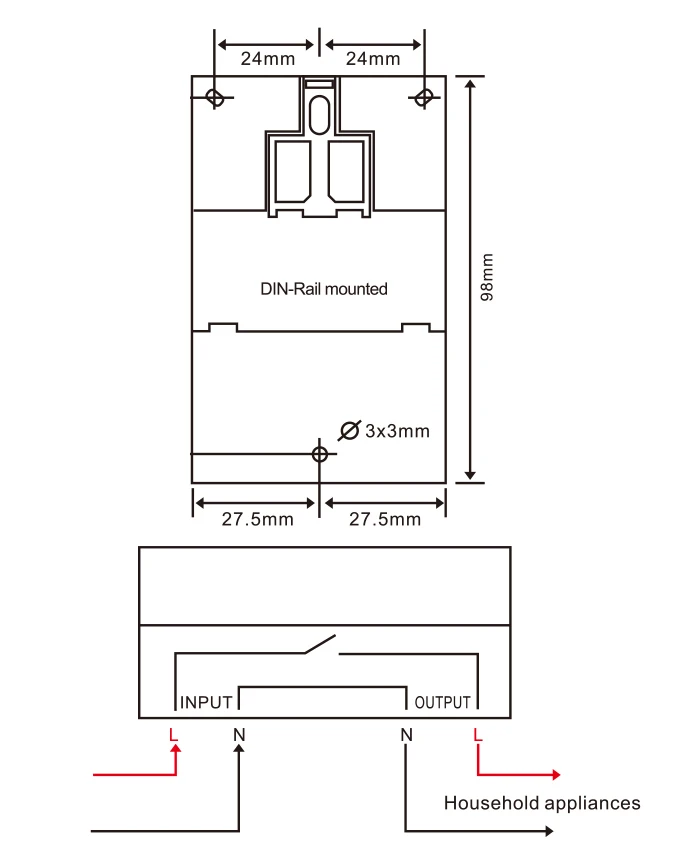

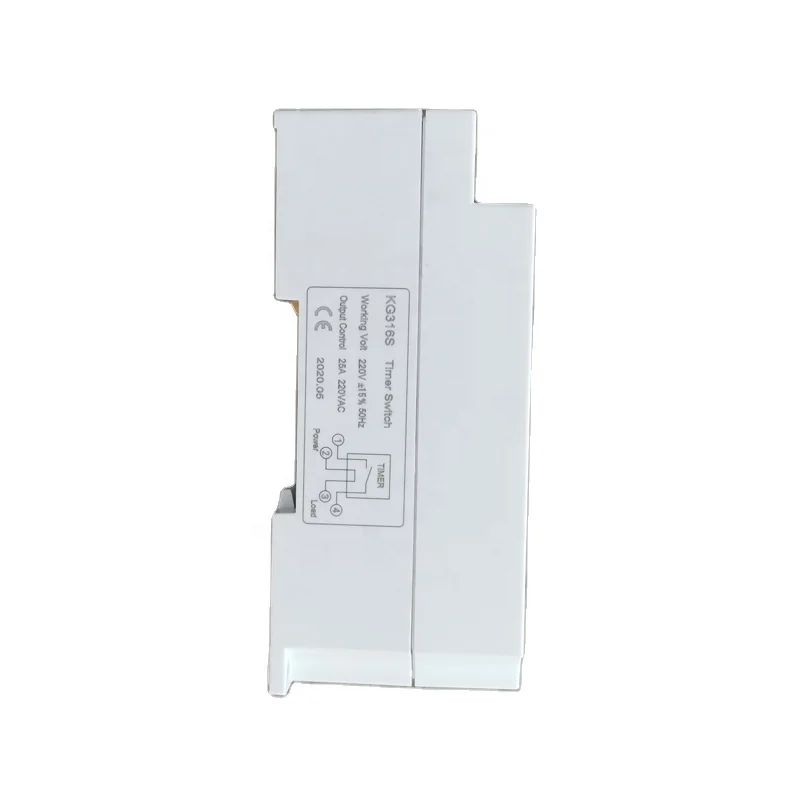

3> Loading wire connection





inside pack by paper box with a manual

outside pack by paper carton with ship marking.
