Q404 DC12V 500m 12 volt winch radio wireless remote control with any voltages
- Category: >>>
- Supplier: Nanjing Xiading Electronic Technology Co. Ltd.
Share on (1600227096232):
Product Overview
Description
Specification

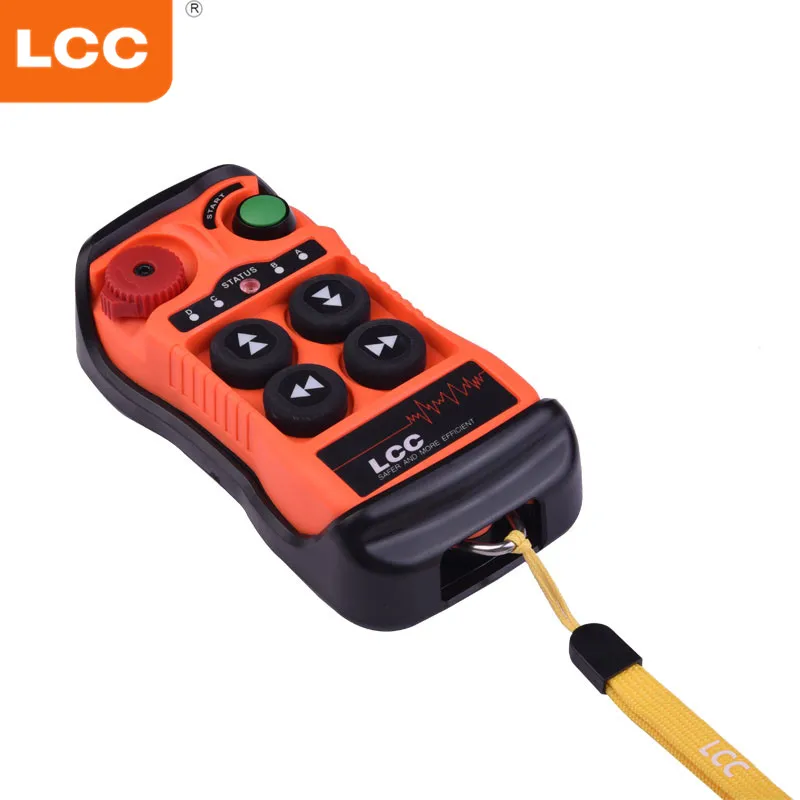

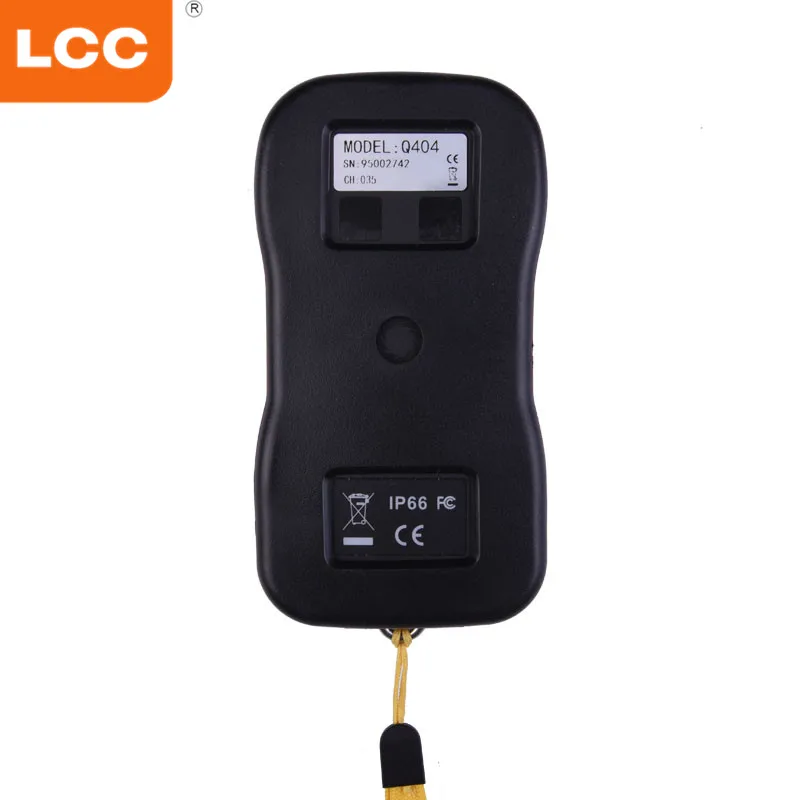

Transmitter parameter:
| Frequency | 433/480MHZ |
| Temperature range | -35℃~+75℃ |
| Average power consumption | 8mA@DC3V(mA@DC) |
| Transmitter RF power | <10(mW) |
| Command response time | <100(ms) |
| Shell material | PA6(30%GF) |
| Control method | GFSK |
| Control distance | 100m |
| Protection level | IP65 |
| Power supply | LR6(AA)1.5V*2DC3V(DC) |
| Frequency control | PLL |
| Stop command response time | <100(ms) |
Specifications

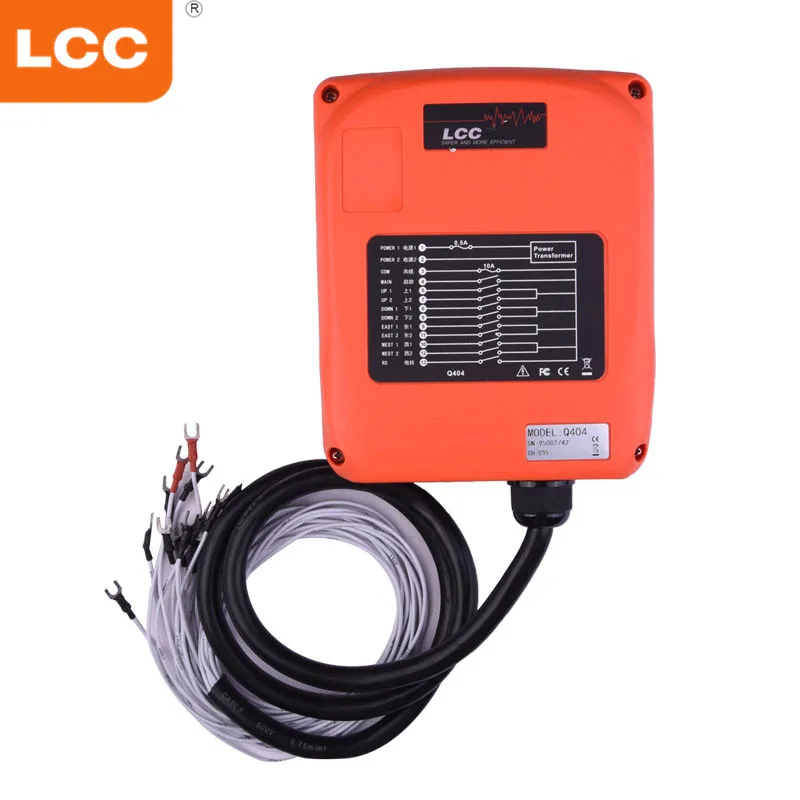

Receiver parameter:
| Frequency | 433/480(MHZ) |
| Shell material | PA6(30%GF) |
| Average power consumption | 15mA@AC220V |
| Power supply(AC/DC) | AC36V AV220V AC380V |
| Operating temperature | -10℃~+70℃ |
| Receiving sensitivity | -122(dBm) |
| Receiving capacity | 5A@250W(A@AC) |
| Control distance | 100m |
| Frequency control | PLL |
| Distribution method | GFSK |
| Reaction time | 50-100(ms) |
| Protection level | IP65 |
Commodity brand
Commodity Brands:
| Commodity | Country | Brand |
| Botton(single) | Germany | Marquardt |
| Botton(double) | Japan | Alps |
| Capacity | USA | VISHAY |
| Inductor | Korea | Samsung |
| Emergency stop | Japan | IDEC |
| Relay | USA | Tyco |
| Diode/transistor | USA | TEXAS |
| Crystal oscillator | TaiWai | Hongxing |
FAQ
FAQ
Q: what is your moq?
A: Thank you for your question. We can accept sample orders for trial orders.
Q: Is there a warranty?
A: All our brand products are guaranteed for 12 months. We provide 24-hour after-sales service and technical support. Please feel free to contact us if you find any problems during installation.
Q: will you provide after-sales service?
A: Of course
1) All products are subject to strict factory quality inspection before packaging.
2) All products are packaged in our factory, and the second package is delivered through express service before shipment.
3) If there is any problem during operation or installation, please feel free to contact us and we will solve it with professional guidance.
Q: what certificates are approved for your product?
A: We have CE, FCC, ISO9001.
Q: Can you customize it to my needs?
A: You can send me an inquiry according to your own needs, and we can customize it with technical engineers.
Q: Is your price the lowest?
A: Do you mind the quality? The quality we supply is good value for money, inferior products will waste and affect the working process, why not choose medium price to work well?
Q: Is the product 100% assembled?
A: Yes, all products are 100% assembled.
