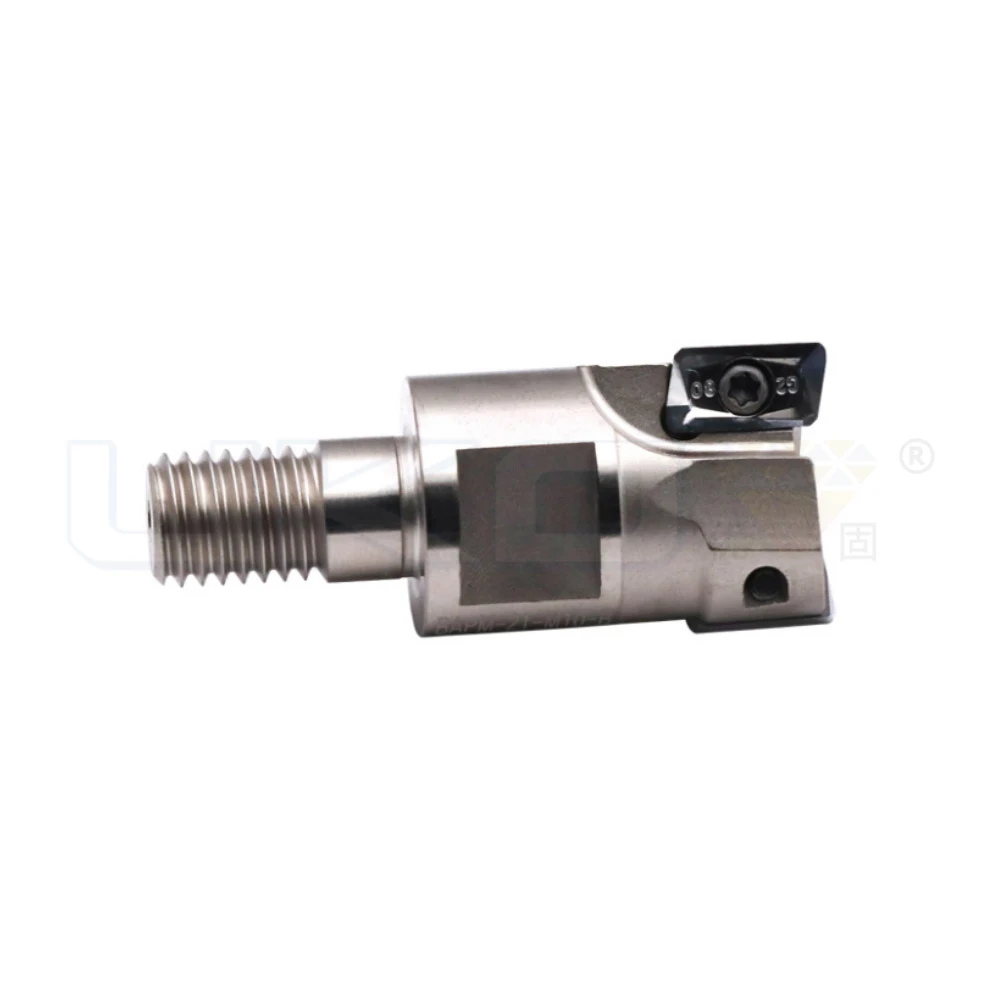

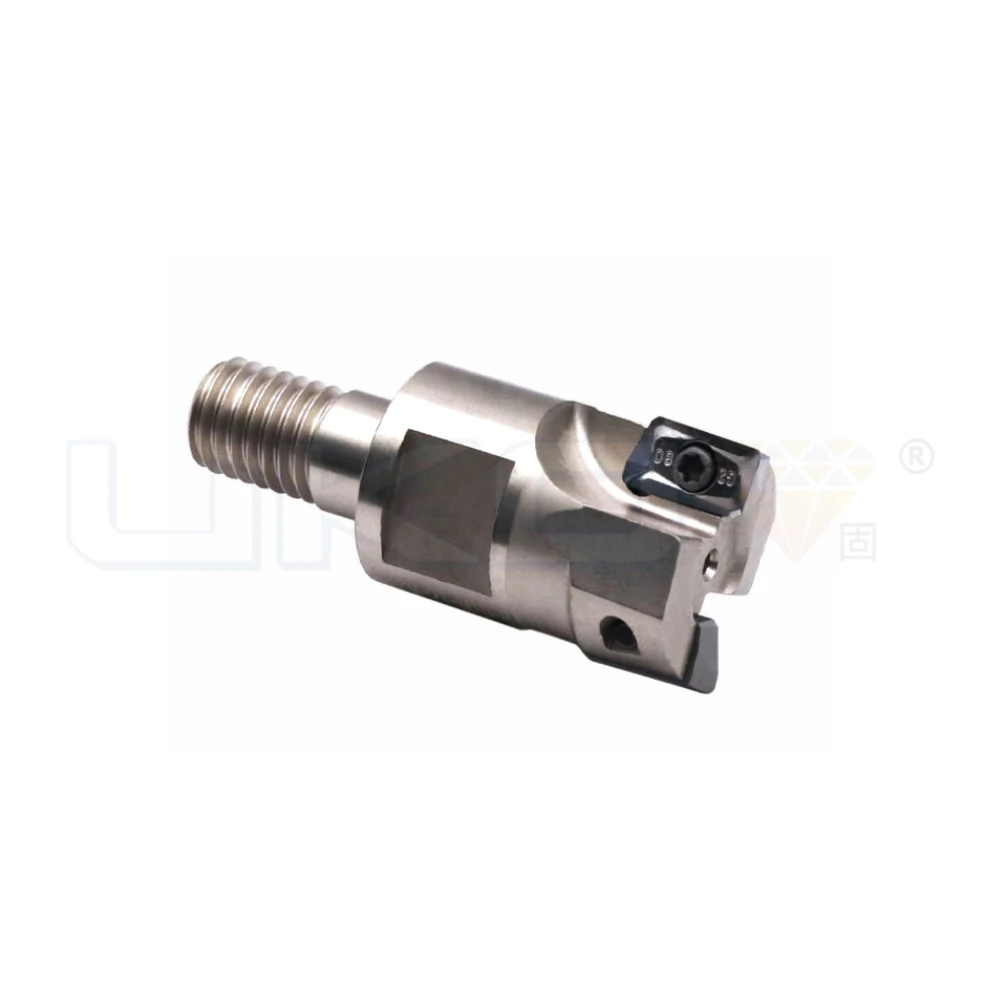

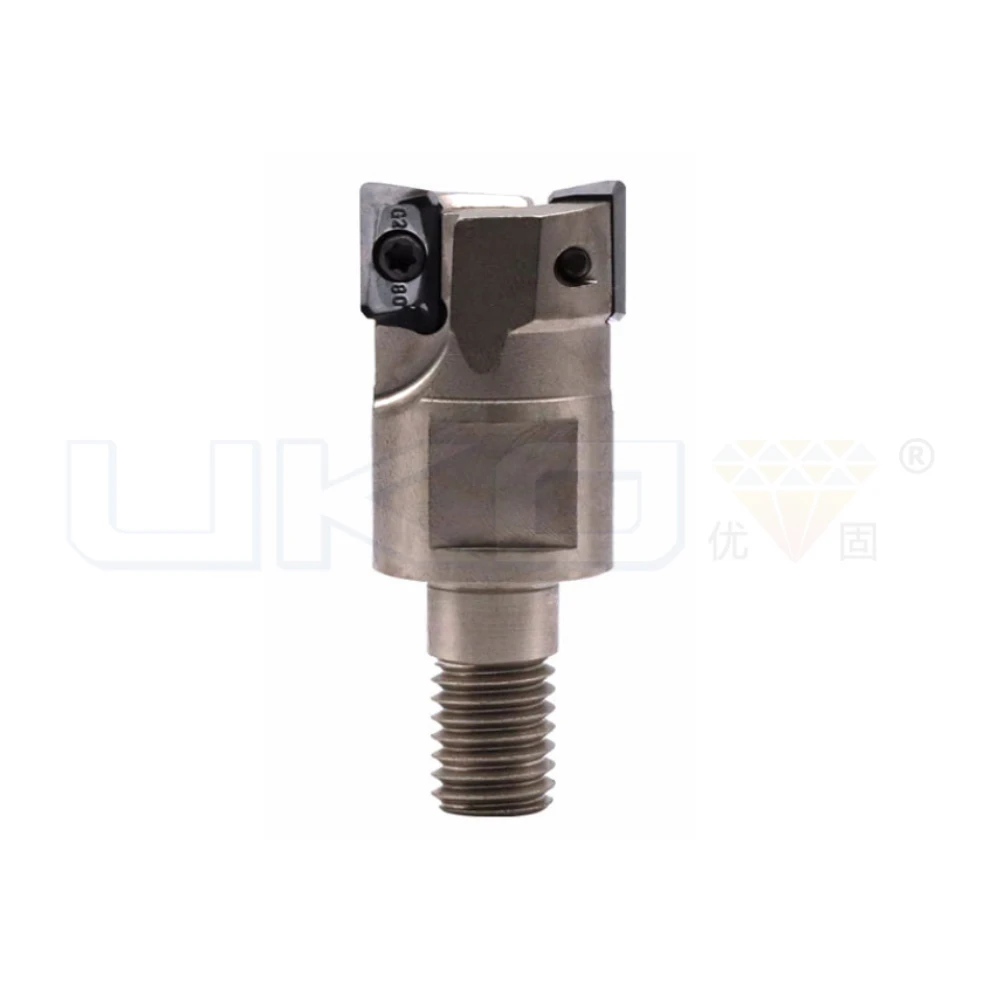

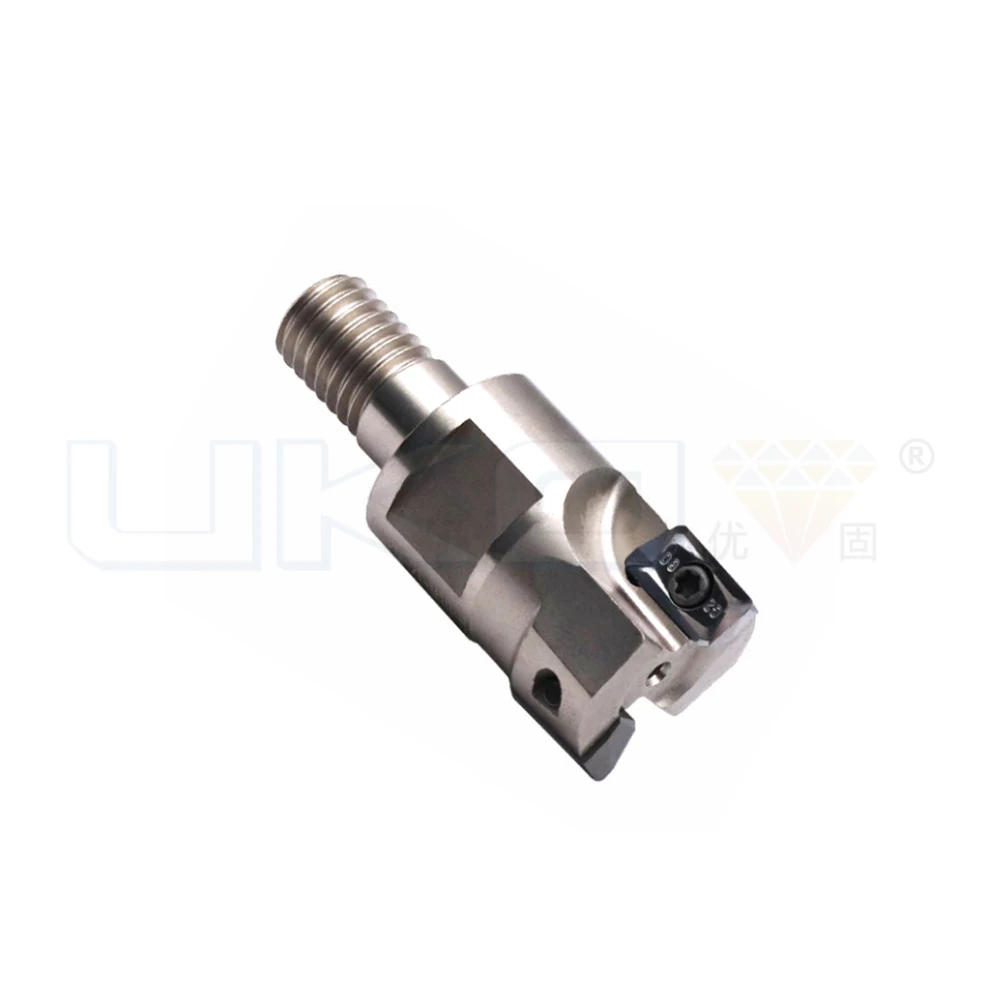

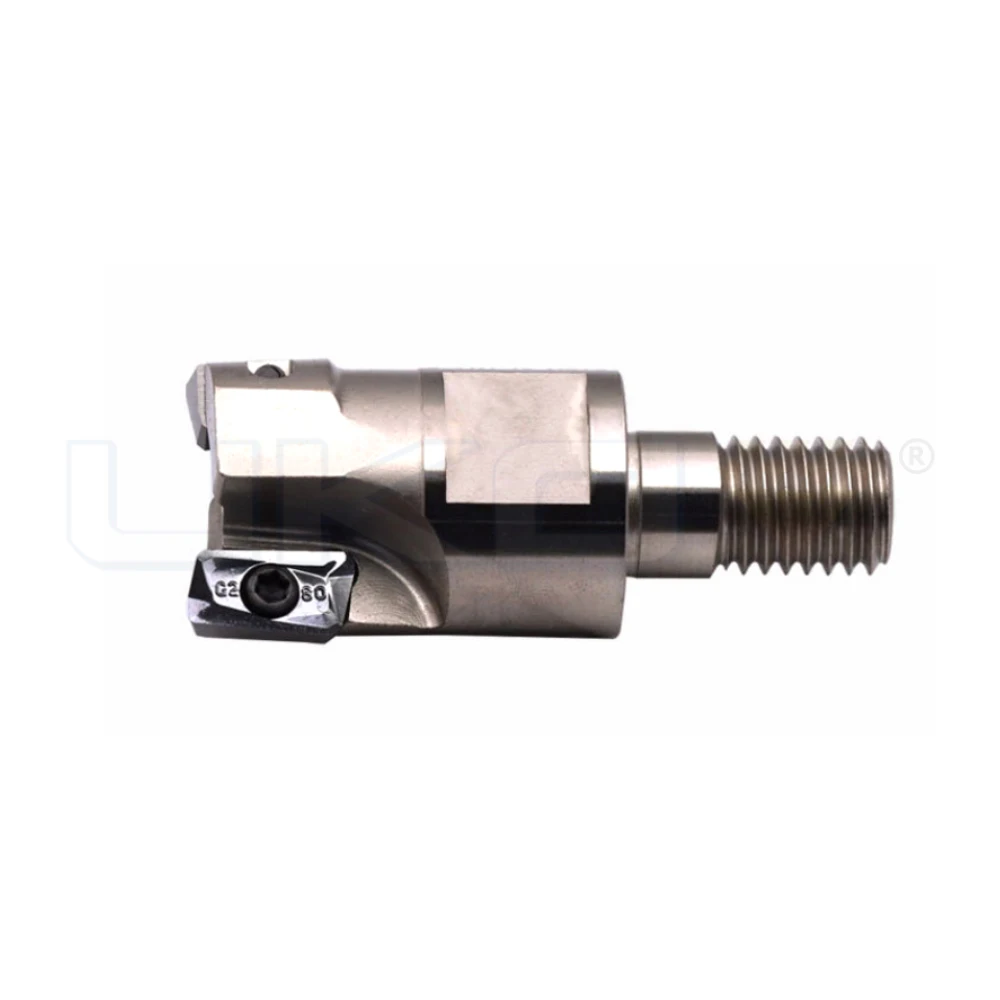

BAP300R Modular End Mill Head Milling Cutter For APMT Milling Inserts

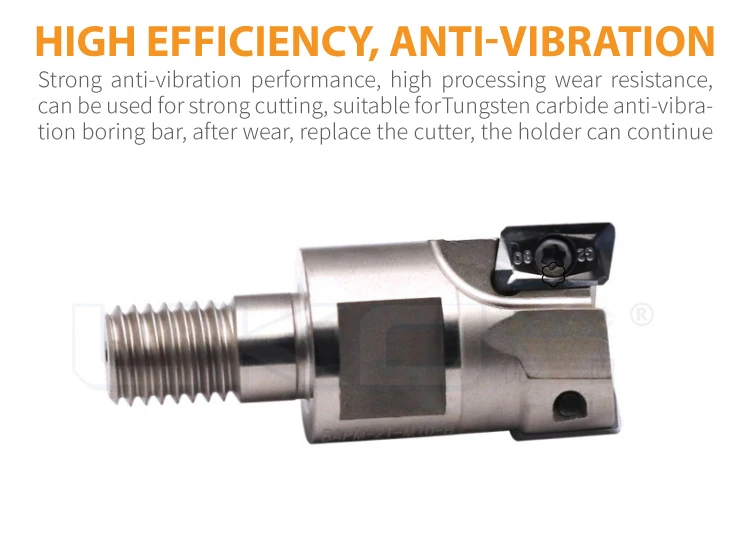

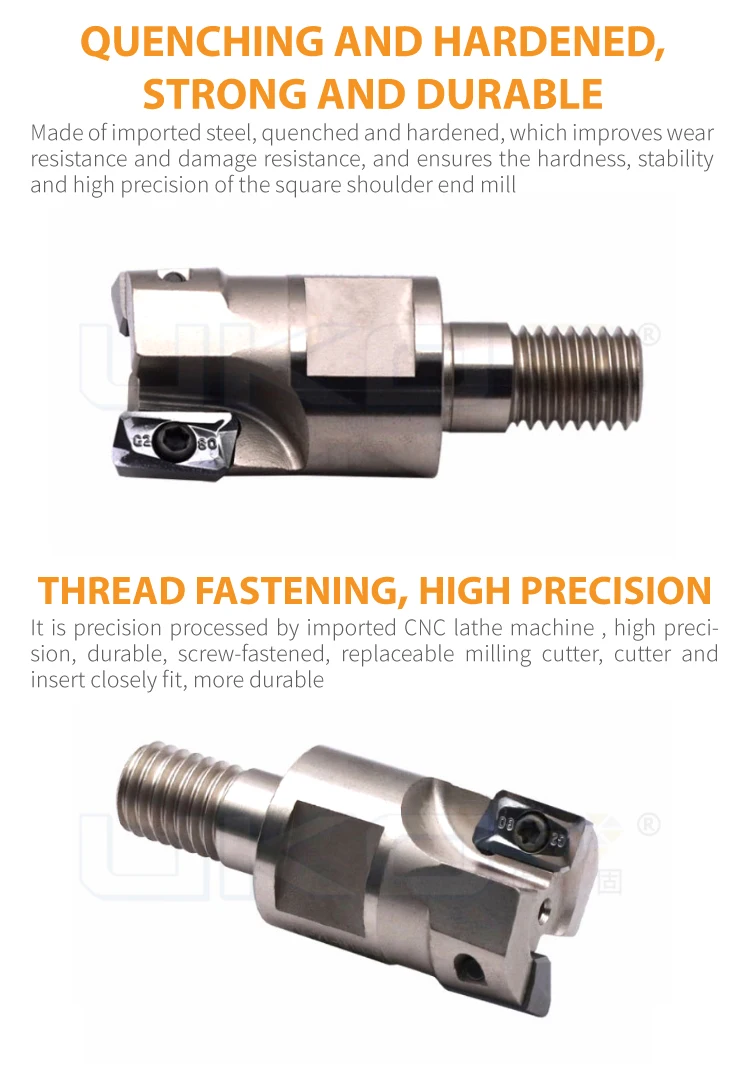

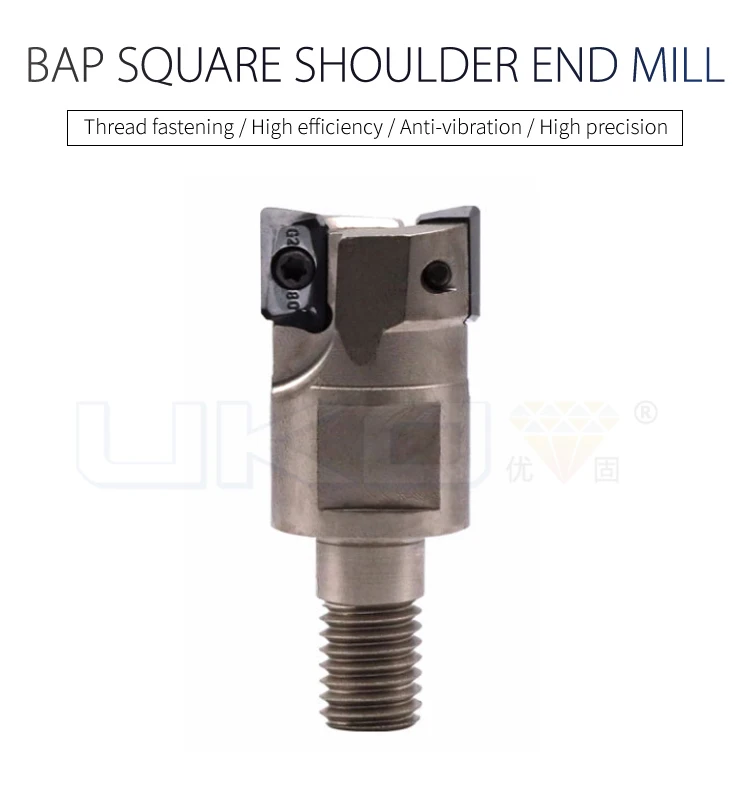

The Square Shoulder End Mill is made of imported steel, which has high wear resistance and strength. It is suitable for Tungsten carbide anti-vibration boring bars. After wear, replace the tool head. The tool holder can continue to be used, which improves efficiency and saves costs. Use thread Fastening, the cutter head is closely integrated with the cutter head, and it is more durable.

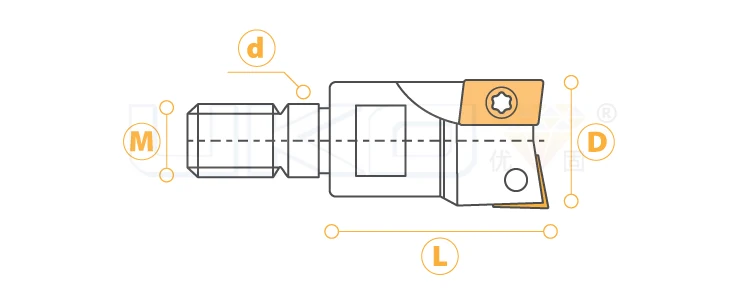

| Cat.No | Size | Teeth | Insert | Clamp | Screw | Wrench | |||
| D | L | d | M | ||||||

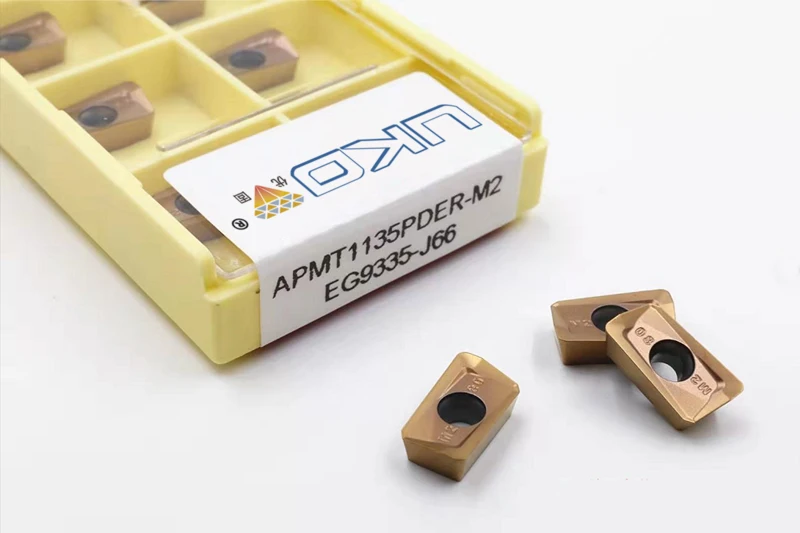

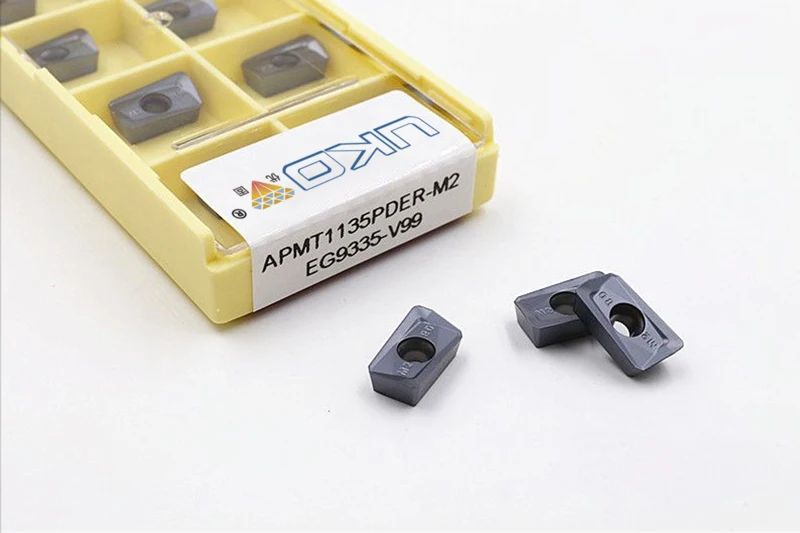

| BAP3R162M08 | 16 | 25 | 8.5 | M8 | 2 | APMT1135PDER | / | M2.5*6.5 | T8 |
| BAP3R172M08 | 17 | 25 | 8.5 | M8 | 2 | ||||
| BAP3R202M10 | 20 | 30 | 10.5 | M10 | 2 | ||||
| BAP3R212M10 | 21 | 30 | 10.5 | M10 | 2 | ||||
| BAP3R253M12 | 25 | 35 | 12.5 | M12 | 3 | ||||
| BAP3R263M12 | 26 | 35 | 12.5 | M12 | 3 | ||||
| BAP4R252M12 | 25 | 35 | 12.5 | M12 | 2 | APMT1604PDER | / | M4*9 | T15 |
| BAP4R262M12 | 26 | 35 | 12.5 | M12 | 2 | ||||
| BAP4R302M16 | 30 | 40 | 17 | M16 | 2 | ||||
| BAP4R323M16 | 32 | 40 | 17 | M16 | 3 | ||||
| BAP4R353M16 | 35 | 40 | 17 | M16 | 3 | ||||
