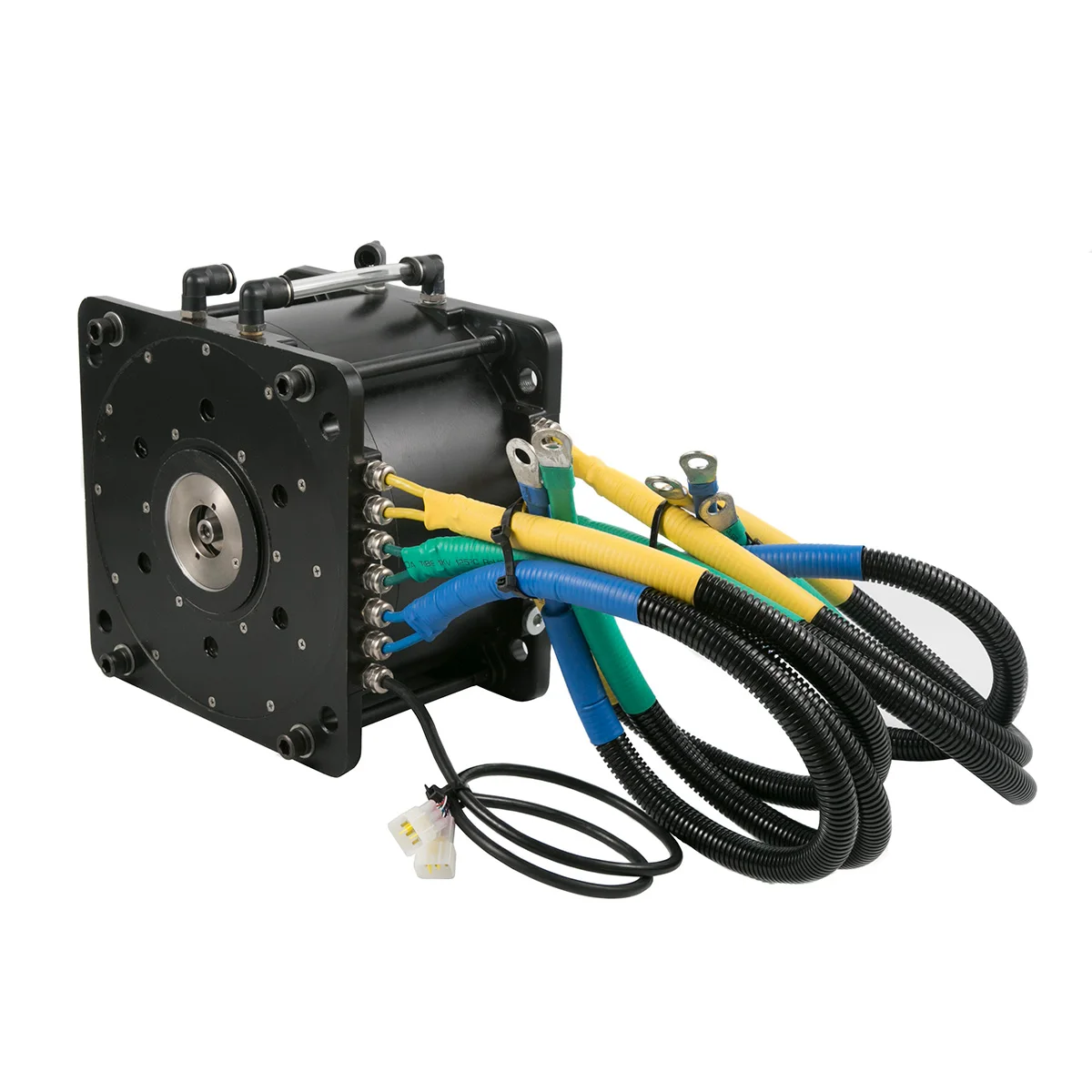

72V 96V 20KW BLDC electric car motor electric motorcycle conversion kit from Golden Motor
- Category: Other Motorcycle Engines >>>
- Supplier: Golden,Motor,Technology,Co.,Ltd.
Share on:
Product Overview
Description
How to choose a motor
Voltage 48V or 72V or 60V
Our engineer suggest you try to choose high voltage. But you can also choose the voltage according to the battery.
Air cooing or Liquid cooling
It depends on the working environment and heat dissipation environment of your motor. High temperature suggested to choose water
cooling.
cooling.
Controller
BLDC Motor need match a ControllerWe will charge you extra cost($452 USD) for VEC300 Controller if you need it. Please click on the picture to buy.
Products Description
20KW BLDC Motor Specifications | ||
Voltage | 72V 96V 120V 144V | |
Rated Power | 20KW | |
peak Power | 50KW | |
Efficeincy | >90% | |
Speed | 3000-5000rpm | |
Rated torque | 80 N.m | |
Peak torque | 160 N.m | |
Poles No. | 8 | |
Dimension | 30*30*25cm | |
Weight | 39KG | |
Cooling System | Liquid Cooling | |

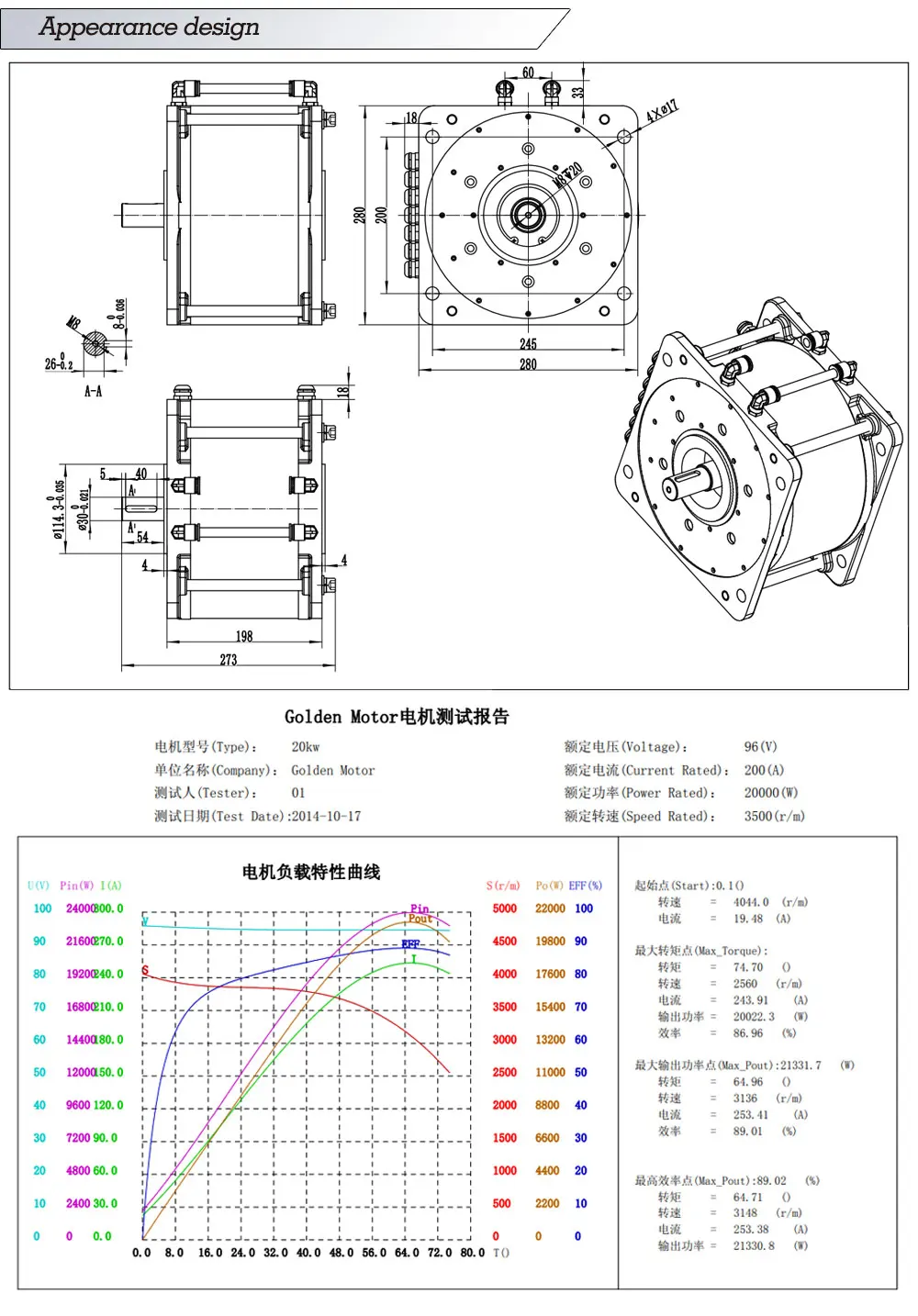

Drawing for 20KW Liquid Cooling Motor
Standard Shaft. If you need other shaft or customize your own shaft, please send us an inquiry.
Product Usage
We strongly suggest you use our HPC700H Controller for our 20KW motor
Please click the photo if you need!
Innovative SINE WAVE Controller | ||
Item Name | HPC700H Series(For20 KW Motor) | |
Voltage Range | 48V/72V/96V | |
Rated Current | 840A/700A/560A | |
Max Current | 700A/560A | |
Motor control mode | FOC | |
Size | 200*276*85mm | |
Weight | 5.7kgs | |
Driving Method | Direct torque control | |
Speed Limit | Speed Limit | |
Customer Photos
Packing&Shipping
Strong Carton Package,Safe,Compact,Saving your shipping cost.
Delivery By Express
For Sample, orders, we can ship it by Express(DHL,UPS,FedEX,EMS,TNT and so on.)to your door.It will take only 3-5 working days to reach your door.
Delivery by Sea
For Big orders, we can ship the goods by sea to your close sea port. The shipping cost will be very low, but will take 15-35 days to reach you, based on your location.
Company Introduction
FAQ
Q: What Voltage can i order for this motor ?
A: We can offer you DC 48V-120V based on your need.
Q: What is the speed of the motor ?
A: The rated speed is 4000RPM. We can also customize 3000-5000 rpm based on your need.
Q: Can you ship the good to my country ?
A: Yes, we can ship the Samples by Express(DHL, FedEX and so on) to your door.
For big orders, we ship by sea to your sea port.
Q: What is the delivery time ?
A: For samples orders, it will take 2-5 days to ship your order. For bulk order, it will take 3-4 weeks to ship it.
Q: What is the shipping time ?
A: Delivery by Express will take 3-5 working days to reach your door. Delivery by sea will take 15-35 days to reach your port.
Q: What is the payment method ?
A: We accept Paypal, TT(Bank Transfer), Western Union, L/C...
Q: How can i make the order ?
A: You can make the order online through alibaba. You can also contact our sales to order it. Our sales will offer you the invoice and after-sale service.
Q: How can i become your distributor ?
A: You need to make an initial order of 10000 USD to become our official distributor. And we will make a distributor agreement with you.
Q: Do you offer warranty ?
A: Yes, we will offer 12 months warranty for all our products.
