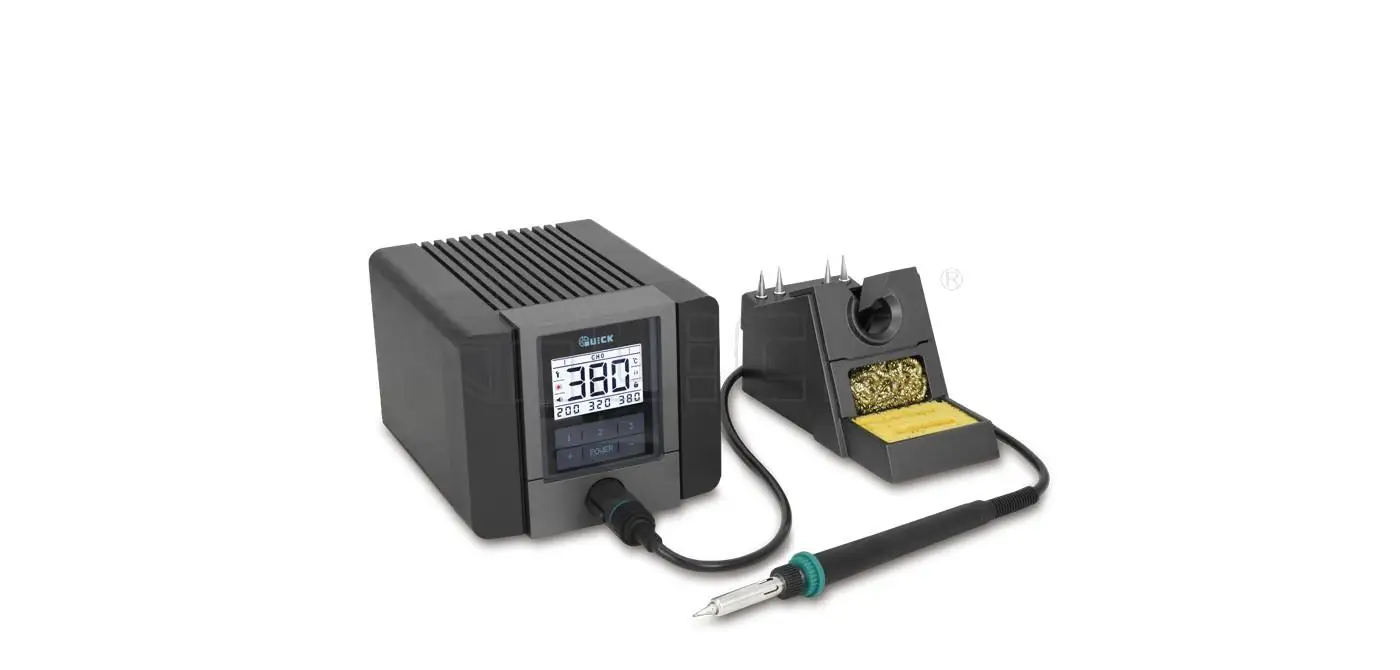

QUICK TS2200D 90W Intelligent Lead free Soldering Station
- Category: Soldering Stations >>>
- Supplier: Octopus Technology (dongguan) Co. Ltd.
Share on (1600227701276):
Product Overview
Description
Features
Advanced ESD Soldering station with a 90 W heating power. Designed for professional soldering electronic components using
lead-free solders. This Quick soldering station has a new design LCD display and easy to use buttons to digitally set the
parameters.

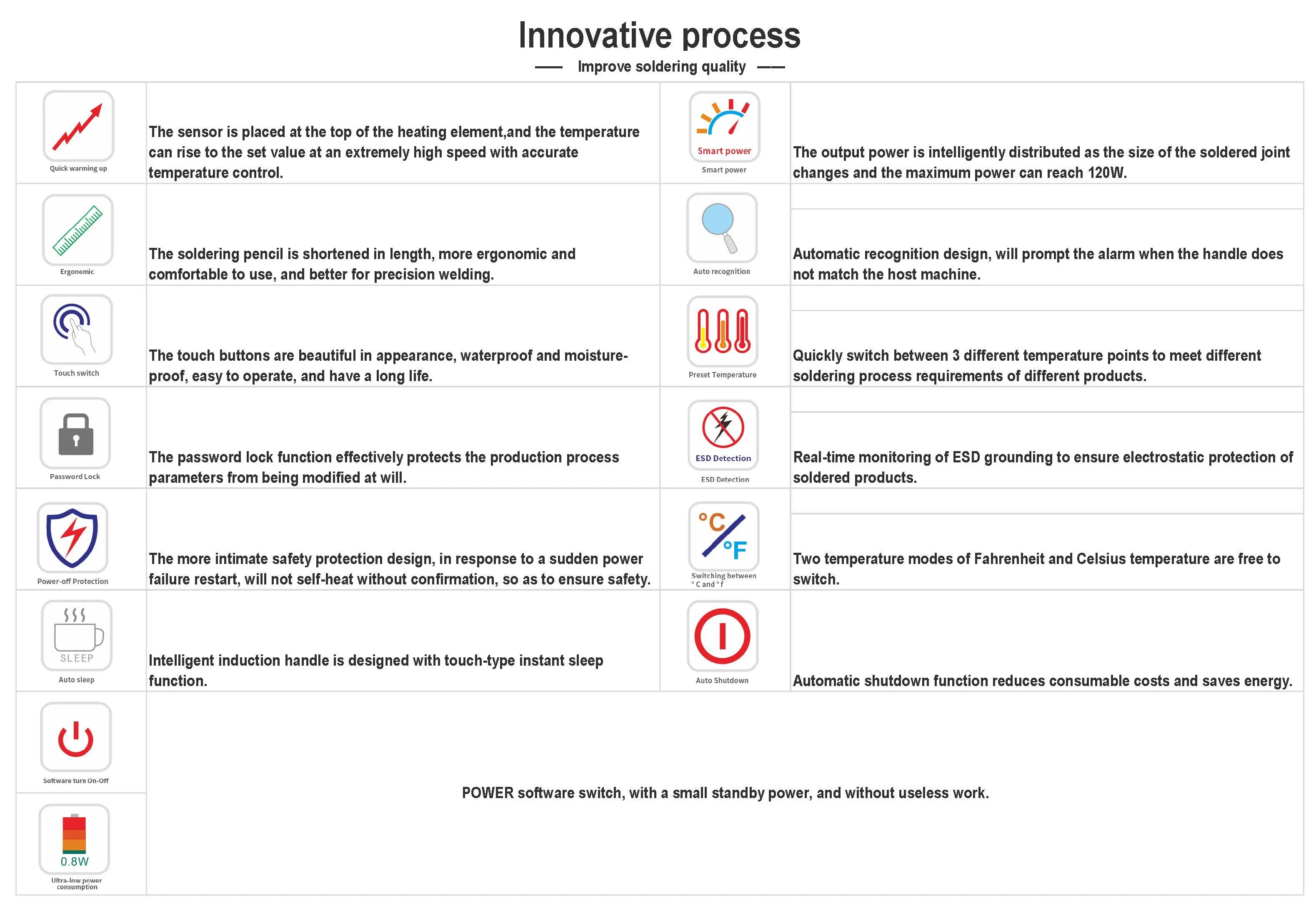

* Fast heating and rapid thermal recovery.
* Real-time monitoring of ESD grounding.
* Long lifetime heater.
* Easy tip replacement.
* Station parameters interlock by means of PIN code.
* Compatible with various types of soldering iron tips.
* High quality, digital LCD display.
* Three working modes.
* Fahrenheit and Celsius temperature switchable.
* Intelligent sleep function, capacitor sensing handle wake-up.
* Automatic shutdown function available.
* New design, improved operating.
Advanced ESD Soldering station with a 90 W heating power. Designed for professional soldering electronic components using
lead-free solders. This Quick soldering station has a new design LCD display and easy to use buttons to digitally set the
parameters.
* Fast heating and rapid thermal recovery.
* Real-time monitoring of ESD grounding.
* Long lifetime heater.
* Easy tip replacement.
* Station parameters interlock by means of PIN code.
* Compatible with various types of soldering iron tips.
* High quality, digital LCD display.
* Three working modes.
* Fahrenheit and Celsius temperature switchable.
* Intelligent sleep function, capacitor sensing handle wake-up.
* Automatic shutdown function available.
* New design, improved operating.
Model | TS2200 | TS2200D | |
Power | 90W | 90W | |
Heating principle | High-frequency | High-frequency | |
Operating voltage | 110V/220V AC | 110V/220V AC | |
Temperature range | 100~480℃ | 100~480℃ | |
Temperature stability | ±2℃ (Still air without load) | ±2℃ (Still air without load) | |
Tip to ground resistance | ＜2Ω | ＜2Ω | |
Tip to ground potential | ＜2mV | ＜2mV | |
Handle | TSS31A | TSS31A | |
Heating element | H1901A | H1901A | |
Soldering tip | 200 series | 200 series | |
Soldering tip/ heating element | Split type | Split type | |
Outer dimensions | 137*168*114(mm) | 137*168*114(mm) | |
Weight | About 3.2kg | About 3.2kg | |
Computer control | Available | No | |

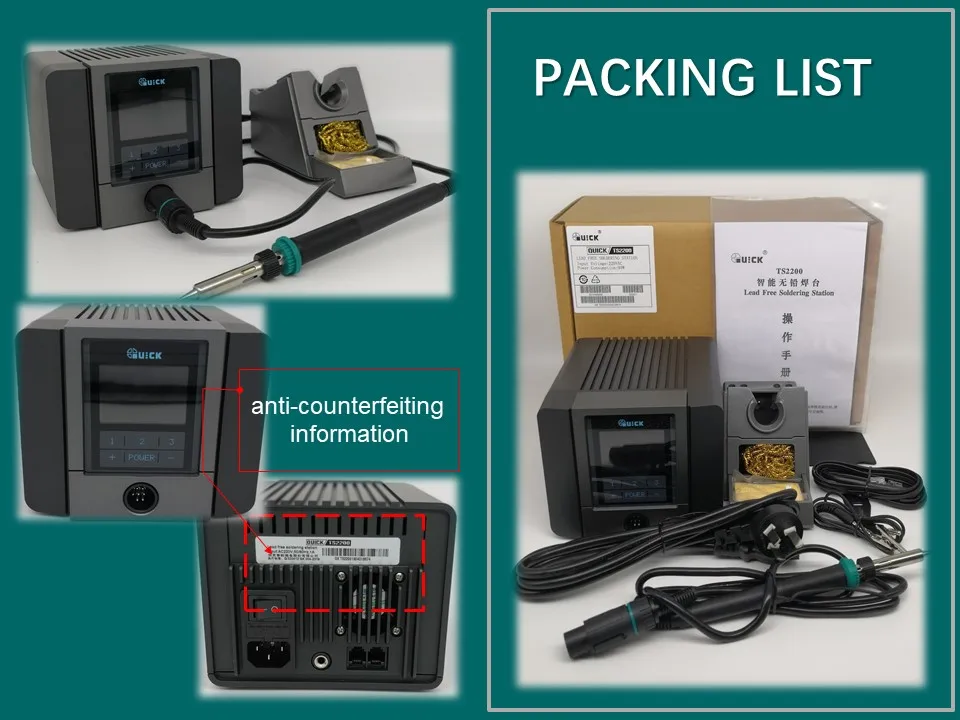

Packaging list | Main unit, soldering iron, iron stand, cleaning sponge, cleaning metal sponge, heat-resistant pad, soldering tip, power cord, userrsquo;s manual. | ||
Please notices :Series 200 Soldering Tips suggested for TS2200

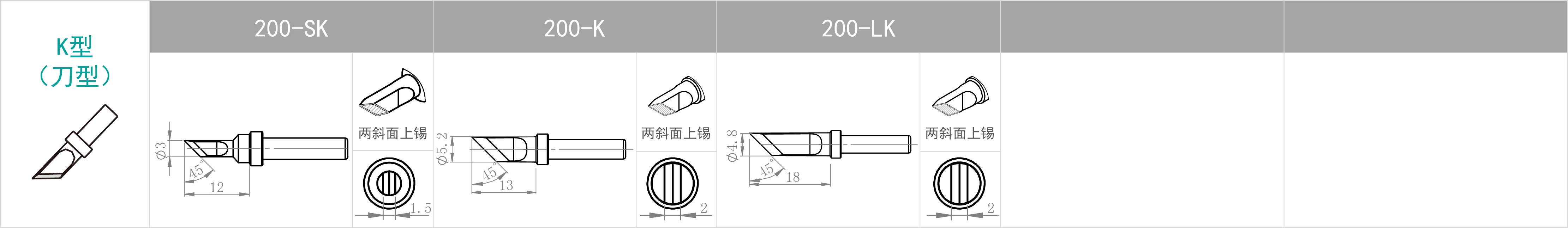

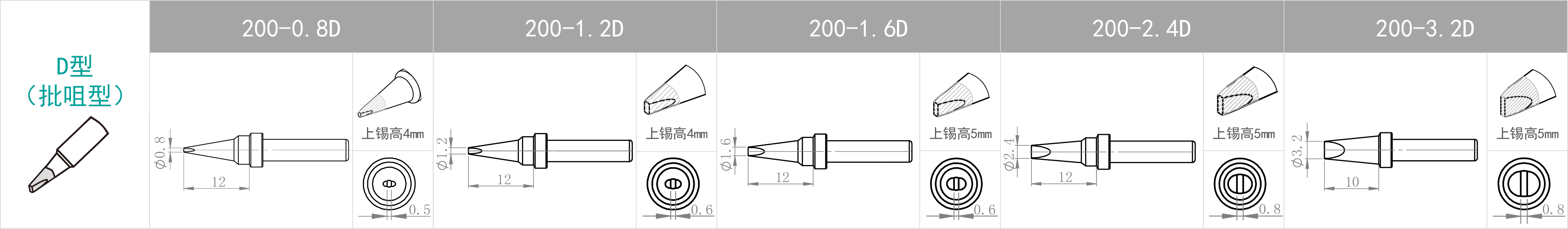

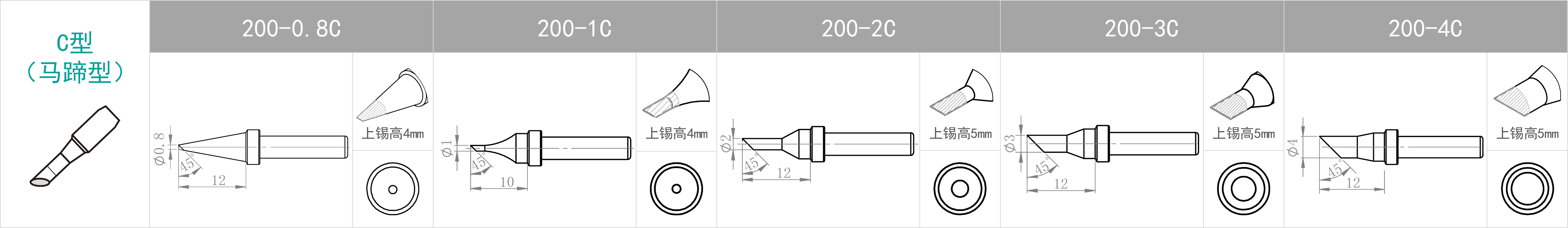

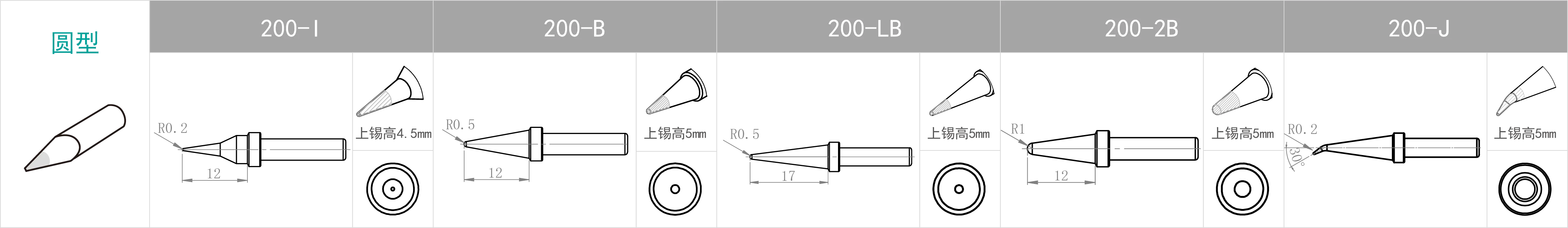

Standard soldering tips are as follows, they can be customized for different applications.
Standard soldering tips are as follows, they can be customized for different applications.
