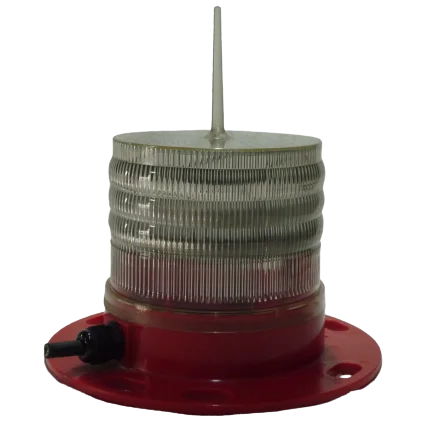

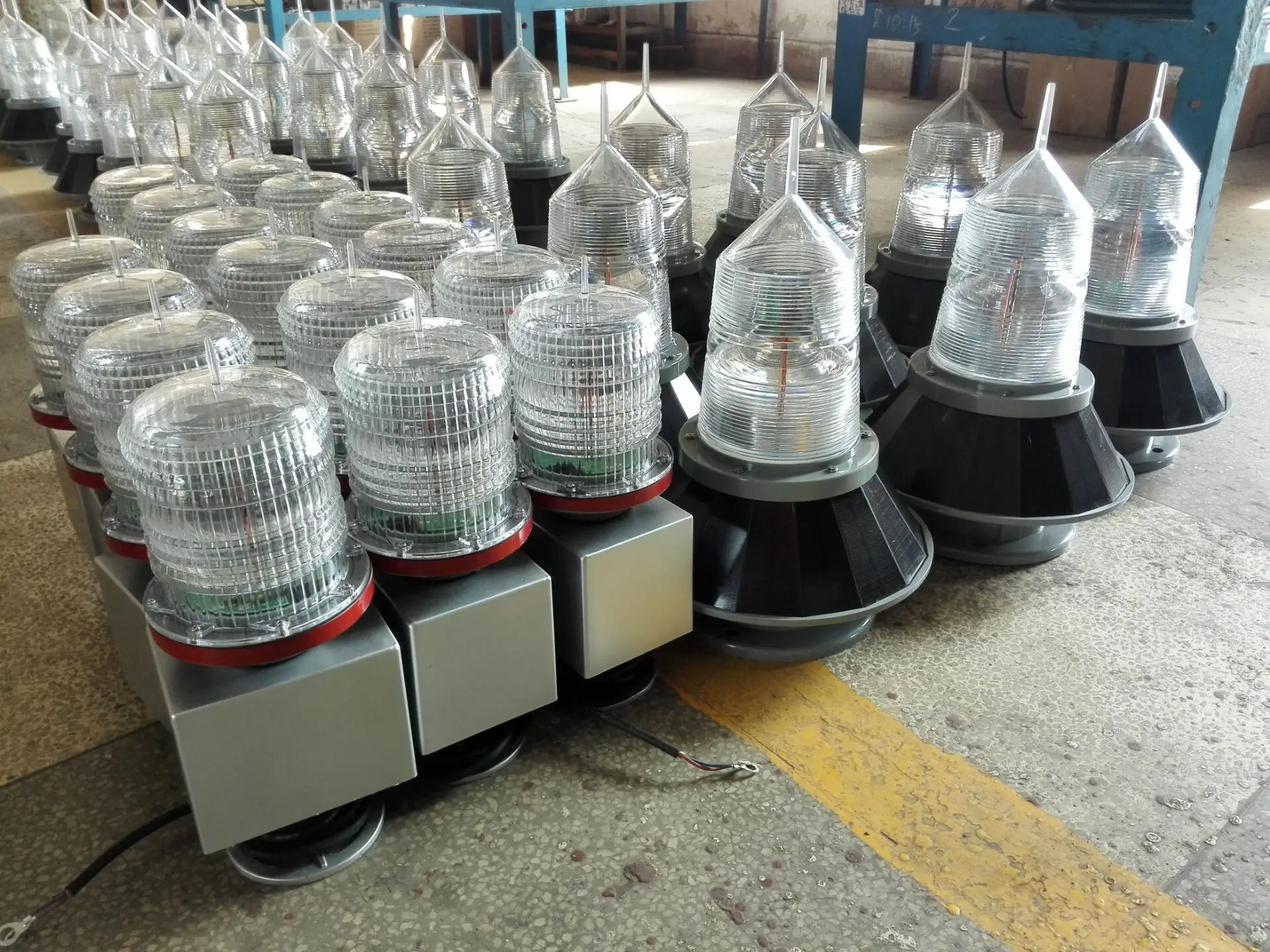

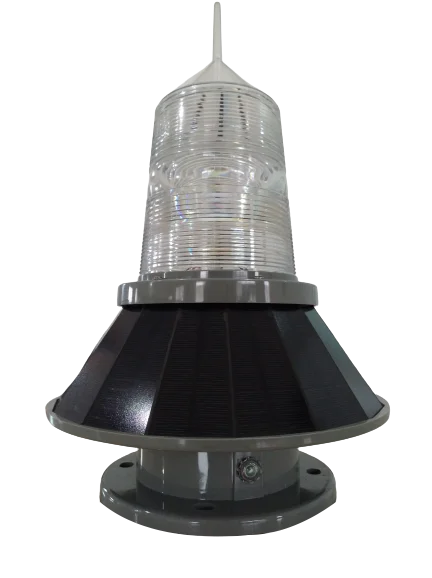

Best selling LED Tower Warning Light Solar Marine Navigation Lights
- Category: >>>
- Supplier: Anhui Yatai Anchor Chain Manufacturing Co. Ltd.
Share on (1600227771308):
Product Overview
Description
Product Description
The YinHuan navigation light is one of the most advanced LED remote control navigation lights on the market.
It uses LED with international brands with external DC power supply. A microprocessor within the marine Lantern
controls multiple high brightness LEDs.It uses LED constant current driving technology, high photoelectric conversion
efficiency,light intensity and stability,with advanced lens design, can focus and increase the line of sight.t is protected from the circuit over current, over voltage, under voltage and high temperature so as to effectively prevent the battery consumption,extend LED and battery life.
YinHuan navigation light is installed with a GSM module, Can remotely control lights flash parameters and monitor status.
controls multiple high brightness LEDs.It uses LED constant current driving technology, high photoelectric conversion
efficiency,light intensity and stability,with advanced lens design, can focus and increase the line of sight.t is protected from the circuit over current, over voltage, under voltage and high temperature so as to effectively prevent the battery consumption,extend LED and battery life.
YinHuan navigation light is installed with a GSM module, Can remotely control lights flash parameters and monitor status.
Product Name | Solar Marine Navigation Lantern | Visibility range | About 2-12 nautical mile |
Brand | YinHuan | Color | White,Red and other colors |
Material | PC | Place of Product | AnHui Province,China |
Part | Marine Lantern | After sale service | 2 years |
Size | Support customization |
Type: YH90S
SPECIFICATIONS | Type: YH90S |
Light source | Ultra high intensity LEDS |
Color available | Red, Green, White,Yellow, Blue |
Maximum intensity | See the user manual |
Visible range | 3- 4nm |
Horizontal range | 360° |
Vertical divergence | >10° |
Flash characters | 256 IALA recommend |
LED life | >100,000 hours |
LED driver mode | Constant current |
Working power | <0.5W |
Battery capacity | 3.6V / 15Ah |
Solar panels powers | 7W |
Type of solar panel | Monocrystalline silicon |
Standby current | <1mA |
Efficiency | >85% |
Light sensitivity | 250±100 Lux |
Working temperature | -30°C ~ +75°C |
Lens material | Polycarbonate |
Base material | acrylic plastics |
Lens diameter | 90mm |
Focal height | 226mm |
Installation size | 4-M6/φ90mm |
Net weight | 2.9kg |
Waterproof | IP65 |
Service life | >5years |
Type: YH125
SPECIFICATIONS | Type: YH125 |
Light source | Ultra high intensity LEDS |
Color available | Red, Green, White,Yellow, Blue |
Maximum intensity | See the user manual |
Visible range | 3-7nm |
Horizontal range | 360° |
Vertical divergence | 8° |
Flash characters | 256 IALA recommend |
Intensity | 25%,50%,75%,100% |
LED life | >100,000 hours |
LED driver mode | Constant current |
Maxim work current | 650mA |
Input voltage range | 4~16V |
Rated voltage | 12V |
Standby current | <1mA |
Efficiency | >87% |
Light sensitivity | 250±100 Lux |
Working temperature | -40°C ~ +85°C |
Lens material | Polycarbonate-U.V. stabilized |
Lens dimensions | 150mm |
Base dimensions | 230mm |
Height | 240mm |
Mounting | 6-M16.7/φ197.6mm |
Mass | 1.1kg |
Waterproof | IP68 |
Service life | >10years |
Type: YH125S
SPECIFICATIONS | Type: YH125S |
Light source | Ultra high intensity LEDS |
Color available | Red, Green, White,Yellow, Blue |
Maximum Available intensity | See the user manual |
Visible range | 2- 3nm+ |
Horizontal range | 360° |
Vertical divergence | 8° |
Flash characters | 256 IALA recommend |
Intensity | 25%,50%,75%,100% |
LED life | >100,000 hours |
LED driver mode | Constant current |
Working power | <0.72W |
Maximum battery capacity | 3.6V / 4400mAh |
Solar panels power | 2W |
Type of solar panels | Monocrystalline silicon |
Standby current | <1mA |
Efficiency | >87% |
Light sensitivity | 250±100 Lux |
Working temperature | -40°C ~ +85°C |
Lens material | Polycarbonate-U.V. stabilized |
Lens dimensions | 150mm |
Base dimensions | 230mm |
Height | 240mm |
Mounting | 6-M16.7/φ197.6mm |
Mass | 1.1kg |
Waterproof | IP68 |
Service life | >10years |

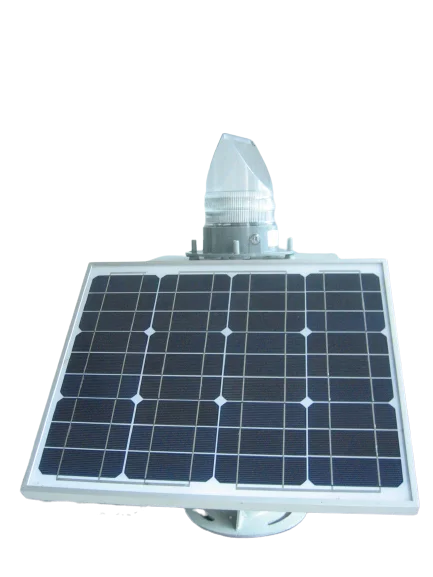

Type: YH155A
SPECIFICATIONS | Type: YH155A |
Light source | Ultra high intensity LEDS |
Color available | Red, Green, White,Yellow, Blue |
LEDS intensity | See the user manual |
Visible range | 5-9nm+ |
Horizontal range | 360° |
Vertical divergence | 9° |
Flash characters | 256 IALA recommend |
Intensity | 25%,50%,75%,100% |
LED life | >100,000 hours |
Input Voltage | 8~16V DC |
Solar Module Power | 2*40W Max |
Battery capacity | 100Ah Max |
Battery Type | Maintenance-free lead-acid |
Standby current | <1mA |
Light sensitivity | 250±50 Lux |
Working temperature | -40°C ~ +85°C |
Lens material | Polycarbonate |
Stent material | Cast iron |
Lens diameter | 150mm |
Base diameter | 270mm |
Height | 665mm |
Mounting | OD base φ200mm |
Waterproof | IP68:Light-head IP65:Battery compartment |
Service life | 10 years |
Type: YH155S
SPECIFICATIONS | Type: YH155S |
Light source | Ultra high intensity LEDS |
Color available | Red, Green, White,Yellow, Blue |
Maximum intensity | See the user manual |
Visible range | 3-4nm |
Horizontal range | 360° |
Vertical divergence | >10° |
Flash characters | 256 IALA recommend |
LED life | >100,000 hours |
LED driver mode | Constant current |
Working power | <0.5W |
Battery capacity | 3.6V/52Ah |
Solar panels powers | 11W |
Type of solar panel | Monocrystalline silicon |
Standby current | <1mA |
Efficiency | >85% |
Light sensitivity | 250±100 Lux |
Working temperature | - 30°C ~ +75°C |
Lens material | Polycarbonate |
Base material | acrylic plastics |
Lens diameter | 155mm |
Focal height | 304.95mm |
Installation size | 4-M6/φ200mm |
Net weight | 3kg |
Waterproof | IP65 |
Service life | >5years |
Features:
* LED array is available in one, twoor three tier configurations, eachtier consists 36 LEDS
* 100,000 hours LED life
* 256 IALA flash codes
* Adjustable LED intensity
* High efficient LED driver circuit
* Very low standby power
* Over-voltage and over-currentprotection
* Internal ambient lighting detector
* Reverse polarity protection
* All surface mount technology
* IP68 waterproof
* ExpandedPTFEprovides protection against dust and liquid along with equalization of ambient pressure for lantern integrity
* Optional Synchronization via GPSmodule
* LED array is available in one, twoor three tier configurations, eachtier consists 36 LEDS
* 100,000 hours LED life
* 256 IALA flash codes
* Adjustable LED intensity
* High efficient LED driver circuit
* Very low standby power
* Over-voltage and over-currentprotection
* Internal ambient lighting detector
* Reverse polarity protection
* All surface mount technology
* IP68 waterproof
* ExpandedPTFEprovides protection against dust and liquid along with equalization of ambient pressure for lantern integrity
* Optional Synchronization via GPSmodule
