YSPD ES50 Factory Price Paraffin Wax Dispenser Tissue Embedder With Cryo Console
- Category: >>>
- Supplier: Guangzhou Ysenmed Equipment Co. Ltd.
Share on (1600227877589):
Product Overview
Description

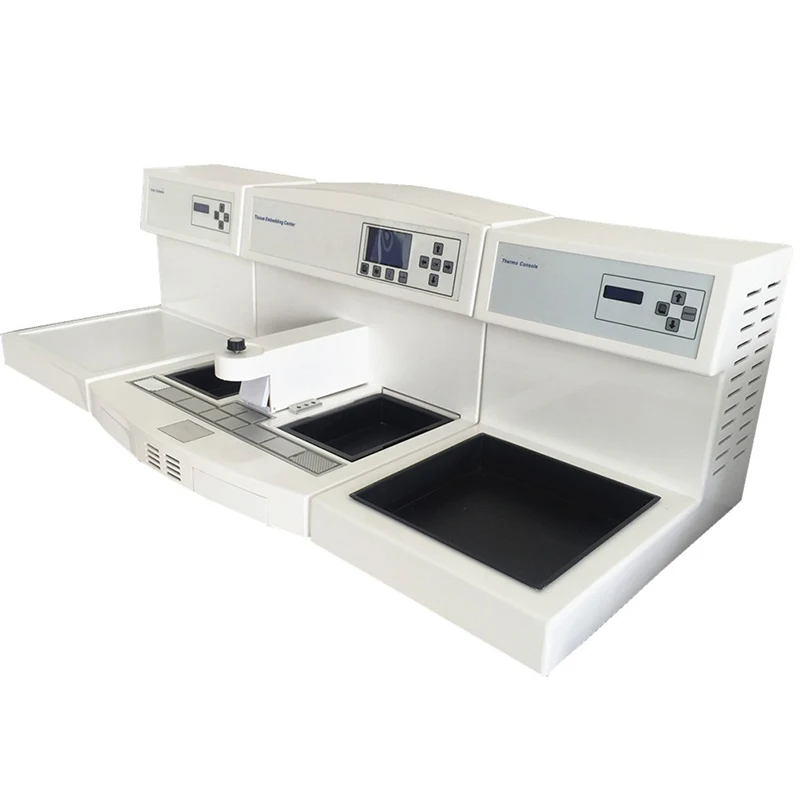

YSPD-ES50 Factory Price Paraffin Wax Dispenser Tissue Embedder With Cryo Console
More Detals for Pathology Tissue Embedder
It is independent design, can put the position left-to-right or right-to-left, to meet different habits of customers.
Decription:
The Embedding center is composed of two modules, main console and Cryo Console. It is independent design, can put the position left-to-right or right-to-left, to meet different habits of customers. The large working surface allows user processing many samples at the same time. The temperature and work start time can be settable through the control panel.
Characteristics:
Main Console:
© The ergonomic large working surface allows processing many samples at same time.
© The large cold spot Peltier is designed to orient even small and big samples (Mega Cassettes).
© Work start time and day can be programmed automatically.
© The tissue embedding cassettes and base molds trays are removable and can be set at different temperatures.
Cryo Console:
© It is composed of a compressor cooled work surface held to chill the paraffin blocks rapidly.
© The Teflon coated surface allows a minimum ice formation and easy cleaning.
© Temperature is adjustable from ambient to-13centigrade.
© It can be used as a stand alone unit near the microtome station.
Technical data:
Main Console specification
Nominal supply voltage: 220V/50Hz
Maximum power draw: 650VA
Working temperature: from ambient to 80℃ increments 1℃
Capacity
Paraffin reservoir: 6.0 Lt
Cassette/mold tray: 1.6 Lt
Dimensions
Width: 600mm
Depth: 650mm
Height: 460mm
Weight: 30Kg
Cryo Console specification
Nominal supply voltage: 220V/50Hz
Maximum power draw: 200VA
Working temperature: from 0℃ to -20℃increments 1℃
Dimensions
Width: 410mm
Depth: 580mm
Height: 440mm
Weight: 25Kg
Thermal Console specification
Nominal supply voltage: 220V/50Hz
Maximum power draw: 650VA
Working temperature: from ambient to 80℃ increments 1℃
Capacity
Paraffin tray: 5Lt
Dimensions
Width: 410mm
Depth: 620mm
Height: 440mm
Weight: 13Kg
