Full automatic computer control cable strip machine up to 16sqmm
- Category: Cable Manufacturing Equipment >>>
- Supplier: Kunshan,Weijiang,Automation,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

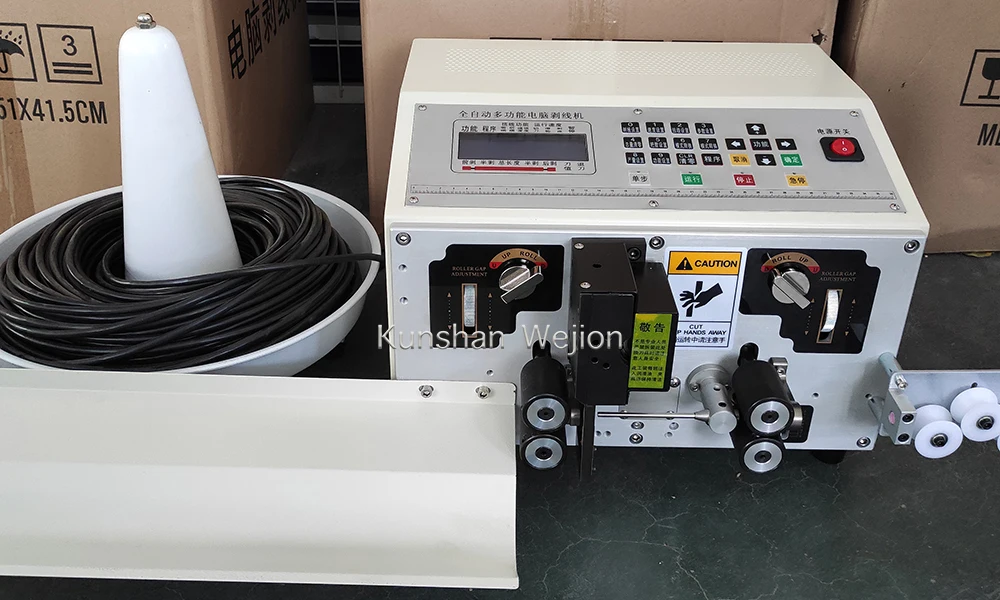

CS-S16 Automatic Wire Stripping Machine
Parameters
Model | CS-S06 | CS-S10 | CS-S16 | CS-S35 | |||
Available Wire Size | 0.1-6mm² | 0.2-10mm² | 0.75-16mm2 | 1-35mm2 | |||
Conductor Cross-Section | AWG10-AWG32 | AWG8-AWG24 | AWG18-AWG5 | AWG17-AWG2 | |||
Stripping Length | Head 0-35mm, Tail 0-80mm | 0-40mm | 0-45mm | 0-45mm | |||
Cutting Length | 1-9999.9mm | ||||||
Cutting Length Tolerances | ±(0.002*L)mm | ||||||
Intermediate Stripping | Max 15 sections | ||||||
Conduit Diameter | Φ6mm | Φ10mm | Φ6-14mm | Φ8-17mm | |||
Production Rate | 2000-5000pcs/h | 1500-4000pcs/h | 1000-3000pcs/h | 800-1500pcs/h | |||
Wire Feed Method | Roller feeding | Roller feeding | Roller feeding | Roller feeding | |||
Drive Method | 4 wheels drive | 4 wheels drive | 4 wheels drive | 8 wheels drive | |||
Display Screen | Chinese / English LCD Screen | ||||||
Power Supply | 220V/110V | ||||||
Power | 420W | 450W | 600W | 1000W | |||
Weight | 28kg | 30kgs | 48kgs | 70kgs | |||
Dimensions | 420*400*280mm | 420*420*280mm | 490*450*290mm | 580*530*370mm | |||

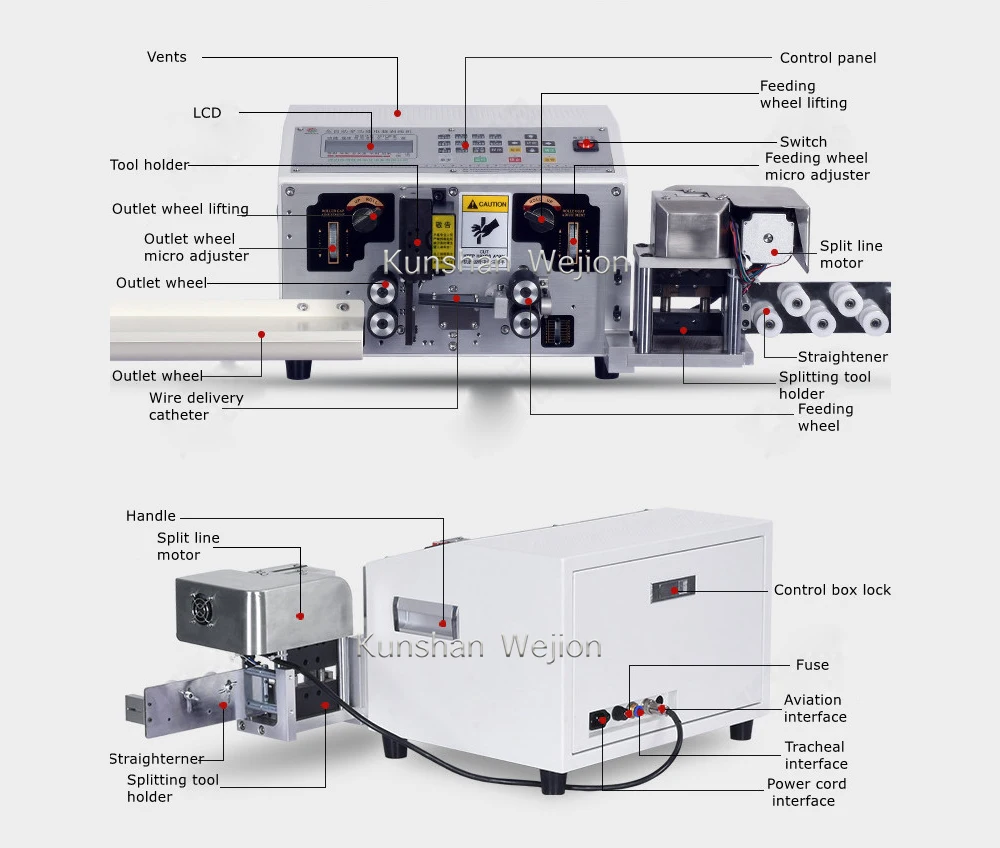

CS-S16 Features：
1. LCD display, support Chinese and English, all buttons and processing program desiged based on automatic computer programming,easy to operate.

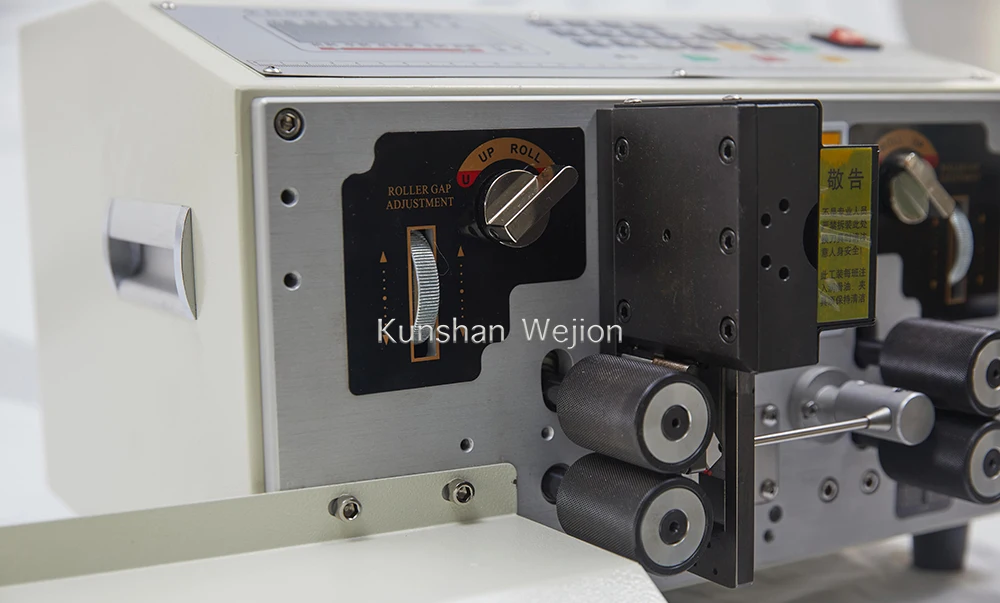

2. Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.
3. High-quality blades made by raw materials imported from Japan, the cut edges are burr-free, wear-resistant and can be used for longer time.
4. The pressing force of four wire feeding wheels can adjusted which can help to process various sizes of wires better.
5. Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating, longerservice life.
6. Intelligent control system, using 32-bit CORTEX-M3 core processor, the running speed up to 72M. It can store hundreds of parameter setting.
7. Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire, etc.,complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.
8. Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen.Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.
More machine please click here
Hot Sell Products
A. Small One Core Stripping Machine:

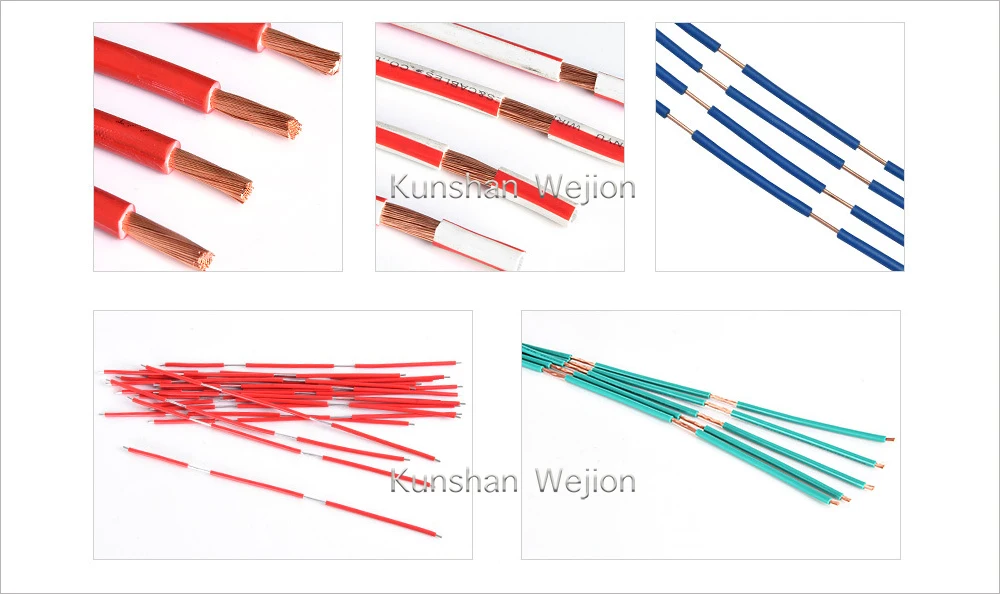

one core wire stripping samples：
big one core wire stripping samples：
C. Multi-Core Wire Stripping Machine:
multi cores wire stripping samples:
Packing
Company Introduction
Kunshan Weijiang Automation Equipment Co., Ltd is a modern technology enterprise specializing in the research,development, production and sales of intelligent equipment for processing, cutting and wiring harnesses. The company's core products include: large square computer stripping machine, automatic terminal machine,corrugated pipe cutting machine, rotary pneumatic stripping machine, hexagonal crimping machine, and so on.
Fully automatic heat shrinkable sleeve terminal machine, automatic sheath terminal machine, automatic waterproof bolt terminal machine, automatic rubber shell terminal machine, automatic cable terminal machine, new energy automation equipment, etc. In addition, the company undertakes R&D and manufacturing of non-standard automation equipment.
Fully automatic heat shrinkable sleeve terminal machine, automatic sheath terminal machine, automatic waterproof bolt terminal machine, automatic rubber shell terminal machine, automatic cable terminal machine, new energy automation equipment, etc. In addition, the company undertakes R&D and manufacturing of non-standard automation equipment.
Our Services & Strength
We are one of the most professional Chinese wire cable process machine manufacturers and leaders.
* 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.
* Best products and factory price.
* On-time delivery and the shortest delivery time. * 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
FAQ
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
