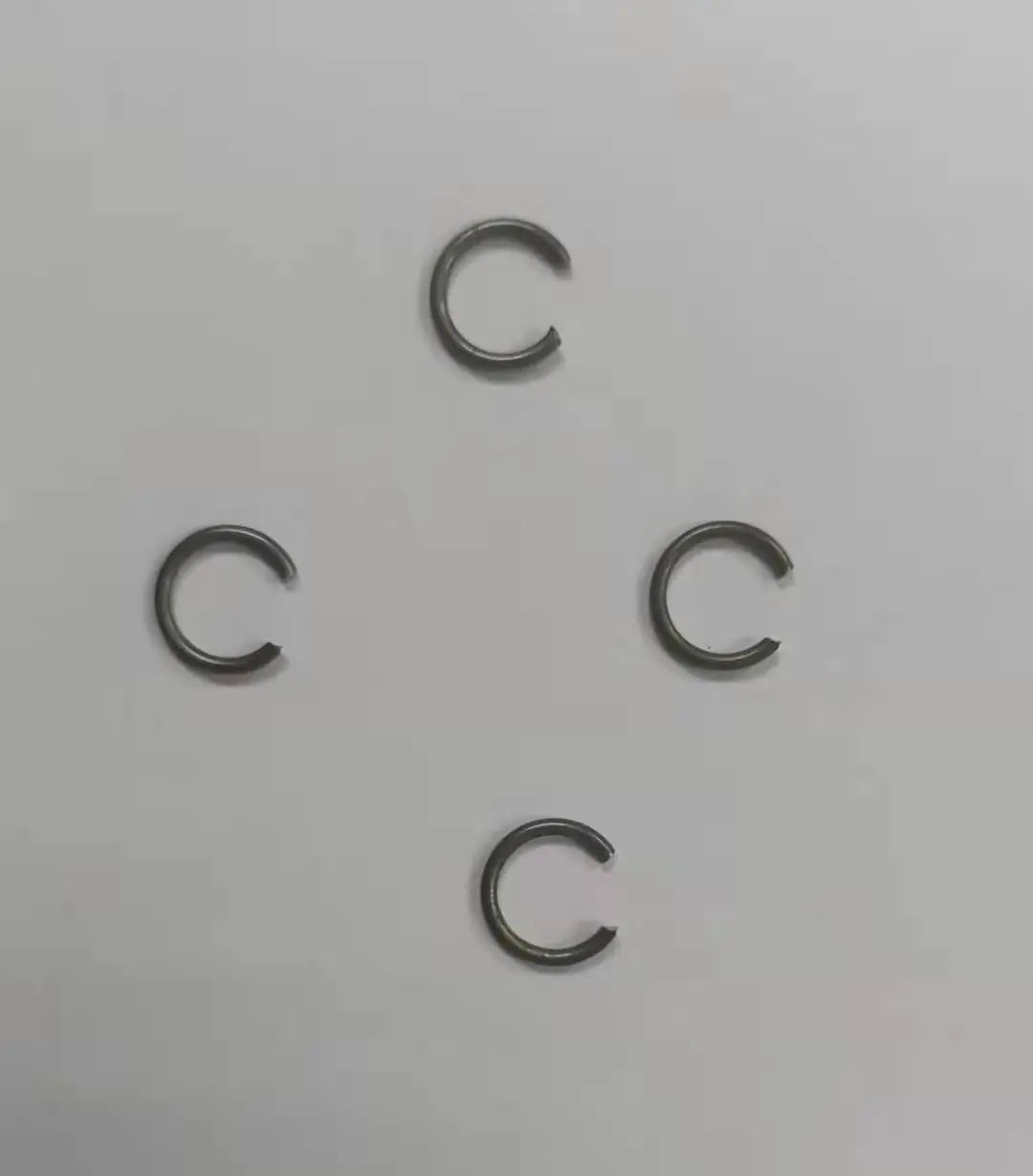

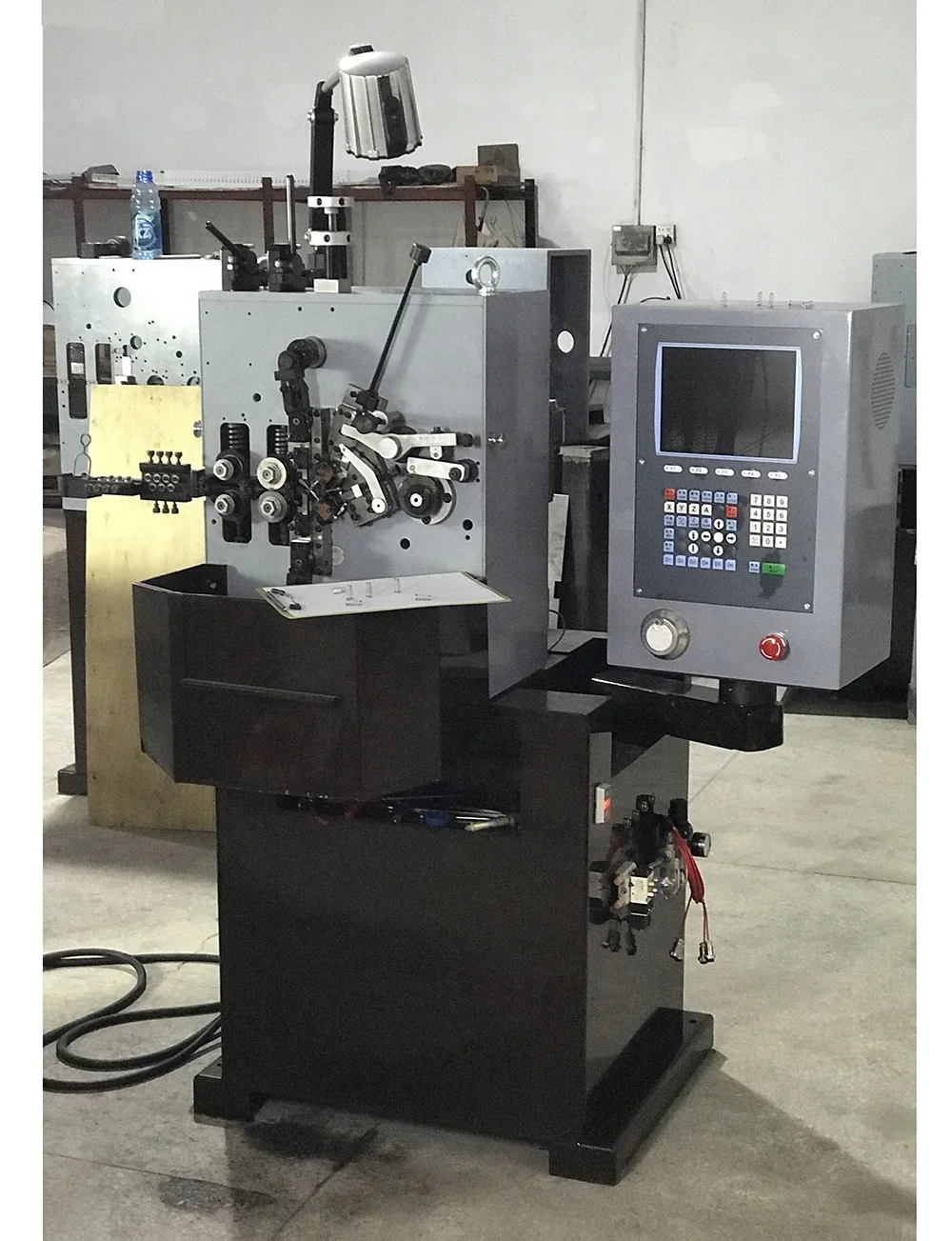

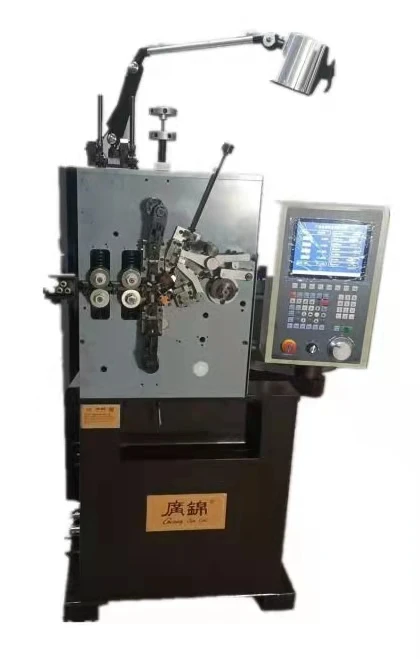

0.15 2.0mm 4axis compression spring making machine small spring coiling machine For collar

Model

GJ-20A

Axis Count

4 axis

Wire Size Range

Φ0.15~ Φ2mm

Max Feeding Length

Unlimited

Wind direction

Right and Left Hand

Max Feeding Speed

0~150m/min

Min Setting Value

0.01mm

Max Setting Value

9999.99mm

Outside Diameter

≤35.00mm

Cam Min Seting Value

 0.1°

Cam Max Setting Value

359.9°

Wire Feed Servo Motor

2kw

Cutter servo motor

1.5kw

Pitch Servo motor

1.5kw

Cam Motor

1.0kw

Dimension(LxWxH)

540*800*1300mm

Weight

650kg
