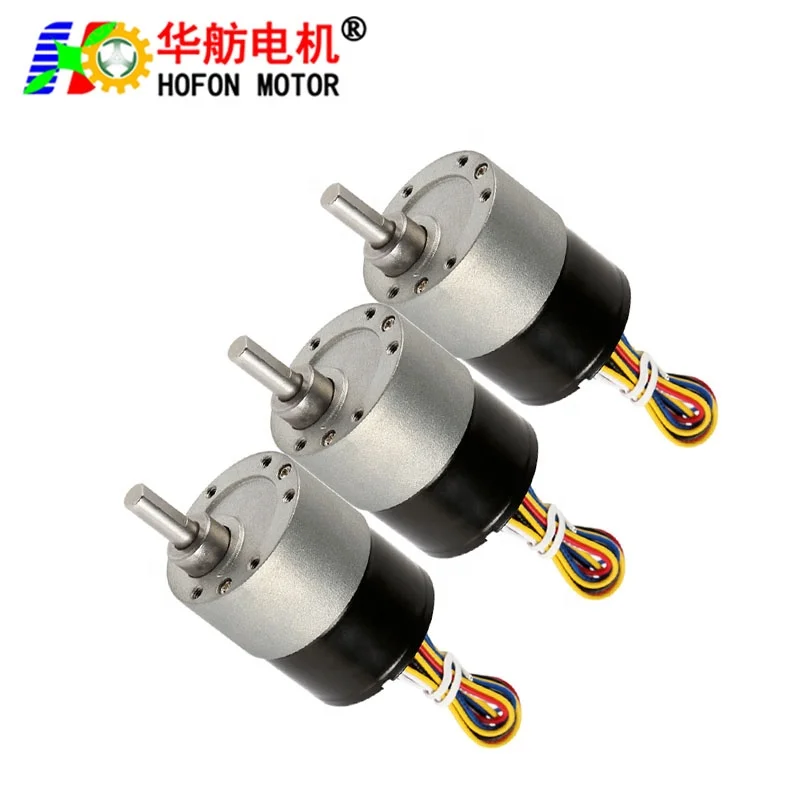

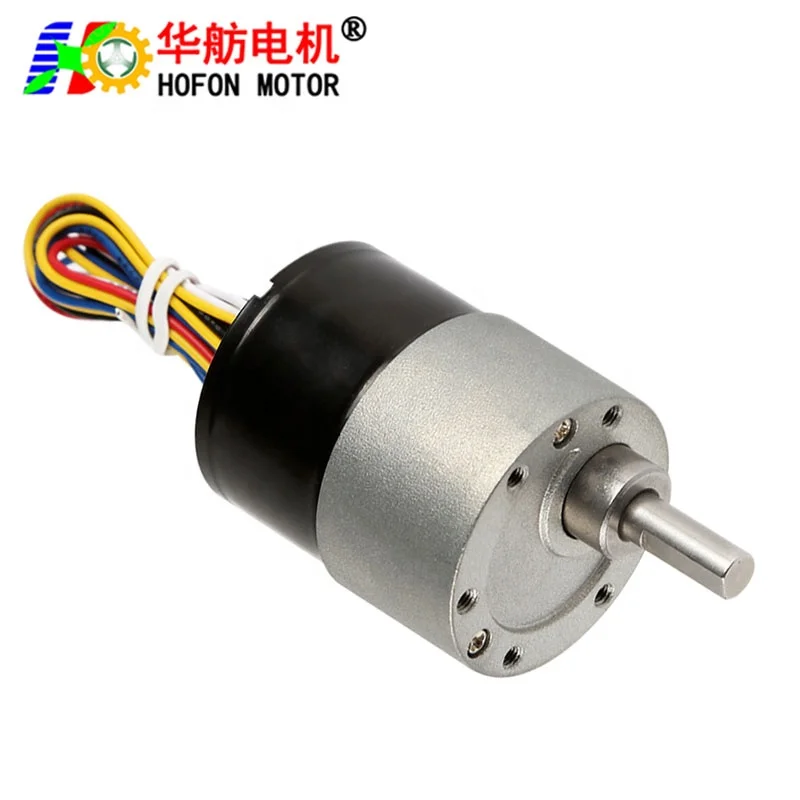

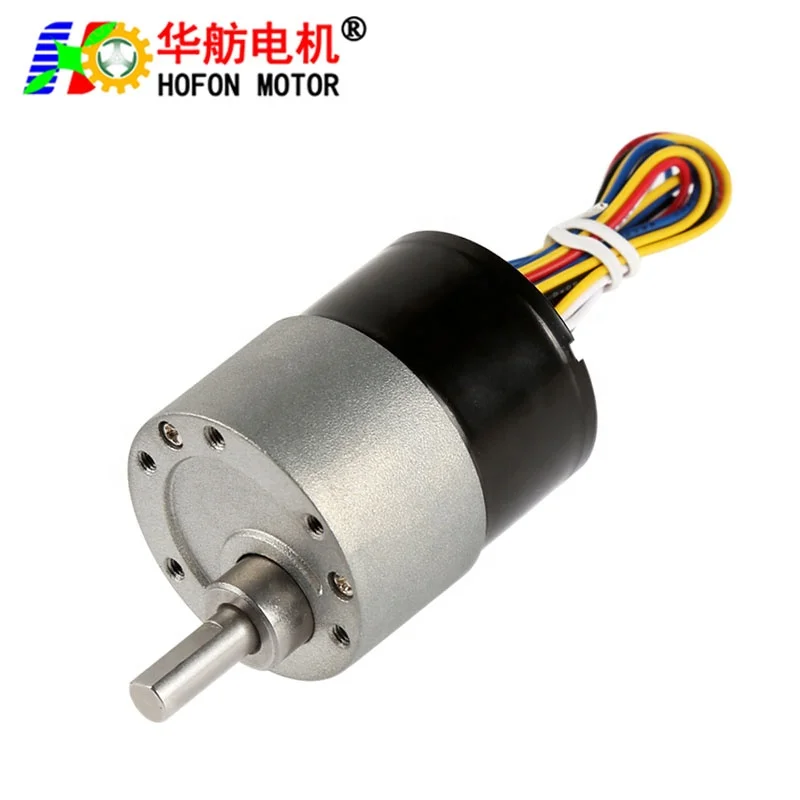

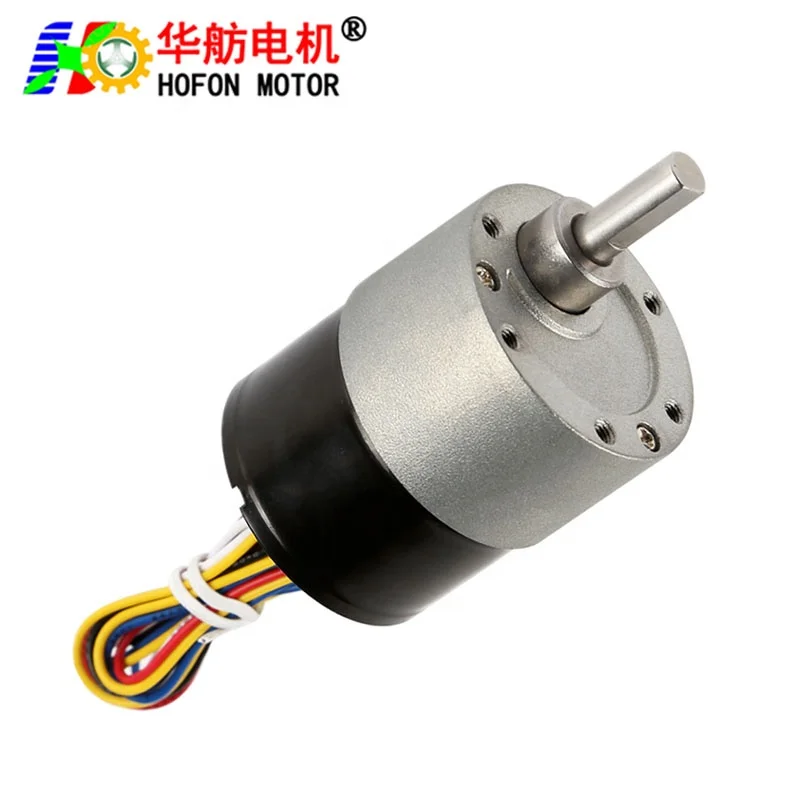

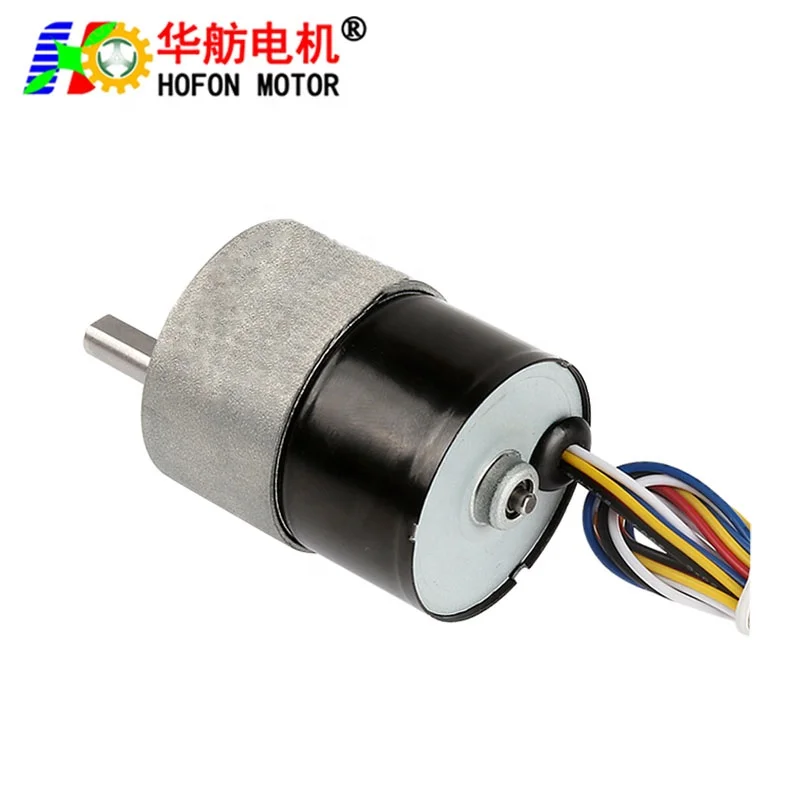

Hofon Motor 37mm 12V 24V GM37 3525BL large torque DC Brushless 12 volt geared Motor reducer Motor for Home Appliance
- Category: >>>
- Supplier: Shenzhen Hofon Electronic Technology Co. Ltd.
Share on (1600227983708):
Product Overview
Description
Specification
Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine
Voltage, speed, torque and other performance parameters can be customized according to requirements.

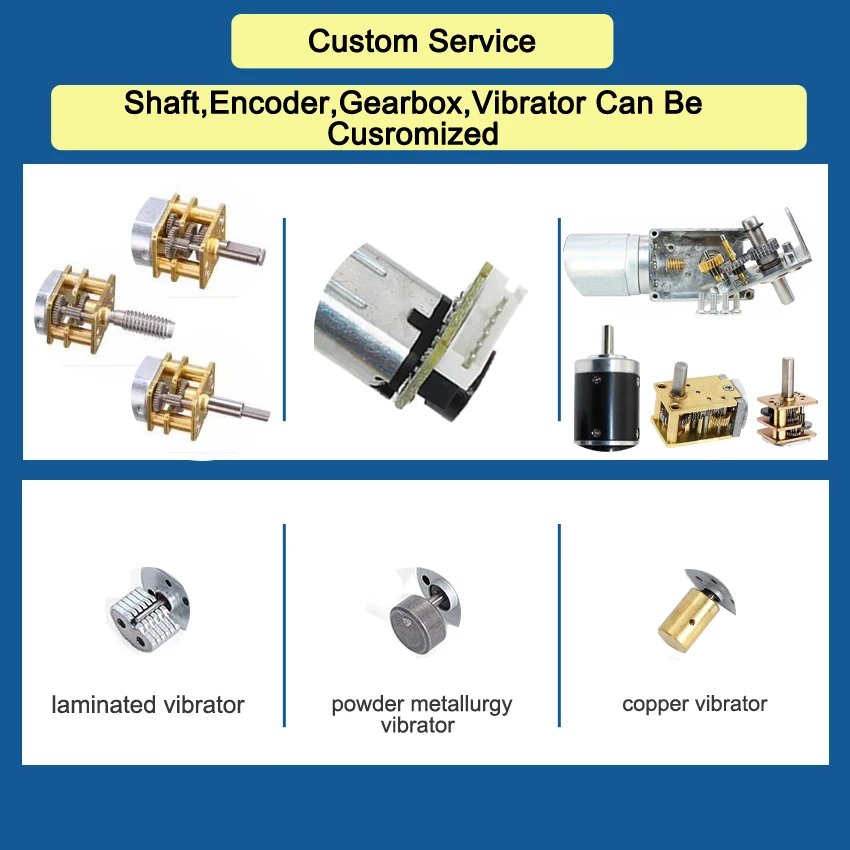

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.
Representative Performance:
| Model: GM37-3525BL DC 24V Maximum output 8W | |||||||||||||
| REDUCTION RATIO | 1:6.3 | 1:10 | 1:18.8 | 1:30 | 1:50 | 1:90 | 1:150 | 1:260 | 1:450 | 1:630 | |||
| No-load Speed(RPM) | 930 | 585 | 310 | 195 | 117 | 65 | 39 | 23 | 13 | 9 | |||
| No-load Current(mA) | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | |||
| Rated Torque(Kg.cm) | 0.9 | 1.4 | 2.5 | 4.0 | 7.0 | 12.0 | 21.0 | 30.0 | 30.0 | 30.0 | |||
| Rated Torque(N.m) | 0.09 | 0.14 | 0.25 | 0.4 | 0.7 | 1.2 | 2.1 | 3.0 | 3.0 | 3.0 | |||
| Rated Speed(RPM) | 700 | 445 | 235 | 145 | 85 | 48 | 29 | 17 | 9 | 6 | |||
| Rated Current(A) | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | |||
| Stall Current(A) | ≤3.0 Do not start repeatedly or turn forward and backward continuously | ||||||||||||
| Stall Torque(Kg.cm) | ≥2.0 | ≥3.5 | ≥6.5 | ≥10.0 | ≥15.0 | ≥25.0 | ≥30.0 | ≥30.0 | ≥30.0 | ≥30.0 | |||
| FG Signal Number | 56.7 | 90 | 169.2 | 270 | 450 | 810 | 1350 | 2340 | 4050 | 5670 | |||
| Model: GM37-3525BL DC 12V Maximum output 2W | |||||||||||||
| REDUCTION RATIO | 1:6.3 | 1:10 | 1:18.8 | 1:30 | 1:50 | 1:90 | 1:150 | 1:260 | 1:450 | 1:630 | |||
| No-load Speed(RPM) | 465 | 290 | 155 | 95 | 57 | 32 | 20 | 11 | 6 | 4.5 | |||
| No-load Current(mA) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | |||
| Rated Torque(Kg.cm) | 0.4 | 0.7 | 1.2 | 2.0 | 3.5 | 6.0 | 10.0 | 15.0 | 25.0 | 30.0 | |||
| Rated Torque(N.m) | 0.04 | 0.07 | 0.12 | 0.2 | 0.35 | 0.6 | 1.0 | 1.5 | 2.5 | 3.0 | |||
| Rated Speed(RPM) | 330 | 220 | 115 | 72 | 42 | 24 | 14 | 8 | 4 | 3 | |||
| Rated Current(A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |||
| Stall Current(A) | ≤3.0 Do not start repeatedly or turn forward and backward continuously | ||||||||||||
| Stall Torque(Kg.cm) | ≥1.0 | ≥1.7 | ≥3.0 | ≥5.0 | ≥7.0 | ≥12.0 | ≥15.0 | ≥20.0 | ≥30.0 | ≥30.0 | |||
| REDUCTION RATIO | 1:6.3 | 1:10 | 1:18.8 | 1:30 | 1:50 | 1:90 | 1:150 | 1:260 | 1:450 | 1:630 | |

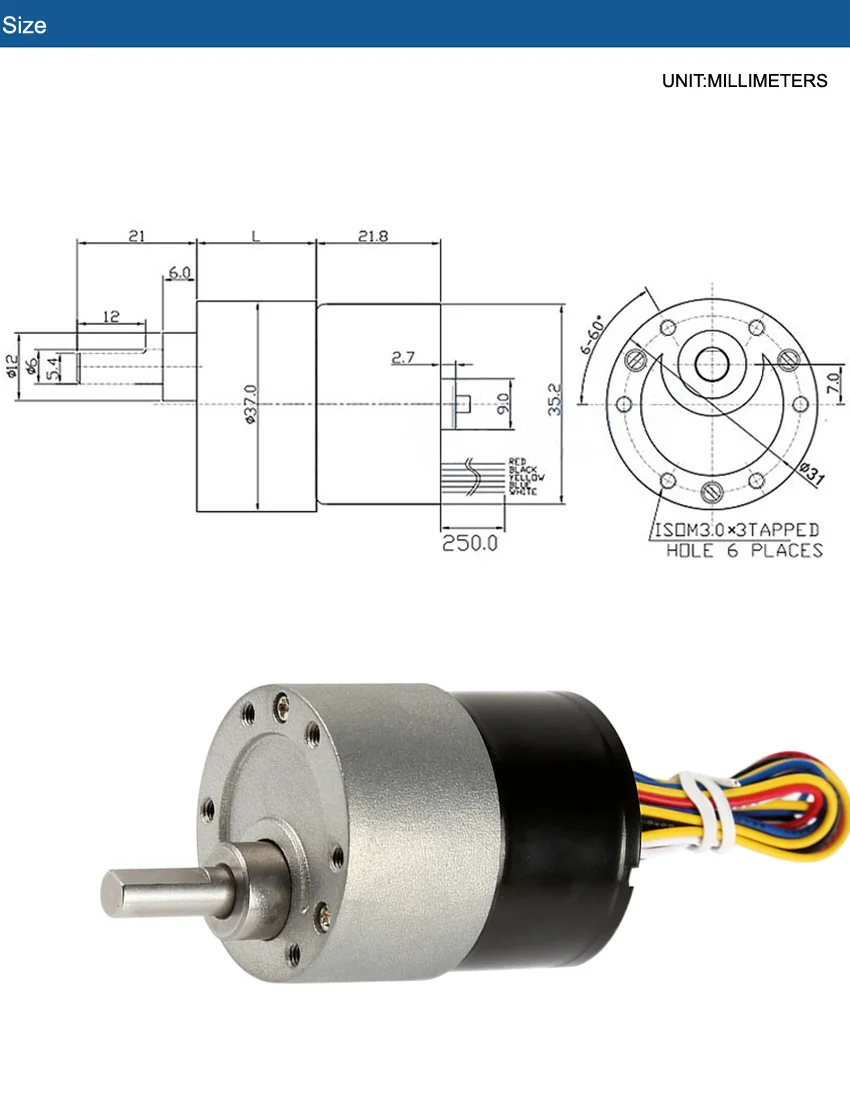

| Reduction box length (L) mm | 19 | 21.5 | 24 | 26.5 | 29 | ||||||
Maybe you also like

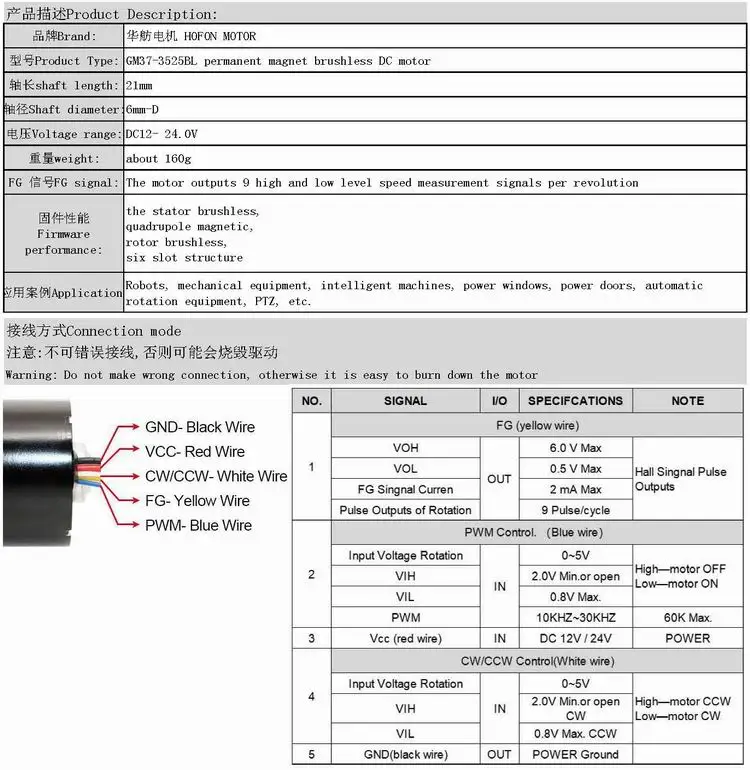

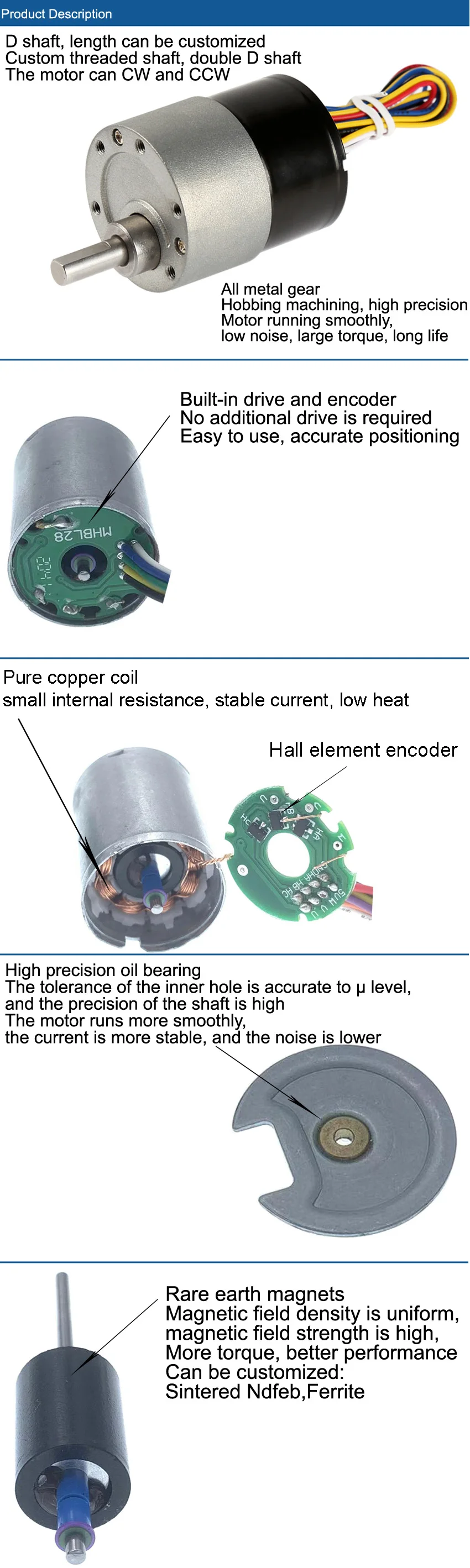

Product Description
Application
Company Profile
Shenzhen Hofon Electronic Technology Co., Ltd. was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms. Hofon Motor, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the Important component. Hofon Motor is more conductive to customer demand, with customers to design and develop new products, specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.
We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.
- 20 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 15 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Certifications
Exhibition
Packaging & Shipping
