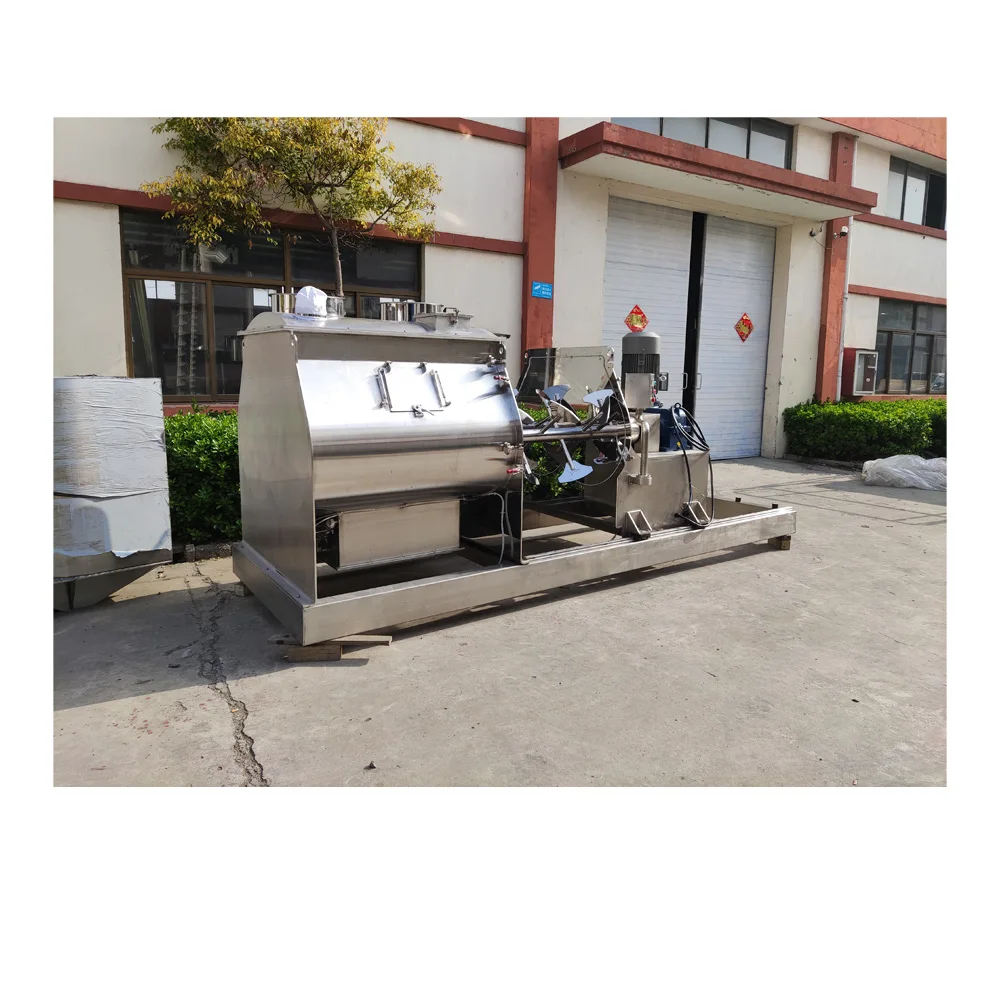

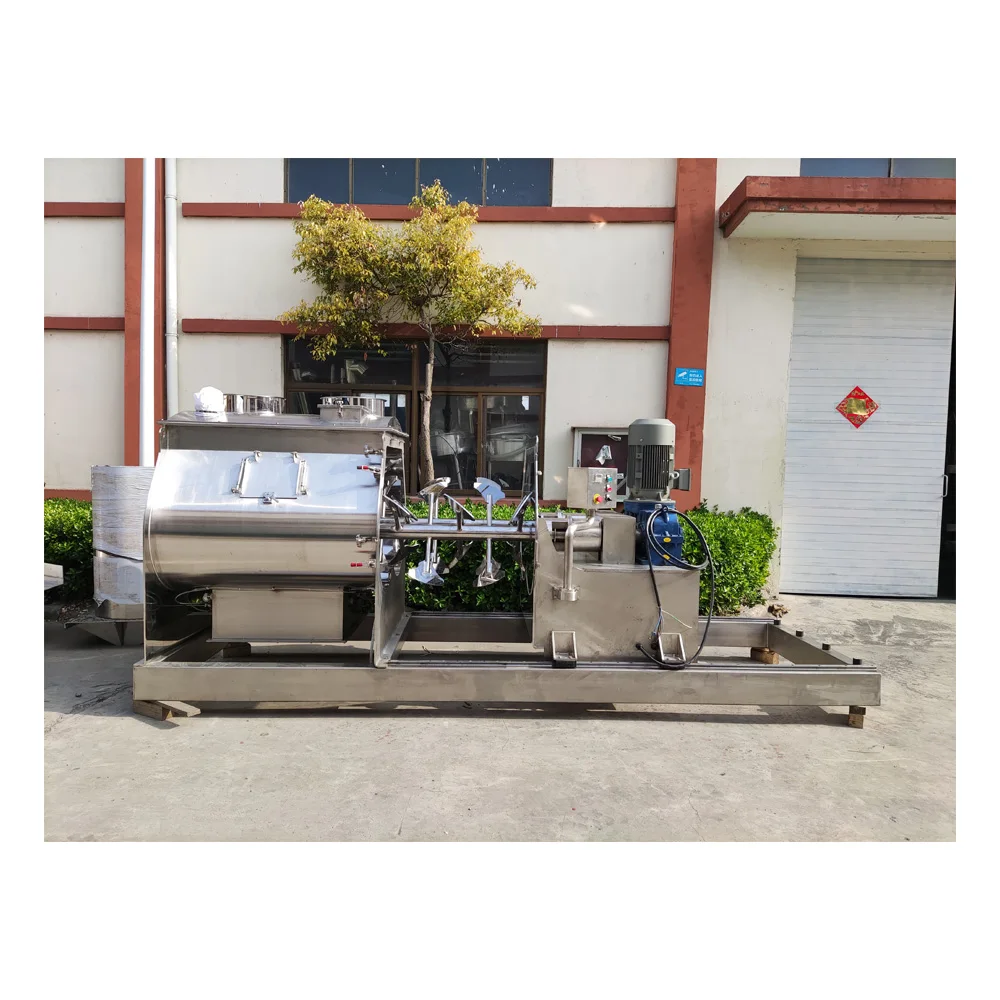

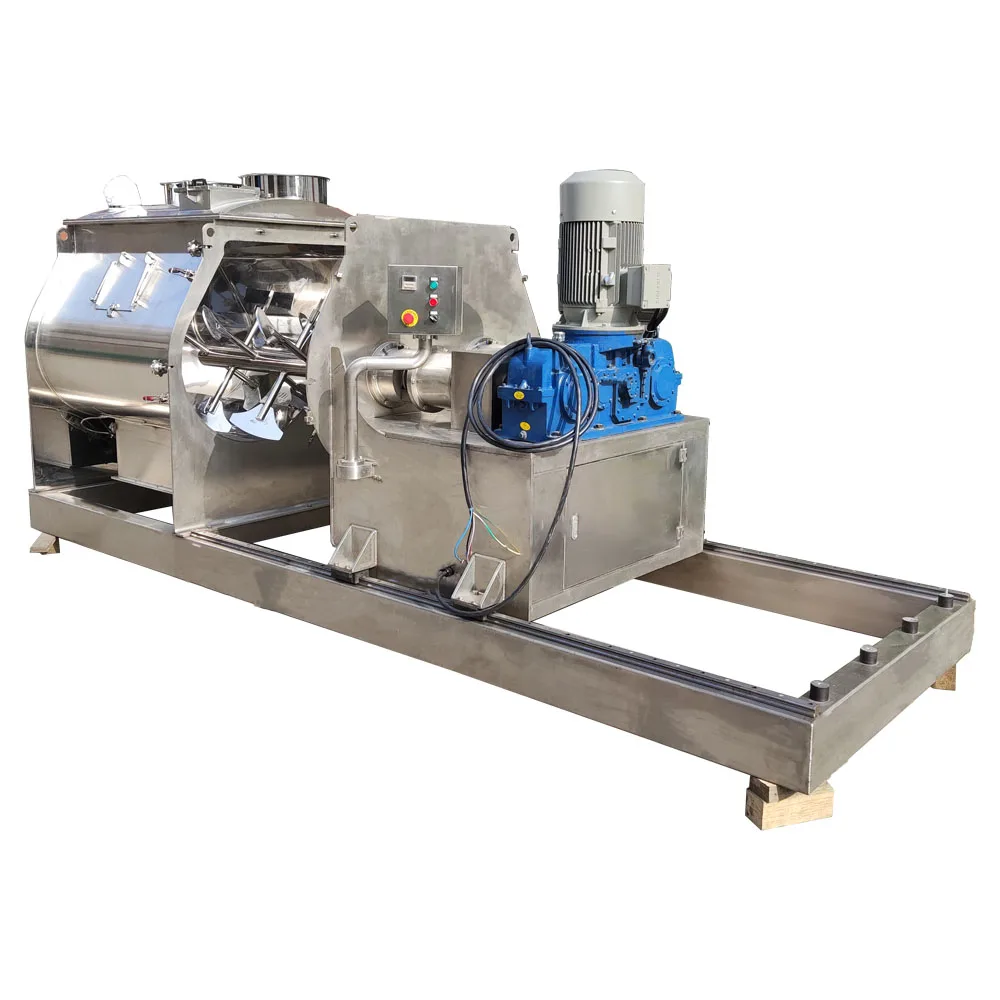

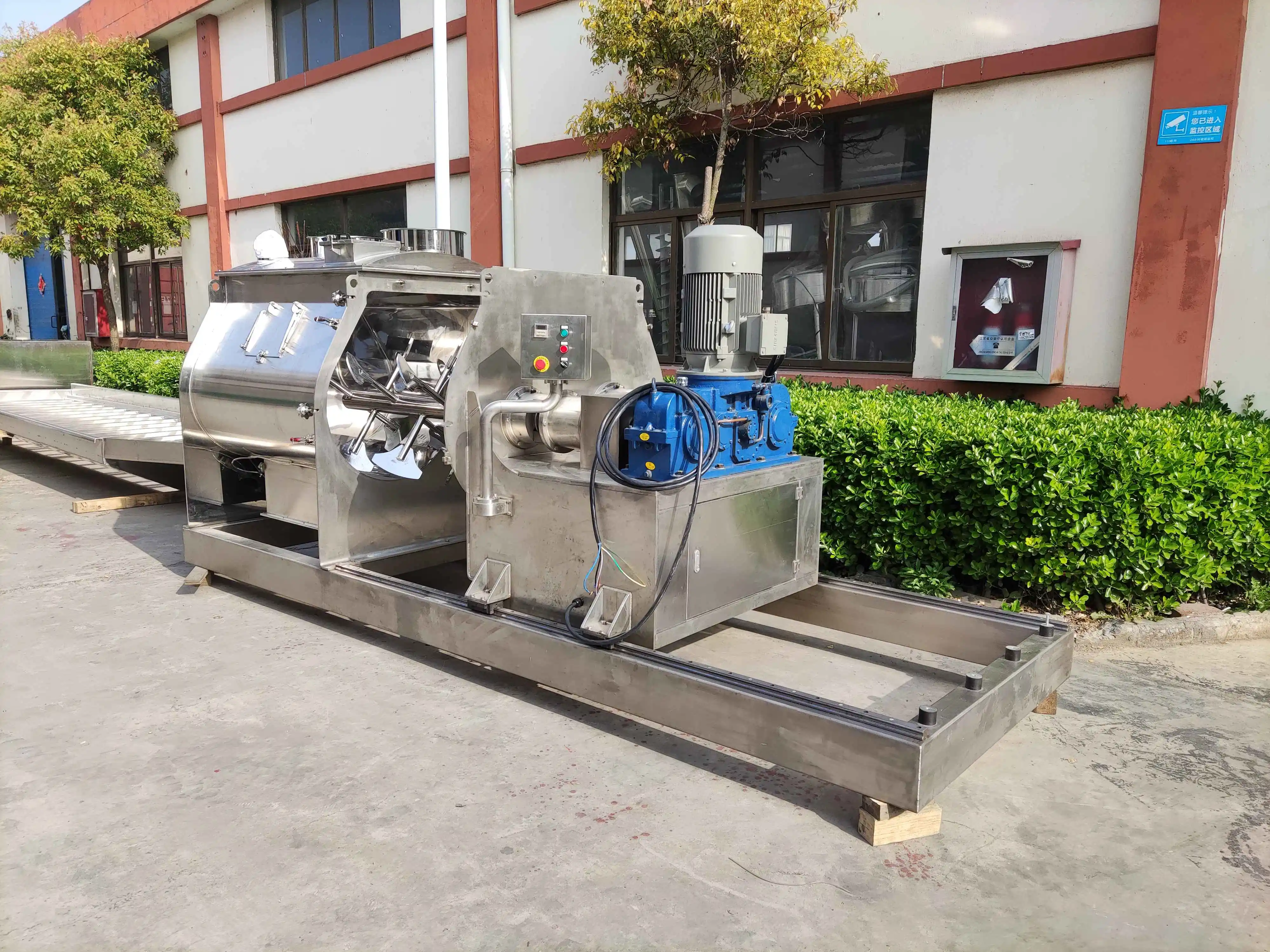

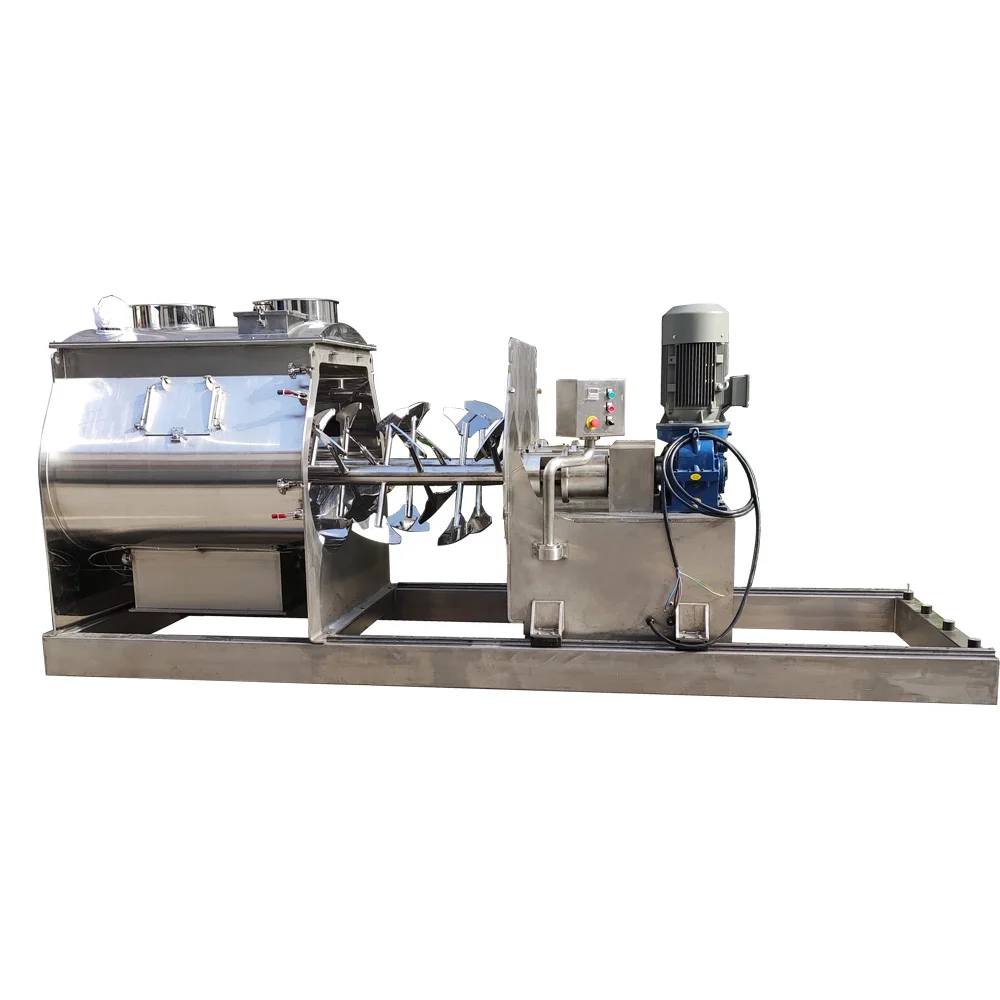

Heavy Duty Pulling Type Paddle Mixer Machine / Non gravity Open door Mixer
- Category: >>>
- Supplier: Shanghai Yulan Packing Equipment Co. Ltd.
Share on (1600228049804):
Product Overview
Description
Product Information
Main Features
1. it is widely applied in mixing powder and powder, granular and
granular, granular and powder, and few liquid;
granular, granular and powder, and few liquid;
2.it is used for food, chemical, pesticide, feeding stuff, and battery ect.
3.It is high precision mixing equipment and adapts to mixing;
4.it is evenly mixing on materials with gravity, proportion, particle size different.
5.It makes part fragmentation with adding fragmentation equipment.
This series machine overcomes the drawback of horizontal mixer to clean up inconvenientiy .The gear reducer and mixer rotor are direct transmission,higher reliability and longer service.
Products Configuration

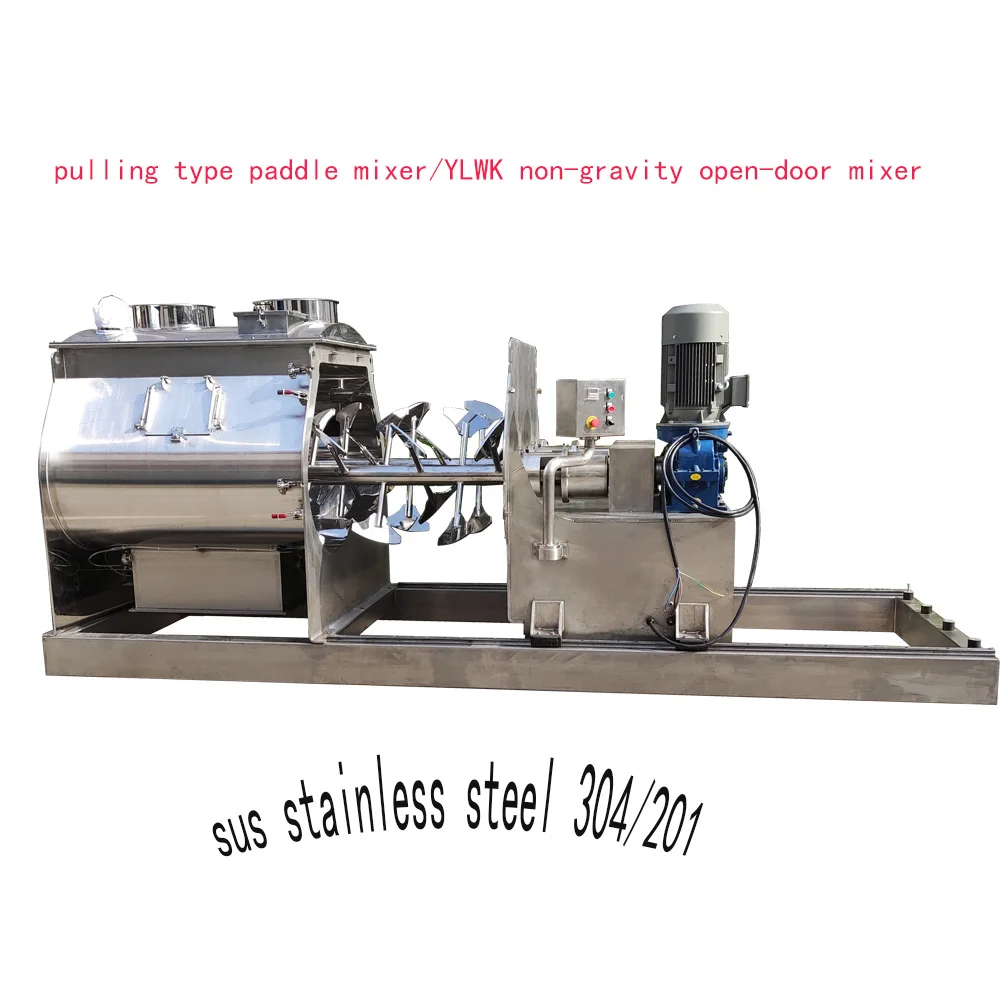

(Opend door type )Double shaft paddle mixer
Main technnical data | ||||||||||||
Mode | YLWK-150 | YLWK-300 | YLWK-500 | YLWK-1000 | YLWK-1500 | YLWK-2000 | ||||||
Effective volume | 150L | 300L | 500L | 1000L | 1500L | 2000L | ||||||
Fully volume | 185L | 400L | 680L | 1280L | 1820L | 2450L | ||||||
Loading rate | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | ||||||
Turning speed | 53 rmp | 53 rpm | 45 rpm | 45 rpm | 39 rpm | 39 rpm | ||||||
Total weight | 680 kg | 980 kg | 1600 kg | 2800 kg | 3800 kg | 5000 kg | ||||||
Total power | 4kw | 5.5kw | 7.5kw | 11kw | 15kw | 18.5kw | ||||||
Length(mm) | 2900 | 3240 | 3400 | 3600 | 3900 | 4200 | ||||||
Width(mm) | 960 | 1040 | 1150 | 1380 | 1560 | 1800 | ||||||
Height(mm) | 1200 | 1450 | 1500 | 1690 | 1840 | 1950 | ||||||
Power supply | 3P AD208-415V 50/60HZ | |||||||||||
Note | All metal structure :SS 304 ,full welded and polished | |||||||||||
Configuration List
No | Name | Original Brand |
1 | Motor | German Siemens |
2 | Reducer | China ZIK |
3 | Emergency stop switch | France Schneider |
4 | Power on button | France Schneider |
5 | Power off button | France Schneider |
6 | Discharge button | France Schneider |
7 | Timer | Japan Omron |
8 | Circuit Breaker | France Schneider |
9 | AC contactor | France Schneider |
10 | Hot relay | France Schneider |
11 | electromagnetic valve | Taiwan Airtac |
12 | air cylinder | Taiwan Airtac |
Principle of working:
1. Double shaft paddle mixer is with 2 horizontal paddle shaft; there is the paddle on each shaft;
2. With the driven equipment, two cross paddle shafts moves intersection and patho-occlusion.
3. Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation,
spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called
instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing
space between the twin shafts; fast and evenly mixed.
2. With the driven equipment, two cross paddle shafts moves intersection and patho-occlusion.
3. Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation,
spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called
instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing
space between the twin shafts; fast and evenly mixed.

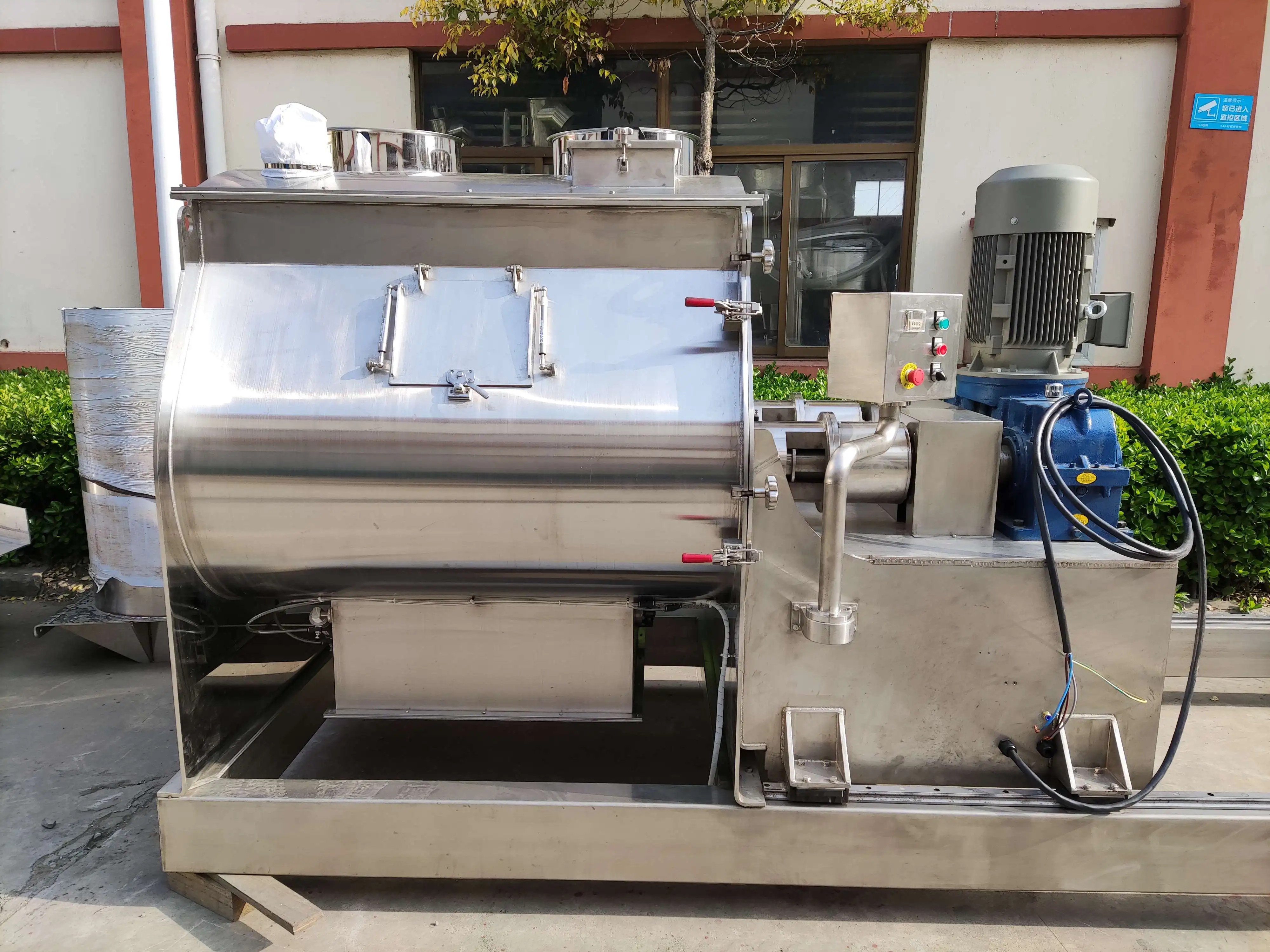

Machine structure
1. Equipped with an observation port
2. Equipped with exhaust port
3. Equipped with feeding port
4. Can open the door on the side
2. Equipped with exhaust port
3. Equipped with feeding port
4. Can open the door on the side

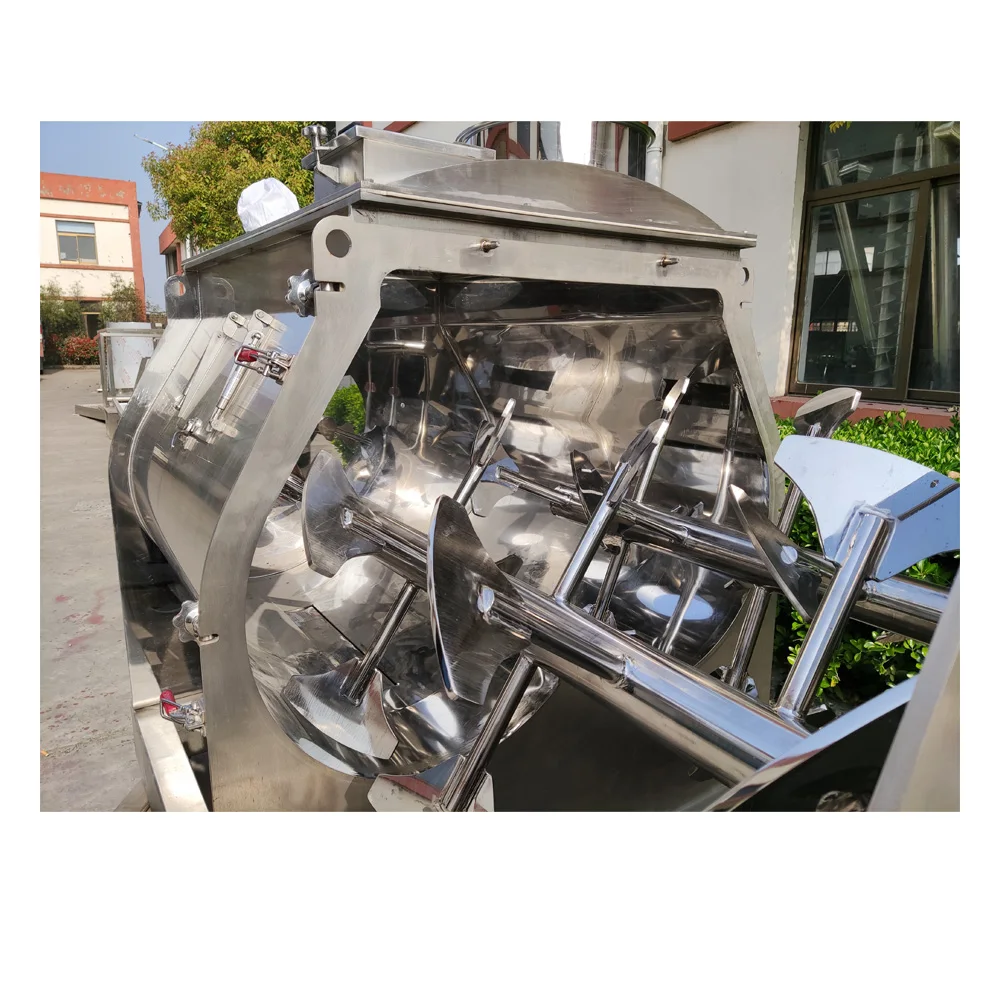

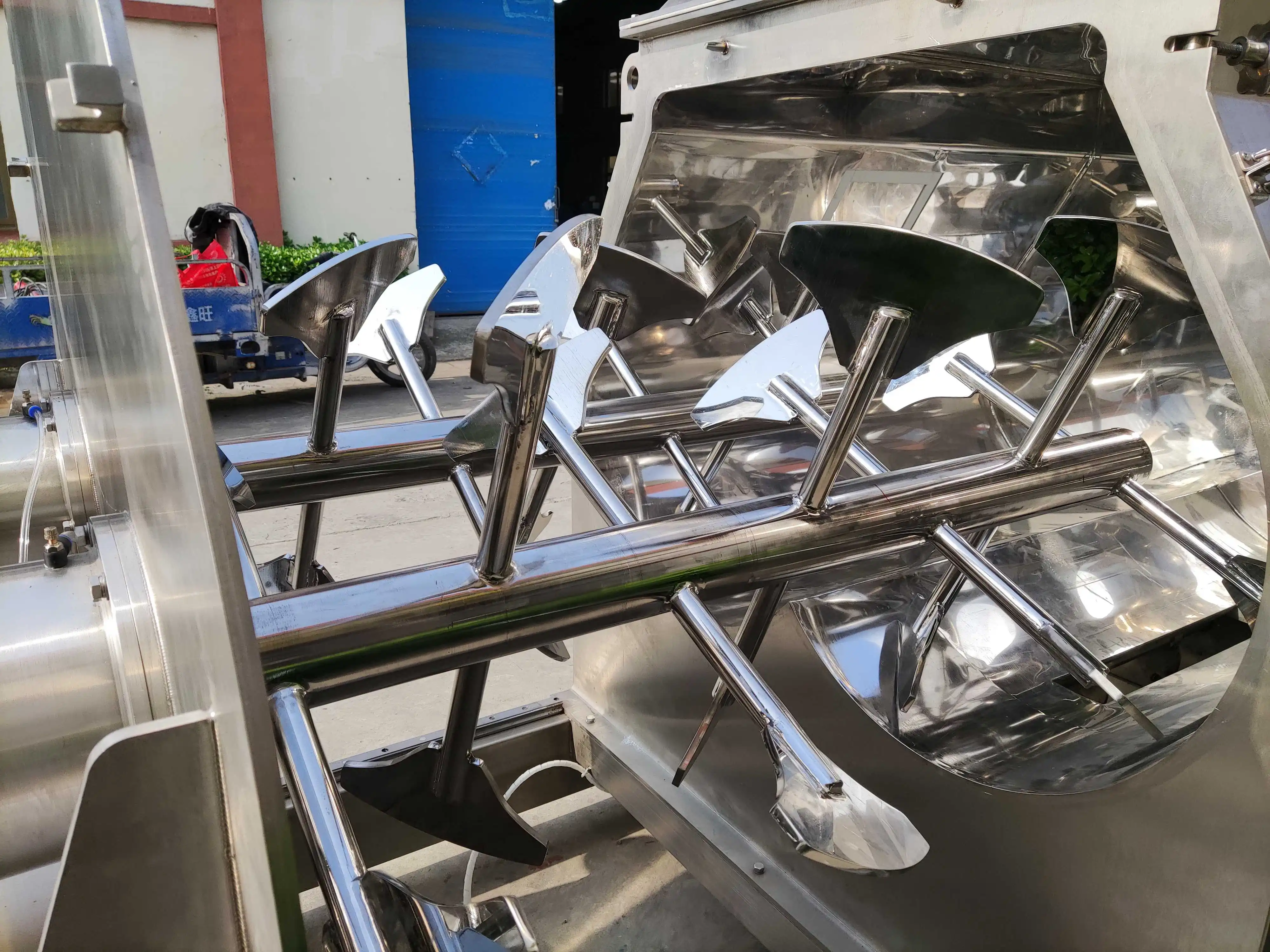

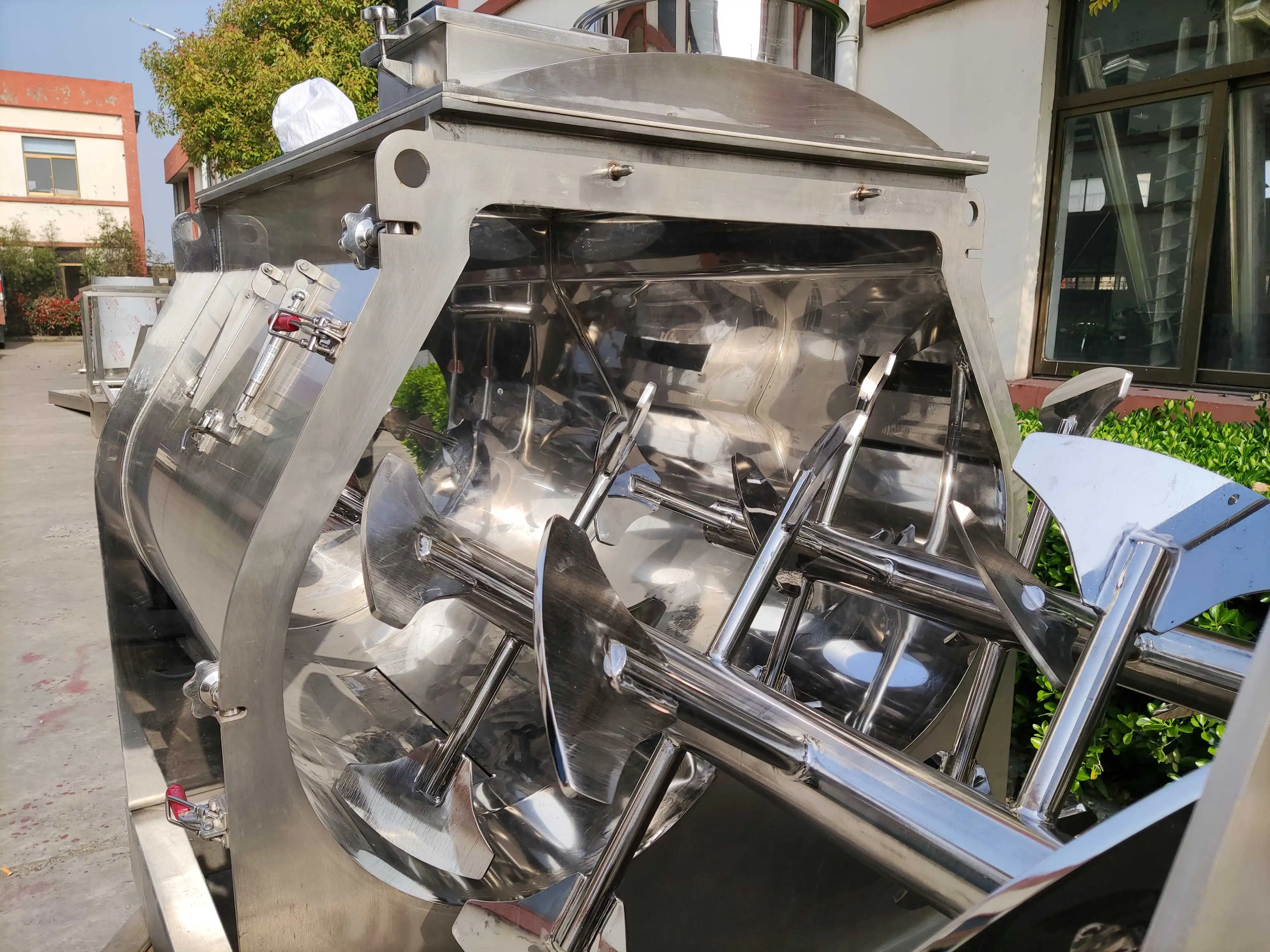

Paddle blades
1.Different blade angles, high efficiency and good effect
2.Fully welded and polished, excellent workmanship
3.Rotate reversely and throw materials to different angles ,mixing time 1-3min.
4Compact design and ratated shafts be filled with hopper ,mixing uniformity up to 99%.
5.Only 2-5mm gap between shafts and wall,open-type discharging hole.
High volume Barrel
1.Electronic mirror treatment on the inside of the barrel-Clean and hygienic, easy to clean
2.Use boom door at the bottom discharge port
PS:BOOM DOOR-Similar to the bomber door
It is easy to empty the barrel,no residue material.

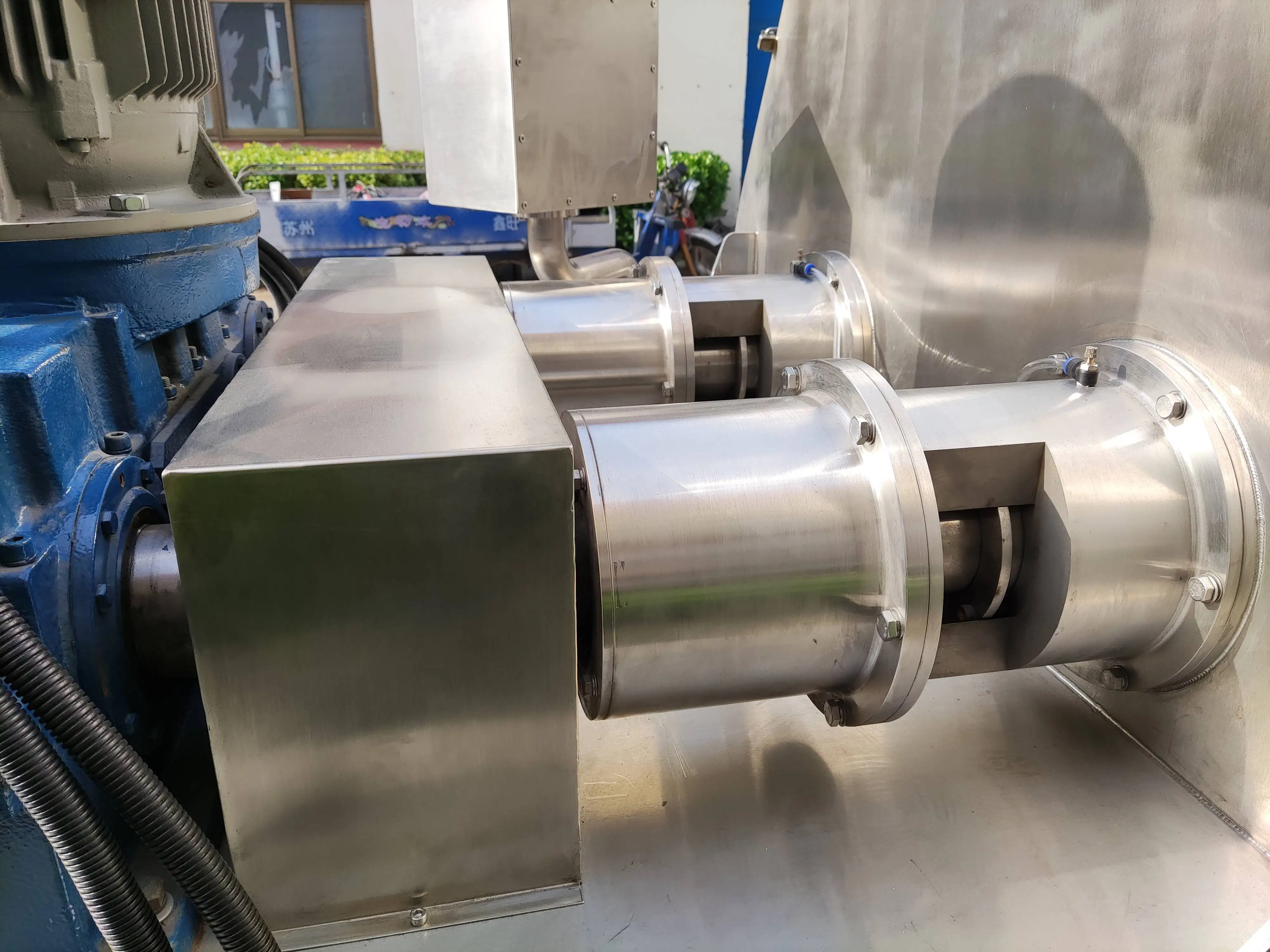

Mixing shaft
1.High-precision structure-connect the mixing shaft and reducer & motor.
2.High-quality materials, precision machining,Durable and Reliable

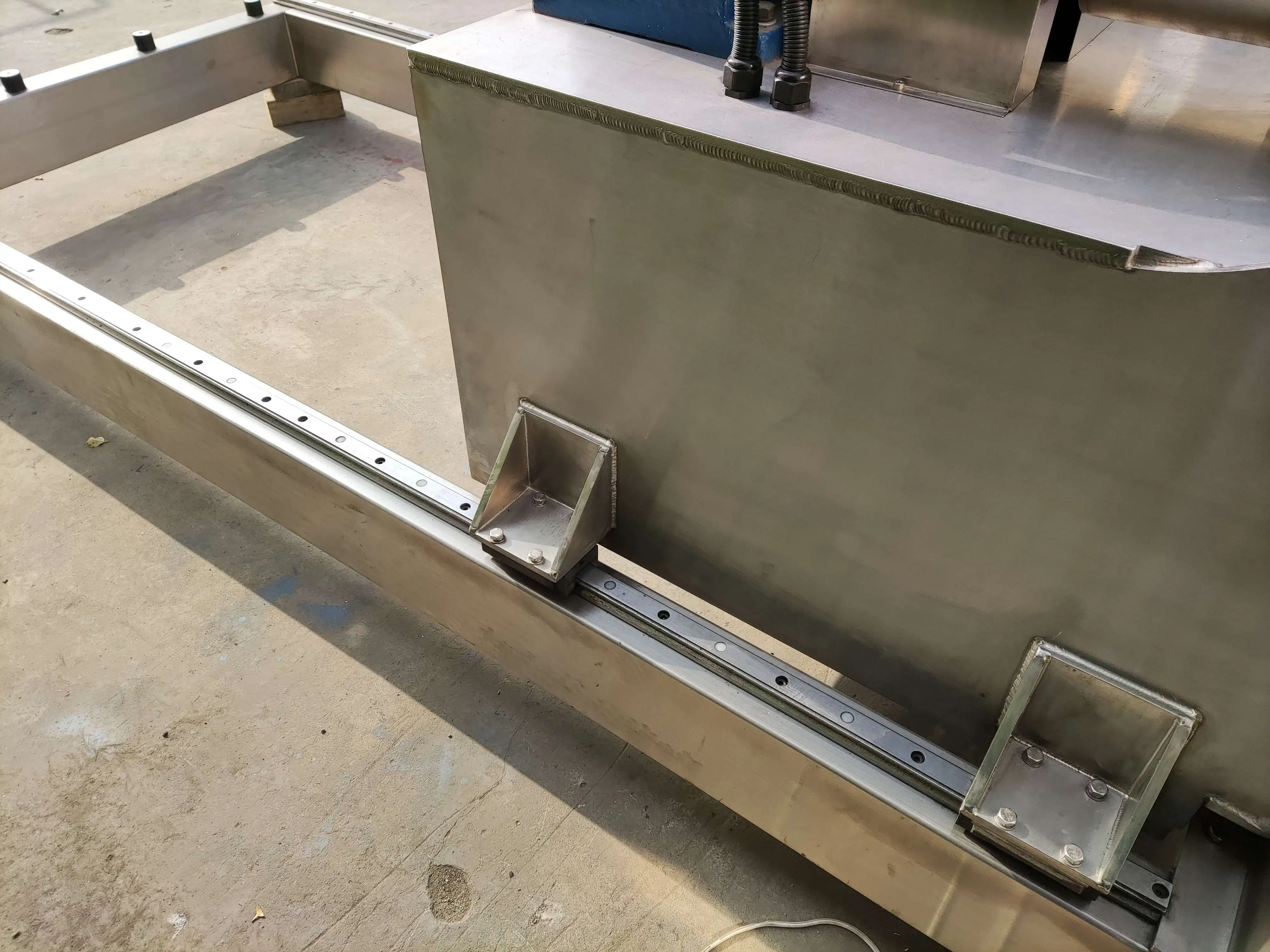

Efficient slide
1.Workers can easily push away the sides of the machine
2.Can be customized to automatically control the side opening door, convenient & easy to operate
For more details
Packing & Delivery

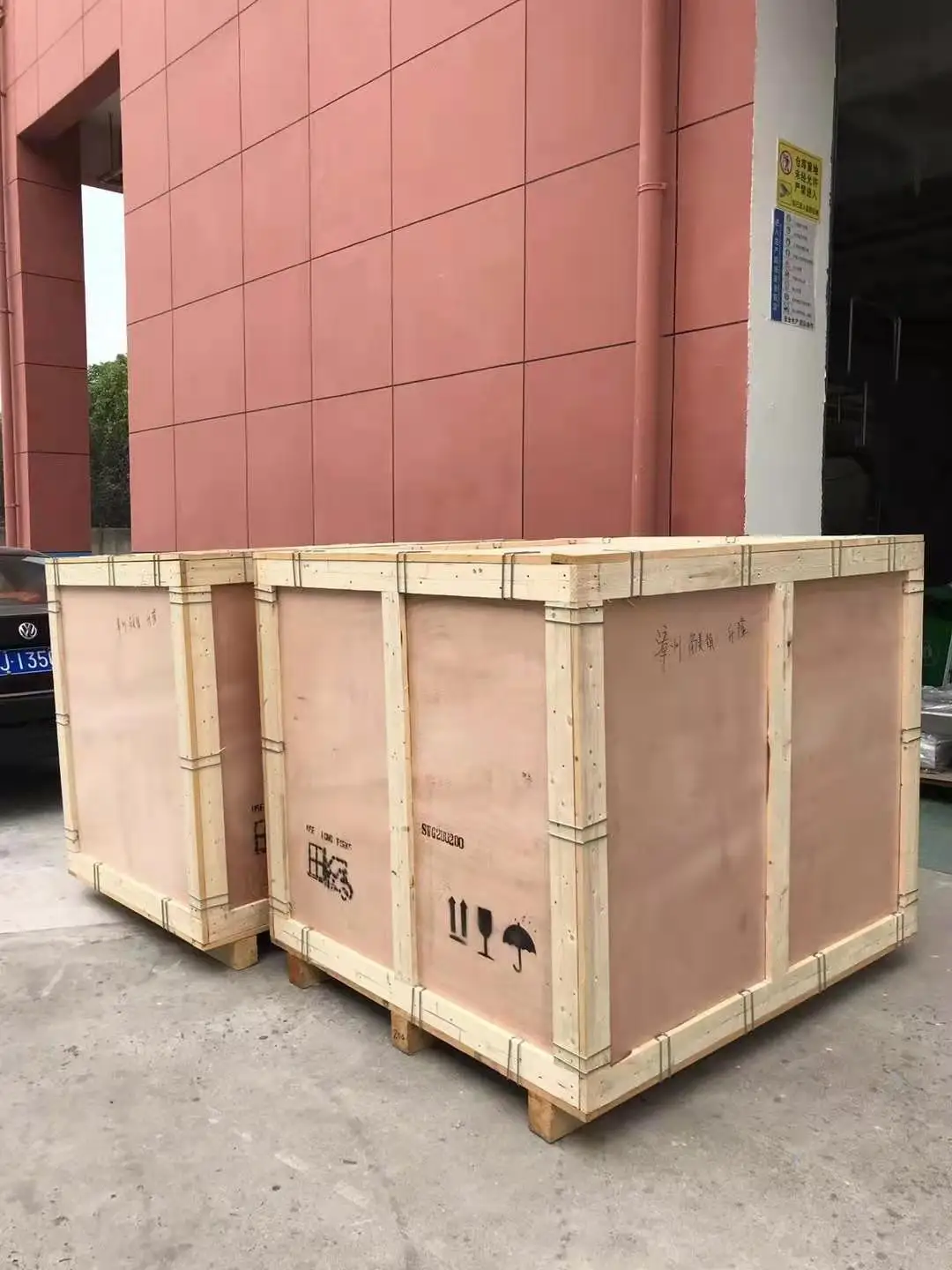

Packing Details : PACKAGES in Wooden box,film wrapped inside
Delivery Details : 5-7days
Delivery Details : 5-7days

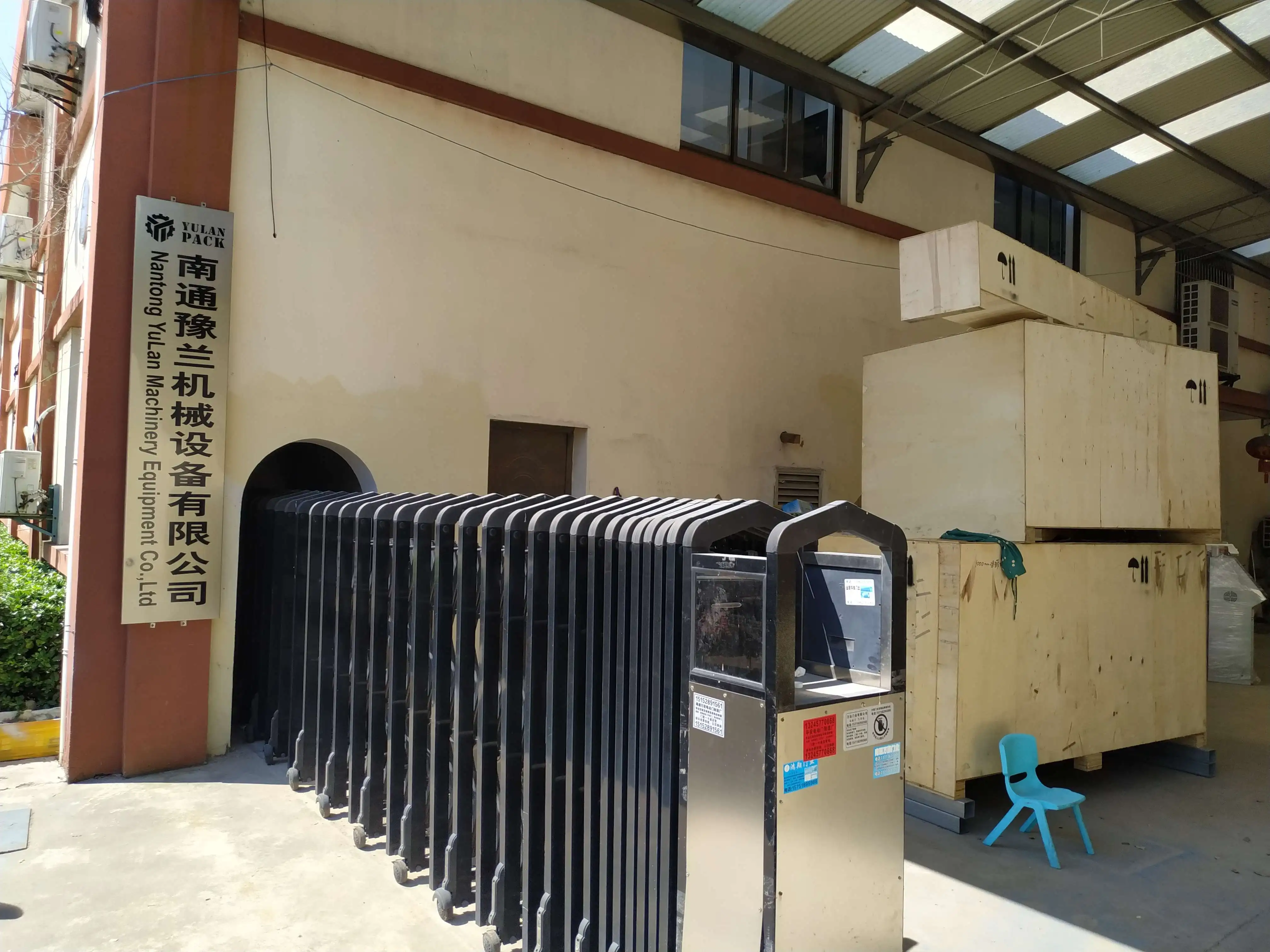

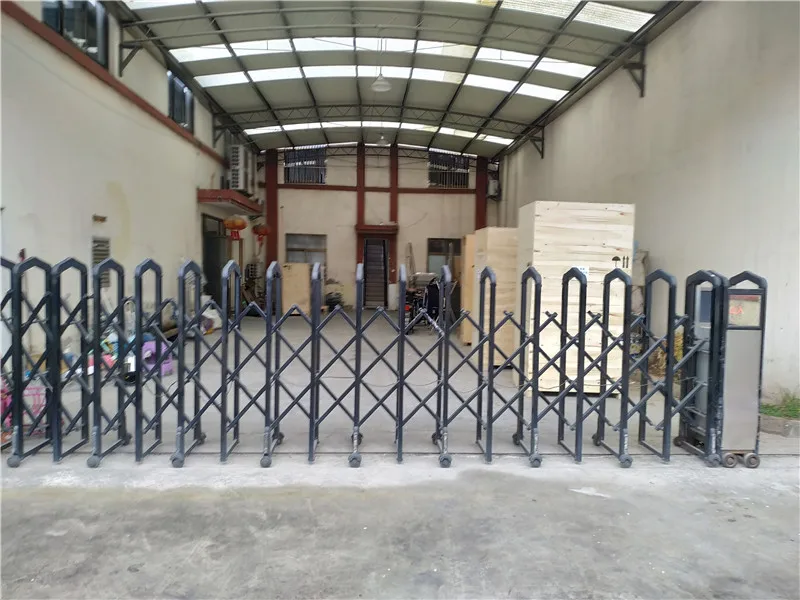

Our Company
