JBW 450C 450J Charpy Pendulum Impact Strength Tester For Metallic Material
- Category: >>>
- Supplier: Jinan Marxtest Technology Co. Ltd.
Share on (1600228197832):
Product Overview
Description
Product Description

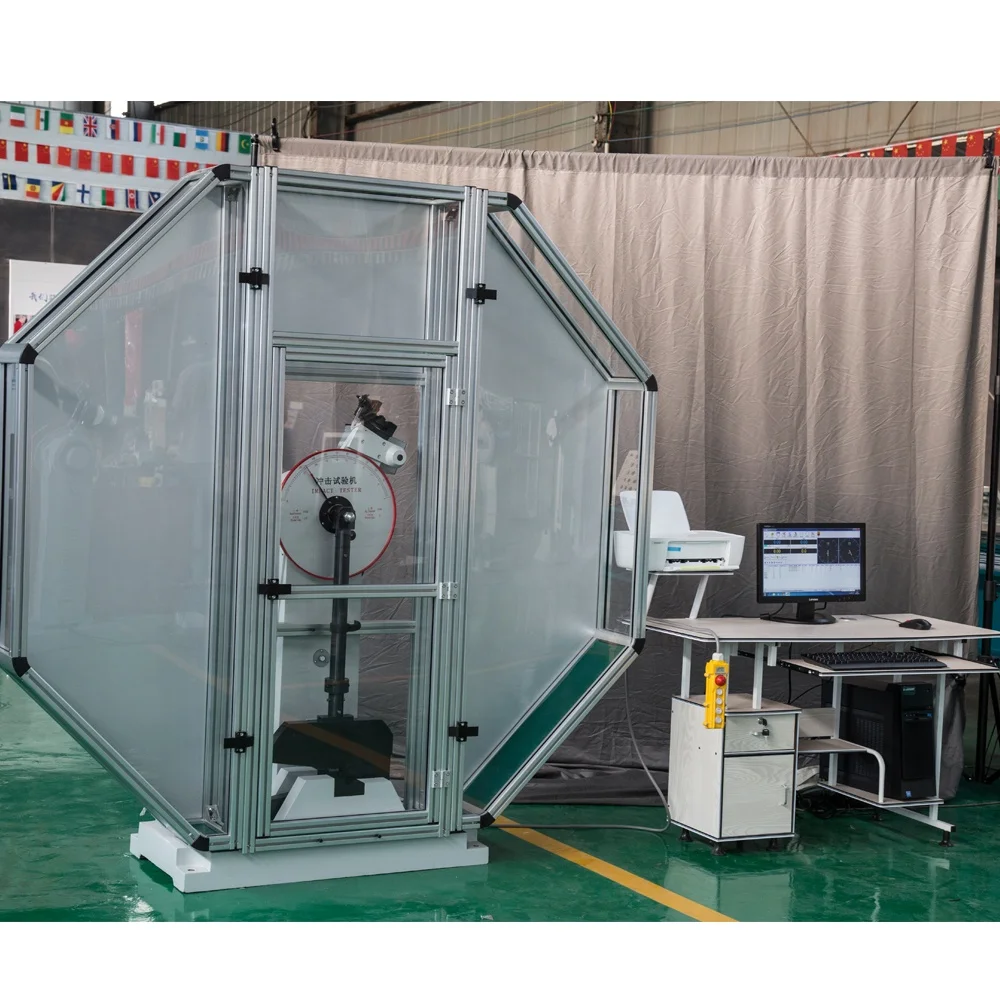

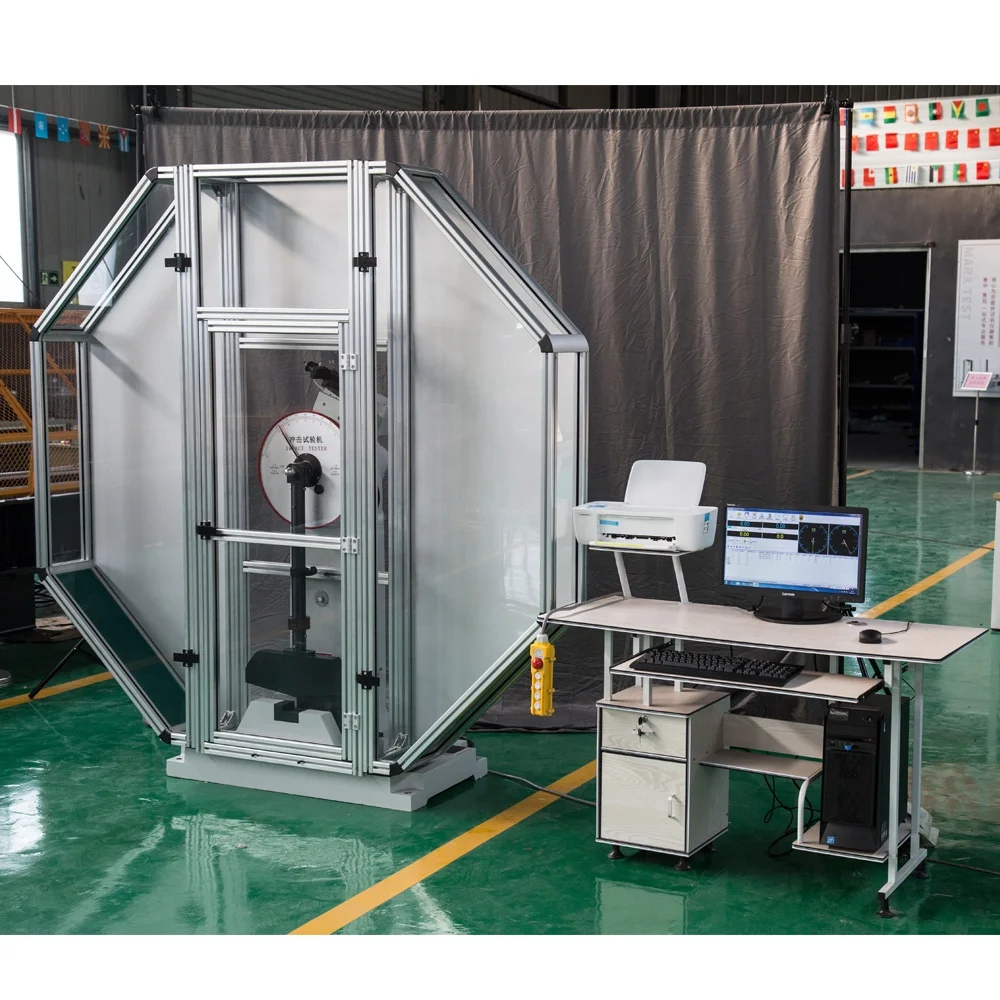

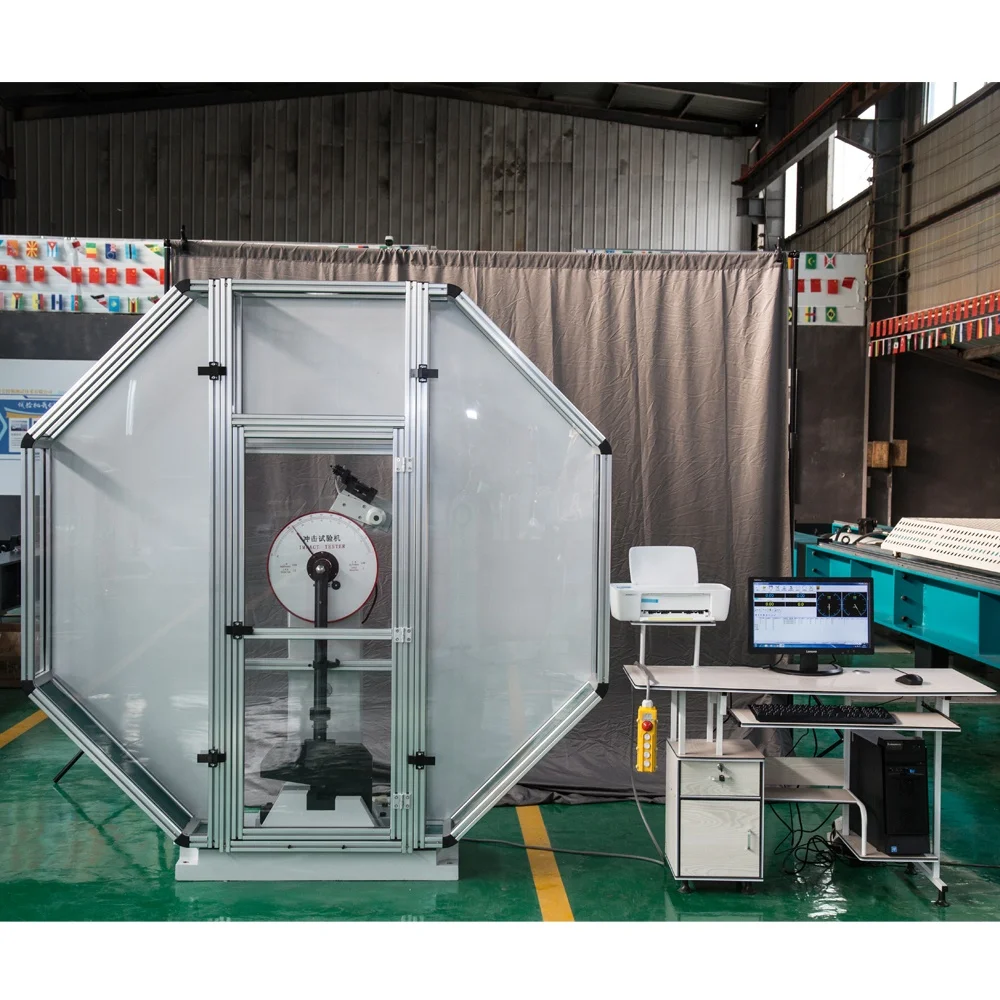

JBW-450C 450J Charpy Pendulum Impact Strength Tester
For Metallic Material
1. Application
JBW-450C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring
the metal material resistance performance under dynamic load,in order to determine the material
properties under dynamic load.
It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas,
but also used for the science research.
3. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-200,ISO 138,EN10045.
4. Main Technical Specifications:
Model | JBW-300C | JBW-450C | JBW-600C | JBW-750C | |||
Max. impact energy(J) | 300 | 450 | 600 | 750 | |||
Pendulum Torque | 160.7695 | 241.1543 | 321.5390 | 401.9238 | |||
The distance between the pendulum shaft and impact point | 750mm | ||||||
Impact speed | 5.24 m/s | ||||||
Raised angle | 150° | ||||||
Round angle of the jaw | R1-1.5mm | ||||||
Round angle of impact edge | R2-2.5mm,(R8±0.05mm optional) | ||||||
Angle accuracy | 0.1° | ||||||
Standard specimen dimension | 10mm×10(7.5/5)mm×55mm | ||||||
Power supply | 3phs, 380V, 50Hz or specified by users | ||||||
Net Weight (kg) | 900 | ||||||
