SKD11/1.2601/Cr12Mo1V/X165CrMoV12/D2/2310/X12M steel round and flat cold work tool steel
- Category: >>>
- Supplier: Huangshi Pinxin Industrial Co. Ltd.
Share on (1600228545904):
Product Overview
Description
Company
Product Description
SKD11 is a general-purpose cold work die steel with high wear resistance and toughness, high carbon and high chromium alloy tool steel and vacuum degassed refined steel. The steel is pure and has good hardenability and small quenching deformation.
SKD11 steel is softened by spheroidizing annealing and has good machinability. The carbide particles are fine and uniform. There is no need to worry about the special addition of molybdenum and vanadium, which is the quenching cracking strengthening element.
SKD11 is produced by Hitachi and Datong Steel Plants. Hitachi’s SKD11 is produced under the trade name SLD (the latest improved version is called SLD-MAGIC), and Datong Steel Plant’s trade name is DC11. Both have factories in the mainland, and are the most well-known in the industry, and the prices are also the highest. The steel is a kind of air-cooled hardening cold work die steel widely used internationally. Smelted by electric furnace and remelted by electroslag, it has high purity, better toughness, uniform structure, good high temperature strength, toughness and high temperature fatigue resistance, and can withstand sudden temperature changes.
High hardness, high wear resistance eutectic carbide uniform, good toughness, not easy to crack, the hardness after quenching> 62HRC. The nitriding treatment time at 525℃ is 20h/30h/60h, the nitriding layer depth is 0.25mm/0.30mm/0.35mm, the surface hardness of the part is 1250HV; the nitriding treatment time at 570℃ is 2h, and the nitriding layer depth is 10~ 20μm, the surface hardness of the part is 950HV.
SKD11 steel is softened by spheroidizing annealing and has good machinability. The carbide particles are fine and uniform. There is no need to worry about the special addition of molybdenum and vanadium, which is the quenching cracking strengthening element.
SKD11 is produced by Hitachi and Datong Steel Plants. Hitachi’s SKD11 is produced under the trade name SLD (the latest improved version is called SLD-MAGIC), and Datong Steel Plant’s trade name is DC11. Both have factories in the mainland, and are the most well-known in the industry, and the prices are also the highest. The steel is a kind of air-cooled hardening cold work die steel widely used internationally. Smelted by electric furnace and remelted by electroslag, it has high purity, better toughness, uniform structure, good high temperature strength, toughness and high temperature fatigue resistance, and can withstand sudden temperature changes.
High hardness, high wear resistance eutectic carbide uniform, good toughness, not easy to crack, the hardness after quenching> 62HRC. The nitriding treatment time at 525℃ is 20h/30h/60h, the nitriding layer depth is 0.25mm/0.30mm/0.35mm, the surface hardness of the part is 1250HV; the nitriding treatment time at 570℃ is 2h, and the nitriding layer depth is 10~ 20μm, the surface hardness of the part is 950HV.
SKD11 Corresponding grade
China GB standard grade Cr12Mo1V, China Taiwan CNS standard grade SKD11, German DlN standard material number 1.2601, German DIN
standard grade X165CrMoV12, Japanese Jis standard grade SKD11, South Korea Ks standard grade STD11, Italian UN1 standard grade
X165CrM0W12KU, Sweden SS standard grade 2310 , Spain UNE standard grade X160CrM0V12, American AISi/sAE standard grade D2, Russian
roCT standard grade X12M.
characteristic
1. Good high temperature strength and toughness, better wear resistance, easy to cut;
2. SKD11 is a kind of cold die steel with a good balance of strength, toughness and heat resistance. In recent years, with the
development of isotropic products, it has gradually developed to high toughness and other aspects. It can make the die life longer
and performance It is more stable, easy to process, and less deformed by heat treatment.
Folding product features
(1) Vacuum degassing and refining are carried out, so the internal quality is extremely clean.
(2) Good machinability.
(3) Good hardenability, air cooling can harden, no need to worry about quenching cracking.
(4) The heat treatment deformation is very small, the quenching deviation is very small, and it is most suitable for molds with
precision requirements.
(5) Excellent wear resistance, most suitable for punching die for stainless steel or high-hard materials.
(6) Good toughness.
use
SKD11 is the most widely used mold material for aluminum and zinc die casting. This steel contains tungsten high temperature
resistant high-grade alloy steel, suitable for hot work, aluminum, magnesium, zinc, copper alloy die-casting molds, grooving
knives, scissors and heat Forging operations, plastic molds, hot work reamers, rolling knives, general hot work forging dies, hot
bolt dies, hot tools, etc.
Folding method of use
Used in the "quenched + tempered" state
Use in the state of "quenching + cold treatment + tempering" (suitable for high precision and dimensional stability requirements)
Use in the state of "quenching + tempering + nitriding" (suitable for high surface hardness requirements)
When cutting the material, the saw blade speed should not be too fast, 25m/min is appropriate, and the sawing efficiency is
maintained at about 9cm2/min ~ 20cm2/min.
Folding typical applications
Used to make plastic molds, scissors, circular saw blades, metal stamping dies, forming rolls
Production of cold work or hot work finishing dies, drum edges, thread patterns, wire dies, transformer core punching dies,
cutting steel sheet rolling knives, steel tube forming drums, special forming cylinders, nail heading dies, etc.
High-efficiency blanking die, blanking die, stamping die for thin steel plate with thickness ≤6mm
All kinds of scissors, inlaid parts, thread rolling die.
Resistance to slider cold heading die, deep drawing forming die, cold extrusion die.
Thermosetting resin mold, general plastic mold.
China GB standard grade Cr12Mo1V, China Taiwan CNS standard grade SKD11, German DlN standard material number 1.2601, German DIN
standard grade X165CrMoV12, Japanese Jis standard grade SKD11, South Korea Ks standard grade STD11, Italian UN1 standard grade
X165CrM0W12KU, Sweden SS standard grade 2310 , Spain UNE standard grade X160CrM0V12, American AISi/sAE standard grade D2, Russian
roCT standard grade X12M.
characteristic
1. Good high temperature strength and toughness, better wear resistance, easy to cut;
2. SKD11 is a kind of cold die steel with a good balance of strength, toughness and heat resistance. In recent years, with the
development of isotropic products, it has gradually developed to high toughness and other aspects. It can make the die life longer
and performance It is more stable, easy to process, and less deformed by heat treatment.
Folding product features
(1) Vacuum degassing and refining are carried out, so the internal quality is extremely clean.
(2) Good machinability.
(3) Good hardenability, air cooling can harden, no need to worry about quenching cracking.
(4) The heat treatment deformation is very small, the quenching deviation is very small, and it is most suitable for molds with
precision requirements.
(5) Excellent wear resistance, most suitable for punching die for stainless steel or high-hard materials.
(6) Good toughness.
use
SKD11 is the most widely used mold material for aluminum and zinc die casting. This steel contains tungsten high temperature
resistant high-grade alloy steel, suitable for hot work, aluminum, magnesium, zinc, copper alloy die-casting molds, grooving
knives, scissors and heat Forging operations, plastic molds, hot work reamers, rolling knives, general hot work forging dies, hot
bolt dies, hot tools, etc.
Folding method of use
Used in the "quenched + tempered" state
Use in the state of "quenching + cold treatment + tempering" (suitable for high precision and dimensional stability requirements)
Use in the state of "quenching + tempering + nitriding" (suitable for high surface hardness requirements)
When cutting the material, the saw blade speed should not be too fast, 25m/min is appropriate, and the sawing efficiency is
maintained at about 9cm2/min ~ 20cm2/min.
Folding typical applications
Used to make plastic molds, scissors, circular saw blades, metal stamping dies, forming rolls
Production of cold work or hot work finishing dies, drum edges, thread patterns, wire dies, transformer core punching dies,
cutting steel sheet rolling knives, steel tube forming drums, special forming cylinders, nail heading dies, etc.
High-efficiency blanking die, blanking die, stamping die for thin steel plate with thickness ≤6mm
All kinds of scissors, inlaid parts, thread rolling die.
Resistance to slider cold heading die, deep drawing forming die, cold extrusion die.
Thermosetting resin mold, general plastic mold.
Specification
ROUND BARS | DIAMETER 1.5-500MM |
SHEETS | THICKNESS 0.5-10MM |
PLATES | THICKNESS 12-300MM |
DIE BLOCK | THICKNESS 310-600MM |
Packing &Delivery

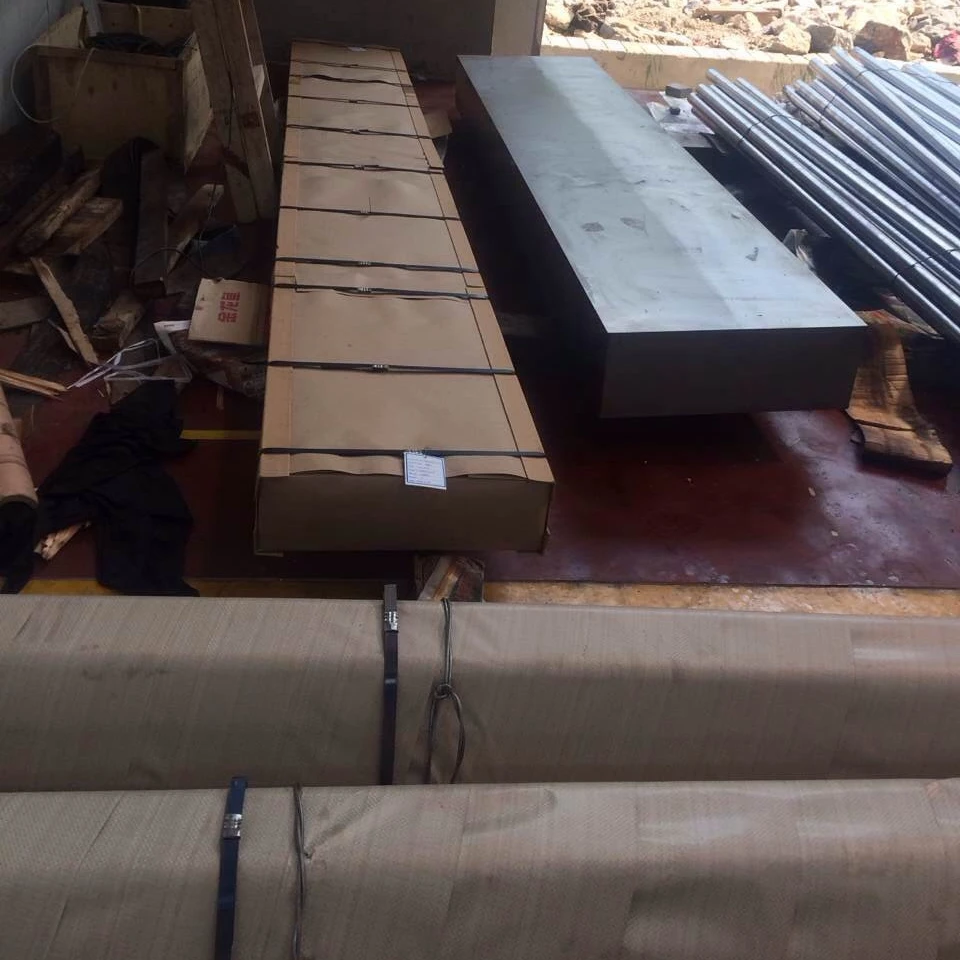

packing detail: Spray paint in Bundle or as per client demands
Port:Any Chinese Port
packing detail: Spray paint in Bundle or as per client demands
Port:Any Chinese Port
Company Profile
Huangshi Pinxin Industrial Co.,Ltd was established in 13th,Dec,2013 with land area of 10000㎡.
Our company is a wholesaler professional in supplying good quality alloy tool steels.
we mainly supply:
Cold work tool steel(D3/1.2080/SKD1,D6/1.2436,KNL D2,SKD11,D2/1.2379 etc)
Hot work tool steel(H11/1.2343,H13/1.2344/SKD61,1.2365,1.2367,1.2581,1.2606)
Plastic mould steel(1.2311/P20/1.2312/P20+Ni/1.2738/718/1.2083/1.2316 etc)
High speed steel(1.3343/M2/1.3355/M42)
Structure steel(4140/4340/8620/18CrNiMo7-6 etc)
Carbon steel(CK45/CK50)Steel.
Steel forgings. Steel roller.Steel shaft.Steel hardware accessories.
Development overview: Since the export business started in 2013, the annual export volume has been increasing steadily. With excellent service, excellent quality and reasonable price, we have been highly praised by customers all over the world.
Our goal: Adhere to the tenet of "people-oriented, responsibility first", scientific management, and stable operation. Our goal is to become a first-class special steel company that is market-oriented, optimized for efficiency and sustainable development. We strive to make annual product sales more than 50 million U.S. dollars.
Our business philosophy: honest management, advancing with the times, customer first; quality first, mutual benefit and common development.
We sincerely welcome your visit and business!
Our company is a wholesaler professional in supplying good quality alloy tool steels.
we mainly supply:
Cold work tool steel(D3/1.2080/SKD1,D6/1.2436,KNL D2,SKD11,D2/1.2379 etc)
Hot work tool steel(H11/1.2343,H13/1.2344/SKD61,1.2365,1.2367,1.2581,1.2606)
Plastic mould steel(1.2311/P20/1.2312/P20+Ni/1.2738/718/1.2083/1.2316 etc)
High speed steel(1.3343/M2/1.3355/M42)
Structure steel(4140/4340/8620/18CrNiMo7-6 etc)
Carbon steel(CK45/CK50)Steel.
Steel forgings. Steel roller.Steel shaft.Steel hardware accessories.
Development overview: Since the export business started in 2013, the annual export volume has been increasing steadily. With excellent service, excellent quality and reasonable price, we have been highly praised by customers all over the world.
Our goal: Adhere to the tenet of "people-oriented, responsibility first", scientific management, and stable operation. Our goal is to become a first-class special steel company that is market-oriented, optimized for efficiency and sustainable development. We strive to make annual product sales more than 50 million U.S. dollars.
Our business philosophy: honest management, advancing with the times, customer first; quality first, mutual benefit and common development.
We sincerely welcome your visit and business!
