Крупногабаритная установка для сжигания муниципальных отходов, установка для сжигания отходов
- Category: Waste Treatment Machinery >>>
- Supplier: Shandong Kangtailong Intelligent Equipment Co. Ltd.
Share on (1600228724327):
Product Overview
Description

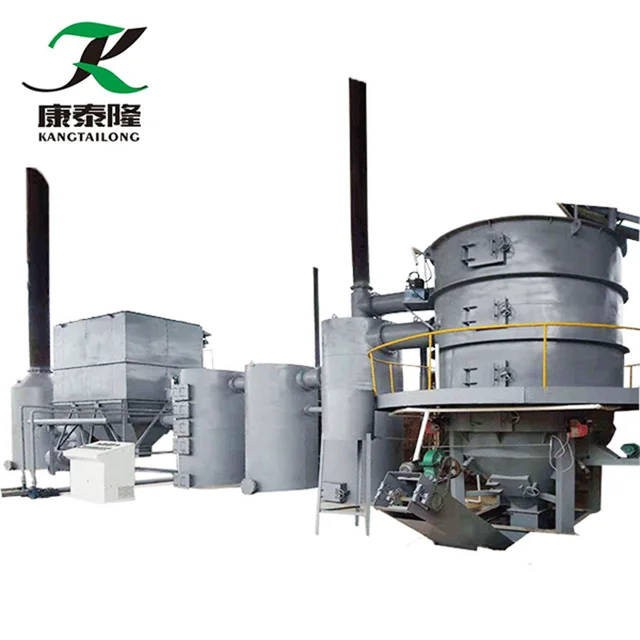

Waste treatment incinerator
Products Description
Working Principle
Low calorific value of MSW incinerator especially adapt to spontaneous combustion, high moisture "mix of garbage, garbage without sorting before charging, don't need to add fuel to realize continuous burning, dry slag in a row, at any time according to the fluctuation of garbage and equipment failure treatment effectively" furnace "can the sewage treatment plant sludge, the original in their living garbage landfill, incinerator garbage leachate spraying into the garbage burned together at the same time, these characteristics are foreign incinerator and other domestic incinerator can not reach.
The product won a number of national patents, through the national identification at the same time, and won the former Ministry of machinery industry science and technology progress first prize, national key products, the national environmental protection bureau and the Ministry of construction to promote products.
The product won a number of national patents, through the national identification at the same time, and won the former Ministry of machinery industry science and technology progress first prize, national key products, the national environmental protection bureau and the Ministry of construction to promote products.

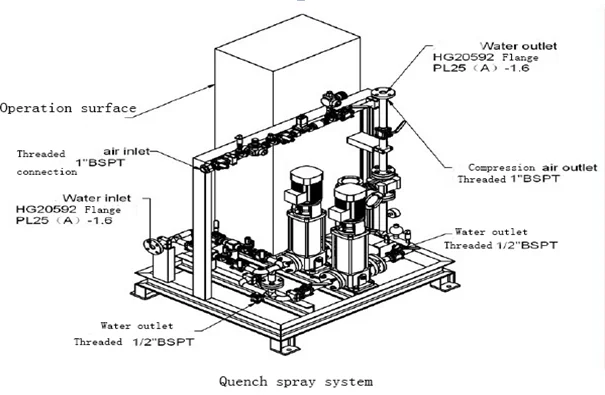

In the quench tower, When working, the water in the water tank is filtered by the filter, pressurized by the pump, and then fed into the spray gun after adjusting the pressure and flow rate by the water regulation system;In the spray gun with compressed air atomization, water is atomized into very small particles, atomized particles evaporated quickly in high temperature flue gas,large amount of heat absorption flue gas flue gas rapidly reduce temperature and maintain at a certain temperature range, when the outlet flue gas temperature is not in the scope of work set, quench system will automatically adjust the volume of water supply pressure, and other related parameters, so that the flue gas temperature guarantee within the scope of work, the function implementation in the relevant program controller.
Quick cooling system: waste heat utilization system is a vertical heat exchanger, flue gas from the upper part of the heat exchanger into the water heat exchanger, the lower part of the ash hopper, regular artificial ash.The cooling water in the jacket
of the water heat exchanger is supplemented with water in the water tank. In order to prevent scaling in the water jacket of the equipment, it is recommended to use softened water.The water jacket structure mainly has good heat exchange effect and protects equipment at the same time.
The dry powder deacidifier uses calcium hydroxide powder and activated carbon powder to spray into the flue gas pipe in front of
the bag dust collector to further remove the acidic substances in the flue gas and remove most of the dioxins and other harmful
substances.
the bag dust collector to further remove the acidic substances in the flue gas and remove most of the dioxins and other harmful
substances.
Wet electrostatic precipitator is mainly composed of inlet and outlet flue, dust collector shell, guide plate, rectifier grid,cathode line of anode dust collector plate, insulation box, washing water system, power supply and control system.

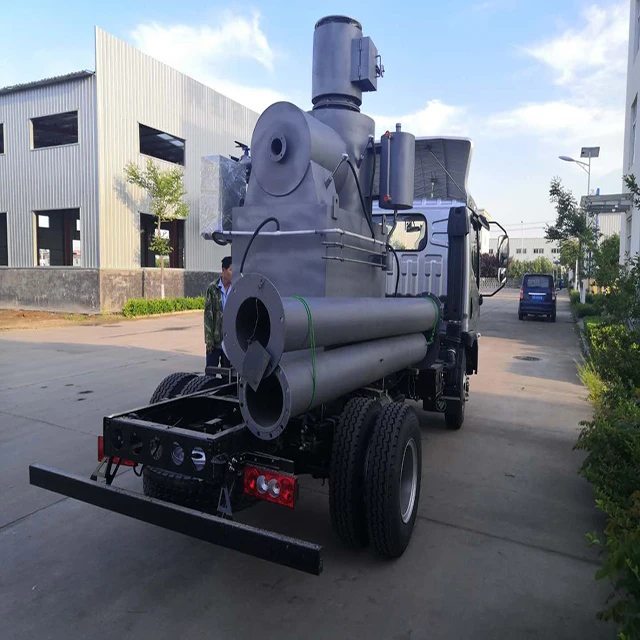

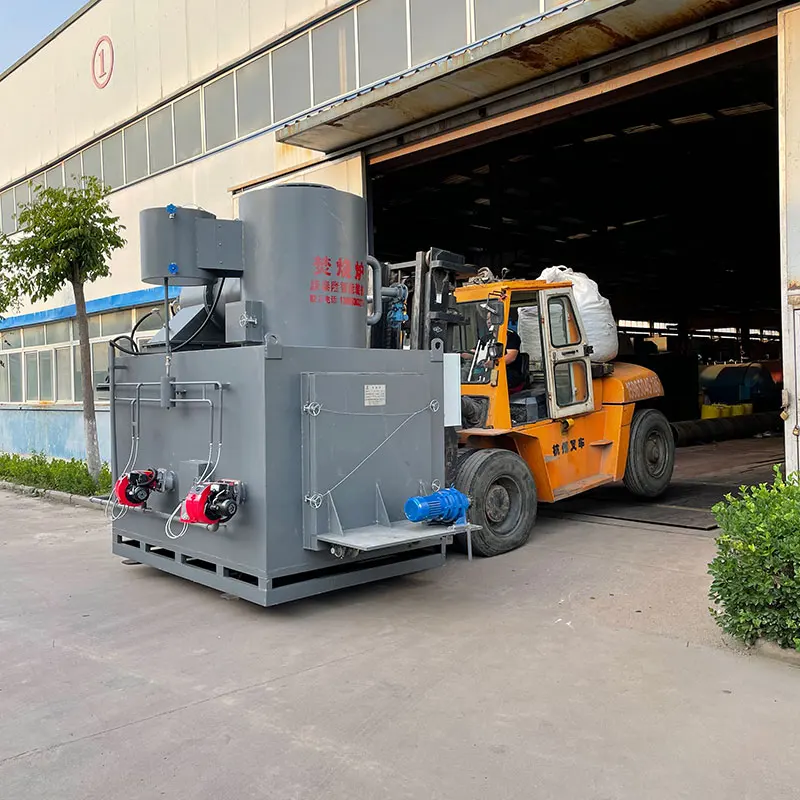

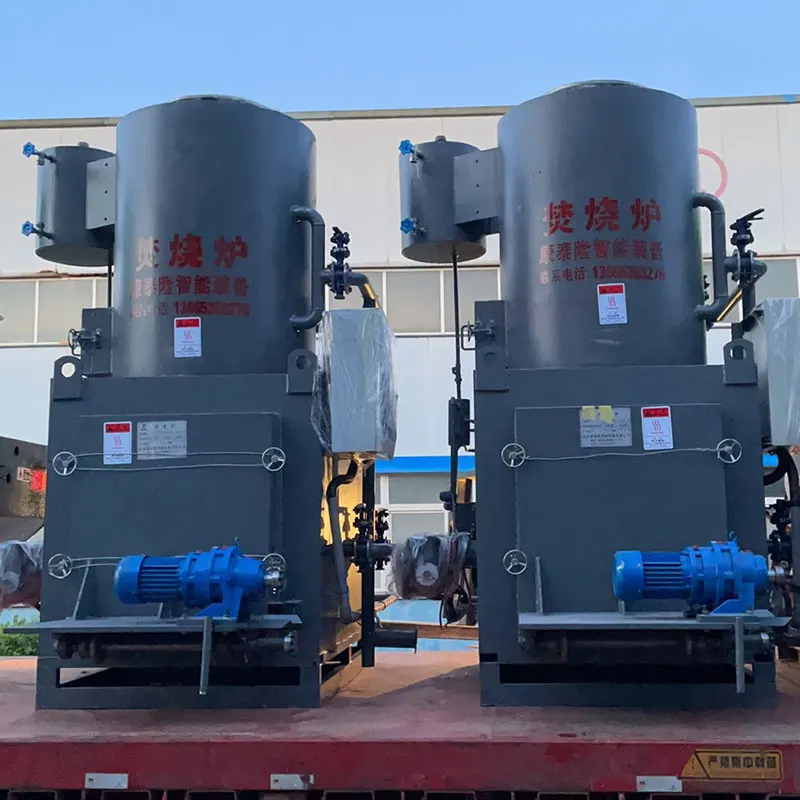

Shipment
Company introduction
Shandong Kangtailong Intelligent Equipment Co., Ltd. is a modern enterprise focusing on the production and manufacturing of all kinds of waste incineration equipment.The company is located in Zhucheng, Shandong Province. Our company mainly produces all kinds of waste incinerator equipment, focusing on the solution of municipal solid waste, waste produced by the medical industry to sick and dead animals, industrial waste and other various types of waste produced in all walks of life.The product adopts the principle of thermal incineration of organic waste gas, which decomposes organic matter into inorganic matter and achieves standard discharge of flue gas.
For a long time, the company always adhere to the "science and technology for development, quality for survival" policy, to "pay close attention to quality for credibility, strengthen management for the upper echelon" as the goal, forge ahead, and strive to open up the market.All the employees of the company are willing to excellent products, good service, sincere attitude, and sincerely hope to cooperate with new and old friends closely, hand in hand to forge ahead, a total of grand exhibition.
For a long time, the company always adhere to the "science and technology for development, quality for survival" policy, to "pay close attention to quality for credibility, strengthen management for the upper echelon" as the goal, forge ahead, and strive to open up the market.All the employees of the company are willing to excellent products, good service, sincere attitude, and sincerely hope to cooperate with new and old friends closely, hand in hand to forge ahead, a total of grand exhibition.
FAQ
Q:How to buy your idea products?
A:You can provide us the waste kind and waste quantity(connect us for more details). we will recommand you the suitable model
Q:How to pay?
A:TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q:What is the delivery time?
A:It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.
Q:How to pack the products?
A:We use standard seaworthy package. If you have special package requirements, we will pack as required, but the fees will be paid
by customers.
Q:How to install after the equipments arriving destination?
A:We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
A:You can provide us the waste kind and waste quantity(connect us for more details). we will recommand you the suitable model
Q:How to pay?
A:TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q:What is the delivery time?
A:It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.
Q:How to pack the products?
A:We use standard seaworthy package. If you have special package requirements, we will pack as required, but the fees will be paid
by customers.
Q:How to install after the equipments arriving destination?
A:We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
