Product Overview
Description
High efficiency high frequency induction welding device other welding equipment

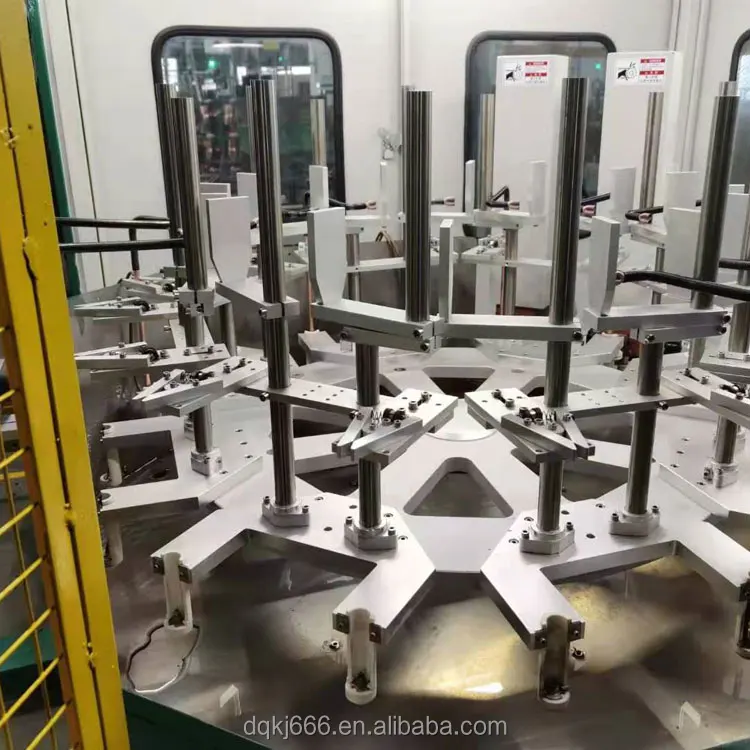

turntable induction brazing equipment

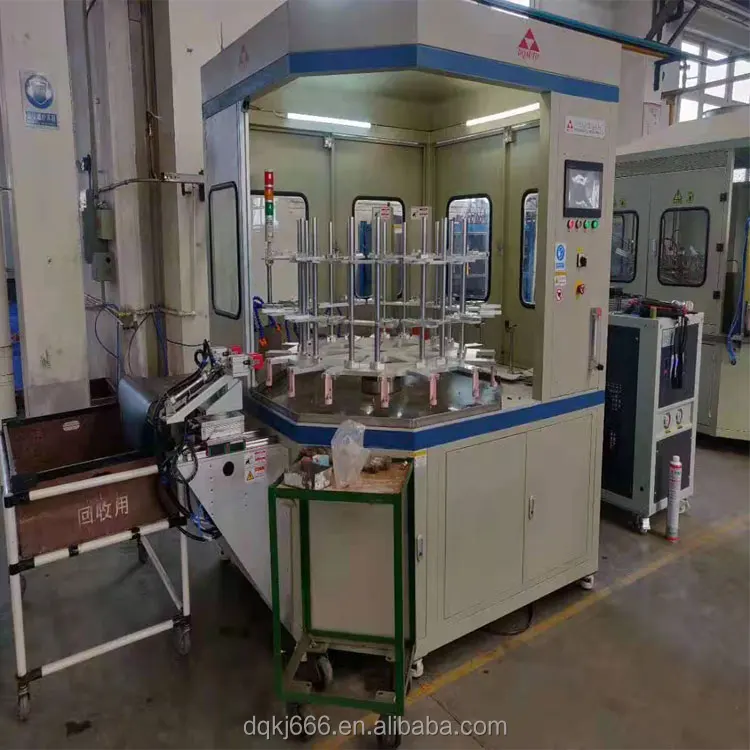

DQAUTO brand Intelligent turntable induction brazing equipment is an energy-saving and high-efficiency brazing equipment specially developed by Daqing Technology to solve the welding of refrigeration accessories. It has the advantages of high welding efficiency, good penetration, high yield, convenient operation, and heating location far away from the operator. It has been highly recognized by customers after it has been put on the market.

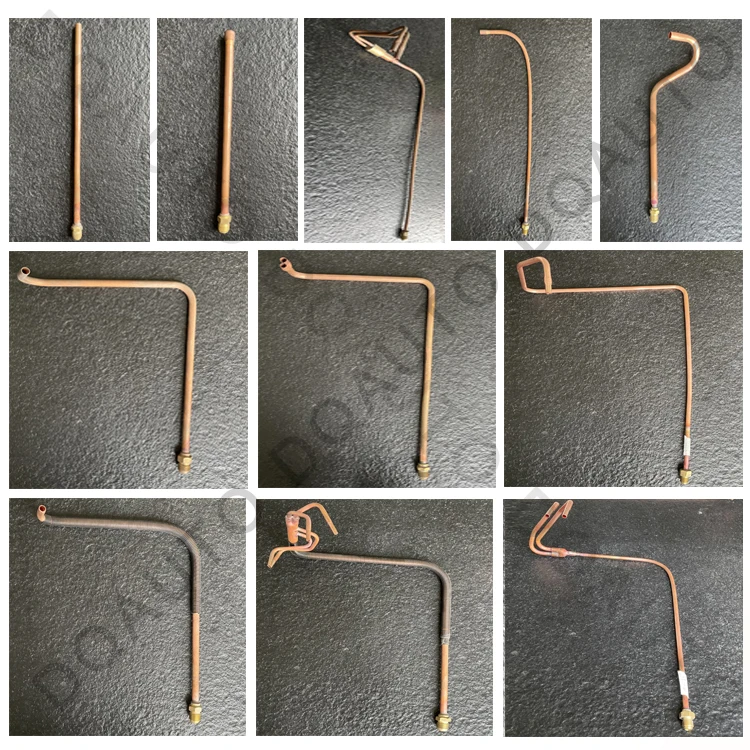

After several generations of products, it has been standardized and mass-produced. It is mainly used in the welding of air-conditioning pipe fittings, automobile pipe fittings, and bathroom fittings etc.

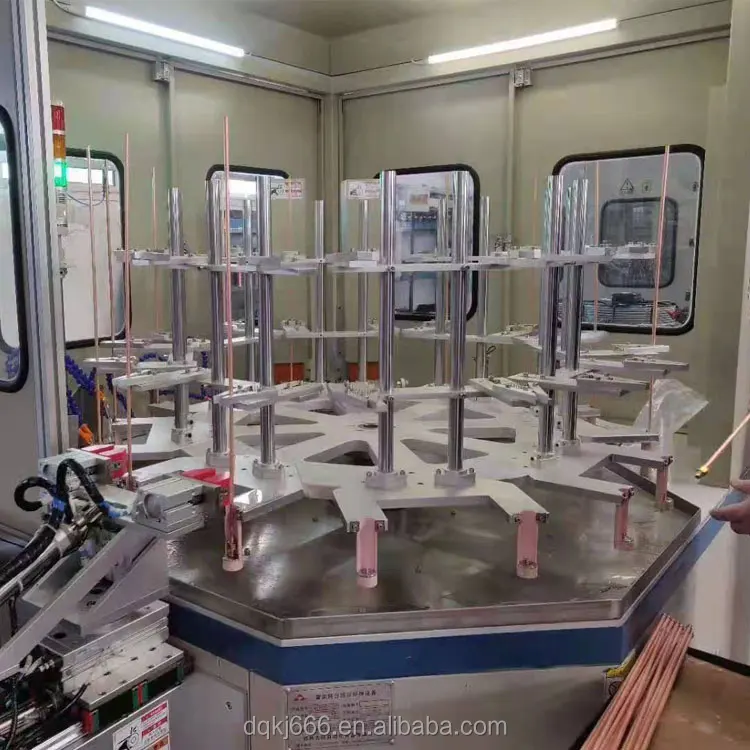

Note: The equipment used 16 stations,each station welding two products
Technical parameters of intelligent turntable induction brazing series products | ||||||
Welding beat | (8-15) s two products | Operator requirements | 1 general worker | |||
High frequency machine model | All digitalFD-40H | Number of high frequency machines | 2 sets | |||
Feeding form | Manual feeding and automatic welding | Unload feeding form | Manual or automatic unload feeding | |||
Display size | 10-inch touch screen | High frequency machine type | DSP full digital control | |||
Section heating | 5 segments | Number of stored products | 8 types | |||
Max power | 50kW | Max input current | 80A | |||
Rated power | 30KW | Rated current | 45A | |||
Motor type | Servo motor | Max lifting stroke | 200mm | |||
Sensor lifting speed | 100mm/s | Lifting accuracy | 0.1mm | |||
Tooling base type | Special ceramics | Number of tooling bases | 16 piece | |||
Nitrogen protection function | Equipped with nitrogen protection function | Air cooling function | Equipped with air cooling function | |||
Water cooling function | Equipped with independent water cooling system | Lighting function | Station, distribution box lighting | |||
Working desk | Aluminum alloy | Sink type | 304 stainless steel | |||
Equipment size | 1450*1600*2360mm | Equipment weight | 400kg | |||
Industrial chiller (optional) | 3P | Water quality requirements | Scale free purified water | |||
Cooling water flow | 4L/min | Cold water pressure | 4-8bar | |||
Max water temperature of cooling water inlet | 35℃ | Cooling water PH | 7.0-9.0 | |||
Memo:
This automatic induction welding system is a custom brazing welding line for different metal parts brazing welding, if you have any other requests, please contact us for customizing the appropriate technical solution.
This automatic induction welding system is a custom brazing welding line for different metal parts brazing welding, if you have any other requests, please contact us for customizing the appropriate technical solution.
Application fields:
The induction brazing soldering system is a customized induction heating system, mainly used for all kinds of air conditioner parts, tubes, pipes, valves, bathroom accessories, refrigerators, electrical home appliances, and automotive parts brazing welding jobs.
