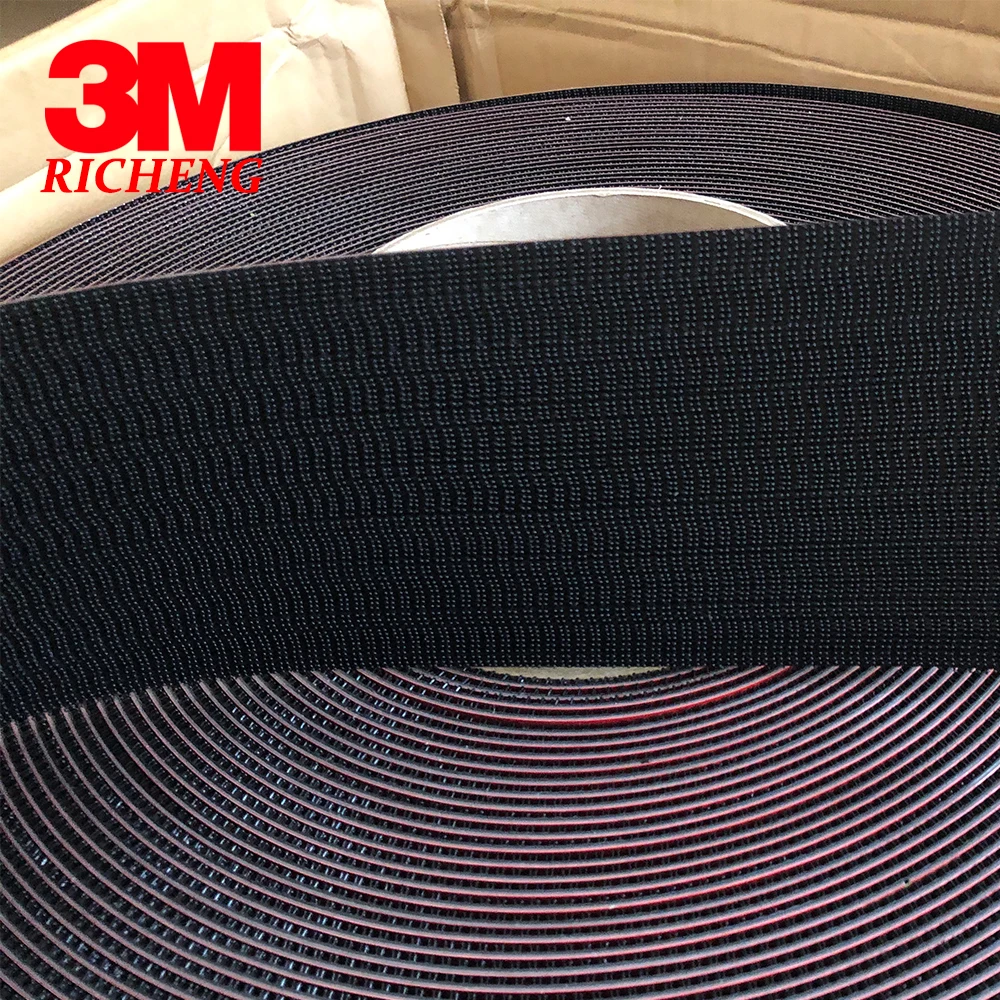

3M SJ3780 dual lock tape , is deliver a durable, reclosable fastening solution (which can be opened and closed multiple times)

Share on (1600228749237):


Price:$690.00 - $696.00

Quantity:


Product Overview

Description


3M SJ3780 dual lock tape , is deliver a durable, reclosable fastening solution (which can be opened and closed multiple times)



Specifications







Details

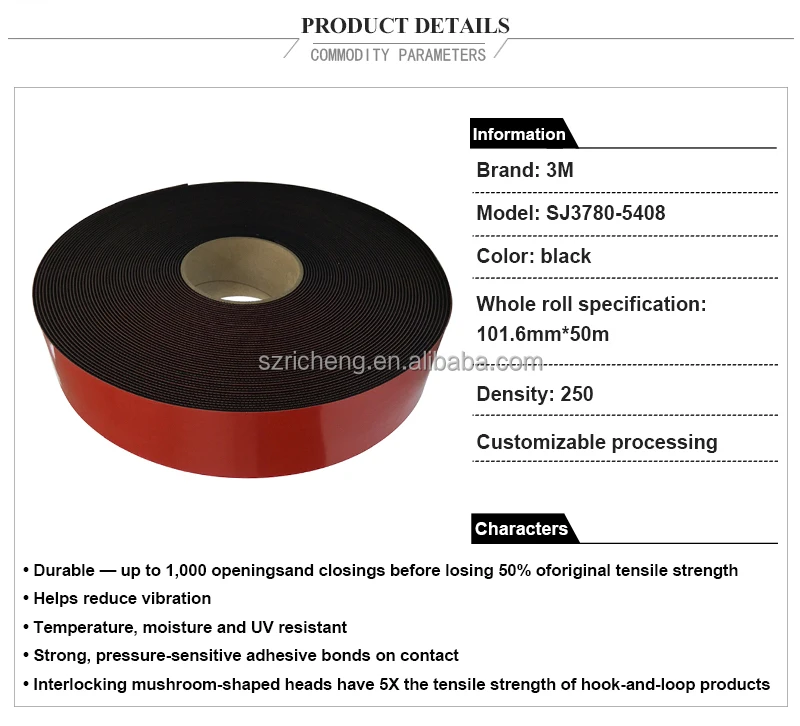

  • Black, interlocking mushroom-shaped heads (250 stem density per square inch) provide strong, reliable and durable fastening that can be opened and closed multiple times

  • Mates with Type 170, Type 250 or Type 400 stem densities to provide different strength combinations

  • Black, modified acrylic, very conformable foam tape bonds well to a variety of substrates including metals, powder-coated paints and plastics such as acrylics, polycarbonate and ABS

  • Strong fastener secures with an audible snap, verifying closure

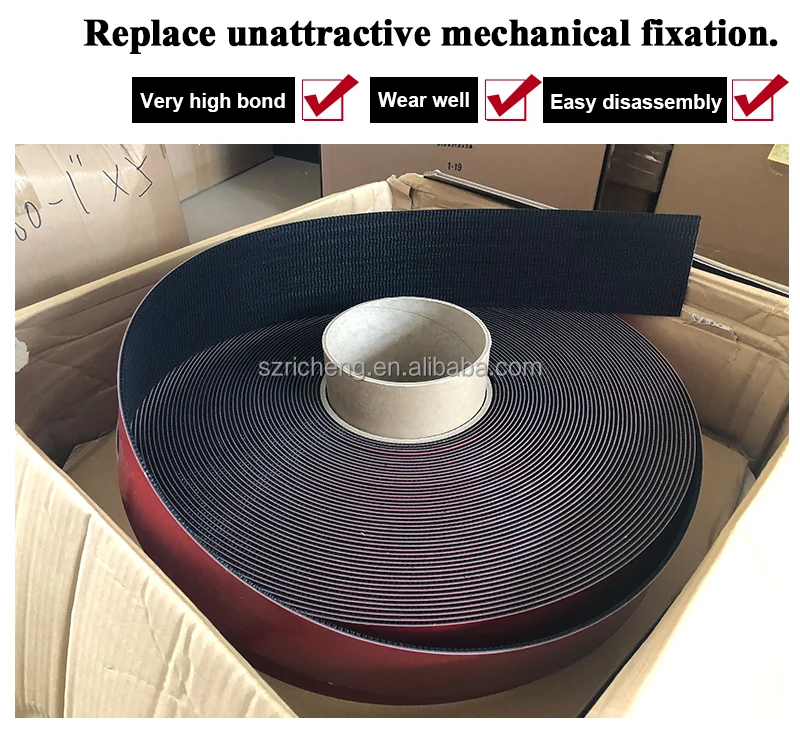

  • An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance

  • Features good temperature resistance of 140°F (60°C)

  • Best suited for indoor and outdoor use


3M™ Dual Lock™ Reclosable Fastener SJ3870 is the convenient alternative to traditional fastening methods, such as screws, nuts or bolts. It is designed to deliver a durable, reclosable fastening solution (which can be opened and closed multiple times) that bonds to a variety of substrates including metals, powder-coated paints and plastics such as acrylics, polycarbonate and ABS


Unlock Simplicity
Durable and secure, 3M™ Dual Lock™ Reclosable Fastener SJ3870 has exceptional strength through its interlocking mushroom-shaped heads (250 stem density per square inch), providing up to 5X the tensile strength of typical hook-and-loop products. We designed this fastener with a black, modified acrylic, very conformable foam tape protected by a removable, film liner. This solid, pressure sensitive foam tape features a strong, durable bond that is chemical and UV resistant. With 3M™ Dual Lock™ Reclosable Fastener SJ3870, there is no need for any drilling, screwing or sewing tools which makes for quick installation.

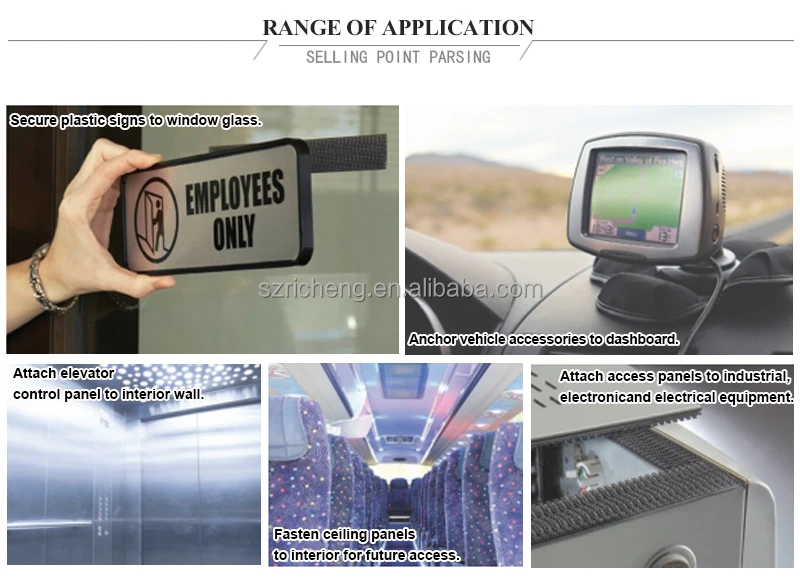

Recommended Applications:



  • Access panels

  • Graphic attachment

  • General industrial attachment

  • Small components



Design Flexibility
3M™ Dual Lock™ Reclosable Fastener SJ3870 consists of interlocking mushroom-shaped heads that easily slide over each other, allowing for positioning of parts before being snapped together. This fastening process creates a durable attachment and provides fast product assembly with great design flexibility. Our reclosable fasteners can also engage with different stem densities for varying levels of strength and system performance.

3M™ Dual Lock™ Reclosable Fasteners sound an audible snap when secure, which verifies closure of the attachment. To disengage, simply peel the pieces apart by hand. Our fasteners maintain their strength throughout multiple attachments and detachments. A lightweight alternative to metal fasteners, this product remains hidden beneath surfaces and does not interfere with the integrity of your material—providing aesthetic improvements and design flexibility.

Hundreds of Reattachments in a Snap

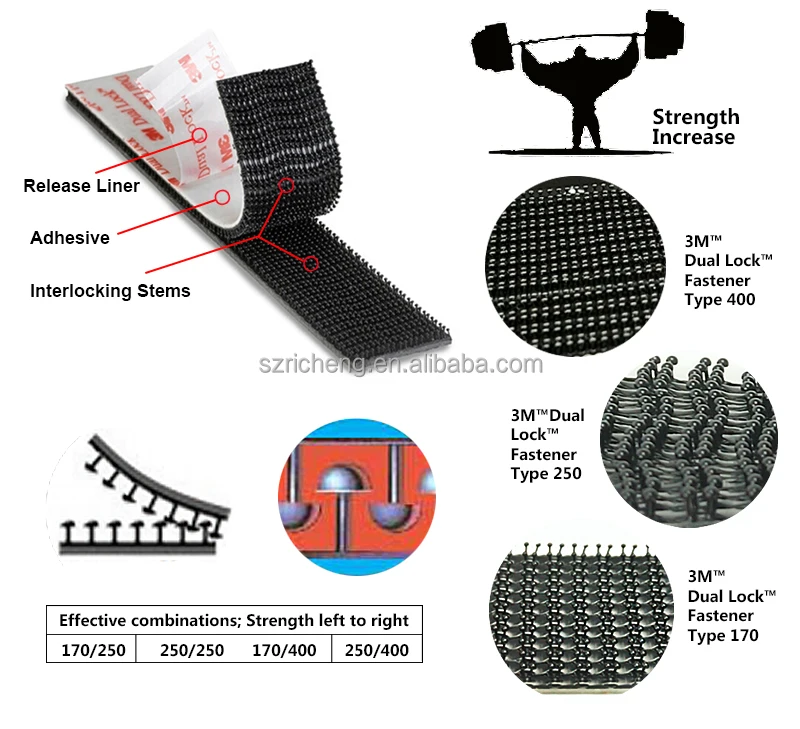

When two pieces of 3M™ Dual Lock™ Reclosable Fasteners mate, the stems flex and the mushroom heads slide past each other. After passing the opposing mating piece, the stems snap back into their original position and the opposing mushroom heads interlock. These fasteners can provide high tensile strength but can be opened by simply cleaving or peeling open the closure. This product is well suited for many indoor and outdoor applications where a high strength and versatile reclosable fastening system is required.












Dual lock tape list


3M Dual Lock Reclosable Fasteners
Shenzhen Richeng Electronic Material Co.,Ltd. stock list below.






































































































































ItemSizeStemColorAdhesive
SJ3550 19mm,25.4mm,50.8mm,152mm width250BlackWhite Acrylic
SJ355119mm,25.4mm,50.8mm,152mm width400BlackWhite Acrylic
SJ355225.4mm*45.7M(1"*50Y)170BlackWhite Acrylic
SJ354025.4mm*45.7M,50.8mm*45.7M250BlackRubber
SJ354125.4mm*45.7M(1"*50Y)400BlackRubber
SJ354225.4mm*45.7M(1"*50Y)400BlackRubber
SJ356025.4mm,50.8mm,152mm width250ClearClear Acrylic
SJ356125.4mm*45.7M(1"*50Y)400ClearClear Acrylic
SJ344025.4mm*45.7M(1"*50Y)250BlackNone
SJ3440152mm*45.7M(6"*50Y)250BlackNone
SJ344125.4mm*45.7M(1"*50Y)400BlackNone
SJ457025.4mm*45.7M(1"*50Y)Low/thinClearClear Acrylic
SJ457050.8mm*45.7M(2"*50Y)Low/thinClearClear Acrylic
SJ4570152mm*45.7M(6"*50Y)Low/thinClearClear Acrylic
SJ457525.4mm*45.7M(1"*50Y)Low/thinBlackClear Acrylic
SJ4575152mm*45.7M(6"*50Y)Low/thinBlackClear Acrylic
SJ458025.4mm*45.7M(1"*50Y)Low/thinClear

Liner Red






3M Hook and Loop Reclosable Fasteners
Shenzhen Richeng Electronic usually keep the stock item below.














































































ItemSizeTypeColorAdhesive
SJ352625.4mm*45.7M(1"*50Y)HookBlackRubber
SJ3526 101.6mm*45.7M(4"*50Y)HookBlackRubber
SJ352625.4mm*45.7M(1"*50Y)HookWhiteRubber
SJ35275.4mm*45.7M(1"*50Y)LoopBlackRubber
SJ352725.4mm*45.7M(1"*50Y)LoopWhiteRubber
SJ3571Black 25.4mm*45.7M(1"*50Y)LoopWhiteRubber
SJ3571Black 50.8mm*45.7M(2"*50Y)LoopWhiteRubber
SJ3572Black 25.4mm*45.7M(1"*50Y)HookWhiteRubber
SJ3572Black 50.8mm*45.7M(2"*50Y)HookWhiteRubber




3M Dual Lock Fastener(For car)


Shenzhen Richeng Electronic Keep stock item below, usally for car use.




































ItemSizeStemColorAdhesive
SJ3741/54080.8mm thickness
152MM*50m(6"*50m)
400BlackGray
SJ3741/54303.0mm thickness
152MM*50m(6"*50m)
400BlackGray

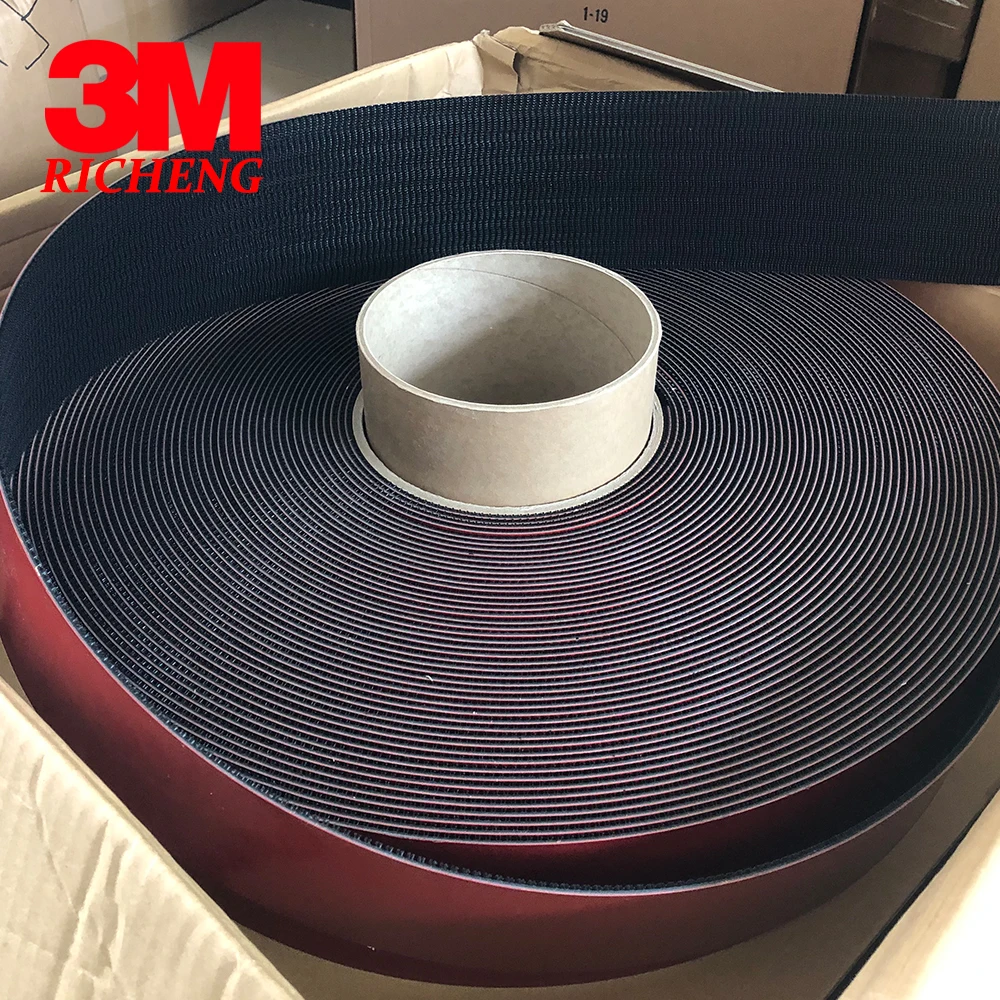

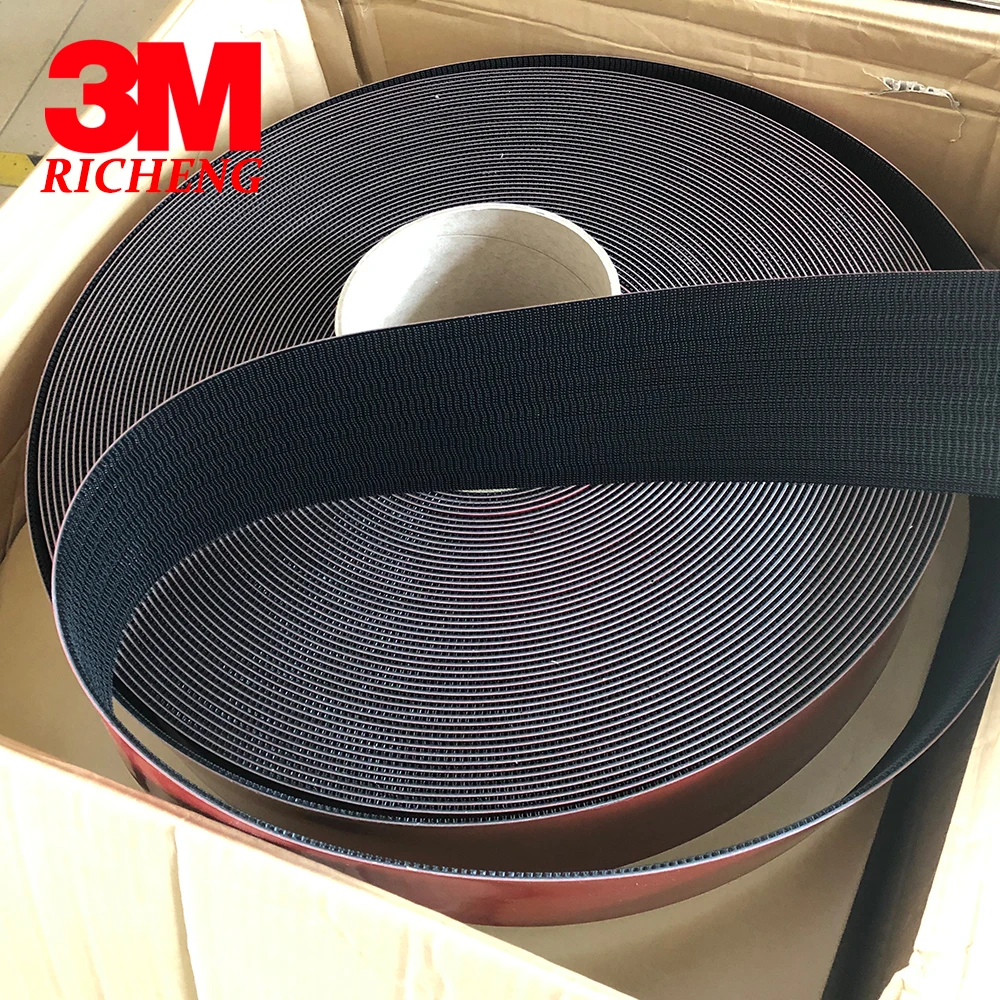

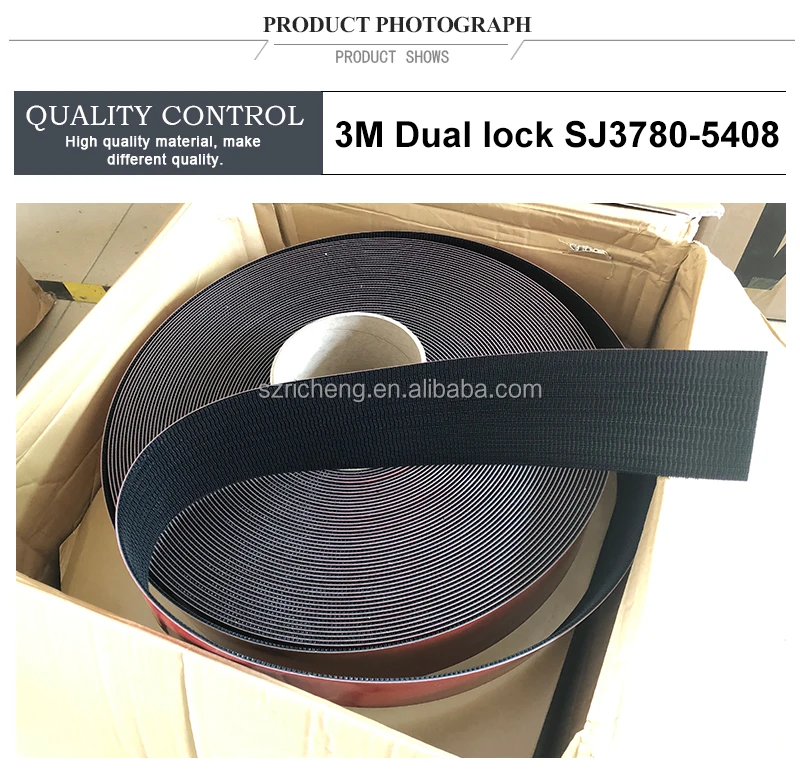

SJ3780/54080.8mm thickness
152MM*50m(6"*50m)
250BlackGray







Our Services


We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.





4910 (2).jpg








Company Information


SHENZHEN RICHENG is established in April 2012, we are specialized in selling 3M brand products, including 3M double sided tape, VHB tape, PE/PU foam tape, 300LSE/ 200MP tape, 3M bumpon, 3M dual lock, 3M masking tape, 3M electrical tape, 3M adhesive /glue and so on.


We also have different cutting machines and professional team to offer good die cutting service according to your request and drawing.










FAQ


Q1. If you can provide samples?


A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.





Q2. What about the lead time?


A:Sample needs 1 day, mass production time needs 1-3 days for order quantity more than 1000 rolls





Q3. Do you have any MOQ limit for led light order?


A: Low MOQ, 1pc for sample checking is available





Q4. How do you ship the goods and how long does it take to arrive?


A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.





Q5. What is the customer order process


A: Firstly let us know your requirements or application.


Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.





Q6.Whether can be customized products?


A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
