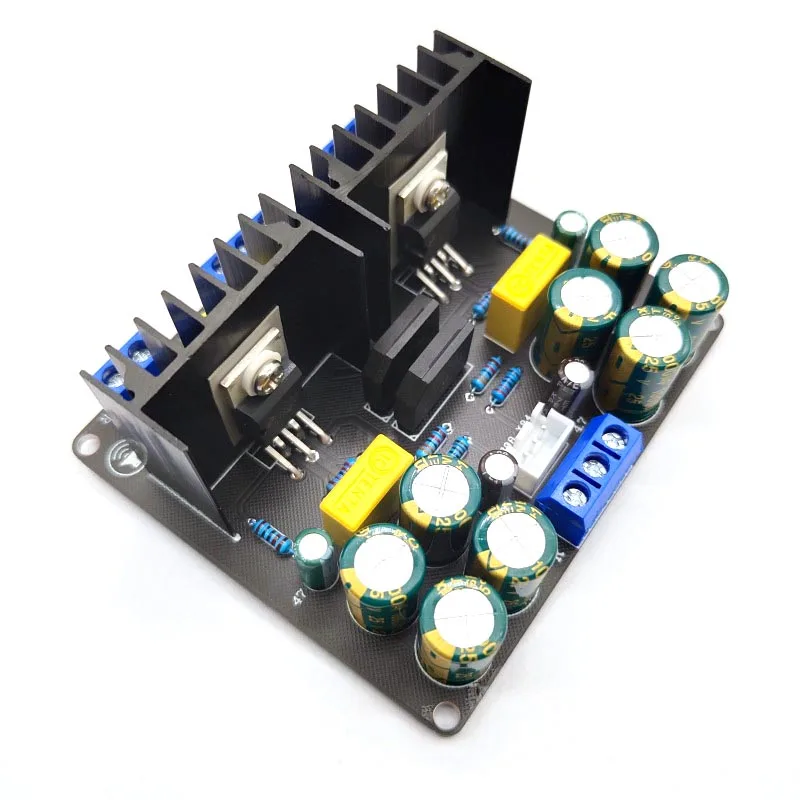

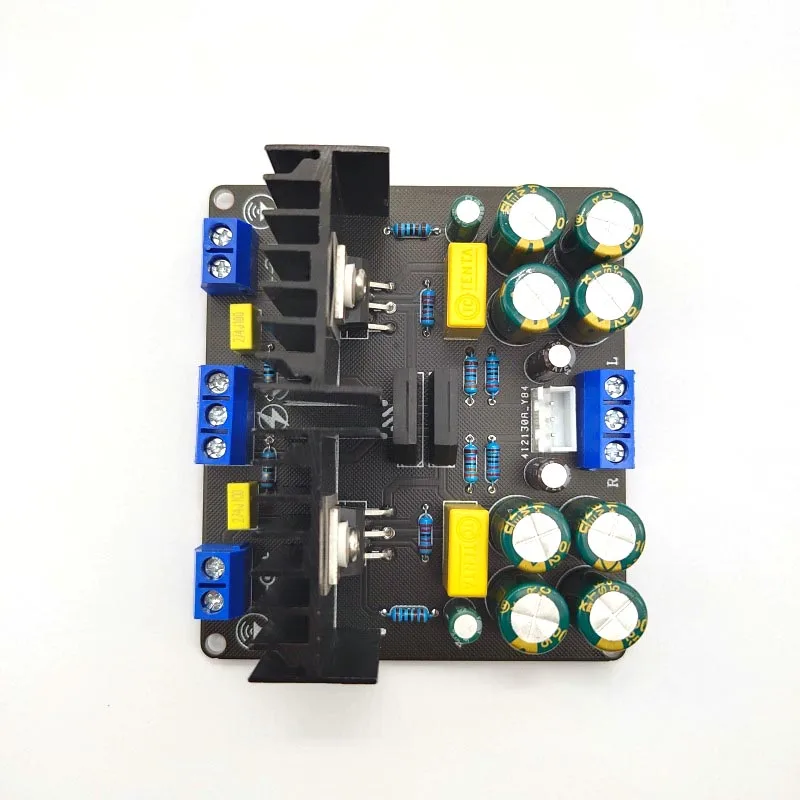

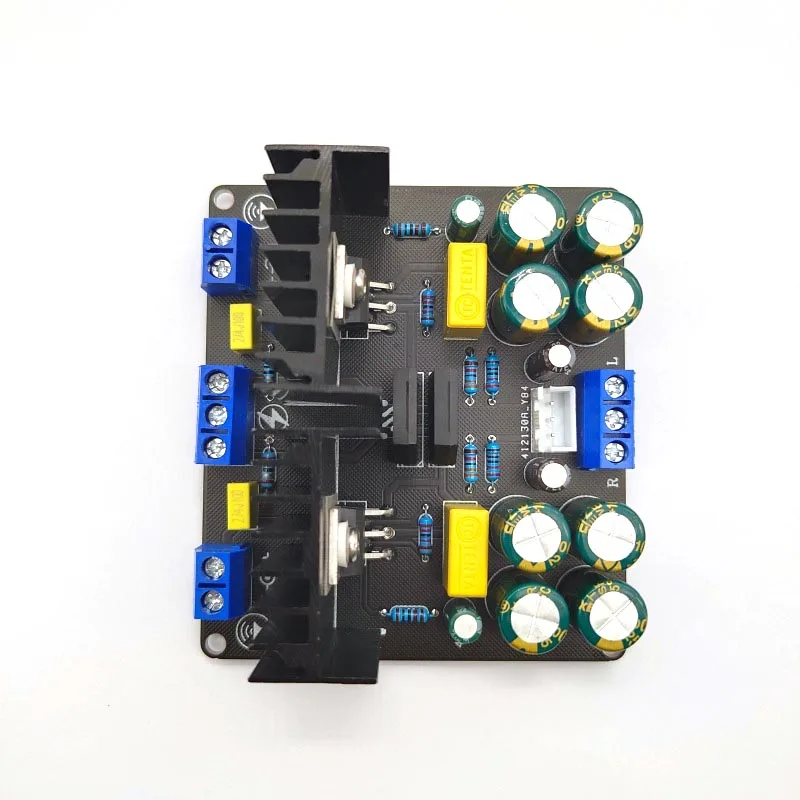

Hot sell three channel Speaker Audio Amplifier Board LM1875 super bass 2.1 subwoofer amplifier board
- Category: >>>
- Supplier: Dalian Jinseo Electronic Technology Co. Ltd.
Share on (1600228938624):
Product Overview
Description
Product Description

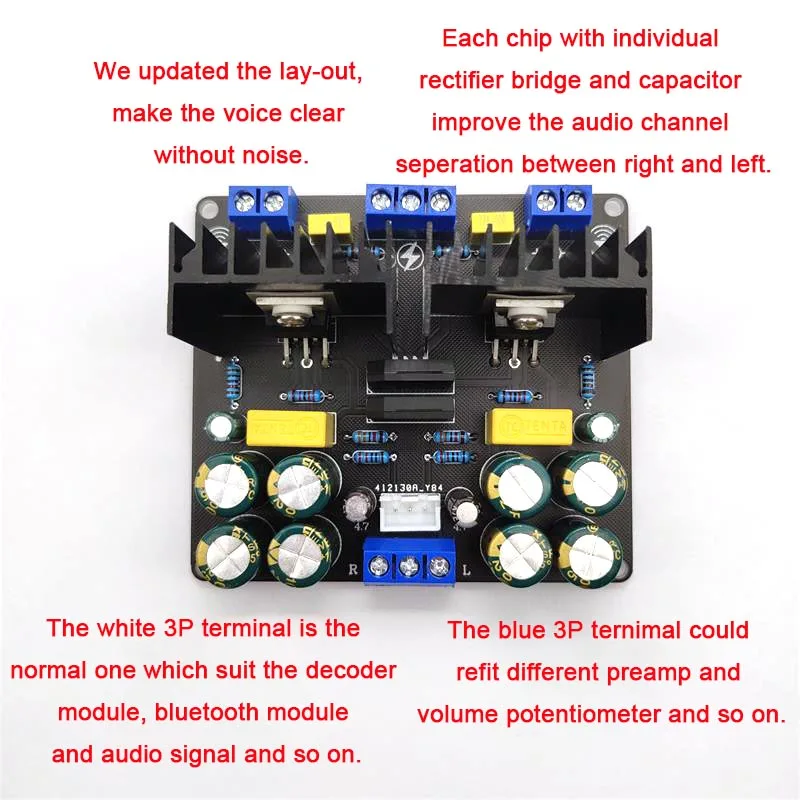

1. We updated the lay-out, make the voice clear without noise.
2. Each chip with individual rectifier bridge and capacitor improve the audio channel seperation between right and left.

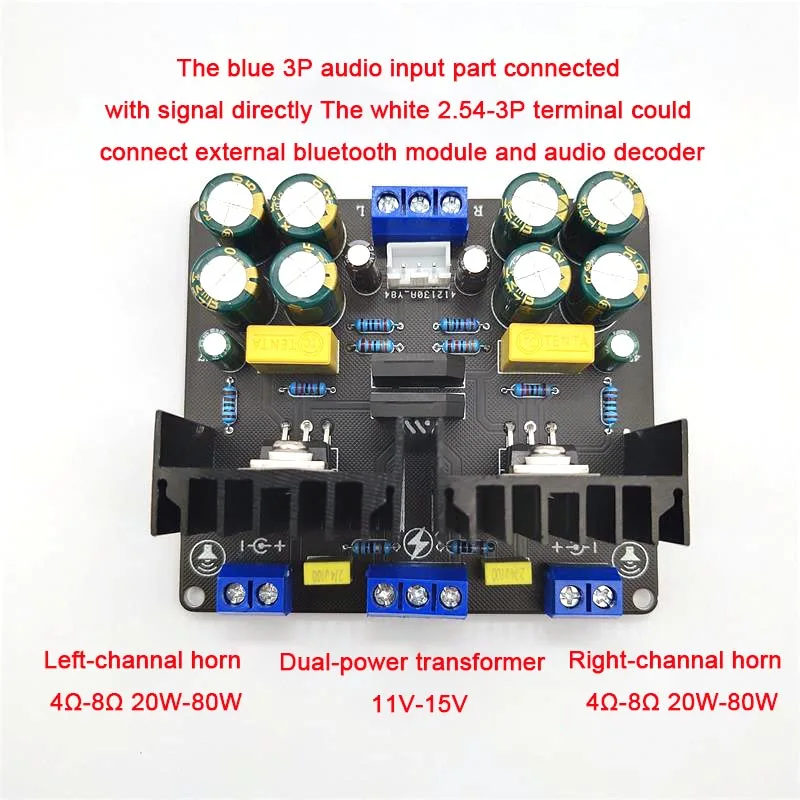

3. The white 3P terminal is the normal one which suit the decoder module, bluetooth module and audio signal and so on. The blue 3P ternimal could refit different preamp and volume potentiometer and so on.
4. We suggest to use 40W-80W dual power transformer 11V-15V.
5. Please be careful that it will explode under high voltage, as this is little power board, it will be better make a voltage test before power up.

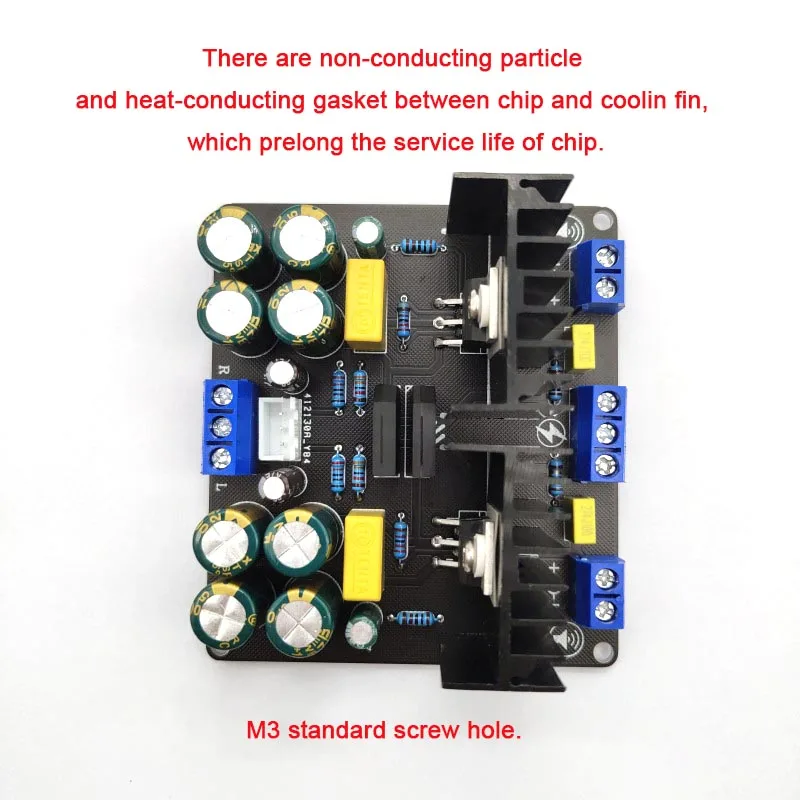

6. The dimension of PCB is 68mm*76mm with M3 screw.
7. The weight for it is about 75g
8. Power: dual power transformer 11-15V, we suggest the voltage always below 15V.
2. Each chip with individual rectifier bridge and capacitor improve the audio channel seperation between right and left.
3. The white 3P terminal is the normal one which suit the decoder module, bluetooth module and audio signal and so on. The blue 3P ternimal could refit different preamp and volume potentiometer and so on.
4. We suggest to use 40W-80W dual power transformer 11V-15V.
5. Please be careful that it will explode under high voltage, as this is little power board, it will be better make a voltage test before power up.
6. The dimension of PCB is 68mm*76mm with M3 screw.
7. The weight for it is about 75g
8. Power: dual power transformer 11-15V, we suggest the voltage always below 15V.
9.Output impedence: 4Ω 8Ω
10. Power: 2*20W chip
11.This is the best choice for DIY fans.
Details Images
Model Name | LM1875 amplifier DIY for table speaker dual track(two channel) 2.0 |
Supply voltage | DC11-25V |
Dual power | 40W-80W |
Output channel | 2.1 Channel |
Output Power | 2*20W chip |
Customized | Yes |
Fixing bolt holes | M3 |
PCB size | 68mm * 736mm |
Weight | 75g |
