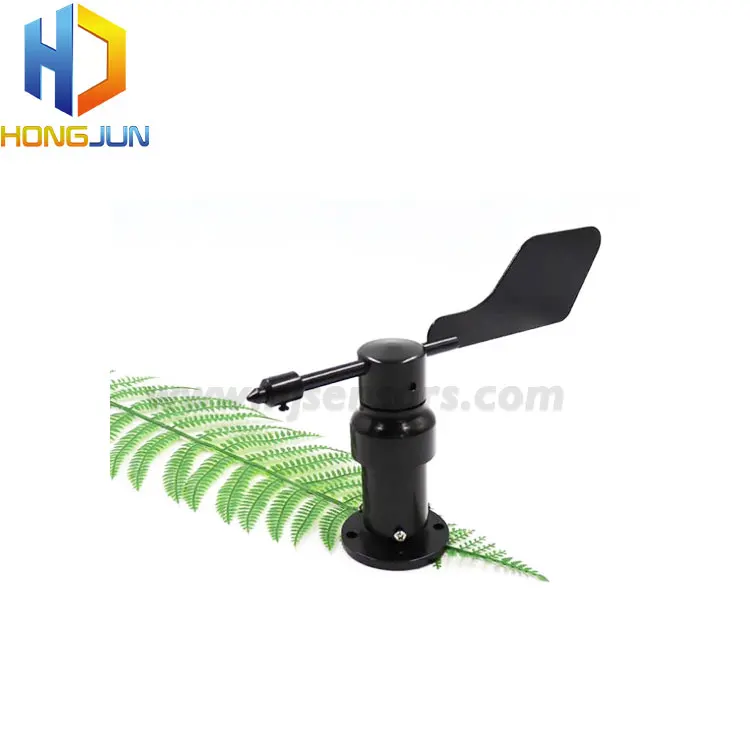

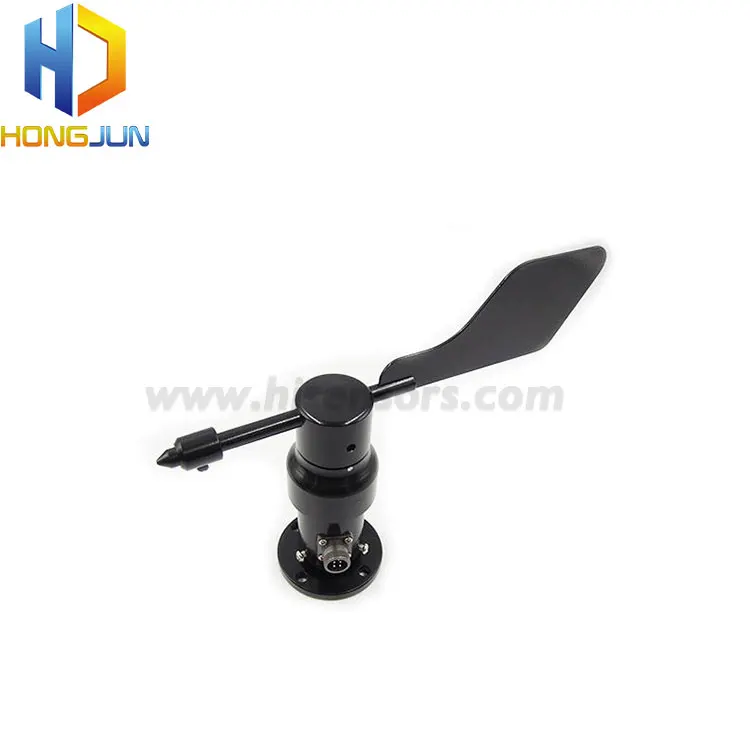

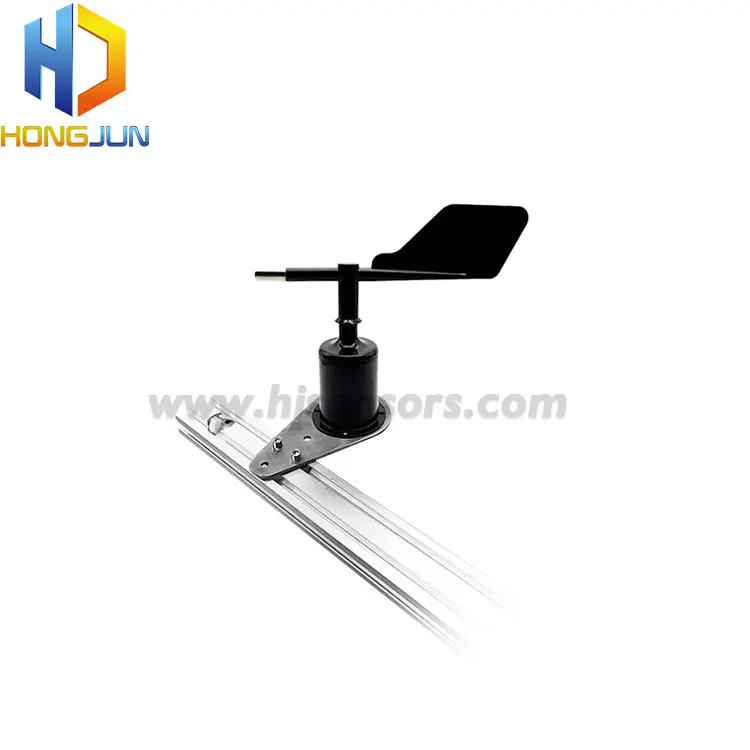

  • HJ FS10 4 20mA Wind 3 cup speed sensor wind speed and direction sensor

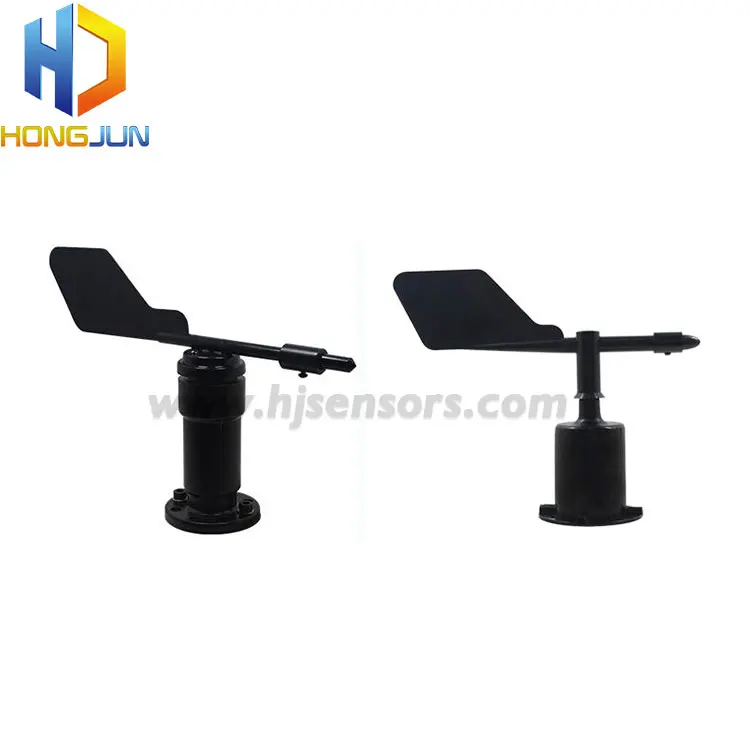

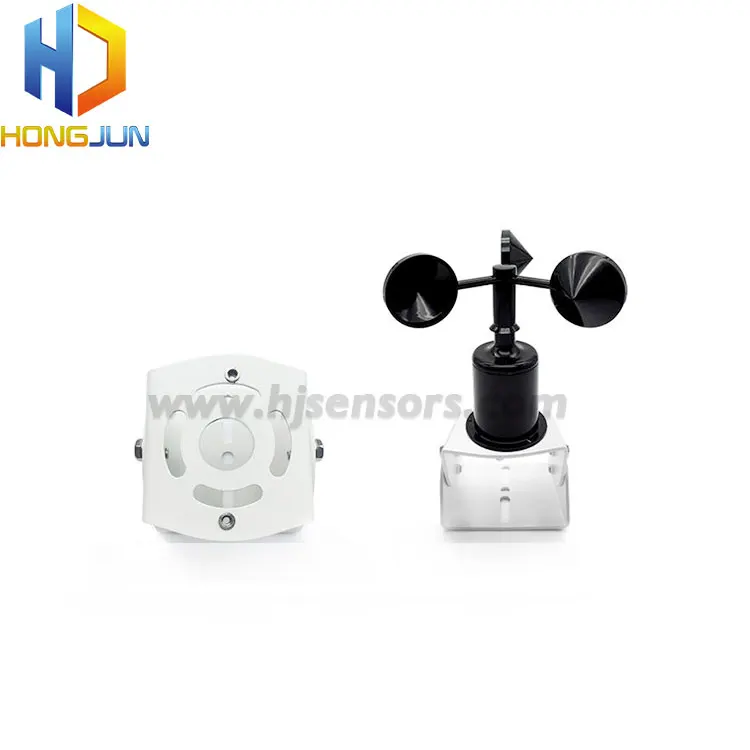

HJ FS10 4 20mA Wind 3 cup speed sensor wind speed and direction sensor
HJ-FS10 4-20mA Wind 3 cup speed sensor wind speed and direction sensor
HJ-FS10 4-20mA Wind 3 cup speed sensor wind speed and direction sensor
HJ-FS10 4-20mA Wind 3 cup speed sensor wind speed and direction sensor
HJ-FS10 4-20mA Wind 3 cup speed sensor wind speed and direction sensor
HJ-FS10 4-20mA Wind 3 cup speed sensor wind speed and direction sensor
HJ-FS10 4-20mA Wind 3 cup speed sensor wind speed and direction sensor

HJ FS10 4 20mA Wind 3 cup speed sensor wind speed and direction sensor

Share on (1600229154404):


Price:

Quantity:


Product Overview

Description





Product Description

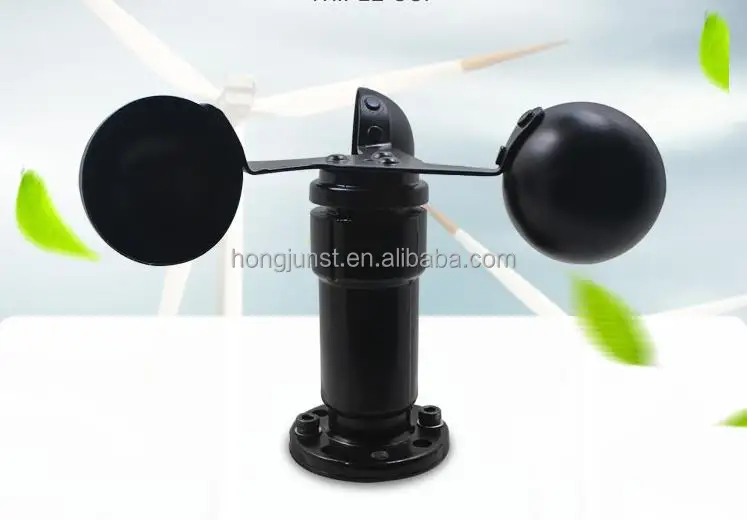

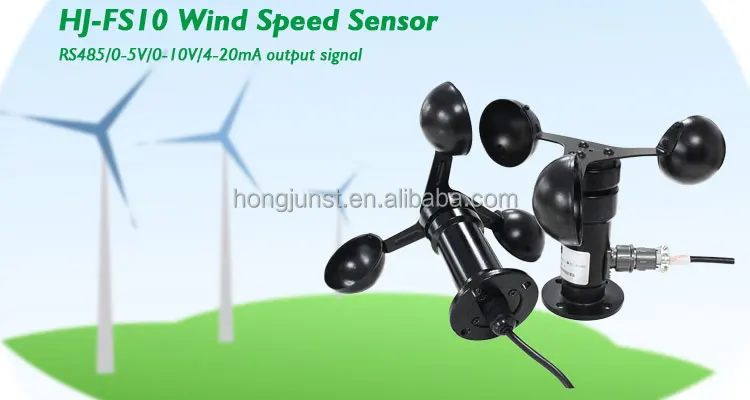

OVERVIEW
wind speed sensor adopts non-contact magnetic sensor measurement principle, high measurement accuracy and high reliability;
overall aluminum alloy material, polyester coating, strong wind and corrosion resistance; wide wind speed measurement range,
lowstarting wind speed; compact design, installation Simple; sensor circuit protection uses a fault-tolerant design.


Specification


Operating Voltage
12~30VDC,15~30VDC
Material
Polycarbonate plastics, aluminum alloy metal
Output signal
4~20mA, 0~5V, 0~10V, RS485,Pulse
Measuring range
Wind seed: 0~30m/s, 0~60m/s
Accuracy
±0.5m/s(<5m/s)
Operating temperature
-20~+85°C, Humidity: 0%~95% (non-condensing)
Starting wind speed
≤0.5m/S
Surge protection
EMC III
Wind strength
>70m/S 30min
Direction
16
Resolution
22.5°
Electrostatic protection
15KV
The main body material
Aluminum alloy/polyester coating
Protection level
IP65

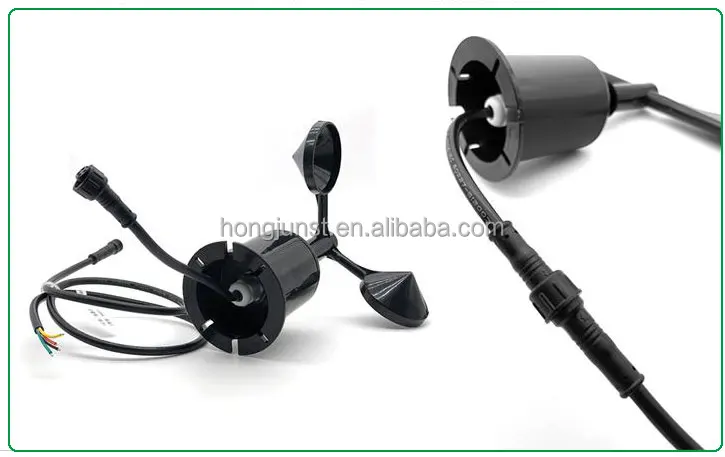

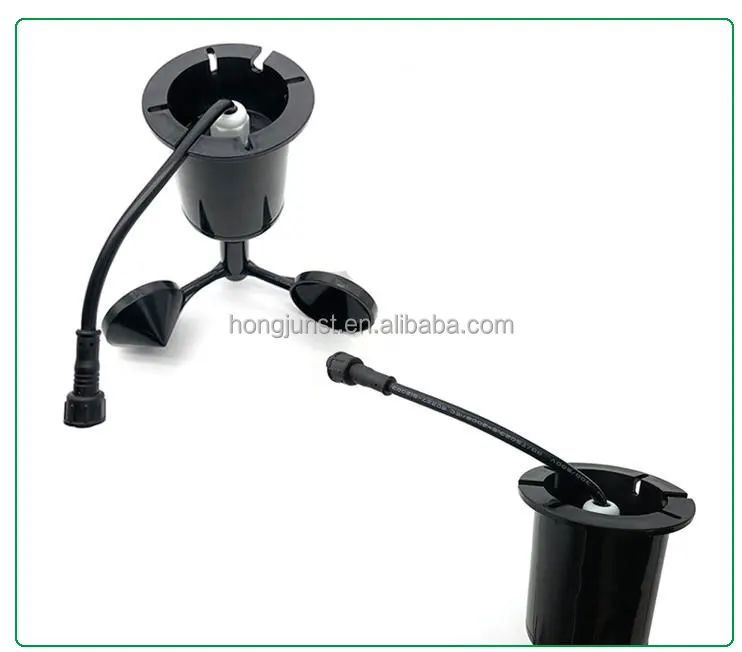

Product Features








Compatible with two appearance methods
Both bottom outlet and side outlet are available







Waterproof to aviation plug
Convenient equipment installation and maintenance, especially for integration customers


Details Images




Shipping

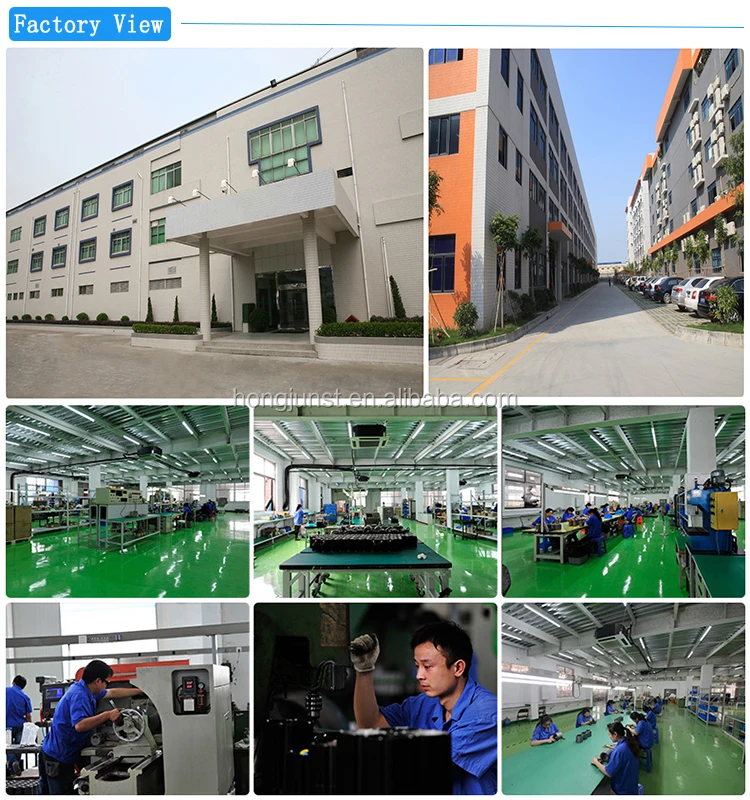

Company Profile


- Who We are? As one of the leading manufacturer In the field of industrial automation, Hongjun Science and Technology Co., Ltd. works in this field for more than 15 years! There are 1000 workers in our factory including 40 technicians!
- What We Do? We provide not only products but also solutions for customers! Our main products include AC gear motor, DC gear motor, high precision planetary gearbox used for stepper motor and servo motor! Also we provide customize service according to our customers' requirement!
- How is Quality? Manage workshop by 5S and all products are most strictly checked by several processes before leaving our factory! We have got certification of ISO9001, CCC, CE, UL, RoHS!
- What is the Application? Our products are widely used in machine tools ( CNC lathes), textile machinery, knitting machinery, bank appliances, industrial assembly line (automatic door opener), cleaning equipment (sweeping machine), packaging machinery, pharmaceutical machinery, educational instrument, office equipment ( Cementing machine), medical devices, health care equipment, warehouse automation, industrial robots and so on.




Certifications




FAQ


Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping
to you . We have the certification of ISO,CE we could send the certification test of our company to you

Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance

Q: What is the warranty for your product ?
A: Warranty: 1 years, Lifetime maintenance

Q: How to contact you?
A: Email/Skype: hj004（@）gearmotor-china.com, Tel/wechat/whatsapp: +86 17348068636
