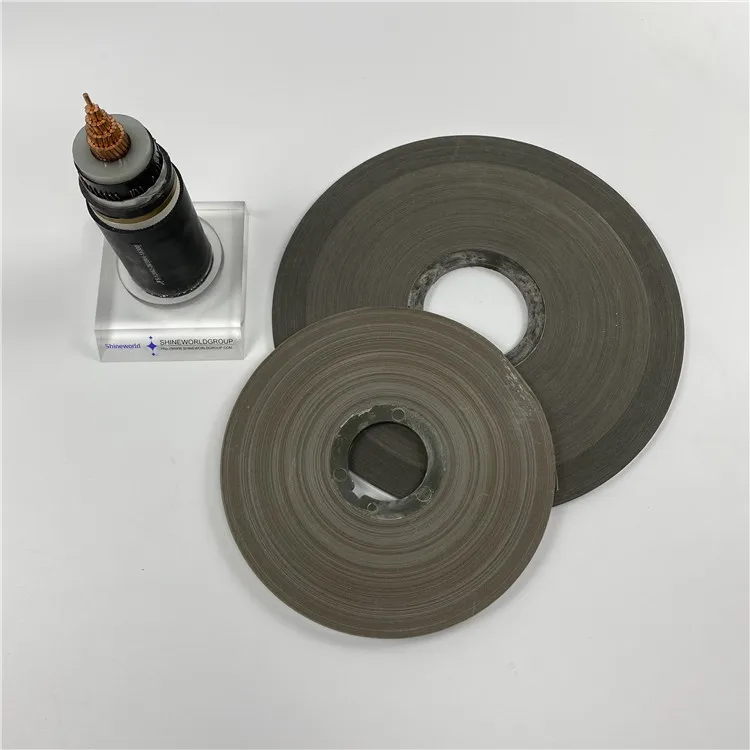

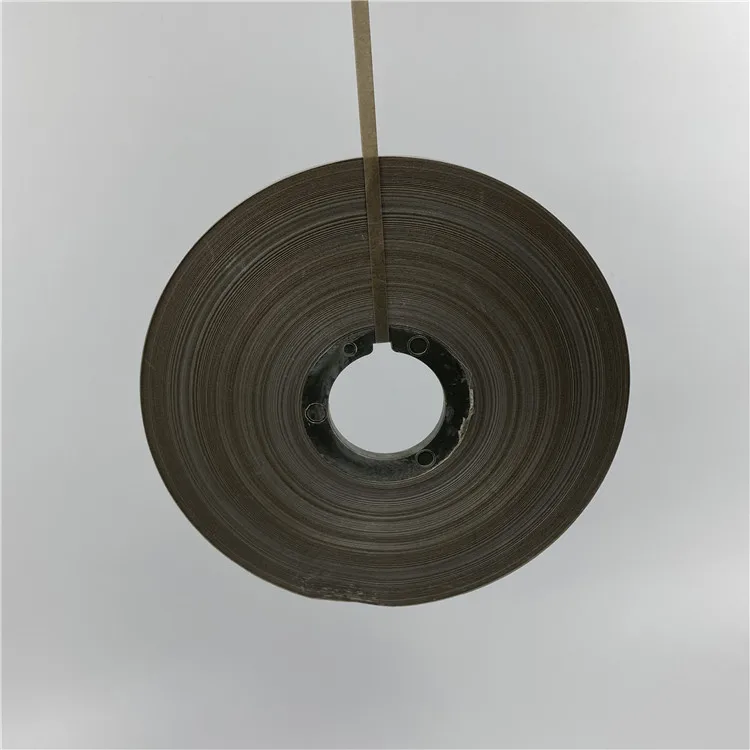

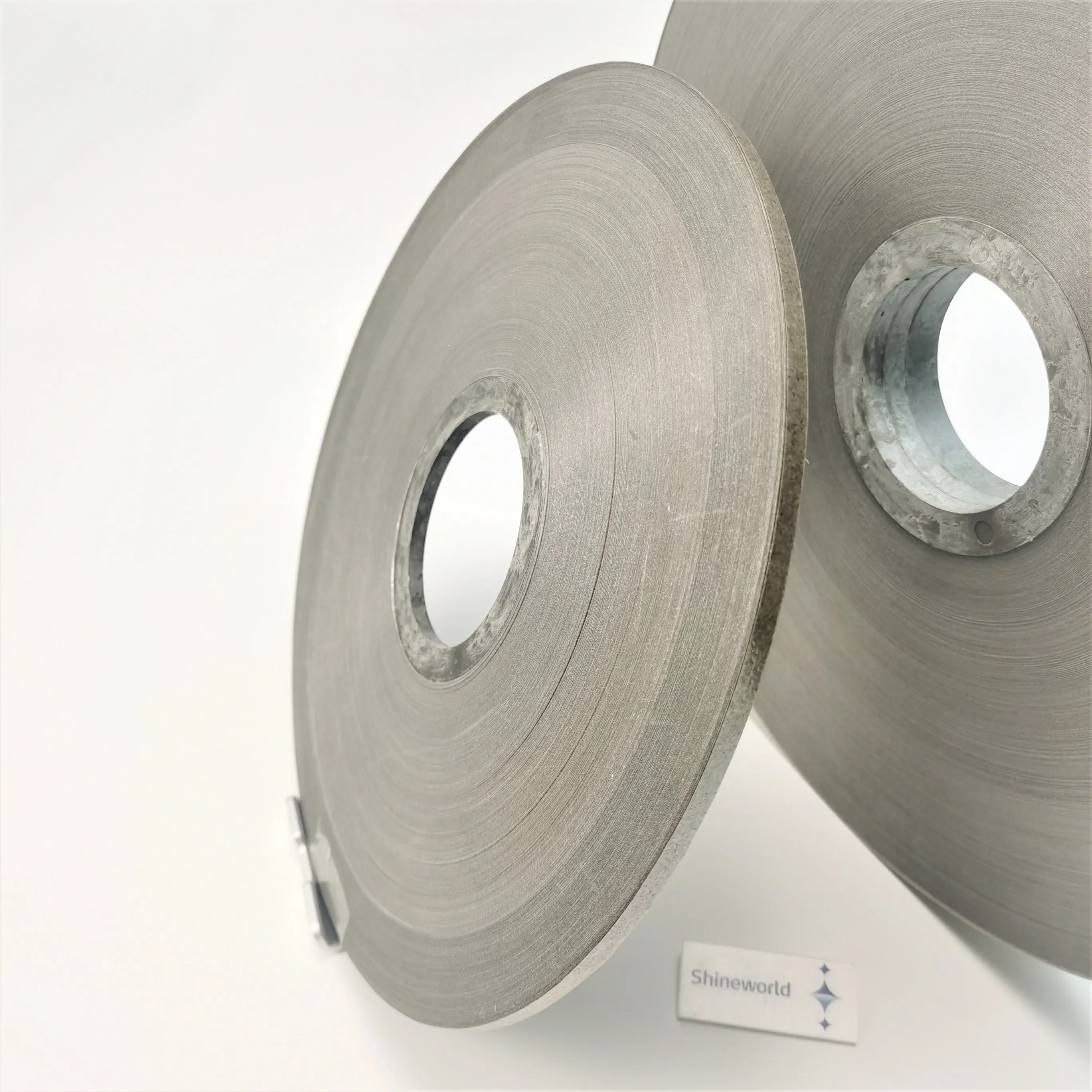

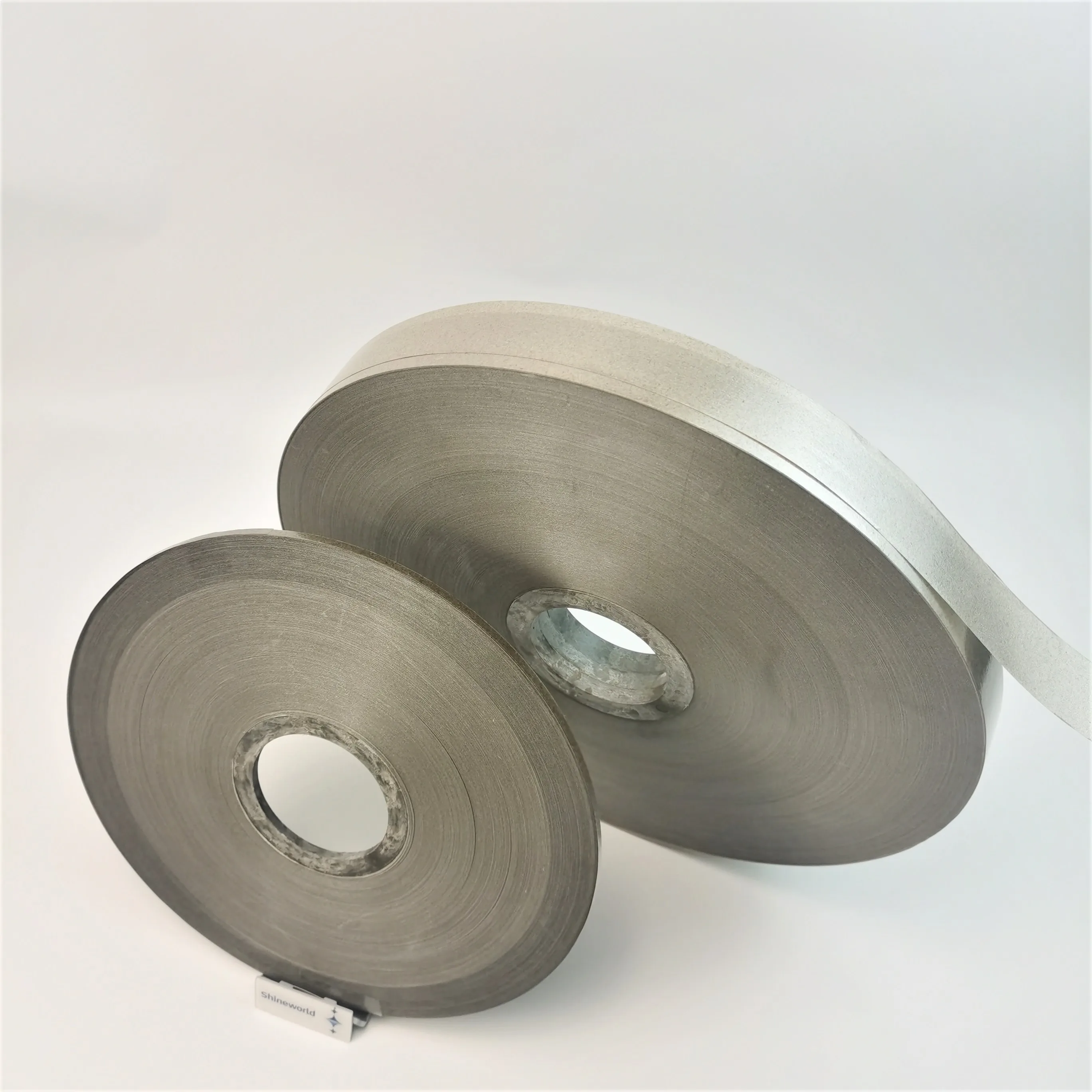

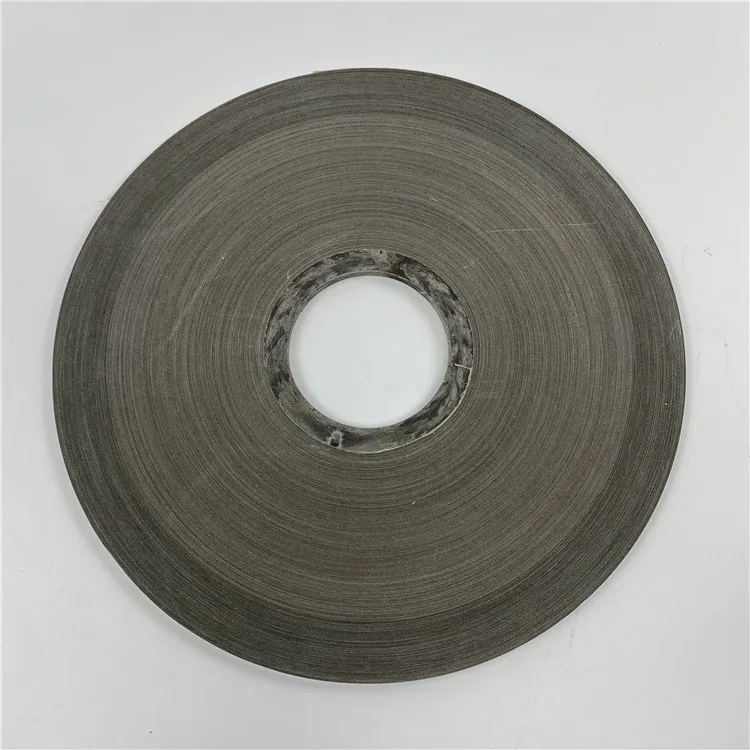

Phlogopite Fiberglass Mica Tape for Cable Insulation Fire Resistant Flame Retardant High Temperature Resistant 0.16mm
- Category: >>>
- Supplier: Changzhou Shineworld Industry Co. Ltd.
Share on (1600229201005):
Product Overview
Description
Product Introduction
1. Application:
Base on the standard IEC 60331 and BS 6387-2013 is mainly used in the wrapping of the conductor or assembled insulated cable cores. It has good properties of tensile strength, elongation at break and peeling strength.
2.Standards Reference:
Test Standards | Duration of test(mins) | Voltage | Temp. | Test condition | Type of Mice Tape to be advised to pass each test standard | Min no. Of Layers | Min. overlapping |
IEC 60331 | 90 | 600/1000V | 750℃ | Exposed to flame | Phlogopite mica tape | 1 | 35% |
BS 6387 cat. C | 180 | 600/1000V | 950℃ | Exposed to flame | High quality phlogopite Calcined muscovite mica tape | 2 | 50% |
BS 6387 cat. W | 30 | 600/1000V | 650℃ | Exposed to flame with Water Spray | High quality phlogopite Calcined muscovite mica tape | 2 | 50% |
BS 6387 cat. Z | 15 | 600/1000V | 950℃ | Exposed to flame with mechanical shock | High quality phlogopite Calcined muscovite mica tape | 2 | 35% |
Product Feature
High Temperature Resistance Up To 950℃ | Great Flexibility |
 |  |
High Tensile Strength | Excellent Flatness And Resistance To Friction |
 |  |
3.Specification:
Tapes should be of adequate tensile strength and elongation such that no cracks or damage may occur during the processing.
| Thickness mm | Tolerance mm | Mica Content(g/m²) | Tensile Strength (N/10mm) | Electrical breakdown strength 50HZ MV/m | volume resistivity 20℃ Ω·m | Width | |
| GM,GP,GS,FMG,FPG,FSG: | GMG,GPG,GSG | (mm) | |||||
| 0.1 | ±0.015 | 100 | ≥60 | ≥100 | ≥10 | ≥1×1010 | 20~65 |
| 0.13 | ±0.015 | 120 | |||||
| 0.16 | ±0.02 | 140 | |||||
4.Packing & Delivery
No. | Size | Inner Diameter/Out Diameter | length(m) |
Pad | 0.14mm*6mm | 52mm | 1200±20 |
| 0.14mm*8mm | 52mm | 1200±20 |
| 0.14mm*10mm | 52mm | 1200±20 |
| 0.14mm*16mm | 52mm | 1200±20 |
Spool | W≤100mm | 52mm | 3000-10000 |
various specifications can be customized according to customer requirements

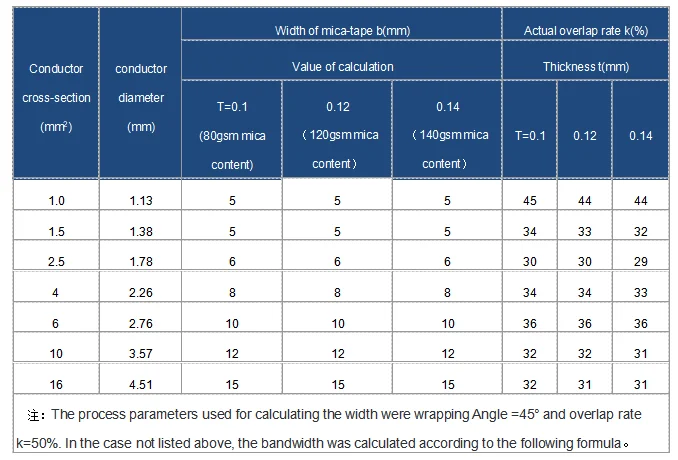

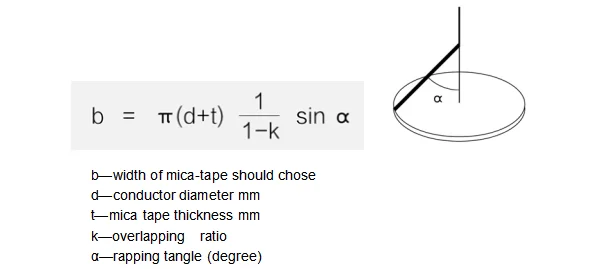

5.How to choose the width of mica tape
