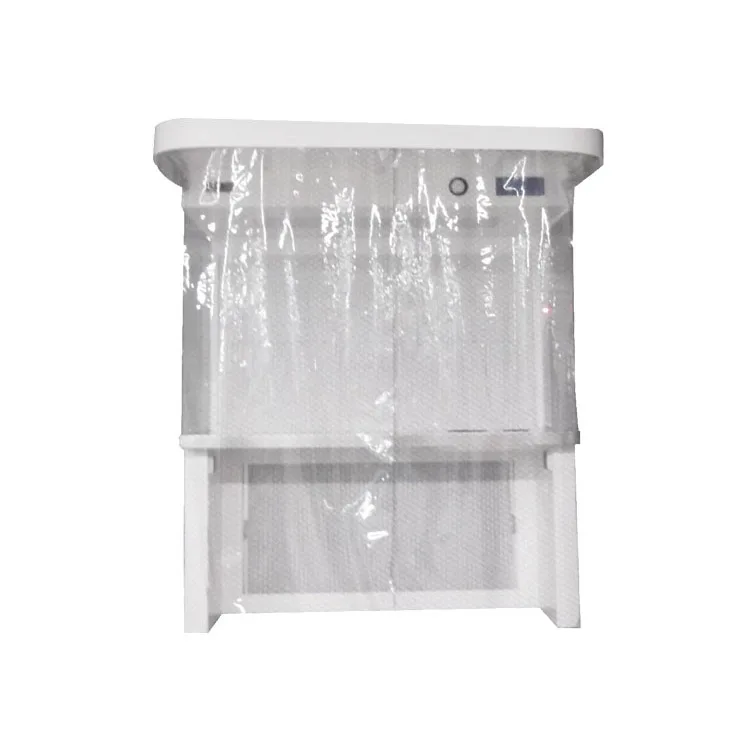

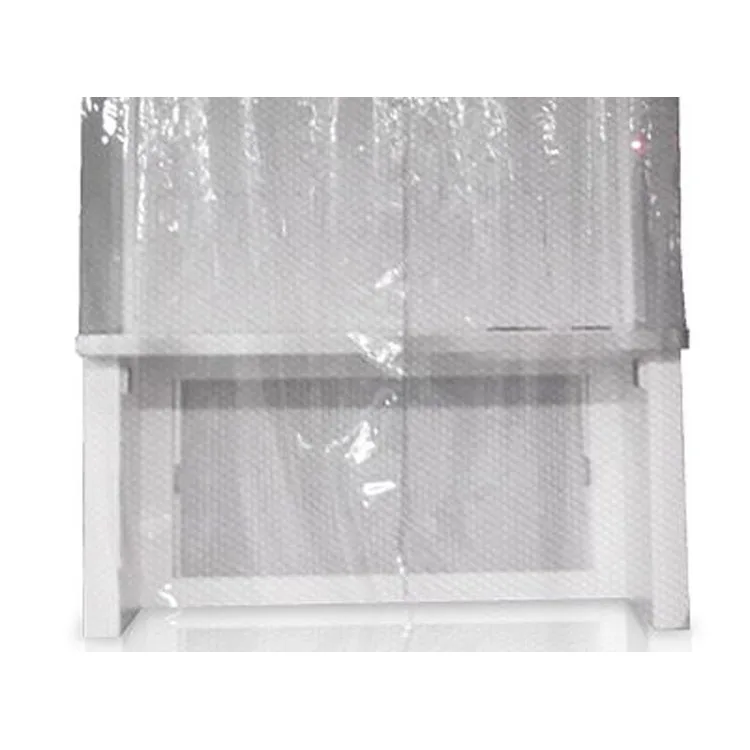

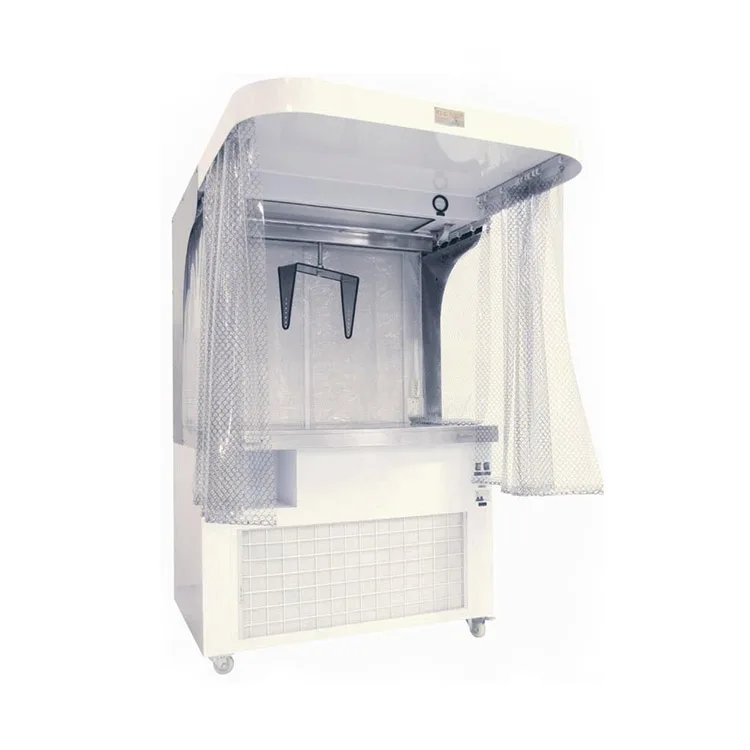

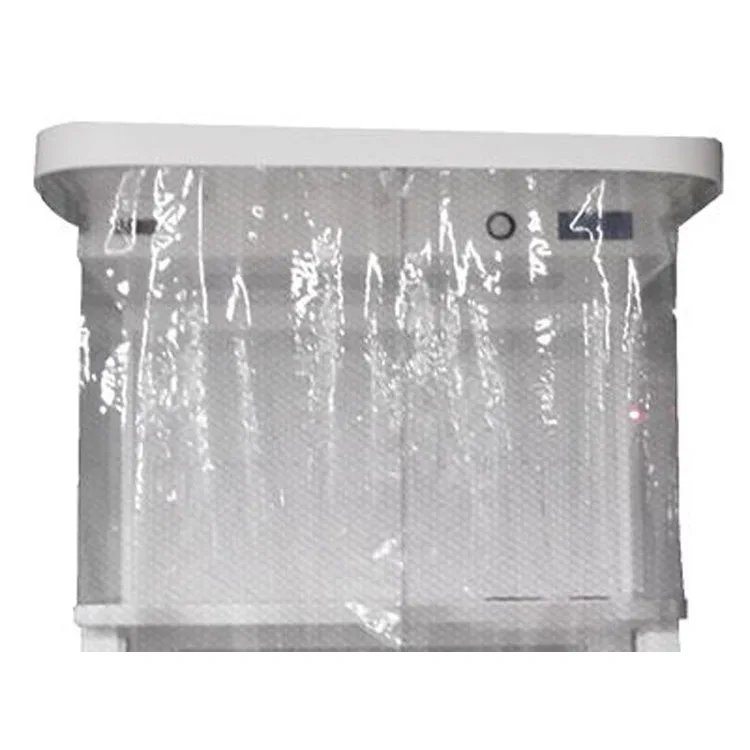

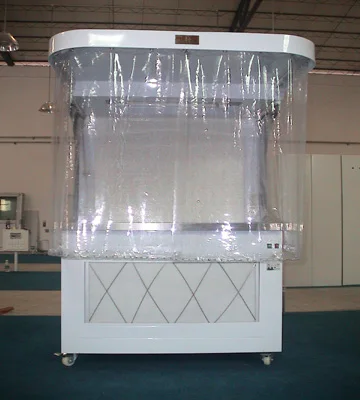

Class 100 Laminar Air Flow Cabinet with Curtain Supplier
- Category: Air Cleaning Equipment >>>
- Supplier: Guangzhou KLC Cleantech Co. Ltd.
Share on (1600229458413):
Product Overview
Description
Products Description
Purification class: class 100 / ISO 5
HEPA efficiency: 99.99%@0.3um
Power supply: 220V/50Hz
Cabinet material: powder coated steel/stainless steel
Table-board material: Sand polished stainless steel
HEPA efficiency: 99.99%@0.3um
Power supply: 220V/50Hz
Cabinet material: powder coated steel/stainless steel
Table-board material: Sand polished stainless steel
A kind of universal equipment. It adopts the vertical and level air flow, the material is stainless steel or cold rolled steel. The air flow can be adjusted, which can ensure the wind velocity in an ideal condition.
Configuration

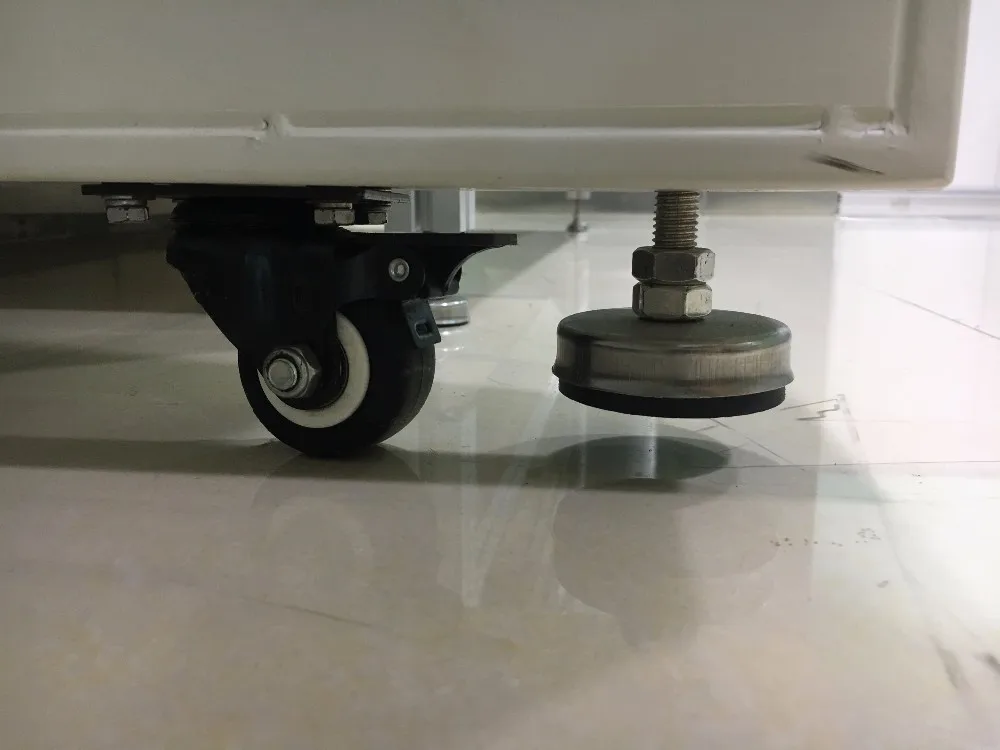

Electrical panel, fluorescent light, HEPA filter, glass, wheel, curtain, manometer, etc.
Product features
High-cleanliness
Can be connected as a whole working line
Lower noise and moveable capabilityion.

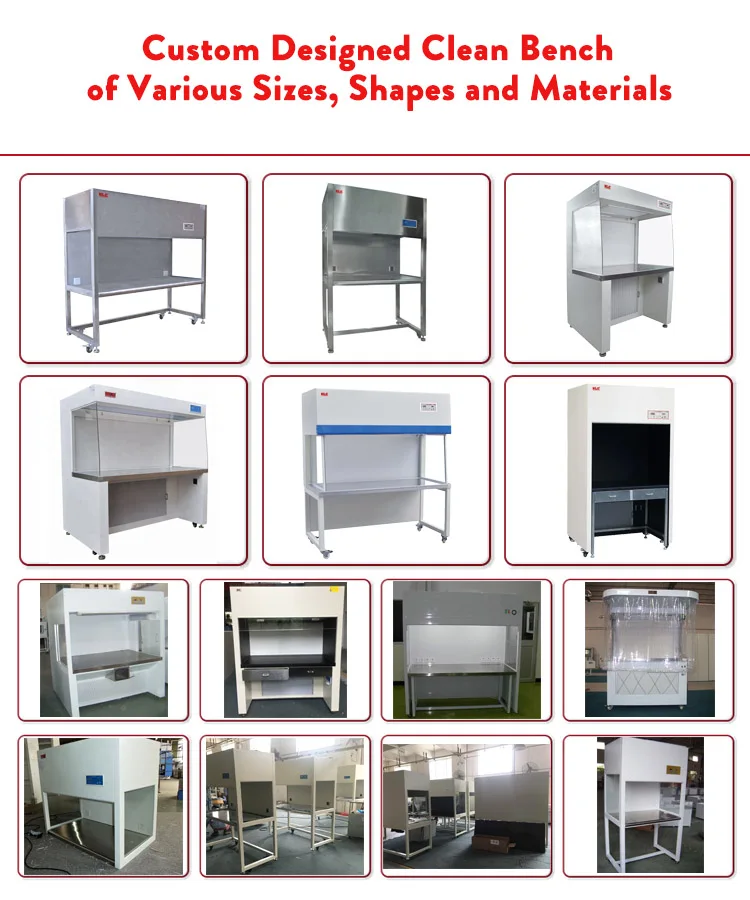

Custom Design

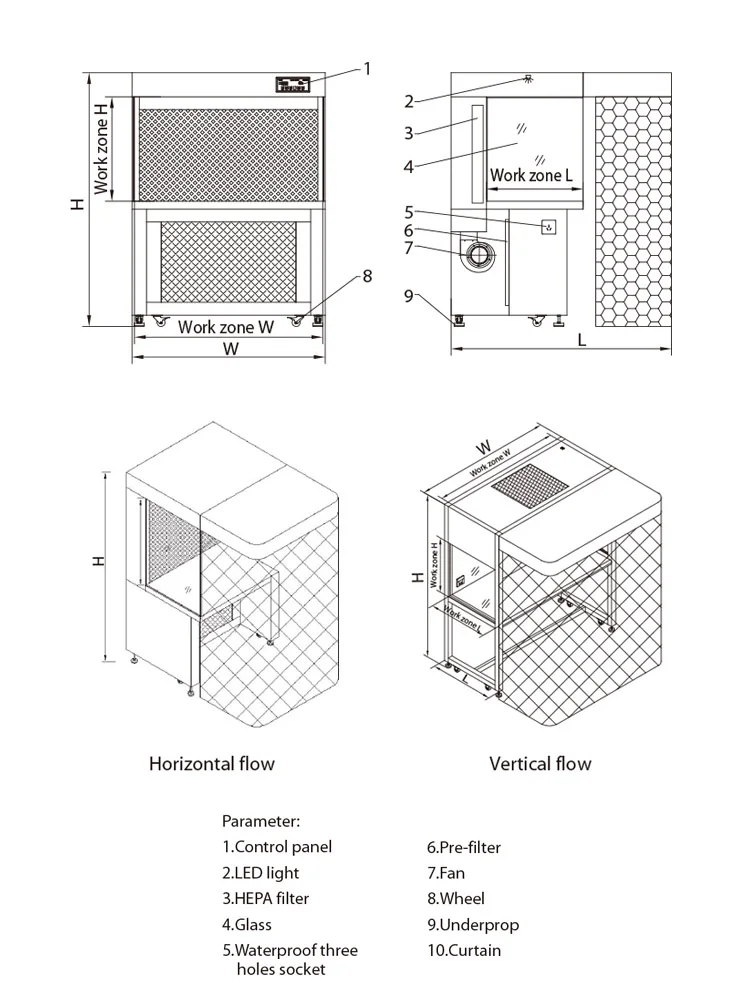

Item | Horizontal flow for one person | Horizontal flow for two person | Vertical flow for one person | Vertical flow for two person | |||
Model | CB-C-001 | CB-C-002 | VCB-1000 | VCB-1200 | |||
External Size (WxLxHmm) | 960x1500x1880 | 1200x1500x1880 | 1000x1350x1800 | 1200x1350x1800 | |||
Internal Size (WxLxHmm) | 930x630x865 | 1170x630x865 | 900x650x600 | 1100x650x600 | |||
Airflow (m³/h) | 600 ~ 950 | 750 ~ 1100 | 600 ~ 950 | 750 ~ 1100 | |||
Wind Velocity | 0.30 ~ 0.45 m/s | ||||||
Purification rank | 100 rank (ISO14644-1 standard) | ||||||

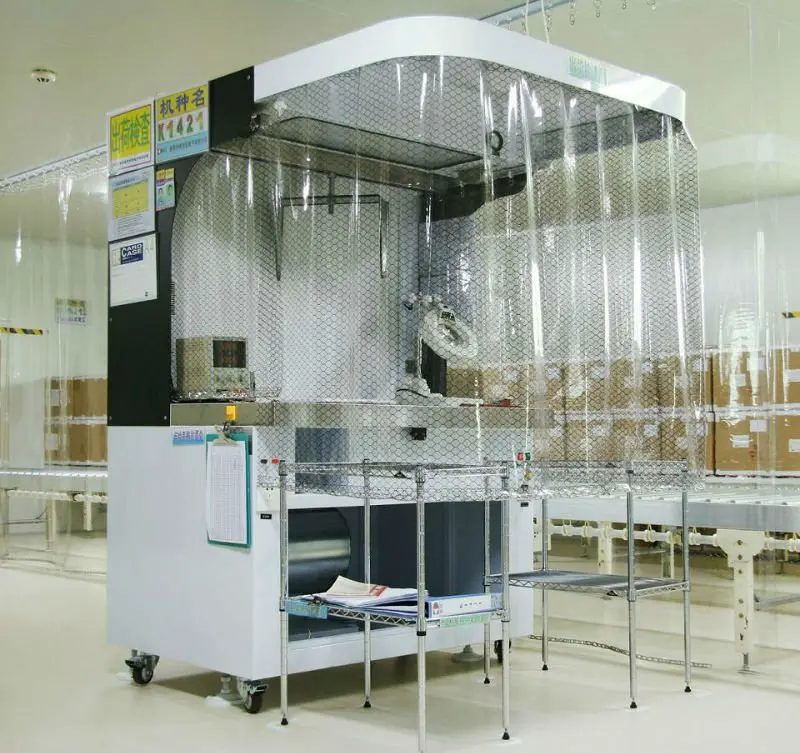

Photo-electricity industry, precision instruments, pharmacy, medicine, micro-electrical, lab, scientific research.
