Product Overview
Description
Product overview

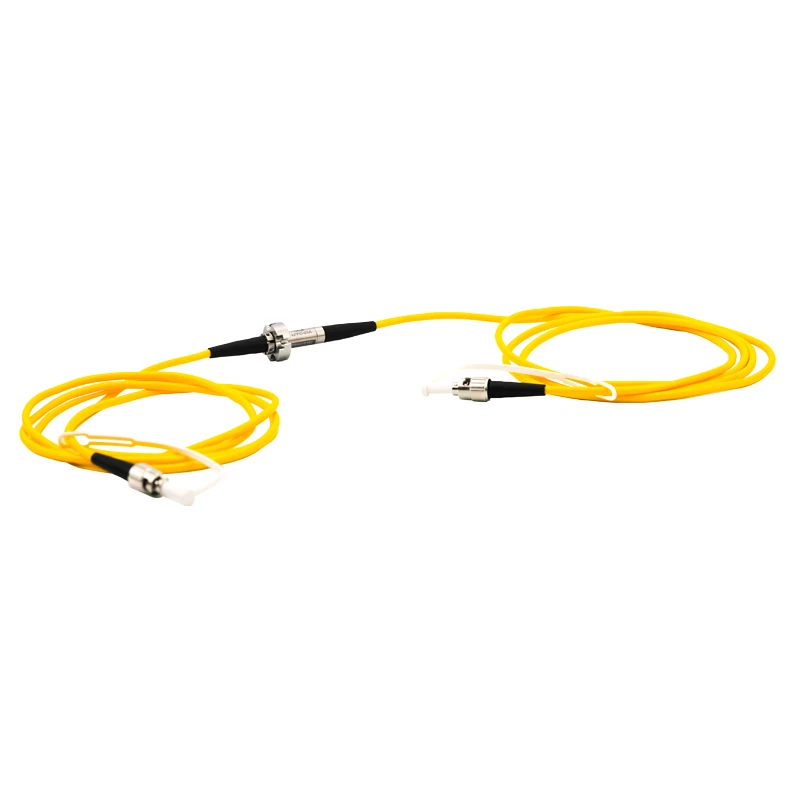

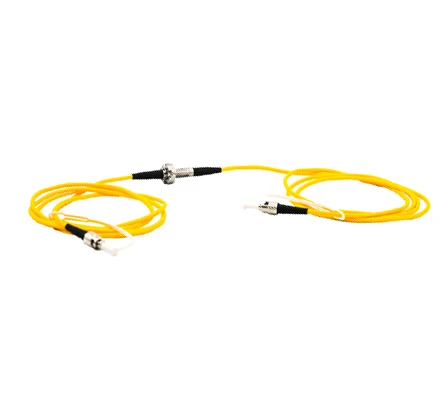

LPFO-01A fiber optic rotary joints
LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.
Product description
LPFO-01A
Adopts optical fiber as transmission media, ensures no leakage, no electrical interference. Compact size with light weight.
No contact, no friction, super long life over 200,000,000 revolutions.
Supports hybrid transmission with eletrical slip ring. Hybrid optoelectronic transmission of power and high speed data.
With pressure compensator, intact sealing. Can work under harsh environment like 7000 meters under water or the space.
No contact, no friction, super long life over 200,000,000 revolutions.
Supports hybrid transmission with eletrical slip ring. Hybrid optoelectronic transmission of power and high speed data.
With pressure compensator, intact sealing. Can work under harsh environment like 7000 meters under water or the space.
Product parameter
Specifications | ||||||
Fiber types | SM or MM | Connector types | F C/SC/ST/LC(PC or APC) | |||
Channel number | 1 | Estimated life cycle | ＞200 million revolutions | |||
Wavelength range | SM:1270-1650nm MM:650-1300nm | Vibration | MIL-STD-167-1A | |||
Insertion loss | ＜2dB | Mechanical shock | MIL-STD-810G | |||
Insertion loss ripple | ＜0.5dB | IP rating | IP65 or IP68 | |||
Return loss | ≥40dB | Maximum speed | 2000rpm | |||
Max Optical power | 23dBm | Working temperature | -45～+80℃ | |||
Package style | Pigtails on both ends | Storage temperature | -55~+85℃ | |||
Weight, approx | 10g(No tail cable andconnection included) | Jacket types | 0.9/2/3mm(Kevlar/PVC or Armor) | |||

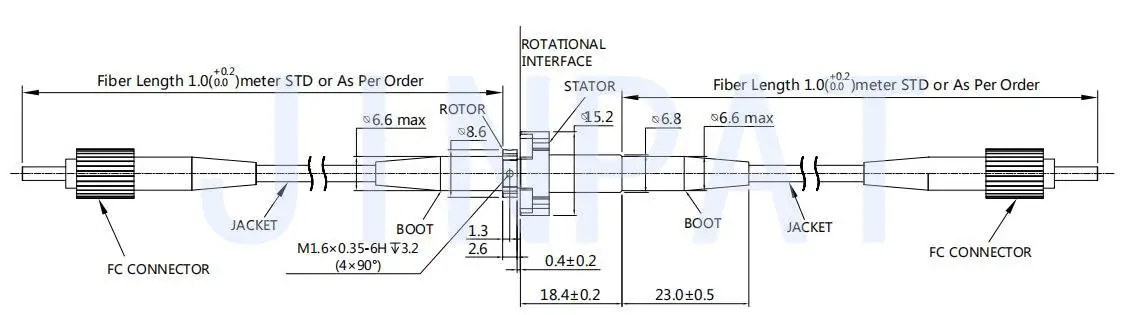

Product outline drawing
Application industry
