Chinese dumper machine self loading mini dumper/diesel dumper cart/mini truck dumper
- Category: >>>
- Supplier: Henan Pssroh Trading Co. Ltd.
Share on (1600229536142):
Product Overview
Description
Product Overview

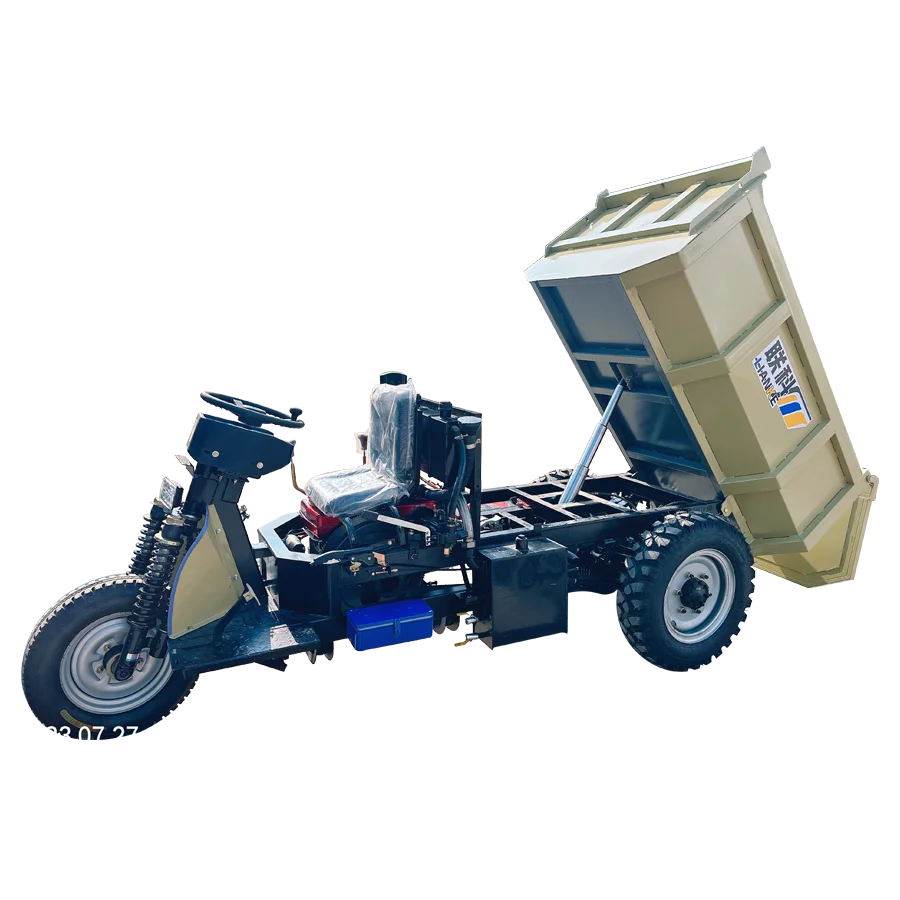

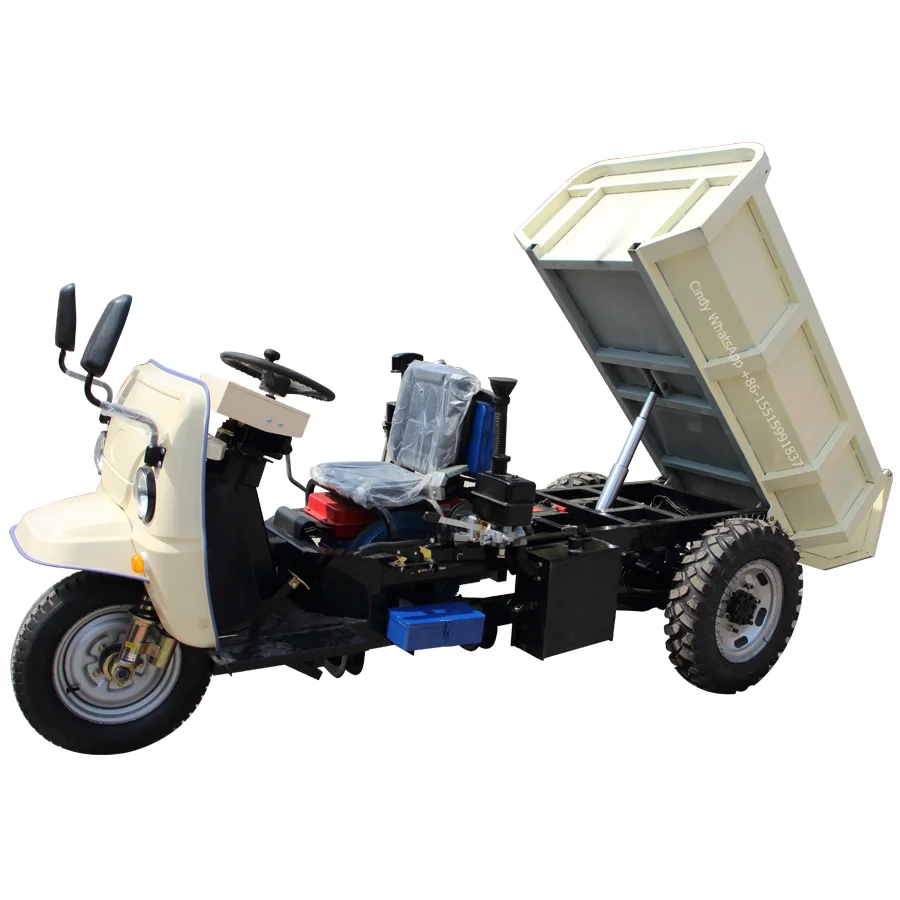

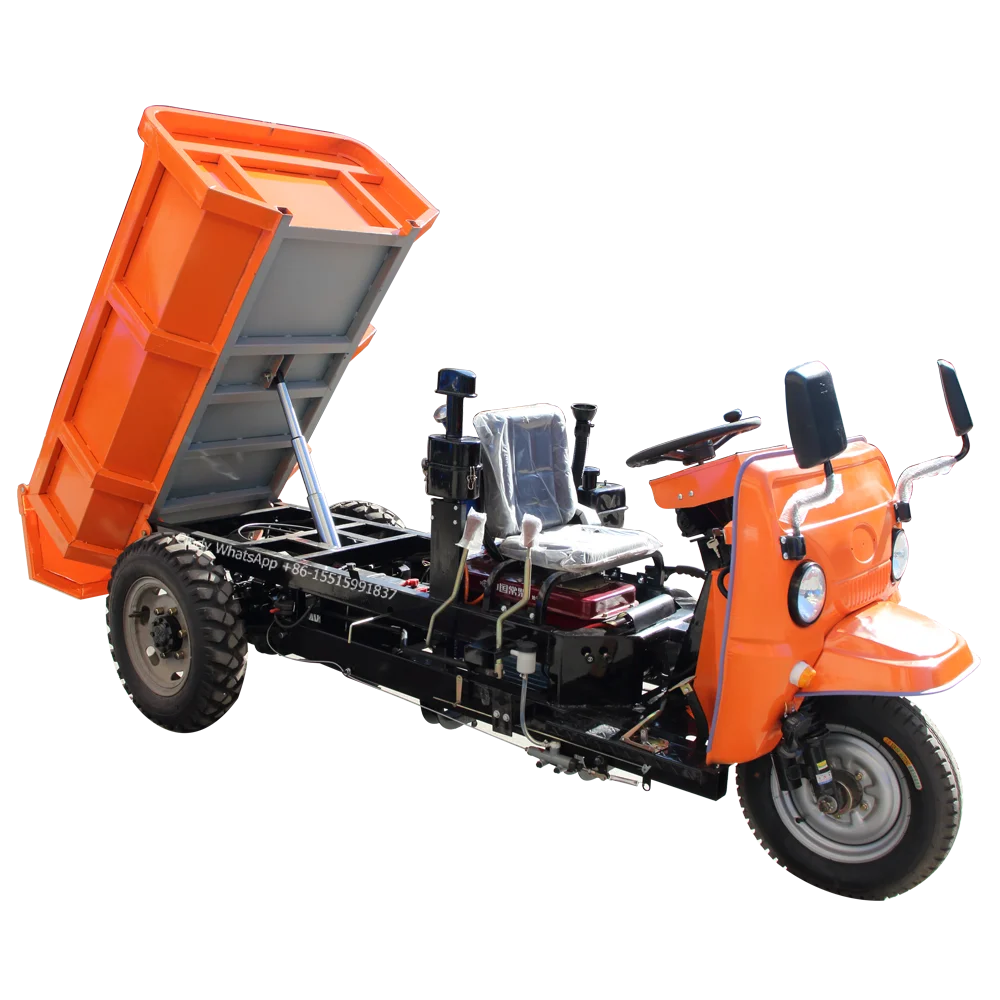

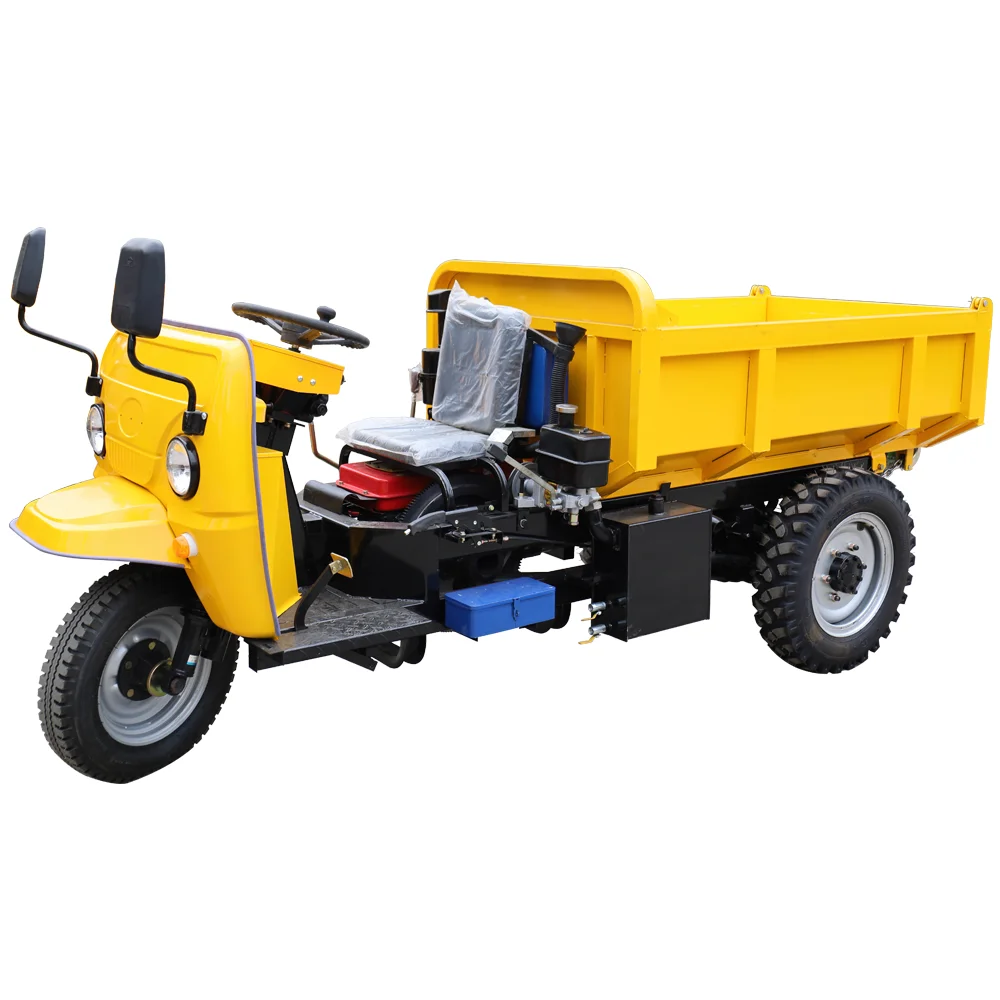

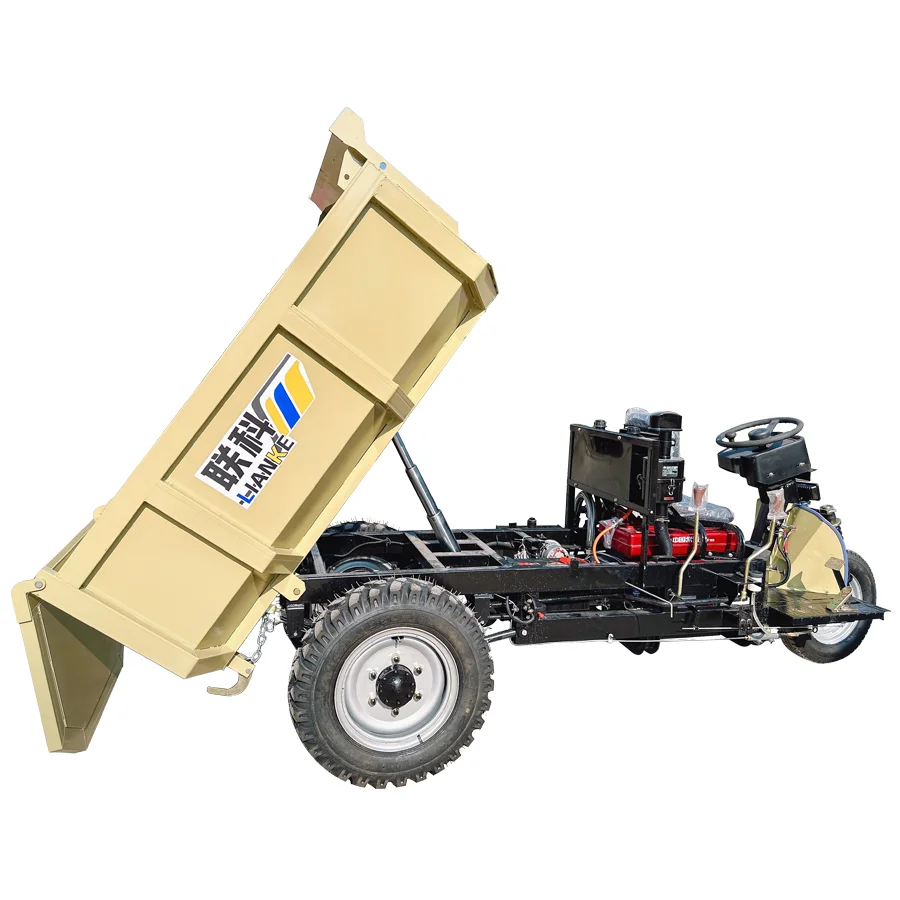

LK270D model max loading 2.5tons mini truck dumper is our company's main product, which are widely used in mining, construction sites, farms. Can be used to transport ore, cement, grains and other heavier goods. Can drive in all kinds of road.
YouTube video links for more details(plz copy and paste into your browser to browse):
you can also search (Cindy Zhengzhou Lianke) on Youtube
2023 New version LK270D diesel dumper for Peru---https://youtu.be/Xqw6I6aPYvc
2023 LK270D diesel dumper for Peru max load 2.5tons---https://youtu.be/kMcIVEZMqs8
2023 New LK270D diesel dumper loading capacity 2.5tons for South America---https://youtu.be/jgJFR9EIK6c
We are a manufacturer specializing in the production of diesel/electric dump trucks. The following is customized for Peru customer. Now we will wash the car every time before shipment. We have exported a large number of dump trucks to Peru, Chile, Bolivia, Ecuador and Colombia every year.
you can also search (Cindy Zhengzhou Lianke) on Youtube
2023 New version LK270D diesel dumper for Peru---https://youtu.be/Xqw6I6aPYvc
2023 LK270D diesel dumper for Peru max load 2.5tons---https://youtu.be/kMcIVEZMqs8
2023 New LK270D diesel dumper loading capacity 2.5tons for South America---https://youtu.be/jgJFR9EIK6c
We are a manufacturer specializing in the production of diesel/electric dump trucks. The following is customized for Peru customer. Now we will wash the car every time before shipment. We have exported a large number of dump trucks to Peru, Chile, Bolivia, Ecuador and Colombia every year.
LK270D load 2.5tons diesel dumper Technical Parameters | ||||||||
Loading capacity | max 2500kg | Net weight | 855kg | |||||
Front tire | 5.00-14 | Rear tire | 6.50-16 | |||||
Overall size | 3300*1150*1350mm | Cargo box size | 1800*1100*500mm | |||||
Front shock absorber | SHIFENG brand double-row front shock absorption. | |||||||
Engine | 24hp standard Changchai diesel engine. Model: L24 It is produced by a company, Changchai Co., Ltd., with anti-counterfeit marks. Other manufacturers are counterfeit or low cost and high imitation. Please pay attention to distinguish when comparing prices. | |||||||
Speed | Max. 60km/h | |||||||
Transmission type | Shifeng brand 8-speed rear axle | |||||||
Hopper thickness | Side plate is 3mm thick, bottom plate is 5mm thick. | |||||||
Color&Logo | We can customize VIN plate information and logo for container order. White, Red, Orange, Green, Yellow and Blue | |||||||
Optional device (need extra cost) | Can heighten the cargo box. Double seat Semi-enclosed shed with tempered glass. Upgrade to bigger rear tires 7.00-16/7.50-16 | |||||||

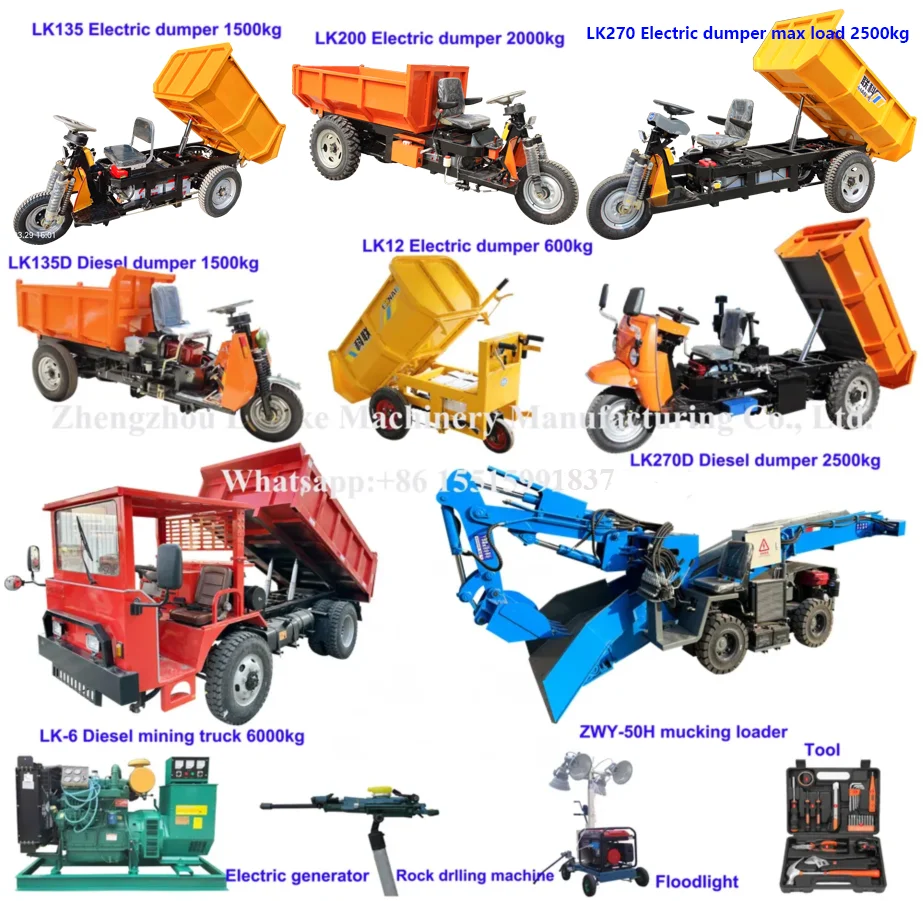

SIMILAR PRODUCTS
Loading capacity: 1500kg
Overall size:3100*1020*1400mm
Hopper size:1450*950*450mm
Tire:4.00-12/5.00-14
Engine power:13.2kw/18hp/2200rpm
If use in high altitude areas need to upgrade to 22hp, need an extra cost of $125 each vehicle.
Overall size:3100*1020*1400mm
Hopper size:1450*950*450mm
Tire:4.00-12/5.00-14
Engine power:13.2kw/18hp/2200rpm
If use in high altitude areas need to upgrade to 22hp, need an extra cost of $125 each vehicle.
Overall size:4600*1630*1500mm
Hopper size:2850*1600*500mm
Tire:7.00-16 two front four rear
Engine power: 55kw YUNNEI 490
Tail gas: Water treatment purifier
Brake: Air brake
Note: standard rear drive, 4wd is extra cost.
Hopper size:2850*1600*500mm
Tire:7.00-16 two front four rear
Engine power: 55kw YUNNEI 490
Tail gas: Water treatment purifier
Brake: Air brake
Note: standard rear drive, 4wd is extra cost.
Overall size:3300*1100*1350mm
Hopper size:1800*1100*450mm
Tire:4.50-14/6.00-16 (HUANYAN)
Driving motor: 60V2000W/3000W(Brush/Brushless motor)
Rear axle: Double chain gear box or direct-connection rear axle
Weight: 685kg
Hopper size:1800*1100*450mm
Tire:4.50-14/6.00-16 (HUANYAN)
Driving motor: 60V2000W/3000W(Brush/Brushless motor)
Rear axle: Double chain gear box or direct-connection rear axle
Weight: 685kg
Overall size:3300*1150*1400mm
Hopper size:1800*1150*500mm
Tire:4.50-14/6.00-16 (HUANYAN)
Driving motor: 72V4000W(Brushless motor)
Rear axle: Direct-connection rear axle with high-medium-low gear
Rear axle brand:DATAI or YUANHAO
Weight: 780kg
Hopper size:1800*1150*500mm
Tire:4.50-14/6.00-16 (HUANYAN)
Driving motor: 72V4000W(Brushless motor)
Rear axle: Direct-connection rear axle with high-medium-low gear
Rear axle brand:DATAI or YUANHAO
Weight: 780kg
If you have any questions please contact me WhatsApp:
Cindy-Zhengzhou Lianke +86-15515991837
Specific Details
Power-assisted steering wheel
We use a mechanical power assisted steering device for this LK270D diesel dump truck - a central spherical worm, when full loading, you can easily adjust the direction.
Core parts- Standard CHANGCHAI diesel engine 24hp
Model: L24
Chinese famous brand CHANGCHAI standard diesel engine 24hp,17kw and weight 190kg, it is the core of diesel vehicles. We use the genuine Changchai diesel engine and the anti-counterfeit signs and signs of Changchai Co., Ltd., China. Other small manufacturers will use other brands to save costs, which will lead to high fuel consumption, more black smoke, more noise and no anti-counterfeit, and the price difference with us will be large.
Chinese famous brand CHANGCHAI standard diesel engine 24hp,17kw and weight 190kg, it is the core of diesel vehicles. We use the genuine Changchai diesel engine and the anti-counterfeit signs and signs of Changchai Co., Ltd., China. Other small manufacturers will use other brands to save costs, which will lead to high fuel consumption, more black smoke, more noise and no anti-counterfeit, and the price difference with us will be large.
The thickness of steel plate
The price of steel has skyrocketed from 2021, so the difference in cost is reflected in the thickness of the steel plate. Our company strictly adopts the national standard 3mm thick steel plate to produce standardized diesel mini dumper and free upgrade to 5mm thick of bottom steel plate for hopper, which are more durable and beautiful.
5.00-14 Front wheel and customized double-row shock absorption.
6.50-16 rear wheels, can customized large herringbone tires according to the site of use.
Exhaust gas treatment device
Especially when working inside the mine tunnel, it is necessary to install the tail gas purification box. The working principle of the tail gas purification tank equipped with this LK270D diesel dumper is that when high temperature tail gas passes through the purifier, HC, CO and particulate matter react with oxygen under the action of catalyst and high temperature to become non-toxic water and carbon dioxide.

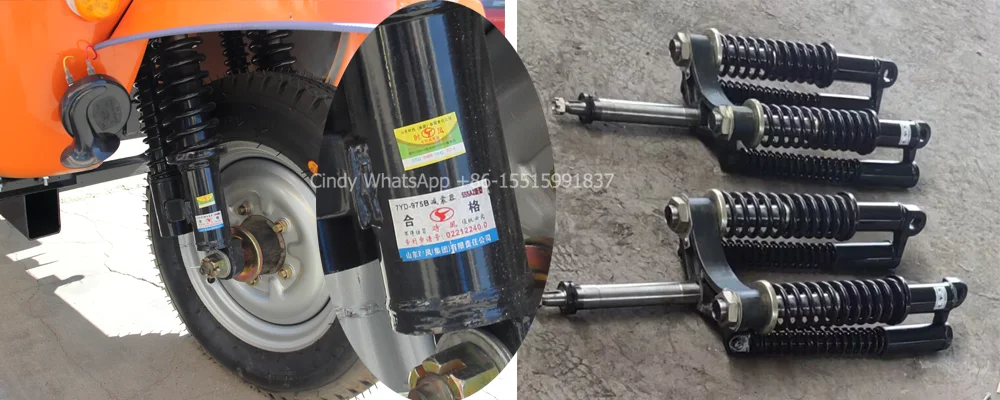

SHIFENG standard black double front shock absorption
Double-row front shock absorption, we are professional in manufacturing mining dumpers, when you purchase diesel dumper, please identify the brand and patent number of SHIFENG: 02212240.0

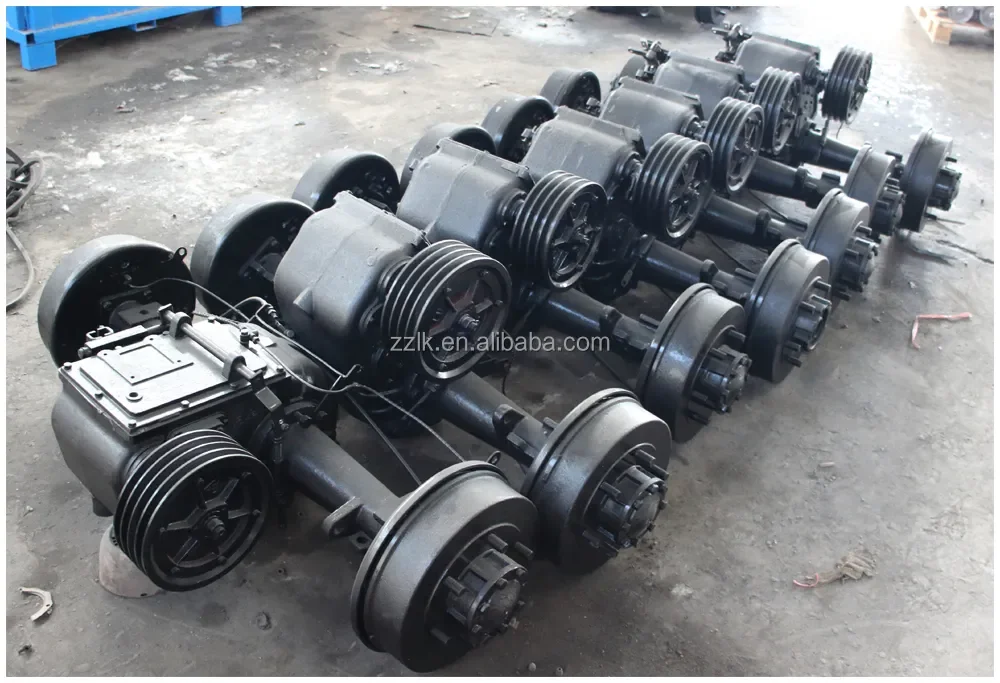

Rear axle, Brand:SHIFENG original factory
This LK270D mini truck dumper uses 8-speed transmission, SHIFENG brand original factory. The upper and under end of the spring steel plate both are specially designed with square steel to avoid overloading the vehicle and crushing the spring steel plate. You can see from above picture that the U-shaped support is better fixed, top and below both are fixed. It will not displacement at all.
Two gear levers
This LK270D diesle dumper has two gear levers.
One is 1,2,3,R and it means four gears, another one is high and low speed.
And now the LK270D add turn signals and LED taillight, more safer.
One is 1,2,3,R and it means four gears, another one is high and low speed.
And now the LK270D add turn signals and LED taillight, more safer.
Latest free upgraded parts

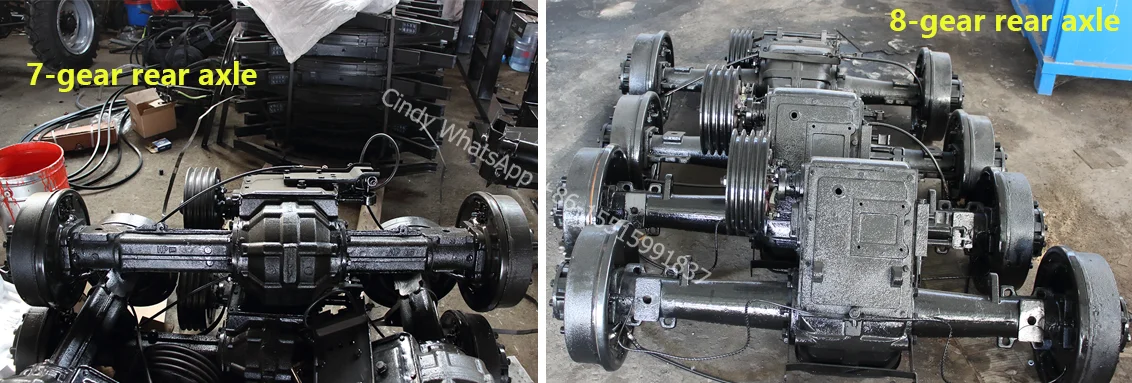

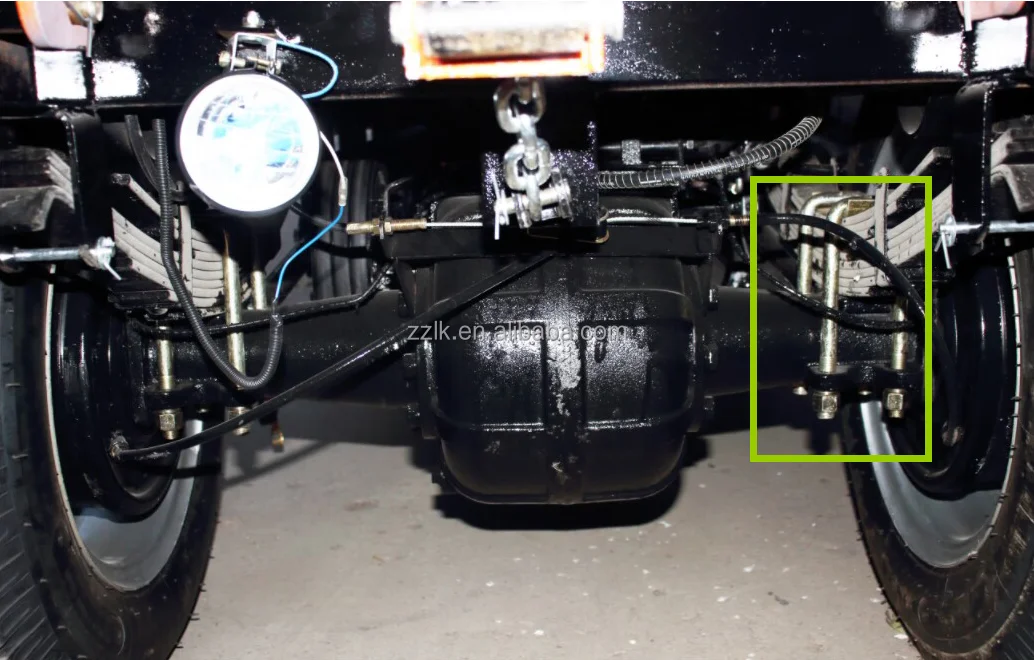

1. The rear axle
This LK270D diesel dumper is updated to shifeng 8-gear rear axle, adding a set of auxiliary transmission gears, and the gearbox of the new 8-gear rear axle is enlarged as a whole, that means the diameter of the half axle is greater than 7-gear, then the inverted speed can be adjusted and the carrying capacity is more stronger can up to 3000kg.
From the above figure, it can be seen that the two ends of the new 8-speed rear axle are fixed with 5-hole connecting plates on the rear axle, and the U-shaped support is inverted to fix the rear plate spring on the rear axle, so it will not shake and is more stable.
From the above figure, it can be seen that the two ends of the new 8-speed rear axle are fixed with 5-hole connecting plates on the rear axle, and the U-shaped support is inverted to fix the rear plate spring on the rear axle, so it will not shake and is more stable.

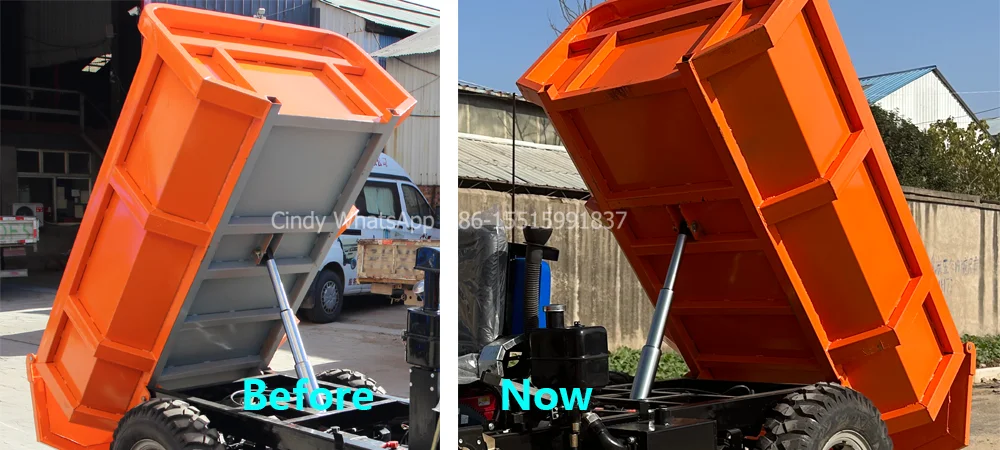

2. The hopper bottom painting
The bottom of the bucket was originally black original paint, but now it can be made into an integrated paint spray according to customer needs, which is more beautiful.

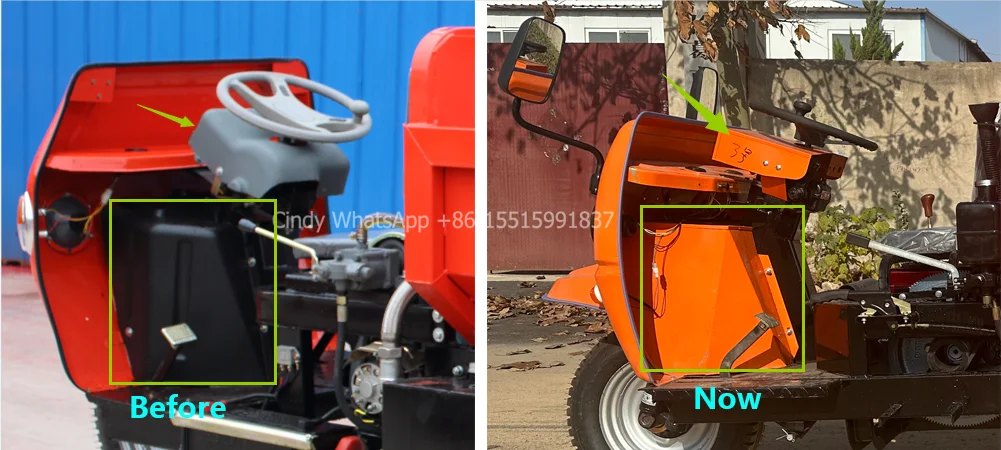

3. The steering gear cover and front guard
The steering gear cover and front guard before bothe are plastic, now we both upgrade to metal.
The plastic will become brittle and easy to break after being exposed to the wind and sun, and the front guard plate will be changed to metal to prevent flying stones from causing leg skin injury when walking in the mining area.
The plastic will become brittle and easy to break after being exposed to the wind and sun, and the front guard plate will be changed to metal to prevent flying stones from causing leg skin injury when walking in the mining area.

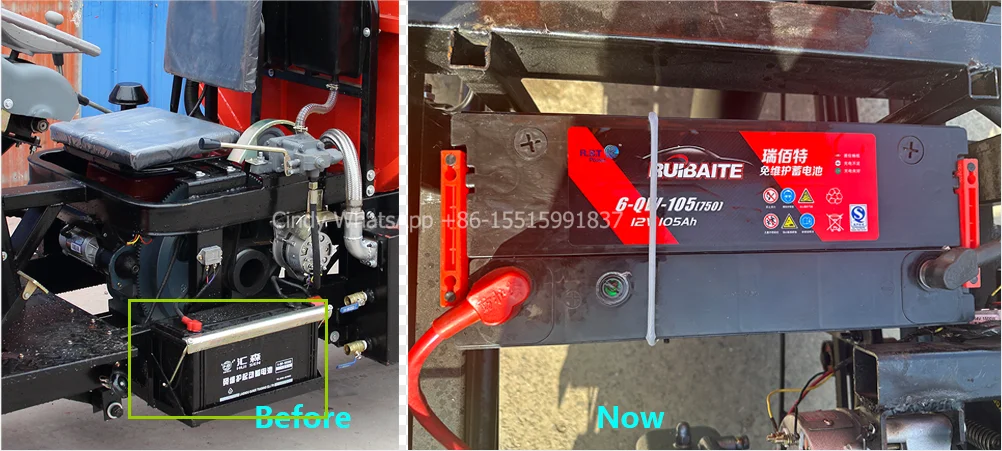

4. The battery position
The position of the starting battery is changed from the exposed side to the built-in fixed on the frame and the bottom of the bucket, so as to prevent water and collision.

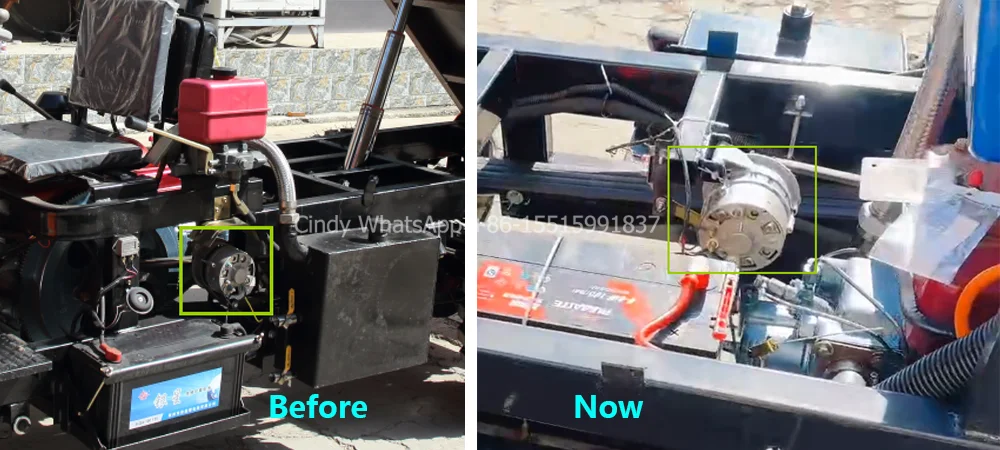

5. The Alternator position
The position of the Alternator is changed from being exposed before to being built in the frame. Its advantage is that it is waterproof and anti-collision to extend its service life.

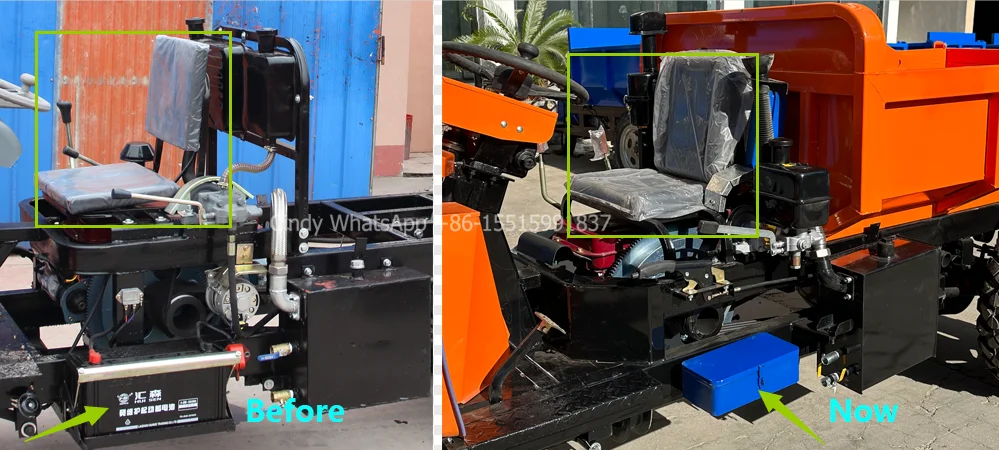

6. The seat and tool box
The seat is replaced by the original ordinary thin seat with the current luxury leather seat, which is more comfortable to ride.
A blue tool box is added at the original starting battery position of the vehicle, which can be used to place tools on the vehicle.
A blue tool box is added at the original starting battery position of the vehicle, which can be used to place tools on the vehicle.
7. Diesel engine oil pan protection cover
We add one piece of diesel engine oil pan protection cover weld with the frame together, which is a great protection and very reasonable for diesel engine.
Customized item
The customized configuration requires extra cost.
1: Semi-enclosed shed with tempered glass: Prevent falling rocks when working in the mine tunnel to make the operation safer.
2: Double seats: LK270D diesel mini dumper can take two workers into the mine to work, improving work efficiency.
3: Hinge design for hopper: it is suitable for smaller mines, and it is easier to use manual feeding.
2: Double seats: LK270D diesel mini dumper can take two workers into the mine to work, improving work efficiency.
3: Hinge design for hopper: it is suitable for smaller mines, and it is easier to use manual feeding.
L28Y Diesel Engine
Can upgrade from L24Y-R17 24hp weight 190kg to L28Y-R06 28hp weight 220kg, Standard Jiangsu Changchai Diesel Engine, need extra cost.

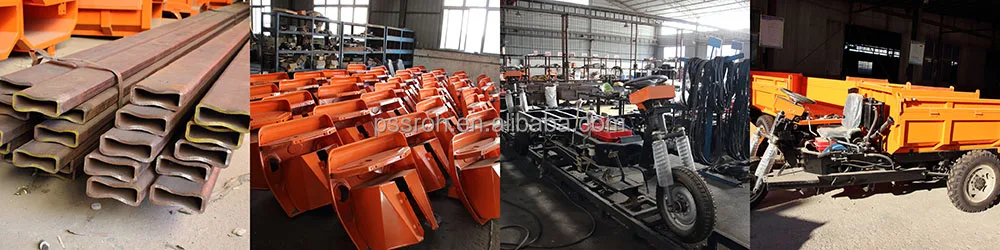

Workshop Show
Our company

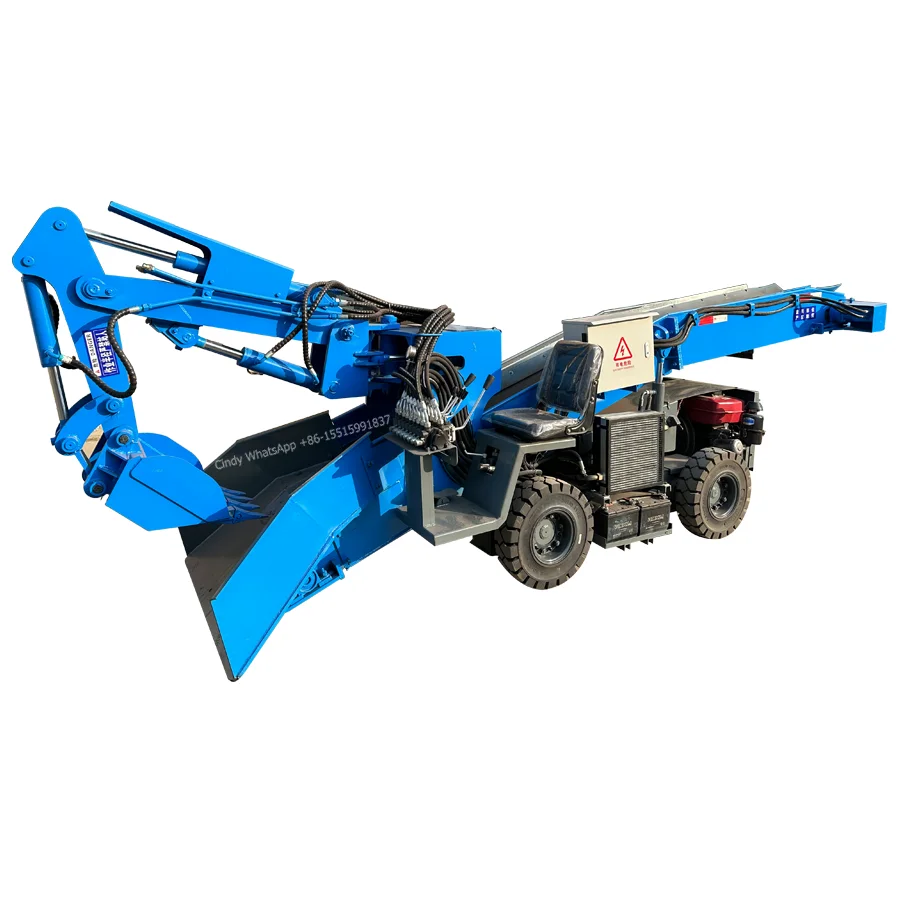

Zhengzhou Lianke Machinery Manufacture Co.Ltd. is a specialized manufacturer and trade of mucking loader haggloader machine and electric/diesel dumper truck, integrating development and production. We are holding this line for more than 29 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in construction, woodworking and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Warranty
(1)The LK270D mini truck dumper all parts quality assurance period for 15 months(after the goods arrived in the destination port). In normal use circumstances, there is any quality problem during warranty period, we will send the accessories freely for customers in next order's container after determine the damaged parts on receipt of your videos with dumper VIN plate.
(2)We will try our best effort to solve, whenever customers have a problem.
(1)The LK270D mini truck dumper all parts quality assurance period for 15 months(after the goods arrived in the destination port). In normal use circumstances, there is any quality problem during warranty period, we will send the accessories freely for customers in next order's container after determine the damaged parts on receipt of your videos with dumper VIN plate.
(2)We will try our best effort to solve, whenever customers have a problem.

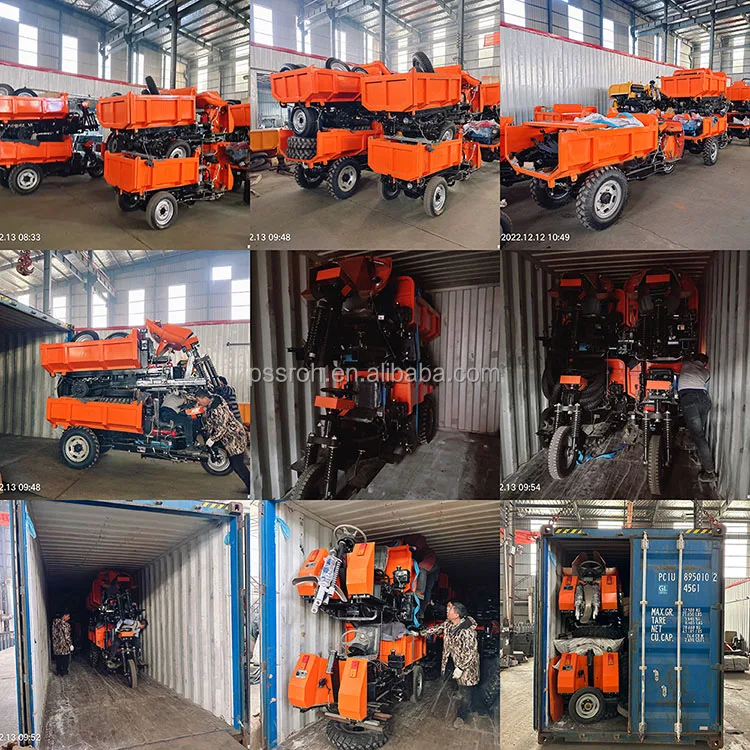

Packing & Delivery
FCL Delivery
For the order quantities more than 16 units(40HQ container), normally we advise to adopt full container load, full container shipment without any demolition, it's more convenient transportation and cost savings. Different models of mine dumpers with mucking loaders can be purchased together and shipped in one container.
One 40HQ container can MAX hold 12 sets diesel dumpers(LK135D/LK270D) + 12 sets LK135 electric dumpers, in total 24 sets three wheel dumpers, then you will obtain a large discount and be our distributor.
One 40HQ container can MAX hold 12 sets diesel dumpers(LK135D/LK270D) + 12 sets LK135 electric dumpers, in total 24 sets three wheel dumpers, then you will obtain a large discount and be our distributor.
