Product Overview
Description
Product Overview

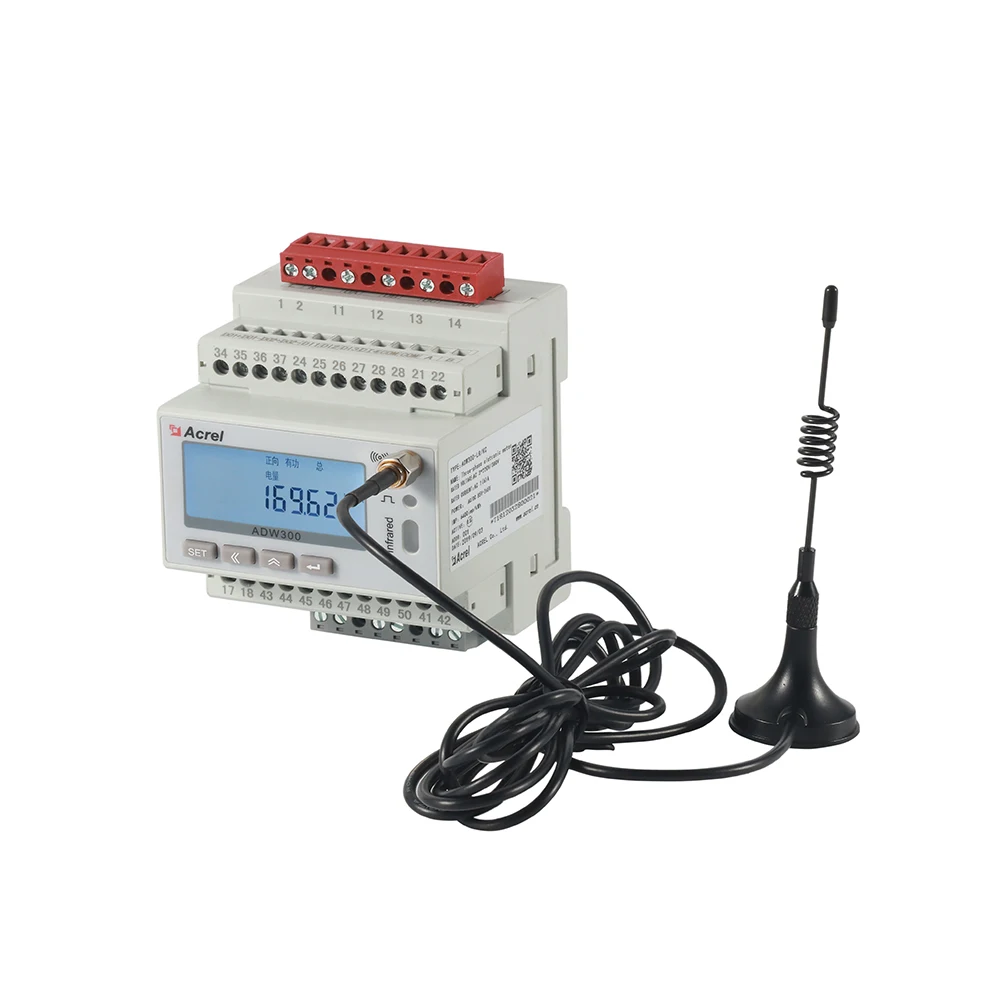

ADW300 Series Wireless Energy Meter
ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.
Specification | Accuracy | Resolution | Measuring Range |
Active energy(Kwh) | Class 0.5S | 0.01 Kwh | 0-999999.99Kwh |
Reactive energy(Karh) | Class 2 | 0.01Kvarh | 0.01 Kvarh |
Voltage | 0.2% | 0.1V | 50-285V |
Current | 0.2% | 0.01A | 0.01-80A |
Active power | 0.5% | 0.001 Kwh | 0-22.88kw |
Reactive power | 0.5% | 0.001 Kwh | 0-22.88kw |
Apparent power | 0.5% | 0.001VA | 0-22.88kw |
Power Factor | 0.2% | 0.001 | |
Frequency | 0.2% | 0.01HZ | 45-65HZ |
Active energy(Kwh) | Class 0.5S | 0.01Kwh | 0-999999.99Kwh |

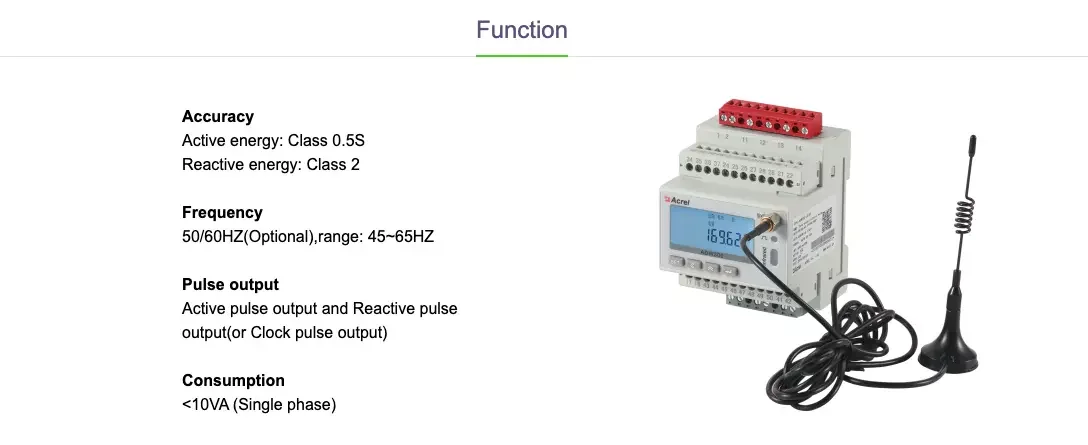

FEATURES AT A GLANCE
RS485(Modbus-RTU)
Infrared
470MHz wireless transmission
GPRS
NB-IOT
4G
3×220/380V,3×380V,,3×57.7/100V,3×100V,3*1(6)

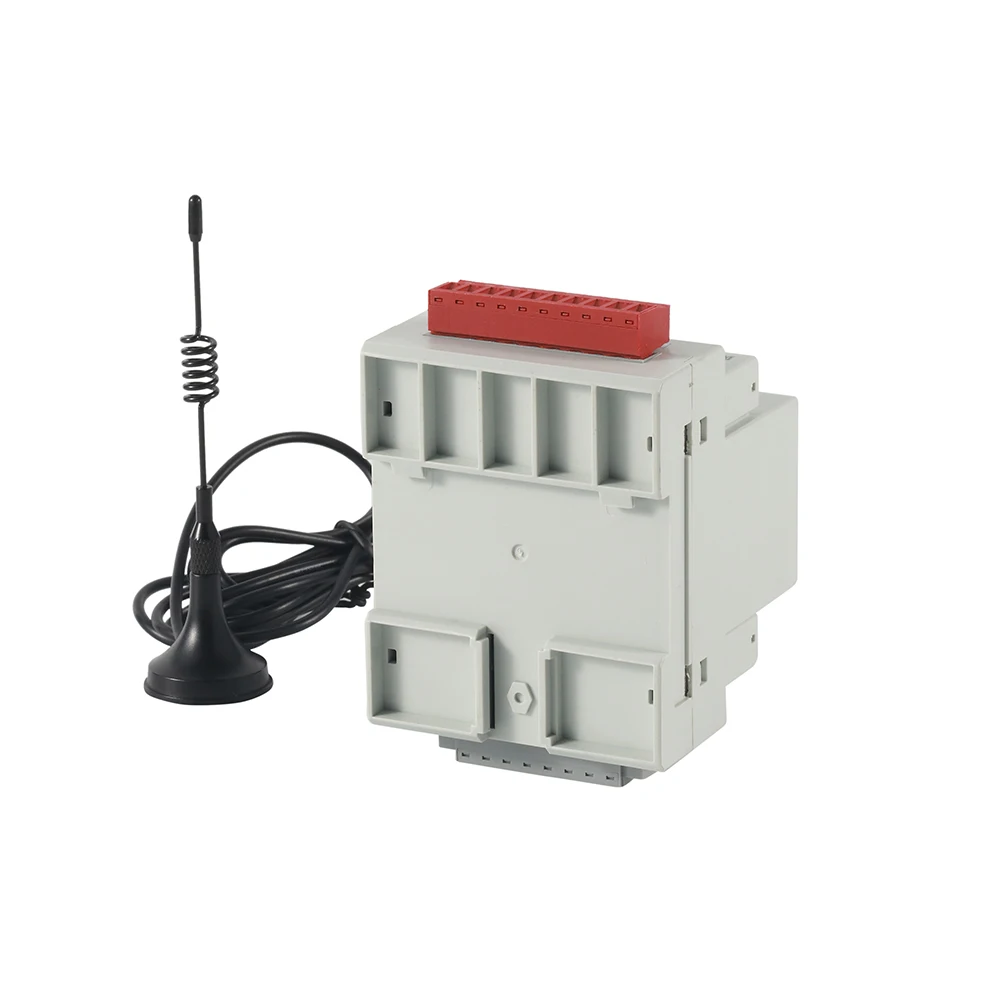

Right elevation
Left elevation
Front elevation
