Raw material: Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc. Material required: Moisture 5%-12%,size3-5mm If moisture>12% may need dryer,We have air flow dryer and drum dryer. If material size >5mm will need hammer mill or wood crusher.

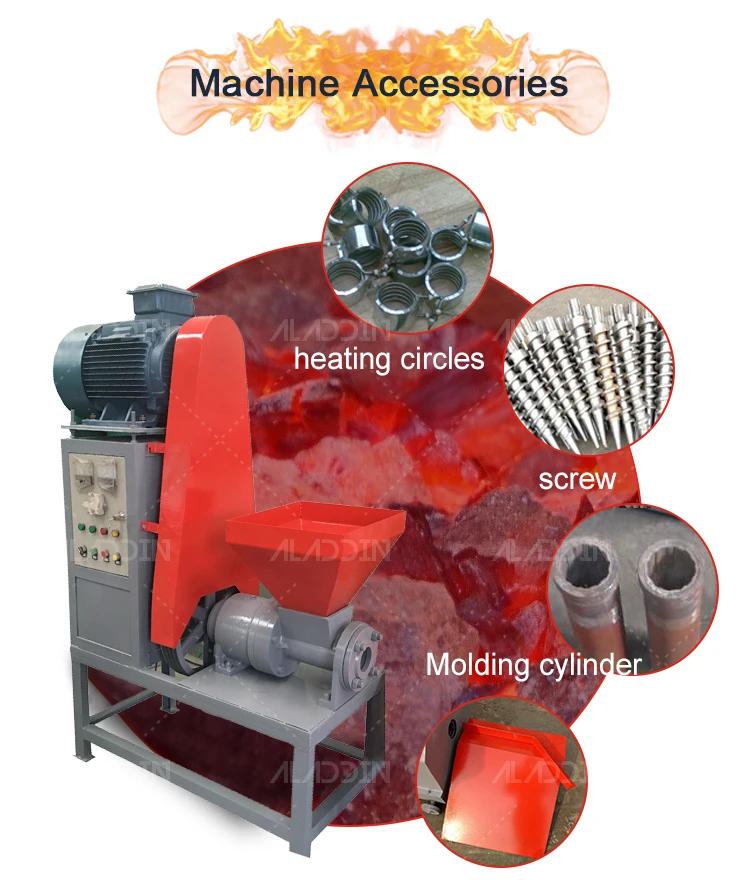

When begin to work,the heating circle heat the machine,then wood briqutte machine can press sawdust without any binder, sawdust pressed by high temperature and high pressure , then the screw press sawust forward,extrusion into a rod-shaped solid rod with center hole.
The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes. Inlet Moisture: less than 12%; Briquette Diameter: 50mm, 60mm, 70mm, 80mm.

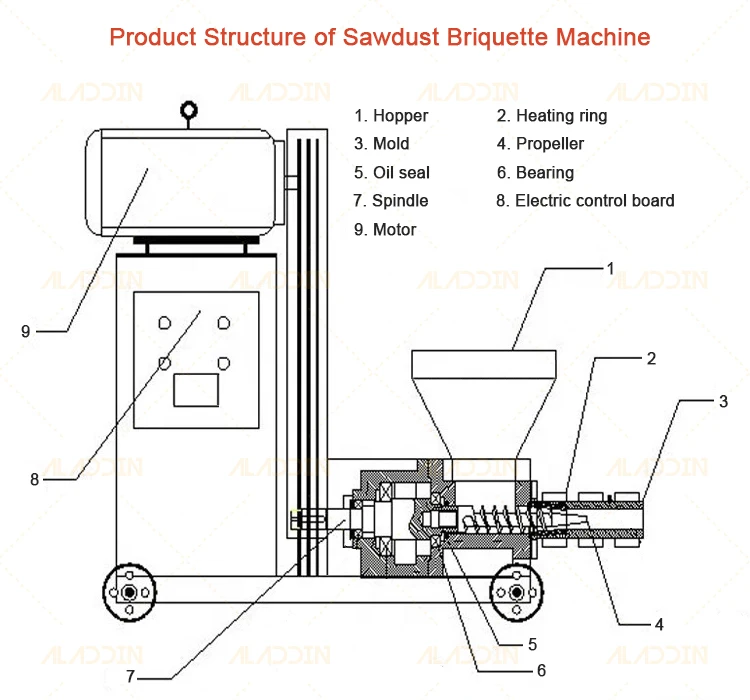

Product Structure

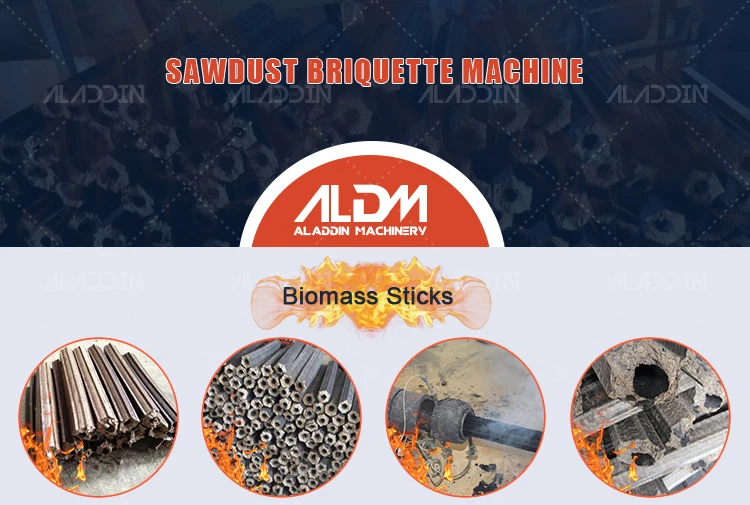

Final product of Wood Briquette Machine
Wood Briquette Machine are widely used in biomass power plant heating industry, boiler heat source and other industries. Final product shape could be round, square,hexagon and etc, the hexagon is most stabilize shape and is best capacity, the final product diameter have three type, 50mm is the most stabilize type sawdust briquette also could be the raw material of BBQ, after carbonized, the final product is charcoal.
Operation
1. Power on the machine.
2. V- belt starts to moving the screw.
3. The materials are put into the feeding inlet.
4. Through high temperature and high pressure, the products are made out.
5. At the end of this device,after sawdust logs reach normally 40-50cm,it will be broken and roll of the baffle.
6. The products will be transported out by the mesh belt.
PS: The finished briquette diameter: 50-80mm. The shape of briquette: hexagonal, quadrangular, etc.
Working Principle
The high temperature and high pressure zone is formed under the action of the screw propeller and the heating ring to process the loose raw material into a hollow rod body. The product has high density, small volume and good flammability, which can replace fuelwood and coal. The general product has an outer diameter of 50-80mm and a hole diameter of 15-20mm. It has a hollow four-corner or hexagonal column shape.
Technical Data
Moldel
ZB55
ZB65
Power
18.5kw
22kw
Capacity
200-300kg/h
300-400kg/h
Briquette Diameter
50mm
50mm
Size
1750*600*1650mm
1850*700*1800mm
Weight
600kg
750kg
Product Details
Requirements of the raw material: 1.Size: smaller than 5mm , if the material can not achieve the requirement, it should be crush first. 2.Moisture: 8%-12%, If raw material has high moisture it should be reduced by Sun drying or using dryer machine.
