Product Overview

Description





Product Description

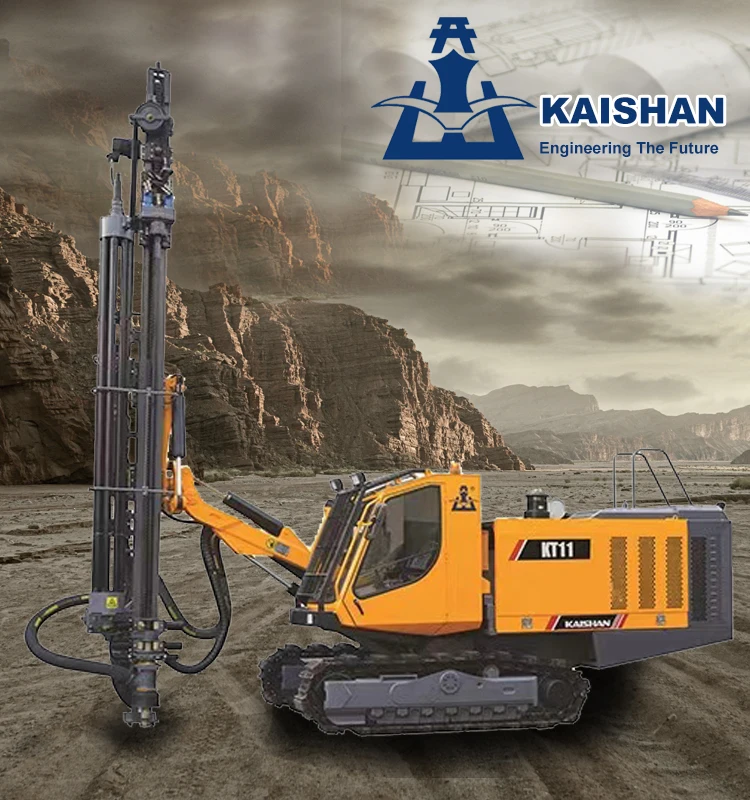

KT11 Integrated DTH Drilling Rig

KT11 integrated surface DTH drilling rig is using Cummins three diesel engines as a single power, by both ends of the output at the same time to drive the screw compression system and hydraulic drive system, can drill φ115-152mm vertical, inclined and horizontal hole. This DTH drilling rig is mainly used to drill holes and pre-crack hole for open-pit mines and stonework project.
The drilling rig is equipped with automatic unloading rod system and drill rod lubrication module, which can realize single operation and reduce mine operation personnel. The drilling rig mastering action is integrated on a handle and is simple to operate with an anti-seizure system. Drilling angle and depth indication are provided to simplify drilling process control and improve hole quality. Efficient dust collection system, spacious cab, high-power heating and air conditioning and high-quality audio equipment provides a high-quality operating environment, to maximize operator efficiency.




Technical Parameters of KT10 Integrated Surface DTH Drilling Rig
Transportation size(L*H*W)
9100*2450*3200
Rod number
7+1
Weight
14500Kg
Drilling rod specification
Φ76*4000 mm
Rock hardness
f=6-20
Impactor
35A/45A
Drilling diameter
90-125mm
Engine
Cummins QSL8.9-C325-30
Ground clearance
420mm
Clinder number
6
Track angle
10°up, 10°down
Output power
242KW/2200rpm
Driving speed
0-3Km/h
Hydraulic pump
5× Gear pump
Gradeability
25°
Screw air compressor
Zhejiang Kaishan
Traction force
120KN
Capacity
18m³/min
Torque
2800Nm
Working pressure
18Bar
Rotating speed
0-120rpm
Drive control system
Hydraulic pilot
Boom lift
Up 47°, down 20°
Drilling control system
Hydraulic pilot
Drilling boom swing angle
Right 50°, left 21°
Prevent stuck
Automatic electro-hydraulic prevent stuck
Carriage angle
Right 95°, left 35°
Voltage
24V, DC
Pitch angle of carriage
114°
Safety cab
Meet the requirement ROPS & FOPS
Compensation stroke
1353mm
Noise
Less than 85dB (A)
Propulsion machine stroke
4490mm
Seat
Adjustable
Maximum propulsion
32KN
Air conditioning
Standard
Propulsion method
Roller chain
Entertainment
Radio+Mp3
Economic drilling depth
32m














Company Profile












FAQ


1. who are we?
We are based in Shaanxi, China, start from 2007,sell to Domestic Market(00.00%),South America(00.00%),Southeast Asia(00.00%),Africa(00.00%),Mid East(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Air Compressor,Drilling Rig,Drill Bit,Spare Parts

4. why should you buy from us not from other suppliers?
1.The biggest air compressor manufacture in China
1.More than 50 years air compressor& drilling rig manufacture.
2.Full experience of mine and industrial projects.
3.Professional and strong after - sales team.
4.Design as customer's requirement.
5.OEM

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
