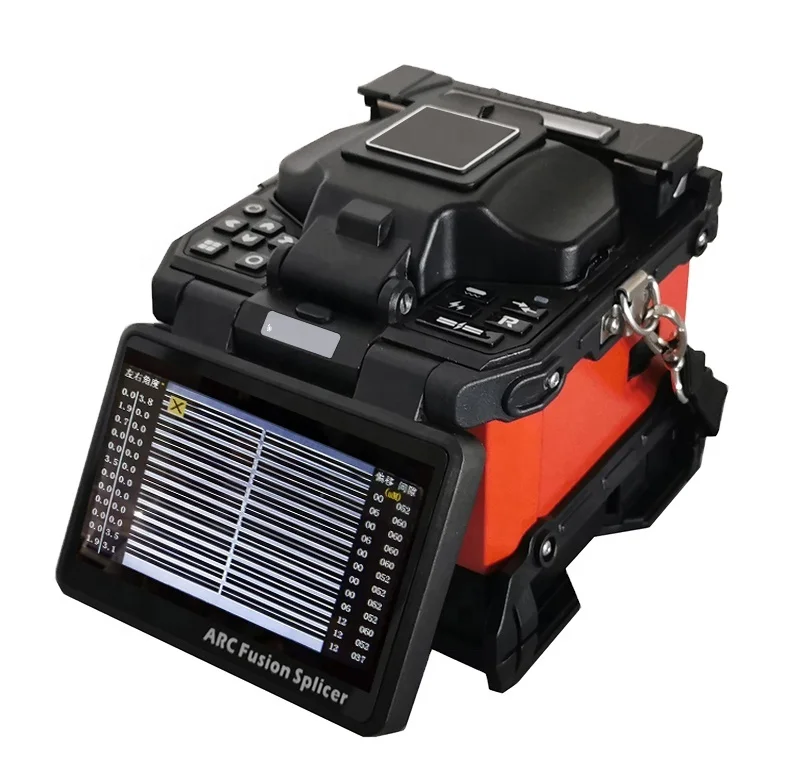

FFS 60G 26s Heating Time Optical Fiber Welding Machine For Drop Cable 12 Core Ribbon Fiber
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (1600229829923):
Product Overview
Description
Details Images
Product Specifications
Construction | Description |
Applicable Fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
Fiber Quantity | Single core，2-12 cores |
Fiber Alignment Method | Clad to Clad |
Typical Splice Loss | SM:0.05dB MM:0.02dB DS:0.08dB NZDS:0.08dB |
Return Loss | >60dB |
Diameter Of Coating | 250～400µm |
Splicing Program | 40 groups |
Operate Mode | Automatic/Manual |
Auto-heating | Available |
Typical Splicing Time | 20 seconds |
Typical Heating Time | 1-2 cores 26 seconds，4-12 cores 40 seconds |
Fiber Magnification | 25X |
Display Screen | 5.0 inch color LCD monitor |
Records Storage | 4000 groups data records and 100 group images |
Loss Evaluation | Available |
Tension Test | 1.8-2.2N |
Interface | GUI menu interface, easy for operation |
Battery | 5200mAh Li-battery, typical 150 cycles splicing and heating, suppport separating charging |
Power Supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
Electrodes Life | More than 3000 ARC discharges, can be replaced vonveniently |
Ternimal | USB2.0 port, for software upgrading and records exporting |
Operating Conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
Dimension | 155mm(L)×144mm (W)×155mm (H) |
Weight | 2.30kg (including battery) |
Recommend Products
Click Here To Get More Details

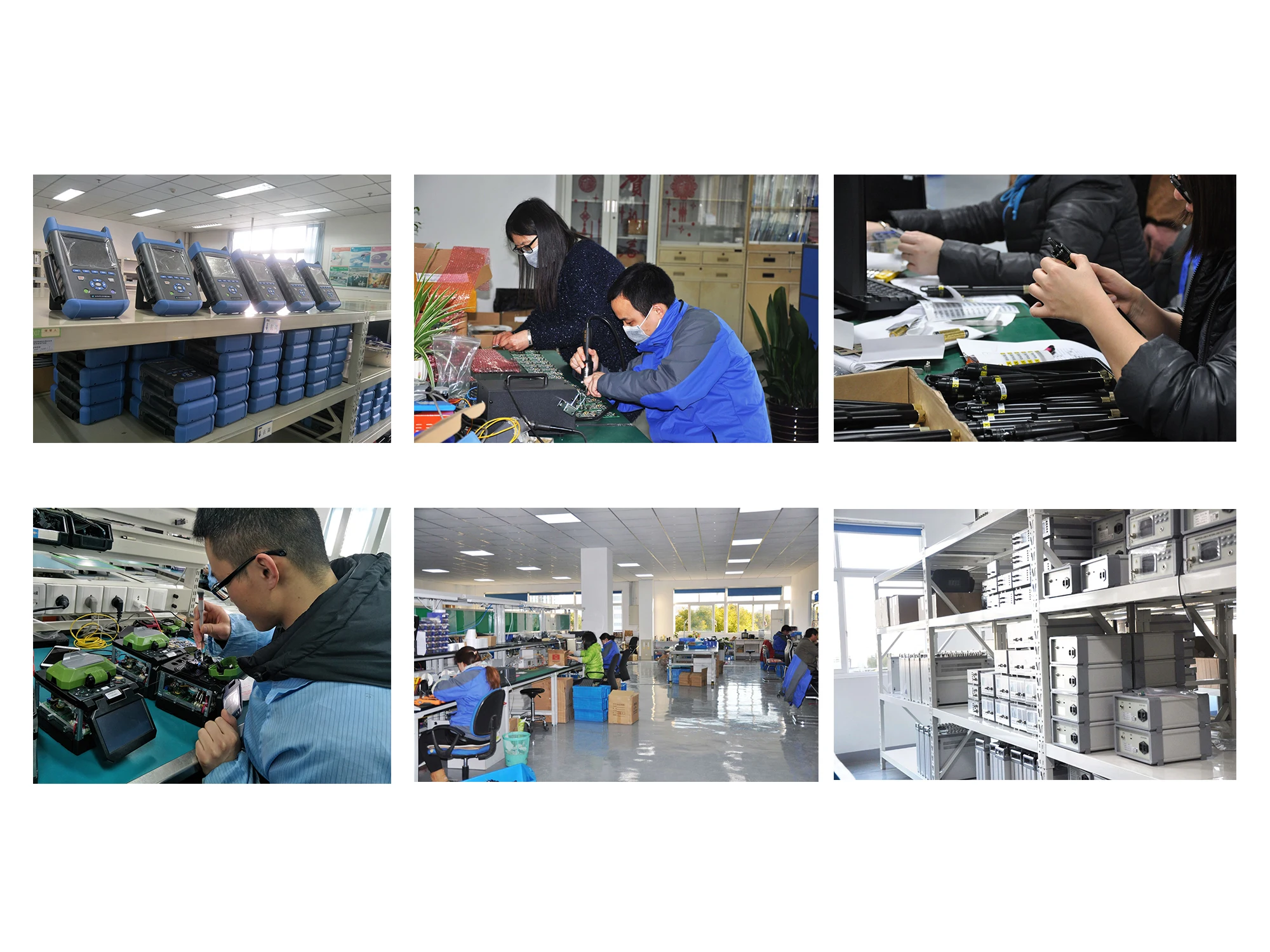

Company Profile
