Product Overview
Description
Products Description
Qingdao Globalstar Glass Co., Ltd. is located at Qingdao city in North China, as the glass manufacturer and supplier, we are dealing with various kinds of glass and mirror.
Our well-known "GLOBALSTAR" brand has been supplied to the market of Europe, America, Middle East, Africa, South Asia and South America with large quantity every year.
Low E Coated Glass:
Description:
Globalstar Low-E Glass is a member of the coated glass family coated with one or more layers of metal or compound films on the
quality float glass by using magnetic sputtering method. It has low thermal conductivity and high light transmittance, ensuring
visible light transmittance and reducing light pollution based on prevention of heat losses.
Our well-known "GLOBALSTAR" brand has been supplied to the market of Europe, America, Middle East, Africa, South Asia and South America with large quantity every year.
Low E Coated Glass:
Description:
Globalstar Low-E Glass is a member of the coated glass family coated with one or more layers of metal or compound films on the
quality float glass by using magnetic sputtering method. It has low thermal conductivity and high light transmittance, ensuring
visible light transmittance and reducing light pollution based on prevention of heat losses.
Features:
High efficiency in energy saving and environment production. It is an efficient energy saving building material because of its
high performance in heat insulation.
Wonderful performance in visible light transmission.
Stable chemical performance. It can be used as a single layer or may be stored for a long period of time for further procession.

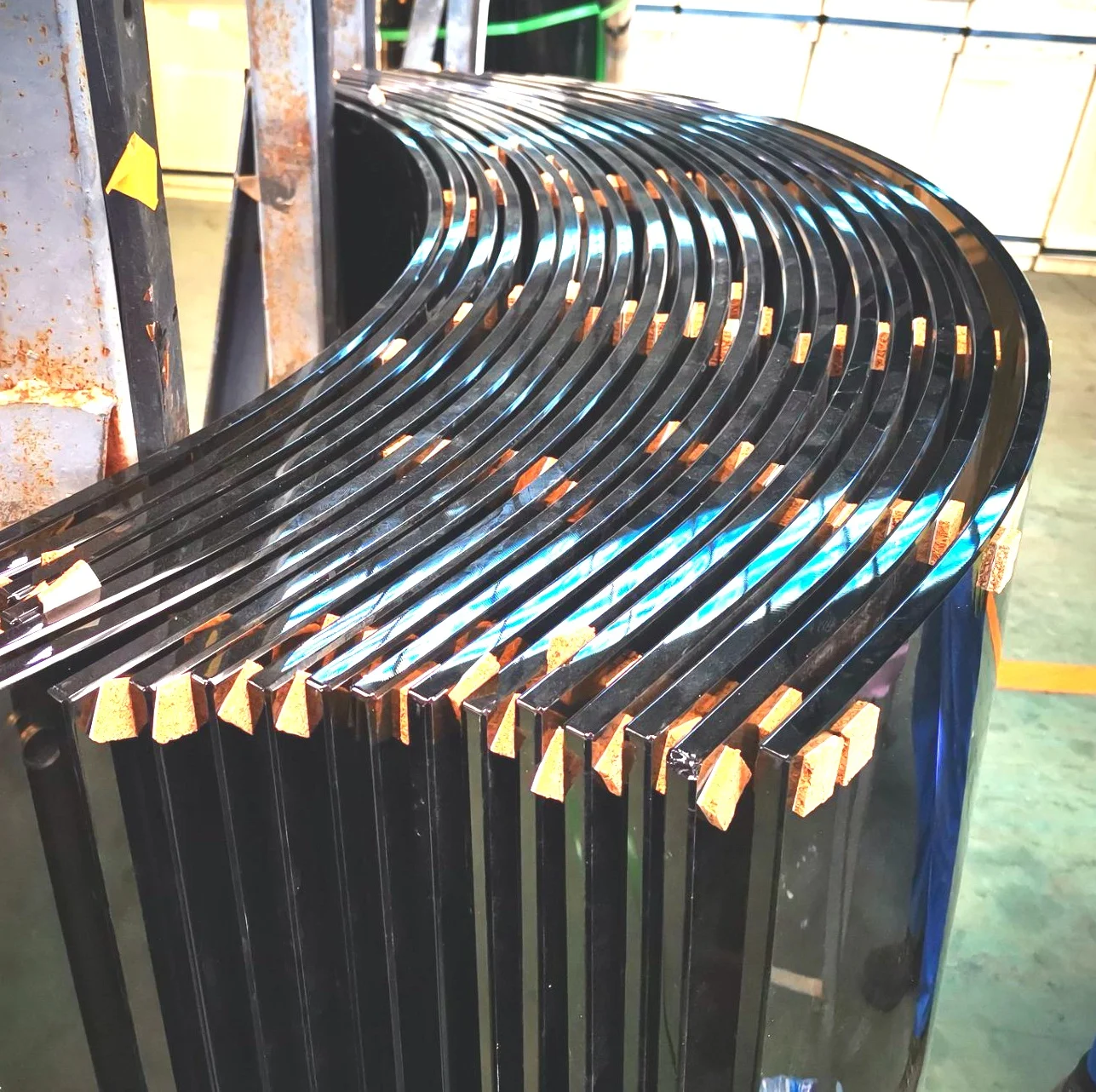

Stable performance in thermal processing. It is easy to be further processed for tempering, thermal bending or insulating.
Stable mechanical performance for solid coat, high abrasion and scratch resistance.
When processed into Insulated Glass, it is not necessary to clean up edge coat.
Categories: ONLINE LOW-E GLASS; TEMPERABLE OFFLINE LOW-E GLASS
High efficiency in energy saving and environment production. It is an efficient energy saving building material because of its
high performance in heat insulation.
Wonderful performance in visible light transmission.
Stable chemical performance. It can be used as a single layer or may be stored for a long period of time for further procession.
Stable performance in thermal processing. It is easy to be further processed for tempering, thermal bending or insulating.
Stable mechanical performance for solid coat, high abrasion and scratch resistance.
When processed into Insulated Glass, it is not necessary to clean up edge coat.
Categories: ONLINE LOW-E GLASS; TEMPERABLE OFFLINE LOW-E GLASS
Specification:
Colors: Clear, Blue, Green, Bronze and Grey etc.
Thickness : 4mm, 5mm, 6mm, 8mm and 10mm.
Sizes: 1830x2440mm, 2134x3300mm, 2250x3300mm, 2440x 3300mm, etc.
Colors: Clear, Blue, Green, Bronze and Grey etc.
Thickness : 4mm, 5mm, 6mm, 8mm and 10mm.
Sizes: 1830x2440mm, 2134x3300mm, 2250x3300mm, 2440x 3300mm, etc.
Application:
Globalstar Low Emissivity Glass 's primary application is wherever there is a need for enhanced thermal ins ul ati on and it

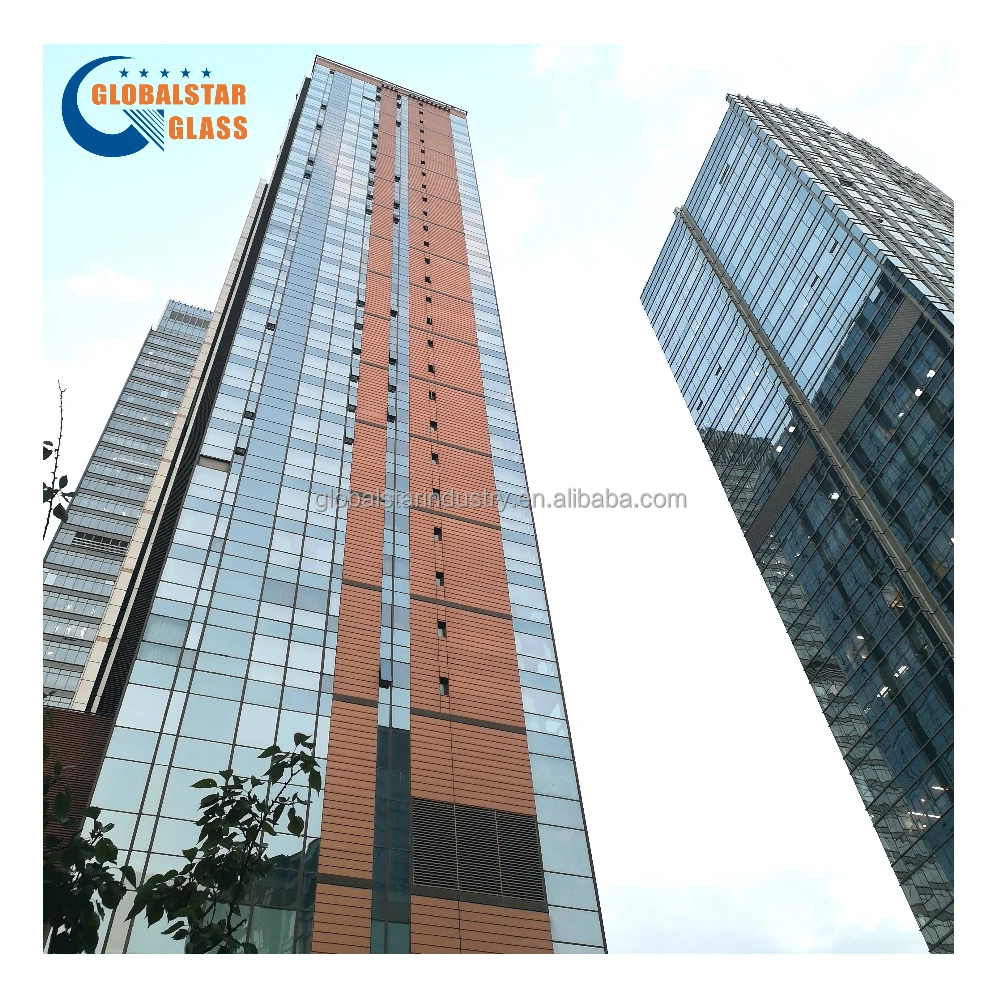

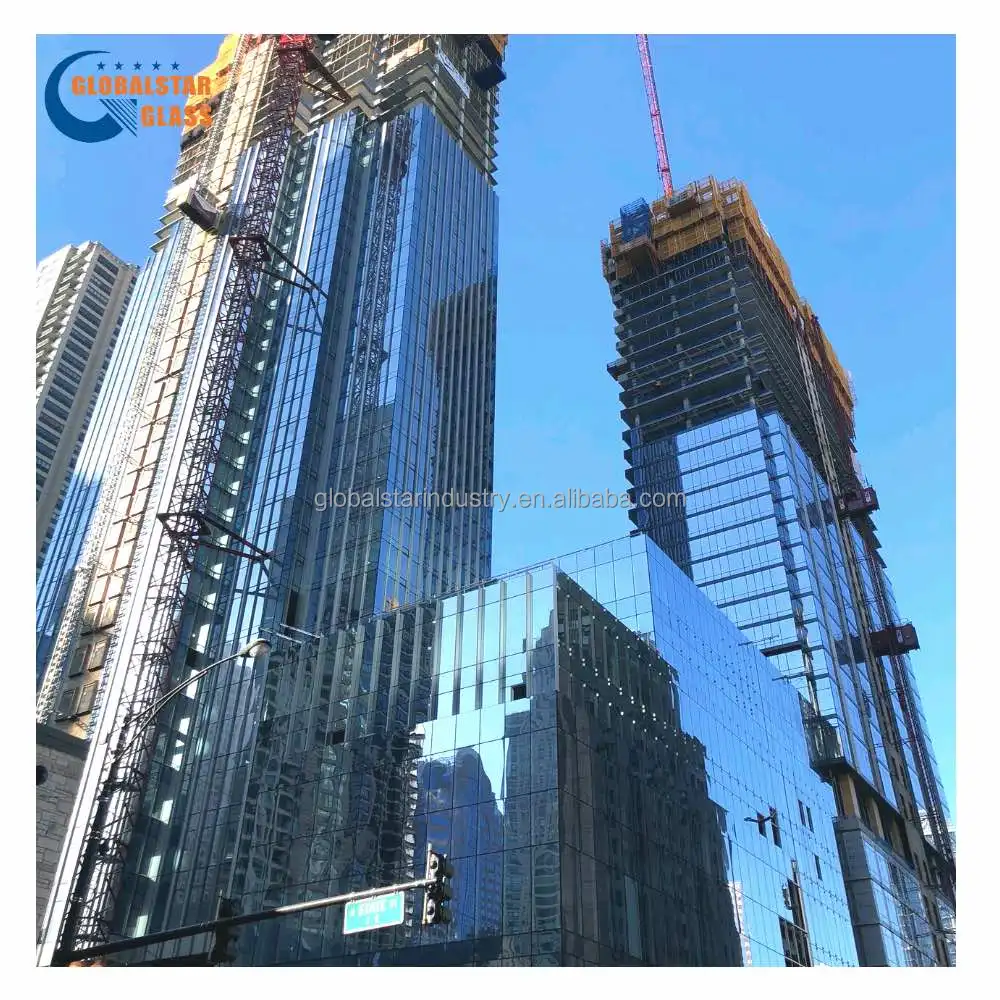

achieves optimum performance from double glaz ing. It is widely used in facade glazing, windows,double glazing, commercial buildings,schools etc.
Globalstar Low Emissivity Glass 's primary application is wherever there is a need for enhanced thermal ins ul ati on and it
achieves optimum performance from double glaz ing. It is widely used in facade glazing, windows,double glazing, commercial buildings,schools etc.
Double Glazing Glass Description
Insulated Glass Building Glass Safety IGU LOW-E Glass
Single, Double, Triple silver Low-E Insulated Glass,
Double Glazing Glazed Units, Insulating Hollow, IGU DGU Glass

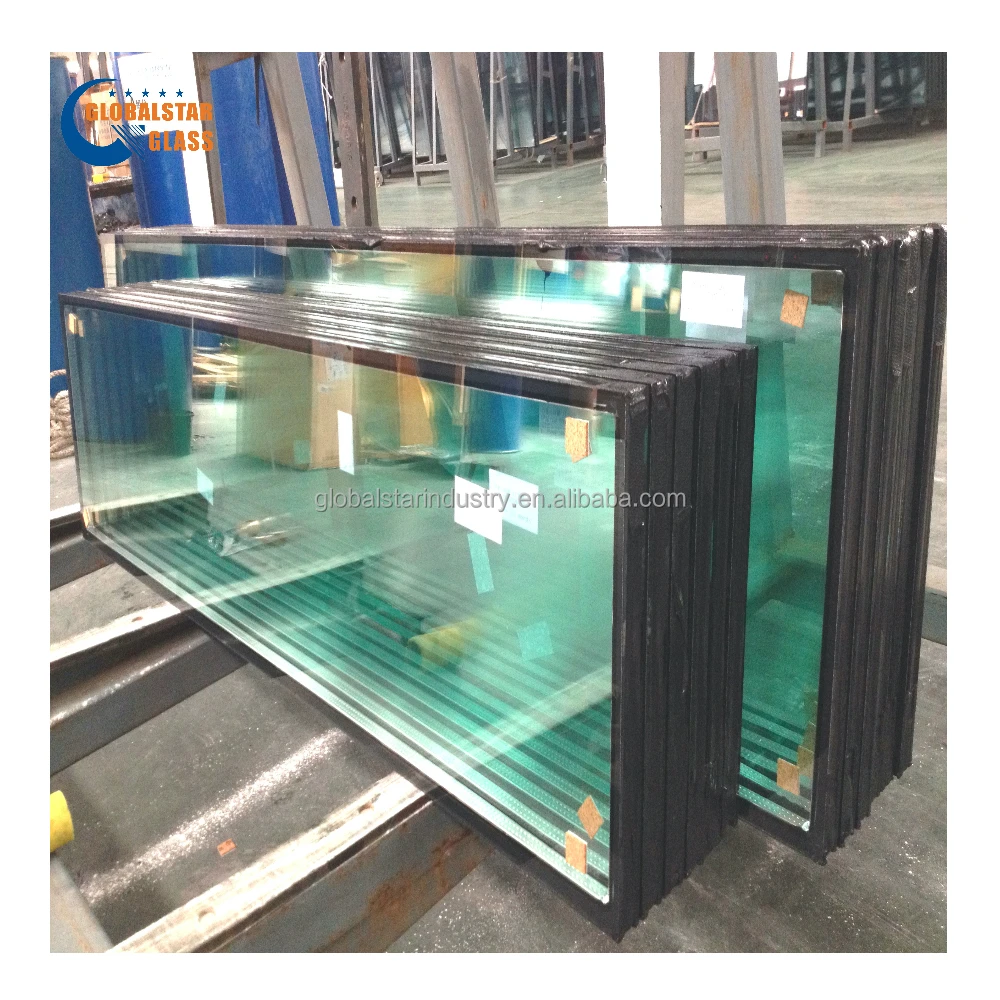

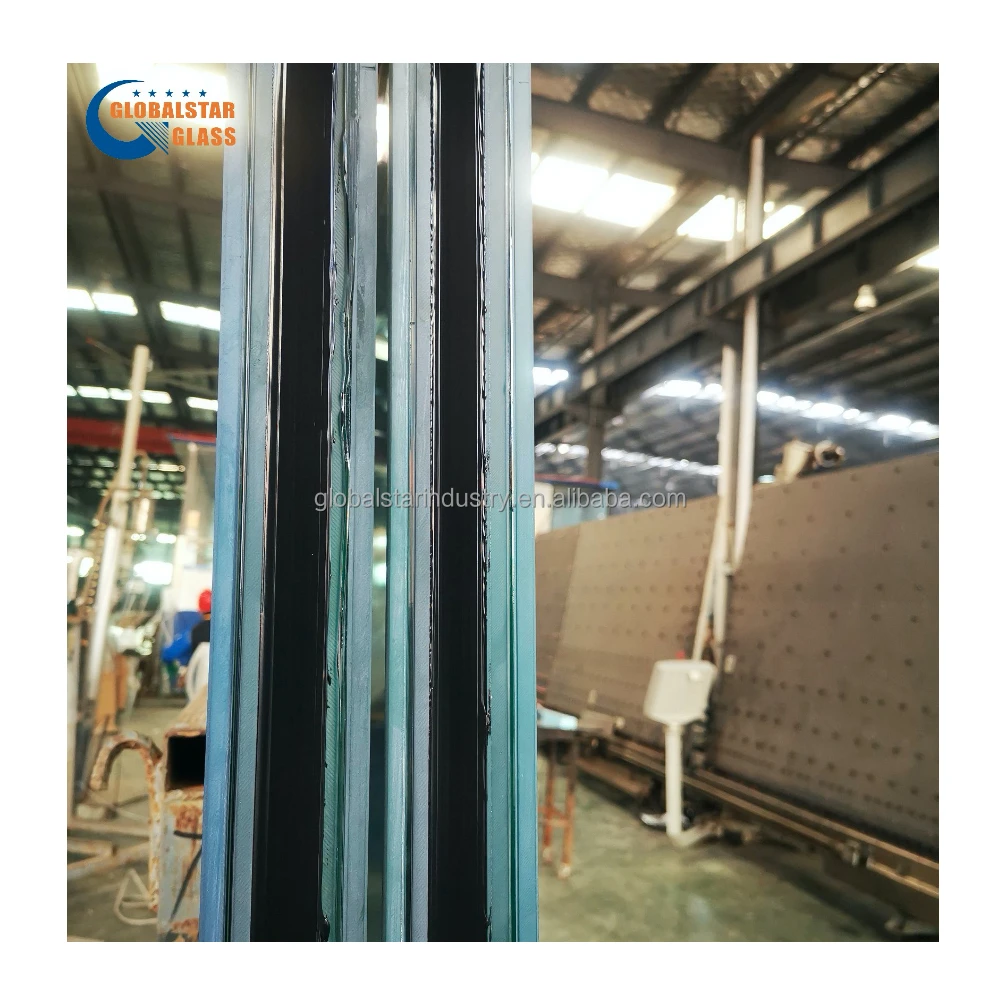

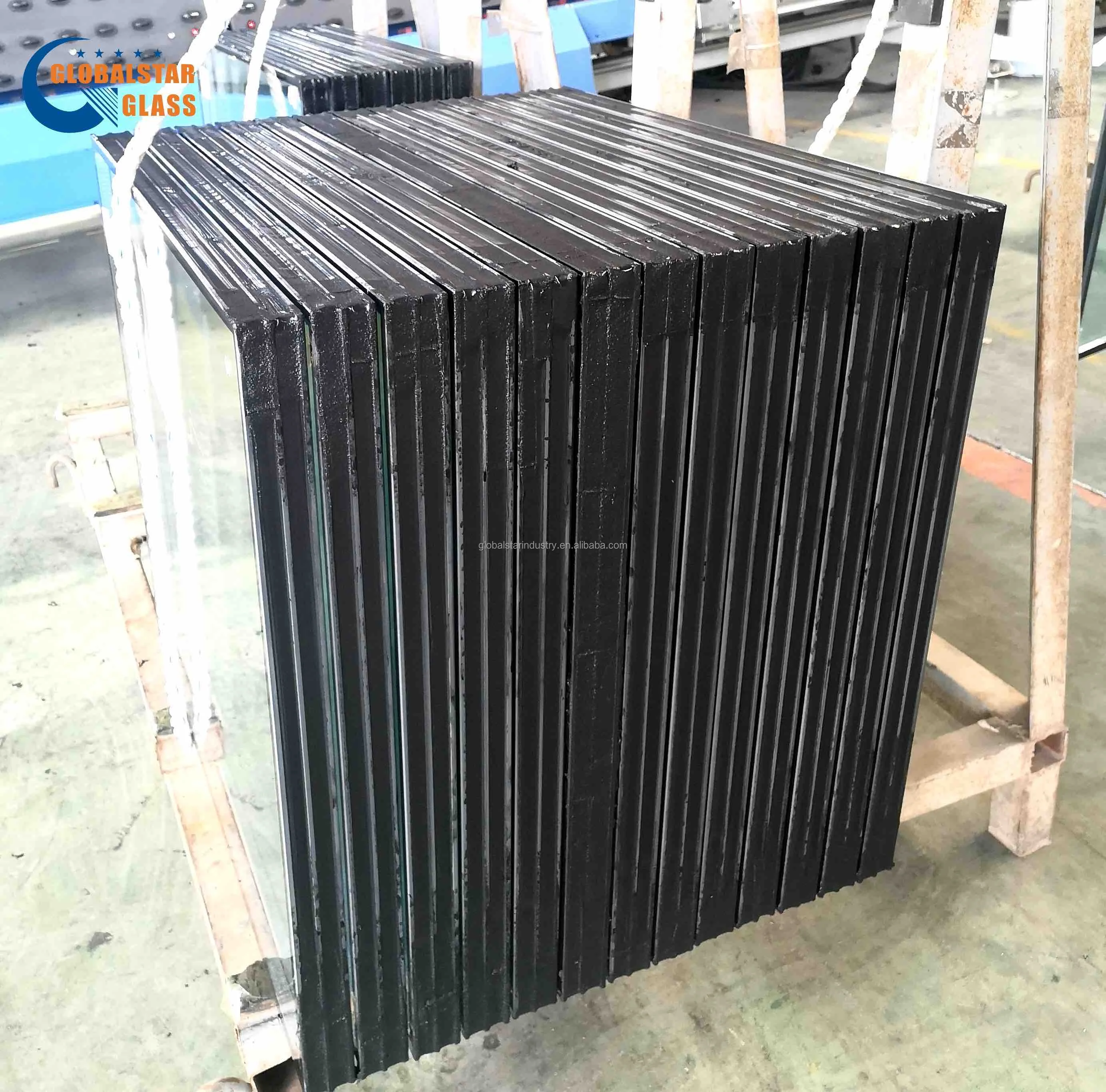

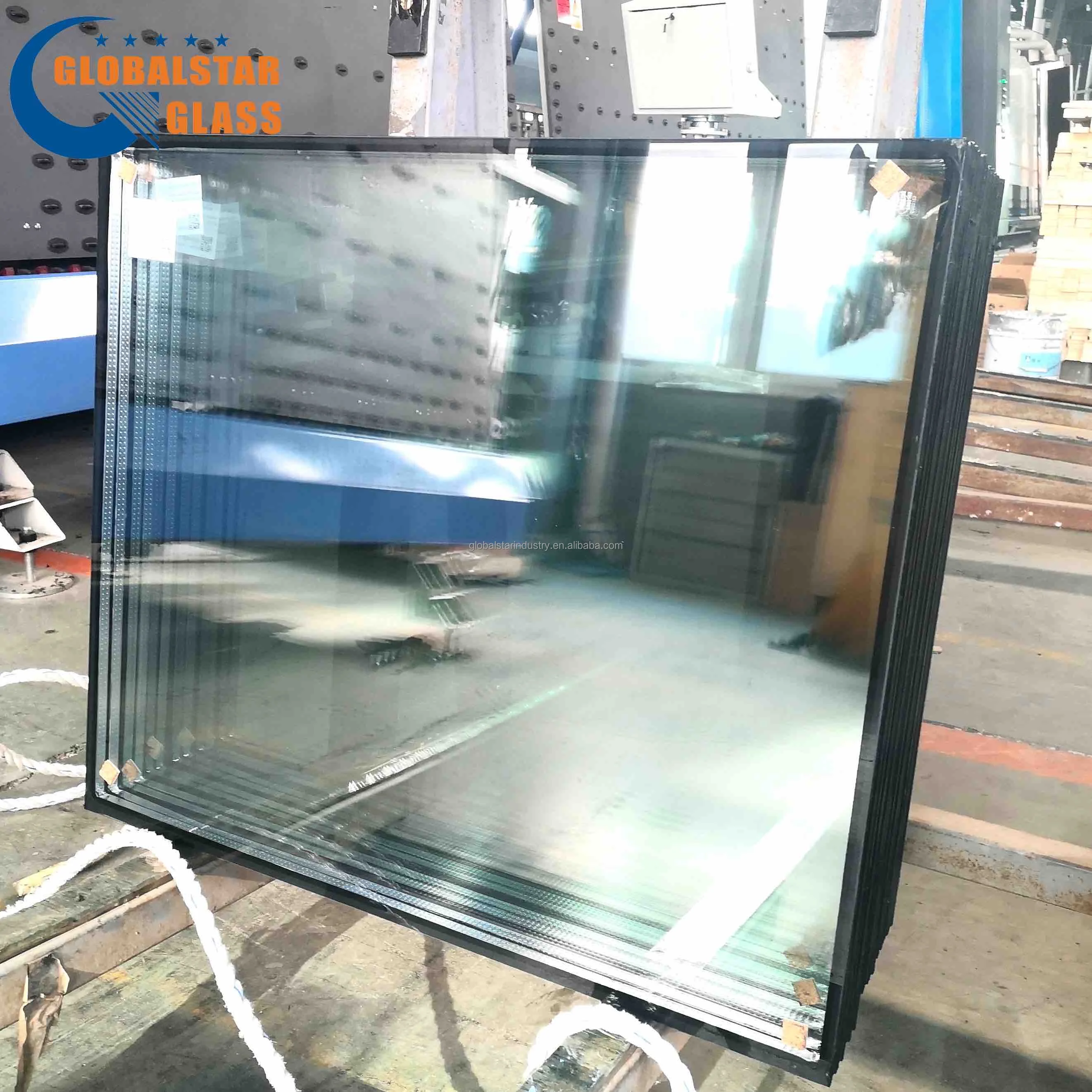

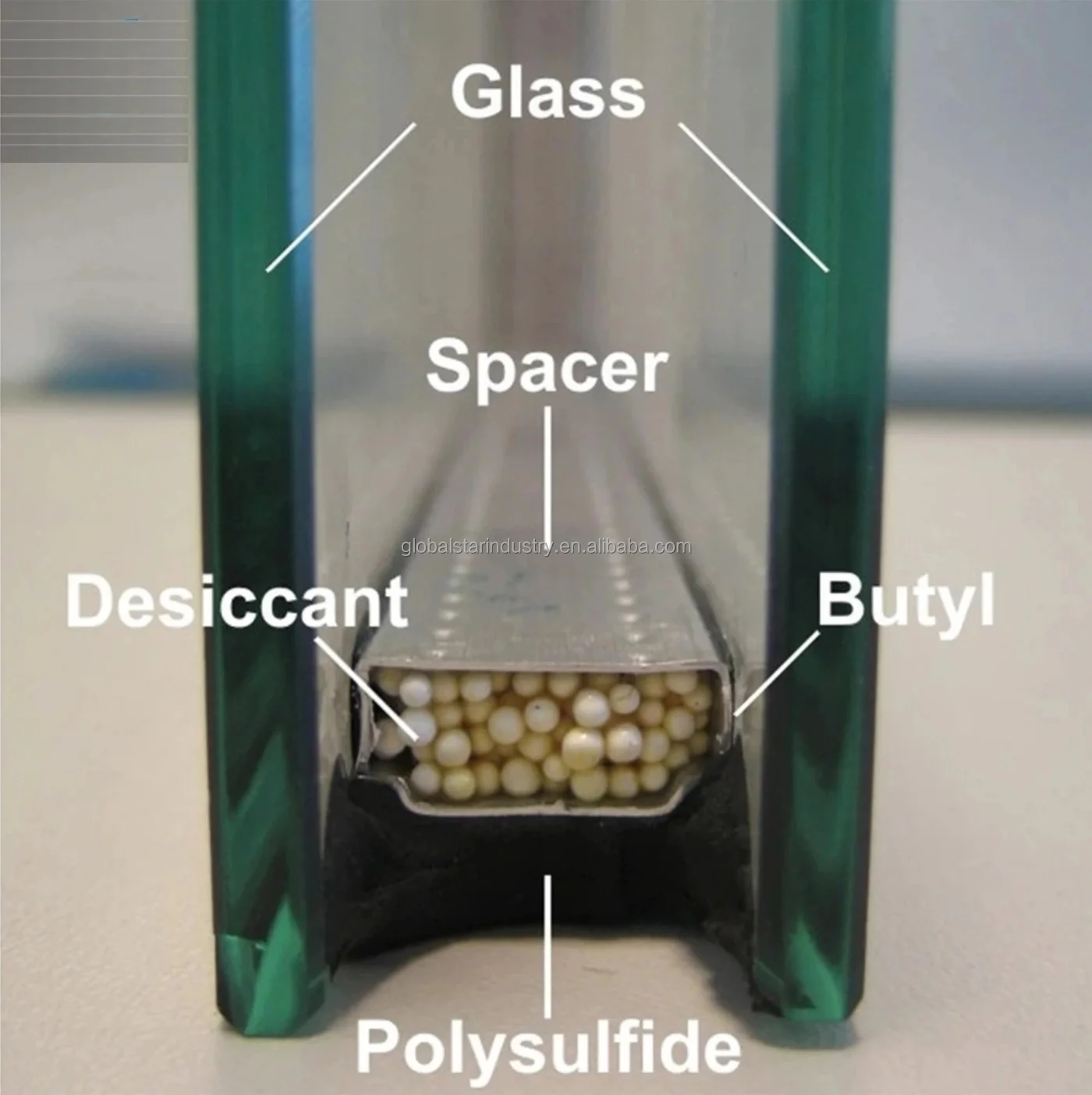

Insulated Glass is made of two or more pieces of glass with effective support and evenly spaced and sealed at the periphery to form a dry gas space between the glass interlayers. The interlayer of the insulated glass is initially dry air, and other gases with a lower thermal conductivity than air are currently used. The minimum thickness of the gas interlayer of the insulating glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. In order to standardize the production of the frame, the gaps of the insulated glass are currently divided into 6, 9, and 12, 14, and 16 mm.
Insulated Glass Building Glass Safety IGU LOW-E Glass
Single, Double, Triple silver Low-E Insulated Glass,
Double Glazing Glazed Units, Insulating Hollow, IGU DGU Glass
Insulated Glass is made of two or more pieces of glass with effective support and evenly spaced and sealed at the periphery to form a dry gas space between the glass interlayers. The interlayer of the insulated glass is initially dry air, and other gases with a lower thermal conductivity than air are currently used. The minimum thickness of the gas interlayer of the insulating glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. In order to standardize the production of the frame, the gaps of the insulated glass are currently divided into 6, 9, and 12, 14, and 16 mm.
Product Name | Insulated Glass Building Glass Safety IGU Glass |
Type of Glass | Clear and colorful glass, Reflective glass,Tempered glass, laminated glass High transmittance Low-E, Double silver Low-E, Single silver Low-E, etc |
Thickness | 5+9+5; 6+12+6; 6+16+6...Customized |
Minimum Size | 300mm×300mm |
Maximum Size | 3000mmx6000mm |
Color | Clear, White, Bronze, Grey, Green, Blue,Frosted ec |
Aluminum Strip Width | 6mm/9mm/12mm/15mm etc |
Insulating Gas | Air or Argon etc. |
FEATURES:
(1) Insulation

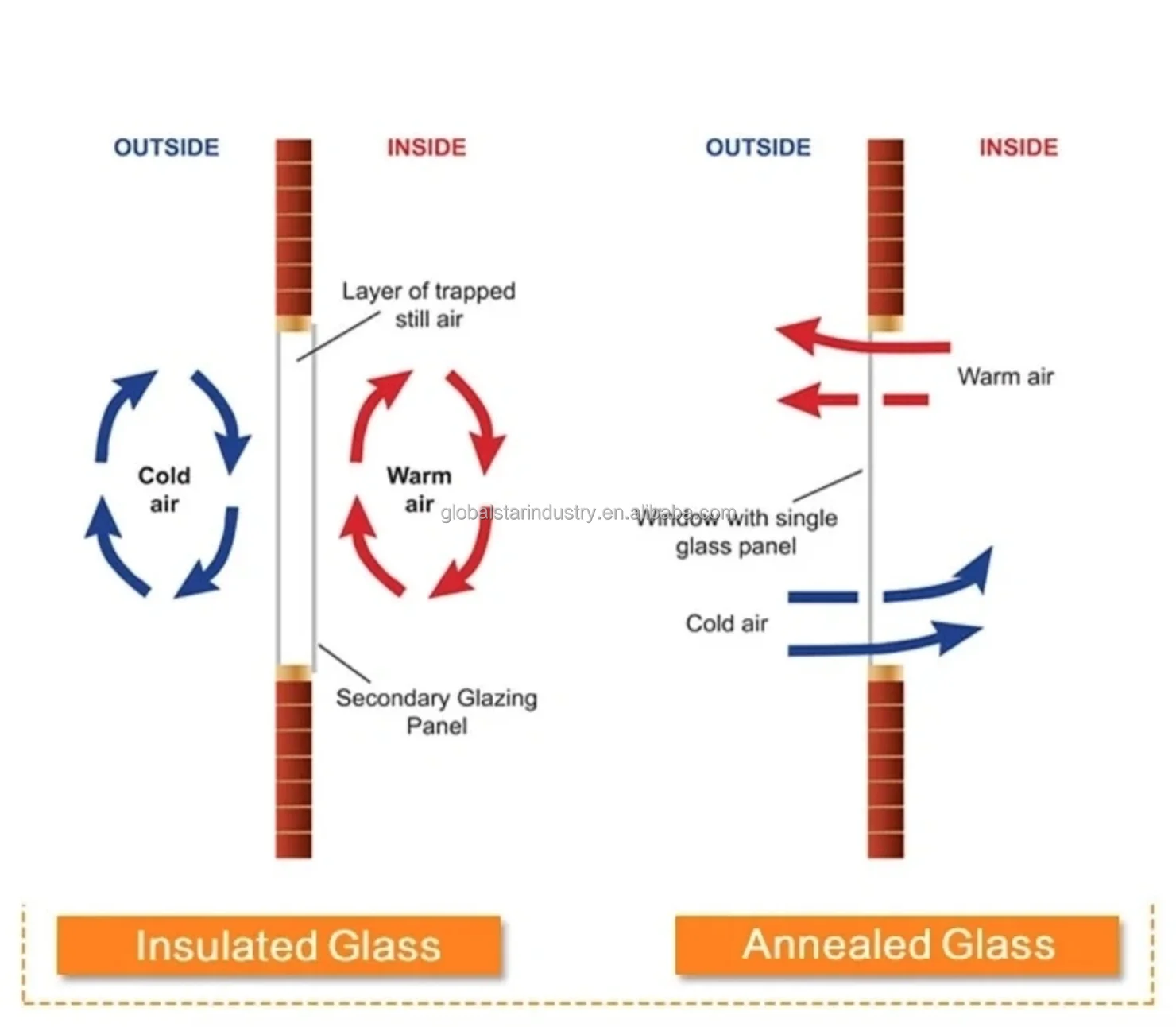

The thermal insulation properties of the insulating glass are mainly its thermal insulation of the gas interlayer, so that the
temperature difference between the two sides is close to or even exceeds 10 °C. This is because the gas in the interlayer is in a closed space, the gas does not convect, thus, convective heat transfer and conduction heat transfer account for only a small proportion of the energy transfer of the hollow glass. This effect in turn varies with the wind speed of the glass surface and the radiation of the glass surface. Insulated glass is the use of gas interlayers with a large thermal resistance, especially the formation of an air interlayer that does not cause convection, so that the energy exchange between the indoor and outdoor is greatly reduced, and significant heat insulation effect can be obtained.
(1) Insulation
The thermal insulation properties of the insulating glass are mainly its thermal insulation of the gas interlayer, so that the
temperature difference between the two sides is close to or even exceeds 10 °C. This is because the gas in the interlayer is in a closed space, the gas does not convect, thus, convective heat transfer and conduction heat transfer account for only a small proportion of the energy transfer of the hollow glass. This effect in turn varies with the wind speed of the glass surface and the radiation of the glass surface. Insulated glass is the use of gas interlayers with a large thermal resistance, especially the formation of an air interlayer that does not cause convection, so that the energy exchange between the indoor and outdoor is greatly reduced, and significant heat insulation effect can be obtained.
(2) Heat preservation
Insulation of insulated glass means reducing indoor heat through its outdoor area during the winter, and the smaller the thermal resistance, the better the thermal insulation performance. If the glass is coated with a low-emission film, the radiation emissivity can be reduced to 0.1, and in winter, the heat radiated from the room will be reduced to provide better insulation. If the two inner surfaces of the insulated glass are respectively coated with a sunshade film and a low-radiation film, the hot sun is blocked in summer; in winter, the heat in the room is prevented from being lost, In winter, the temperature in the room is prevented from being lost, and the indoor warm winter and cool summer is achieved.
Insulation of insulated glass means reducing indoor heat through its outdoor area during the winter, and the smaller the thermal resistance, the better the thermal insulation performance. If the glass is coated with a low-emission film, the radiation emissivity can be reduced to 0.1, and in winter, the heat radiated from the room will be reduced to provide better insulation. If the two inner surfaces of the insulated glass are respectively coated with a sunshade film and a low-radiation film, the hot sun is blocked in summer; in winter, the heat in the room is prevented from being lost, In winter, the temperature in the room is prevented from being lost, and the indoor warm winter and cool summer is achieved.
(3) Anti-condensation & Reducing Cold Radiation
Inside the insulated glass, there is a desiccant that can absorb water molecules, and the gas is dry; when the temperature is lowered, condensation does not occur inside the insulated glass, and the dew point temperature of the outer surface of the glass also rises. This is the biggest difference between insulated glass and double glass.
Inside the insulated glass, there is a desiccant that can absorb water molecules, and the gas is dry; when the temperature is lowered, condensation does not occur inside the insulated glass, and the dew point temperature of the outer surface of the glass also rises. This is the biggest difference between insulated glass and double glass.
APPLICATIONS:

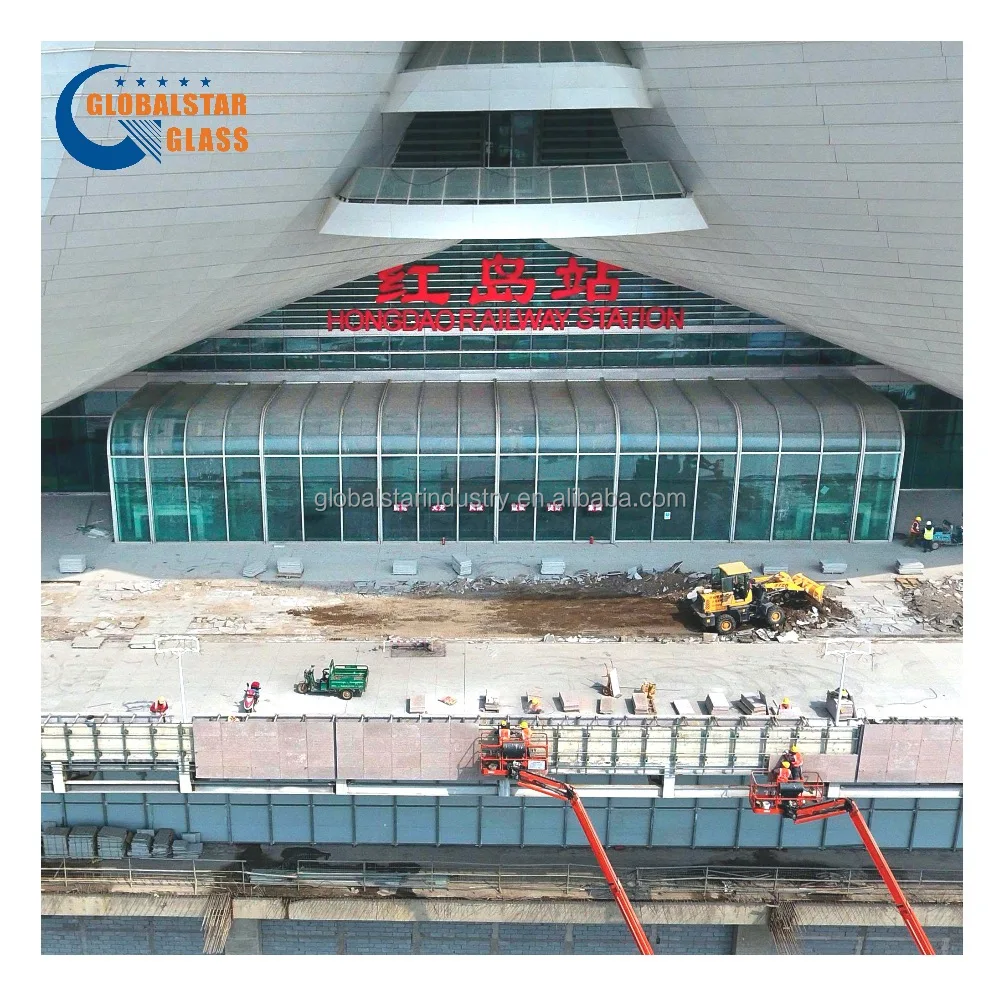

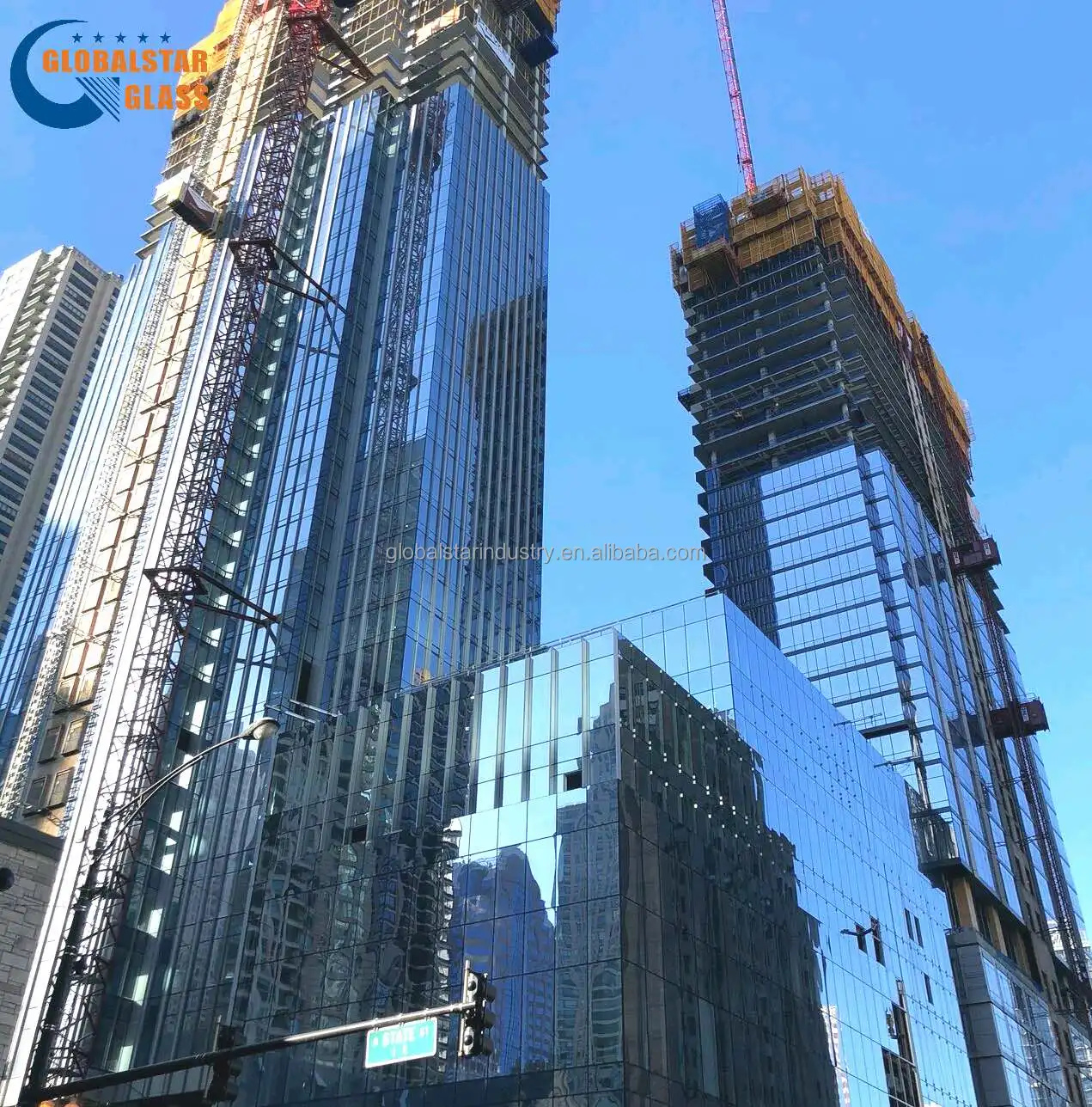

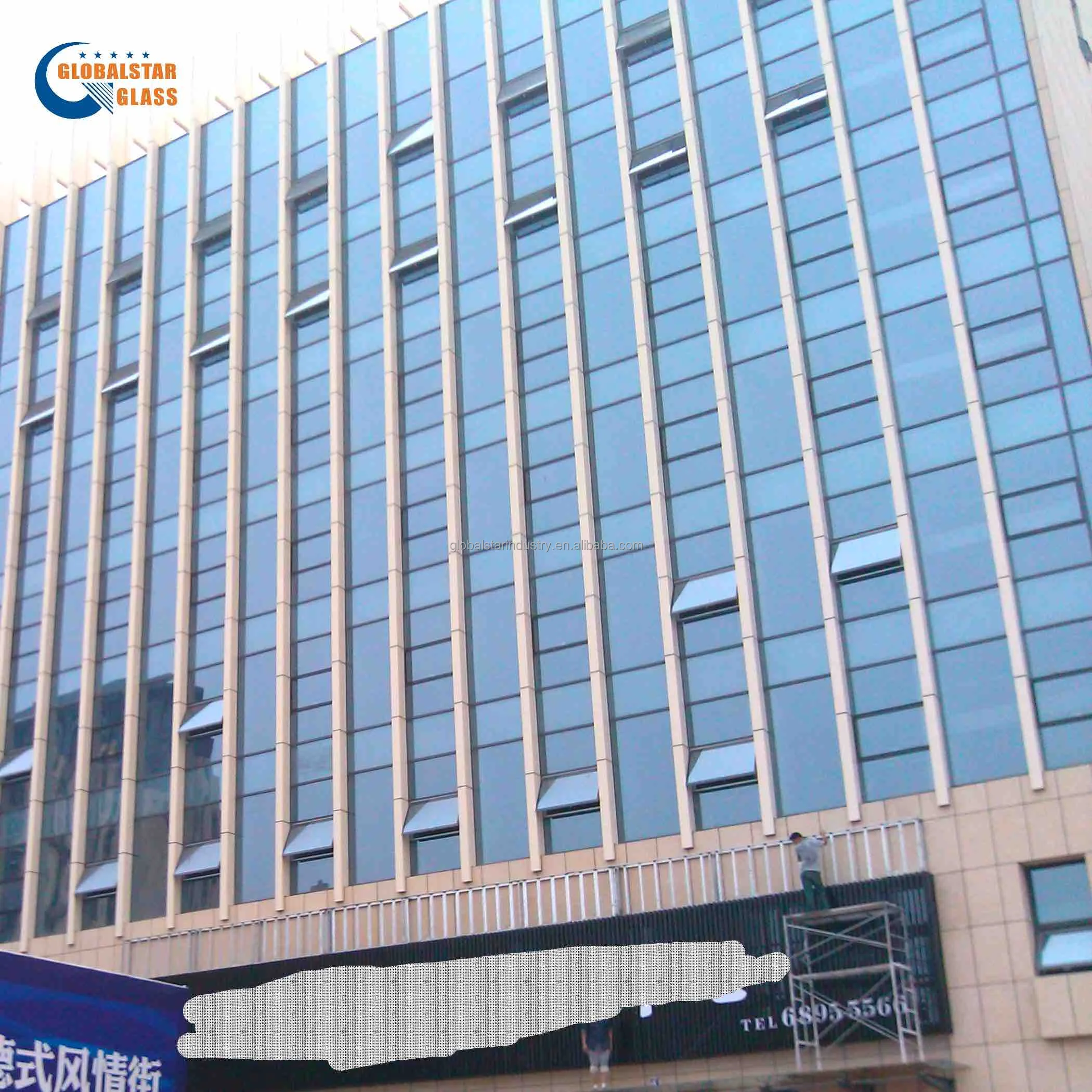

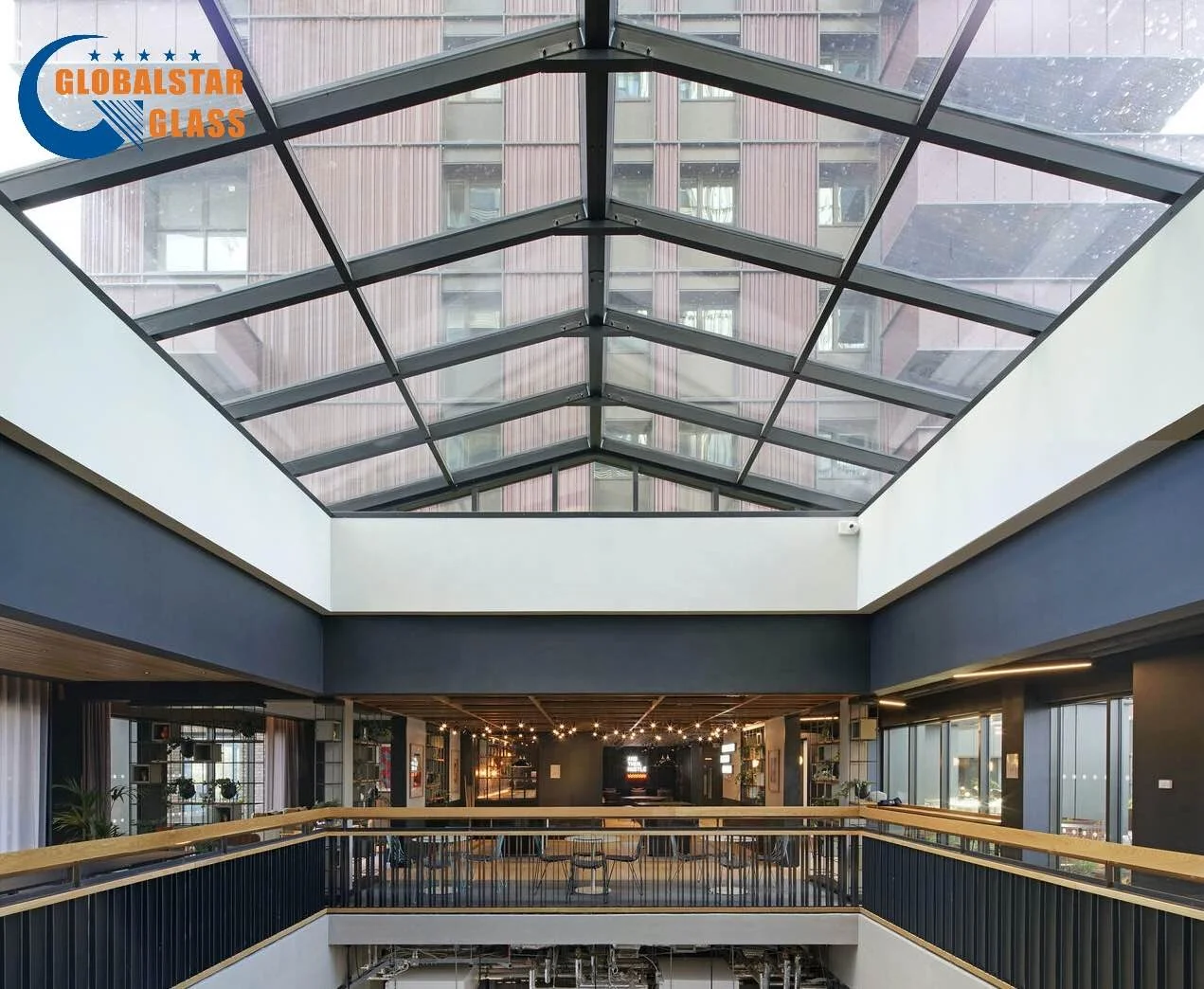

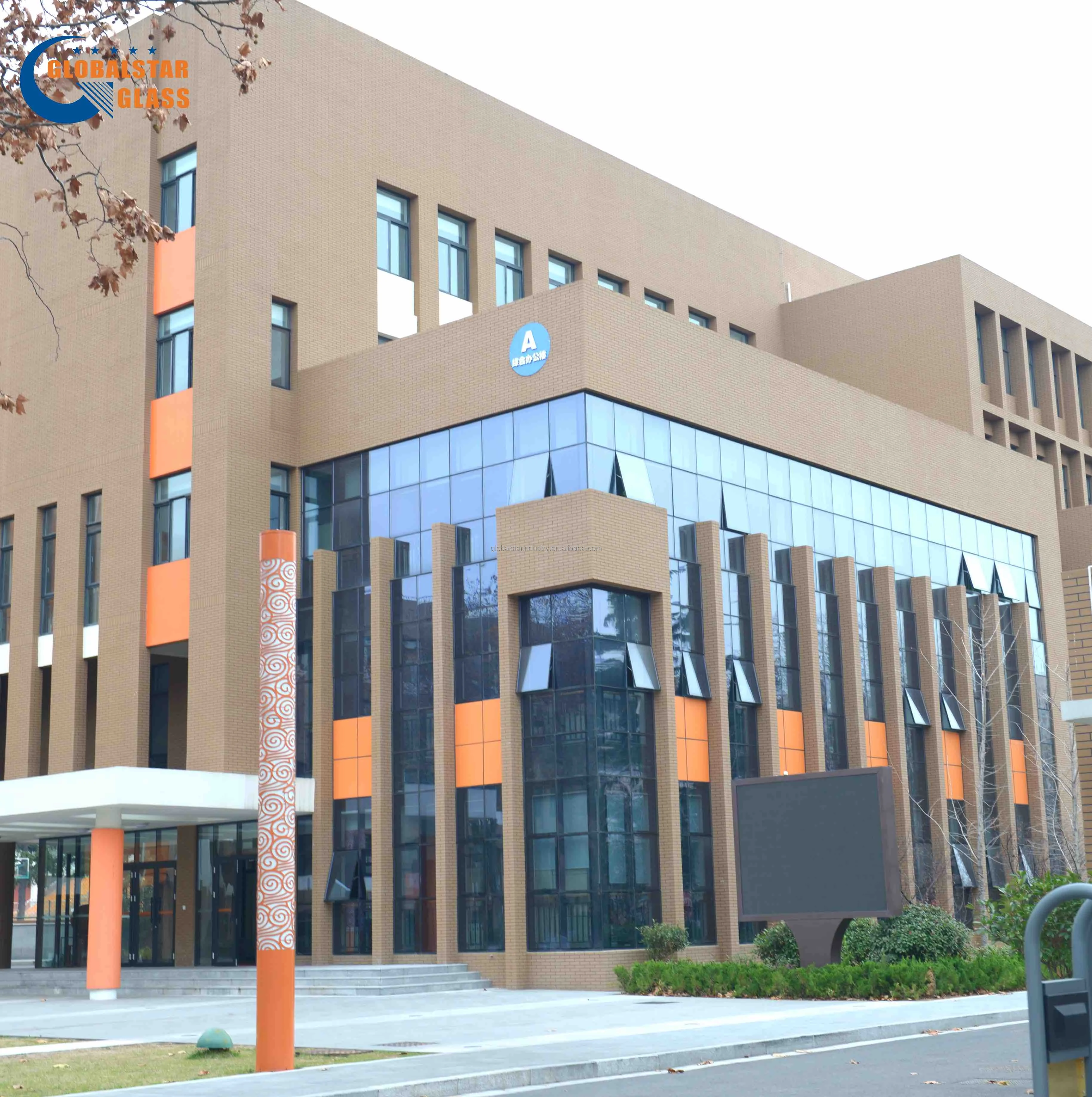

China Insulated glass is mainly used for exterior glass decoration: heating, air conditioning, noise blocking, condensation, and buildings that require no direct sunlight and special light sources. It is widely used in residential, hotel, hotel, office buildings, schools, hospitals, shops, etc. Not only that, but insulated glass can also be used for doors and windows on trains and cars, ships, freezer cabinets, etc. It is possible to reach the laboratory standard with vacuum double-layer tempered glass!
The unique structure of the insulated glass and the heat insulating effect of the hollow space layer effectively reduce the heat transfer coefficient and have excellent energy saving characteristics. Therefore, to extend the life of the insulated glass and improve the energy saving effect, China insulated glass manufacturers must ensure the high quality of the product, and also the insulated glass suppliers must provide the high-quality materials. Thus the insulated glass price will be different for the improvement of high-quality requirements.
China Insulated glass is mainly used for exterior glass decoration: heating, air conditioning, noise blocking, condensation, and buildings that require no direct sunlight and special light sources. It is widely used in residential, hotel, hotel, office buildings, schools, hospitals, shops, etc. Not only that, but insulated glass can also be used for doors and windows on trains and cars, ships, freezer cabinets, etc. It is possible to reach the laboratory standard with vacuum double-layer tempered glass!
The unique structure of the insulated glass and the heat insulating effect of the hollow space layer effectively reduce the heat transfer coefficient and have excellent energy saving characteristics. Therefore, to extend the life of the insulated glass and improve the energy saving effect, China insulated glass manufacturers must ensure the high quality of the product, and also the insulated glass suppliers must provide the high-quality materials. Thus the insulated glass price will be different for the improvement of high-quality requirements.

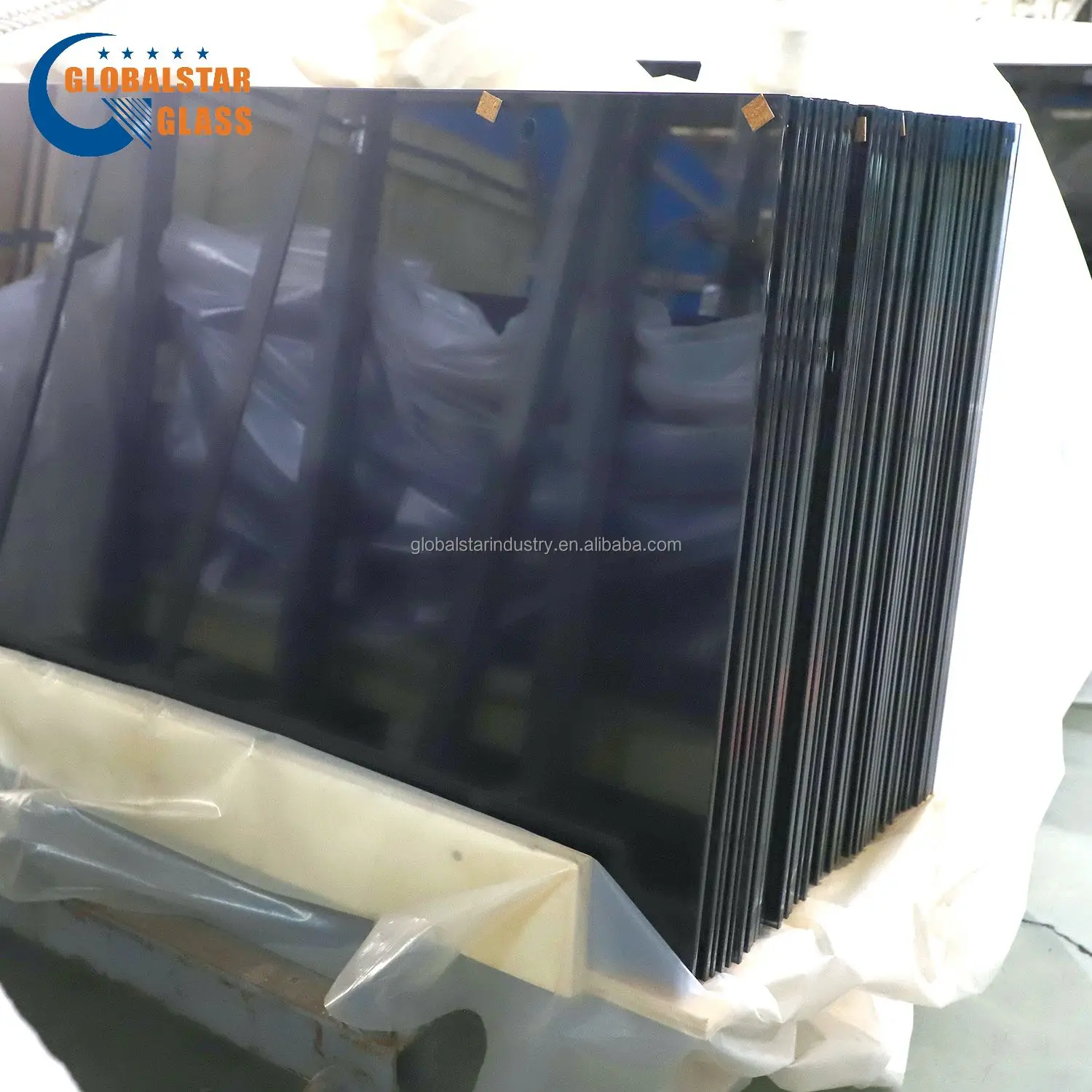

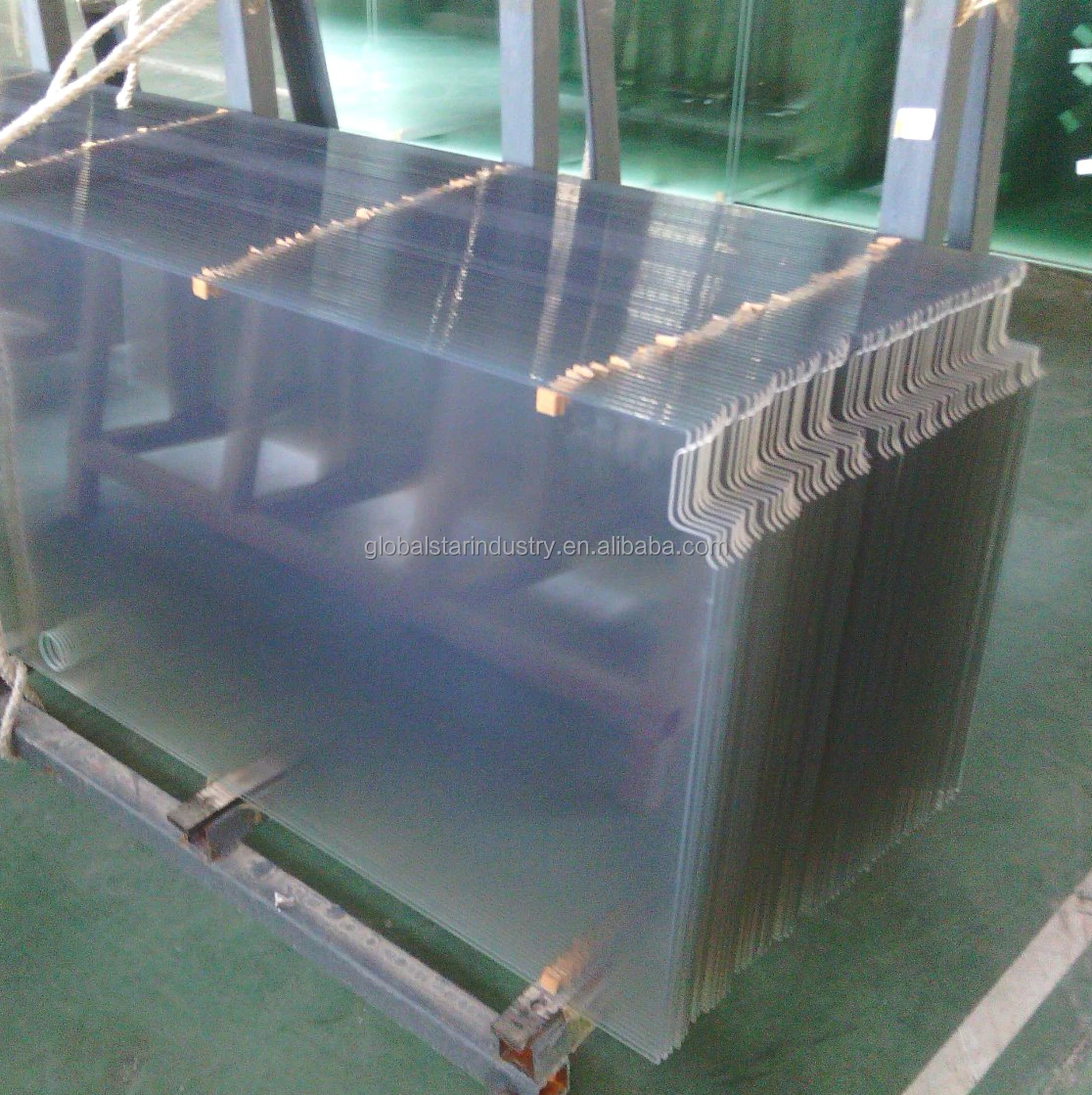

PACKING & LOADING:
Seaworthy strong plywood crates with paper interlayer or we can make the package according to your requirement.
The crates will be very strong and every loading worker has 15 years packed, loading and fixation crates with container
experience. And we send the loading pictures for you after we loading
The crates will be very strong and every loading worker has 15 years packed, loading and fixation crates with container
experience. And we send the loading pictures for you after we loading
1: Are you a manufacturer?
Yes,we are a professional manufacturer with 20 years experince in glass industry, we produce tempered glass ,insulated glass,laminated glass,LOW-E glass, reflective glass, fire proof glass, bullet proof glass ,louver glass etc . we have our strong technical team and full range of glass processing production lines .
2: Are you certificated ?
Yes, all of our products certificated for CCC,ISO,CE,AS/NZS2208,SGCC,SAS etc.
3: Can you produce the glass as customized ?
Yes, we can produce products based on customer’s requirement .
4: What is your payment terms ?
We accept T/T and L/C at sight payment with our customers .
5: How soon can the products be delivered?
Normally, we can ship the products within 14-20 days after confirmed the order..
Yes,we are a professional manufacturer with 20 years experince in glass industry, we produce tempered glass ,insulated glass,laminated glass,LOW-E glass, reflective glass, fire proof glass, bullet proof glass ,louver glass etc . we have our strong technical team and full range of glass processing production lines .
2: Are you certificated ?
Yes, all of our products certificated for CCC,ISO,CE,AS/NZS2208,SGCC,SAS etc.
3: Can you produce the glass as customized ?
Yes, we can produce products based on customer’s requirement .
4: What is your payment terms ?
We accept T/T and L/C at sight payment with our customers .
5: How soon can the products be delivered?
Normally, we can ship the products within 14-20 days after confirmed the order..
