Multifunctional steel pipe embossing machine wrought iron forging handrail equipment

Share on (1600229841898):


Price:RUB 644,892.43

Quantity:


Product Overview

Description

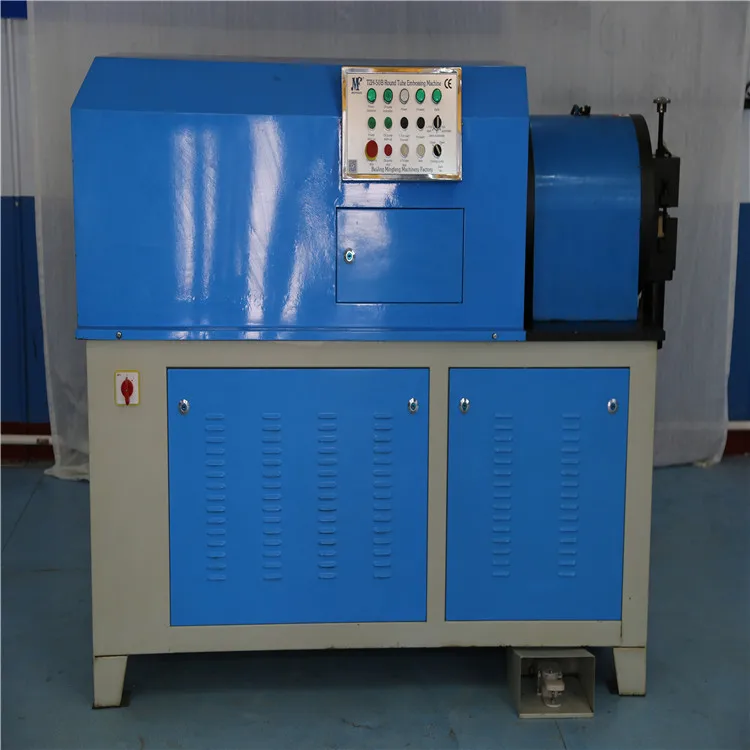

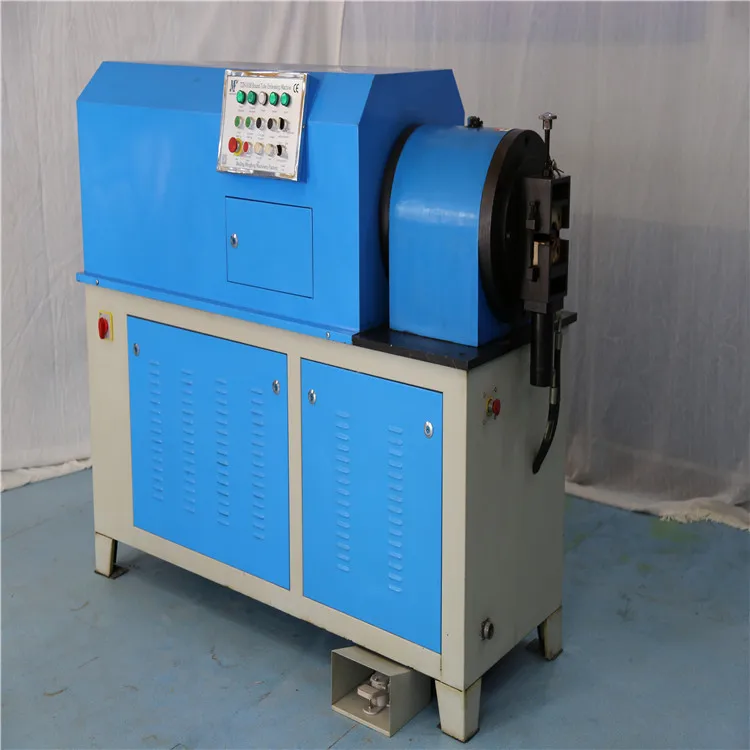

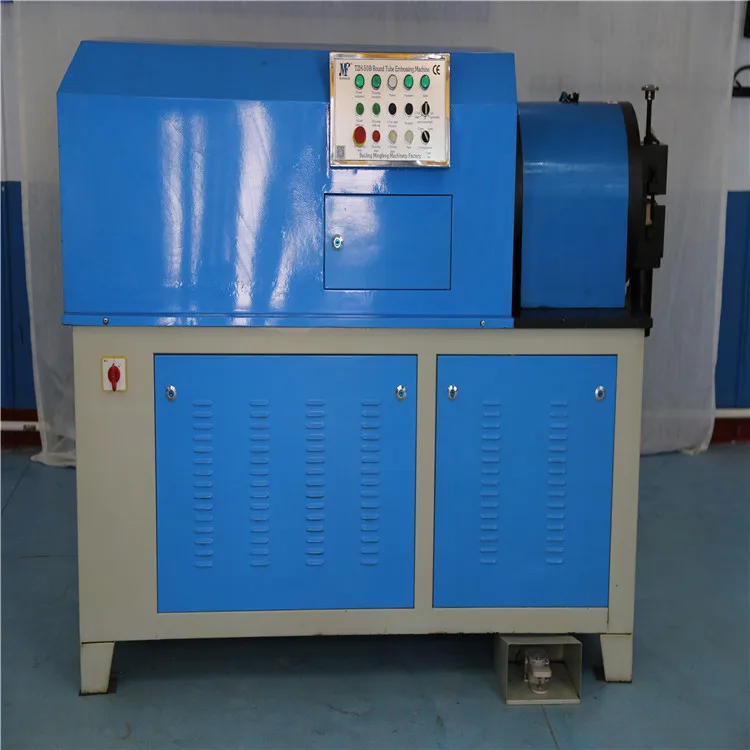

TZH-50B Round Tube Embossing Machine is a new generation machine our factory developed based on TZH-50. TZH-50B differentiates
itself by several characteristics, such as unique and authentic look, well-designed structure, capability of processing a wide
range of different kinds of materials, etc. To meet different production needs of different industries, by changing molds, TZH-50B
could generate different patterns/shapes when processing tubes made of all kind of materials (copper, aluminum, iron, stainless

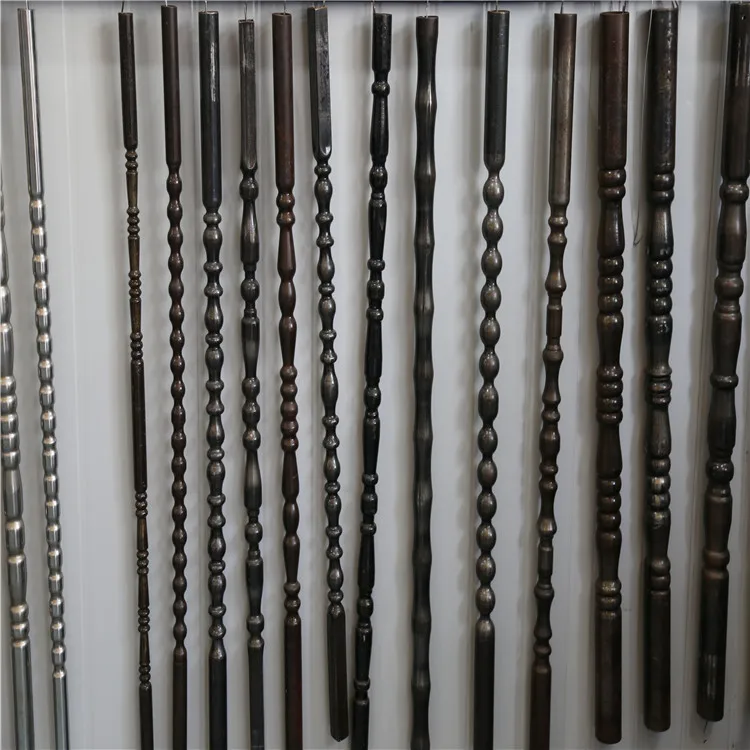

steel, etc). The machine could be used to make furniture, lighting accessories, lamppost, fancy stairs, fences, and metal
parts/accessories. TZH-50B is a very reliable product with stable performance and high efficiency. It is easy to operate as well.
TZH-50B Round Tube Embossing Machine could process tubes made of stainless steel while TZH-50 could not, but TZH-50B still
successfully manage to have the same material processing range with TZH-50. The most noticeable advantage of TZH-50B is only one
person is required for machine operating, which means less labor intensity, higher work efficiency, lower labor cost, and more
profit. Moreover, the improved speed and accuracy are also part of the best features of this new generation machine.
Model B: Integrated mechanical, photoelectric, hydraulic semi-automatic machine.
Model C: Integrated mechanical, photoelectric, hydraulic semi-automatic machine with additional hydraulic ability of
grasping/fetching/feeding material and according work station.
 Items
TZH – 50B
Maximum Embossing Capacity
φ16~φ50
Maximum Thickness
0.5~2mm
Maximum Length
280mm
Motor Performance
4KW 380/V/50HZ
Hydraulic Pump Station Motor
2.2KW 380/V/50HZ
Cooling lubrication Motor
0.04KW 380/V/50HZ
Packing Size(mm)
2000×730×1380 mm
External Size(mm)
2060×790×1530 mm
Net/Gross Weight(kg)
1620/1810 kg
