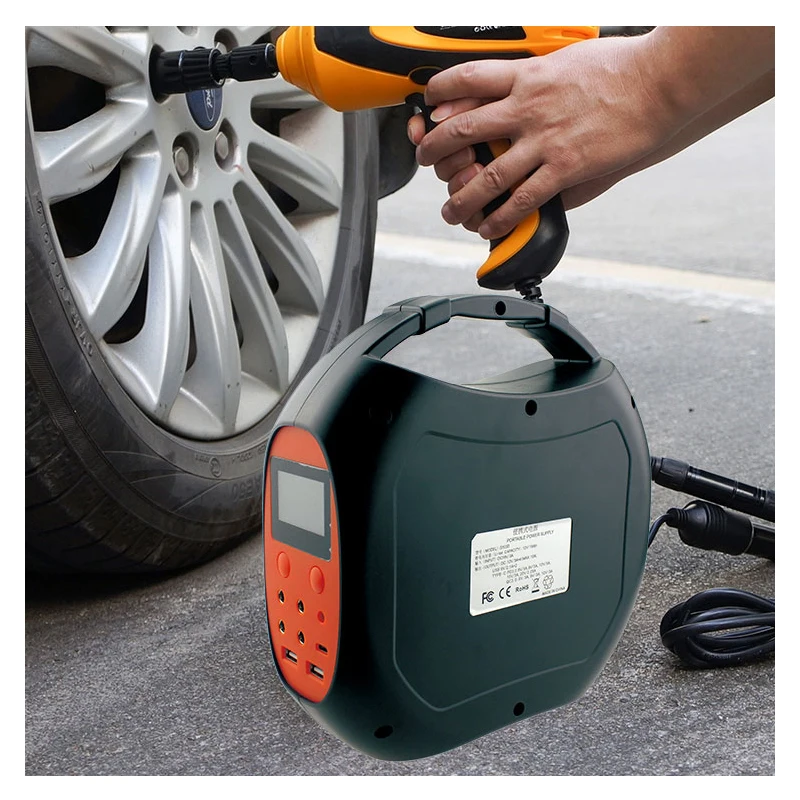

Outdoor ups portable power generator 216Wh 12V 18Ah lithium battery with AC output power station

Product Overview

Description

Portable lifepo4 power station Battery outdoor Power Station for Car Camping equipment



1.   Product introduction:

Thanks for using our product. This is a portable digital power supply which has LCD display charging and discharging status.

2.   Product Name: Portable Power Supply

3.   Item No.S103D

4.   Product Parameters

4.1 Input:

Power adapter: DC18V/3A

Solar panels: DC18V/3A 55W



4.2 Output:

      1. TYPE-C:PD3.0(5V/3A,9V/3A,12V/3A,15V/3A,20V/2.25A)

    2. DC12V/3A*4, total output current can be 10A

 3. USB1: 5V/2A

    4. USB2: 5V/2A

    5. Capacity: 12V/18AH

    6. Battery Type: lithium iron phosphate batteries//6AH

Charger Size: 230mm×210mm×78mm  (L/W/H)

Charger Net Weight: 2400g



Appearance

The surface of the product has no scratches, batches, stains, cracks, and no rust on the hardware.



5. Usage description

5.1 Charging: After plug the power supply into the charging port and press switch button, LCD display will light and show charging status.

The battery symbol displays the battery level in the way of the running lamp, and also displays the battery level as a percentage.

“V” means current battery voltage, “|” means charging current, “F” means the estimate time to fully charge.

5.2 Discharging: after accessing the load, LCD will stay light and display the discharge status, show the battery level as a percentage.

“V” means current battery voltage, “|” means discharging current, “F” means the estimate time to fully discharge.

5.3 LED lamp: LCD will display the current status of LEDs after pressing switch of LEDs in left:

LED_OFF

LED_ON

Long press to start LED_SOS mode.



5.4 Power off: Press and hold the switch button in any state.

5.5 Turn on: Press and hold the switch button.



5     Product features

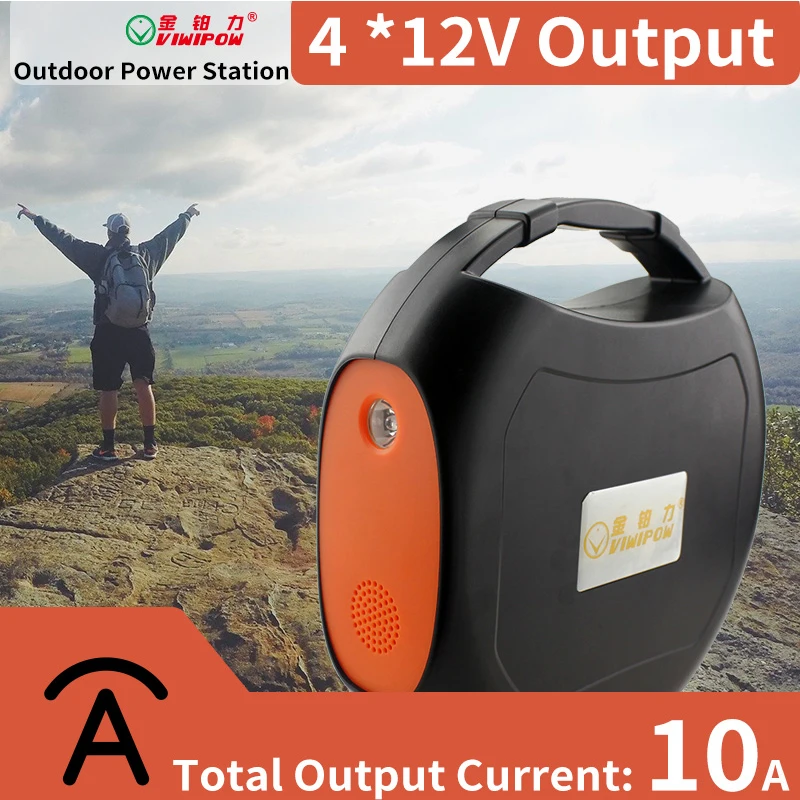

1.   4/ 12V output ports, total output current up to 10A

2.   5W high power led lighting

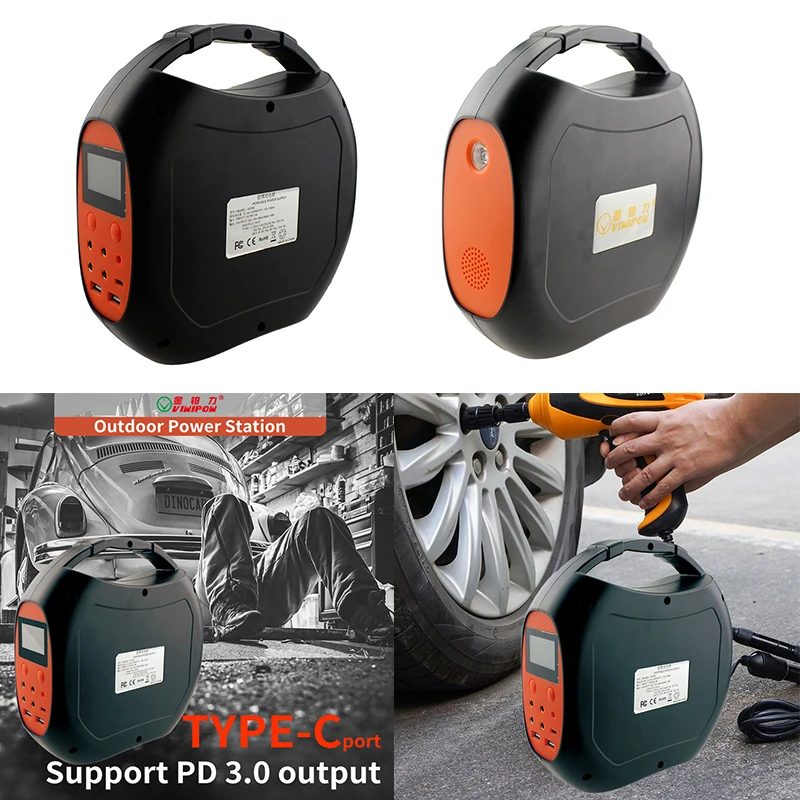

3.   The TYPE-C port supports PD3.0 output (maximum voltage 20V/2.25A) it can charge the laptop.



7.   Attentions:

7.1 It will cause electric shock if use the charger incorrect.

7.2 Do not put in to the raining or snow condition

7.3 Do not dismantle or assemble the charger.



8. Precautions

8.1 Do not drop the charger on the ground or put heavy weight things on it.

8.2 Children must be in the supervision of adult before using it.

8.3 Please use the charge within the temperature of 0℃--35℃.

Specification	Normal
Battery Type	lithium iron phosphate batteries//6AH
Battery Capacity:	12V/18AH
Output TYPE-C	PD3.0(5V/3A,9V/3A,12V/3A,15V/3A,20V/2.25A)
led lamp	5W high power led lighting
Usage	Home Application Outdoor
