Product Overview
Description
If need customized please send us inquiry!
Product Description

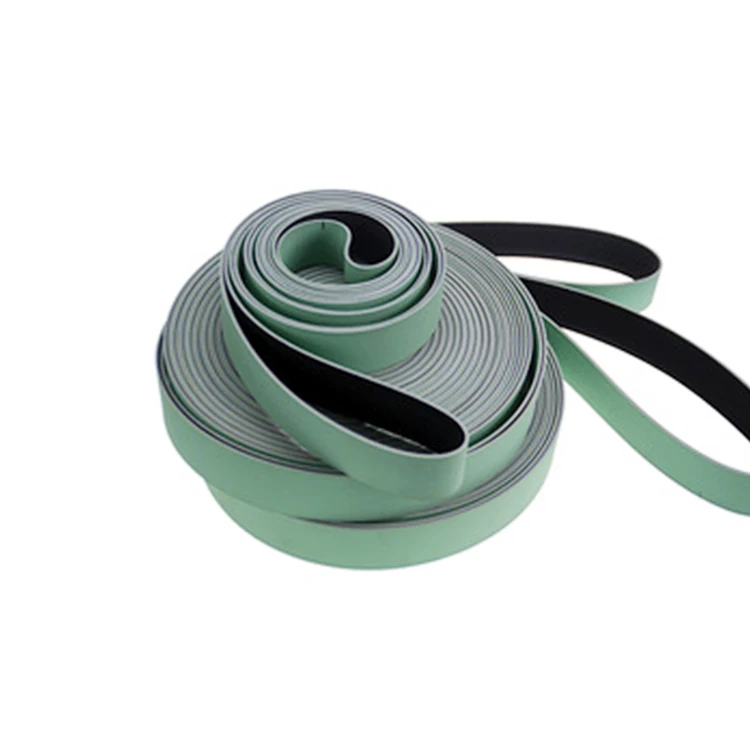

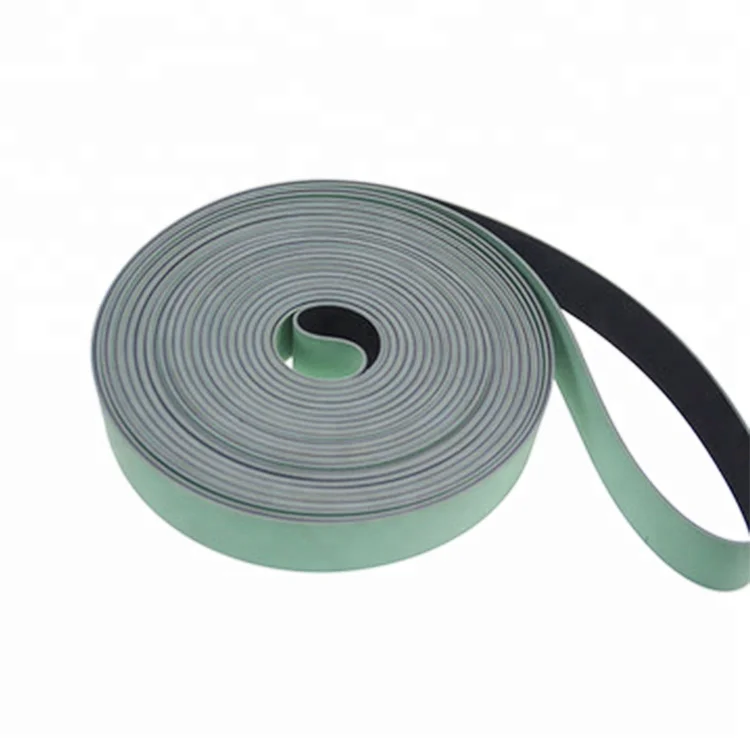

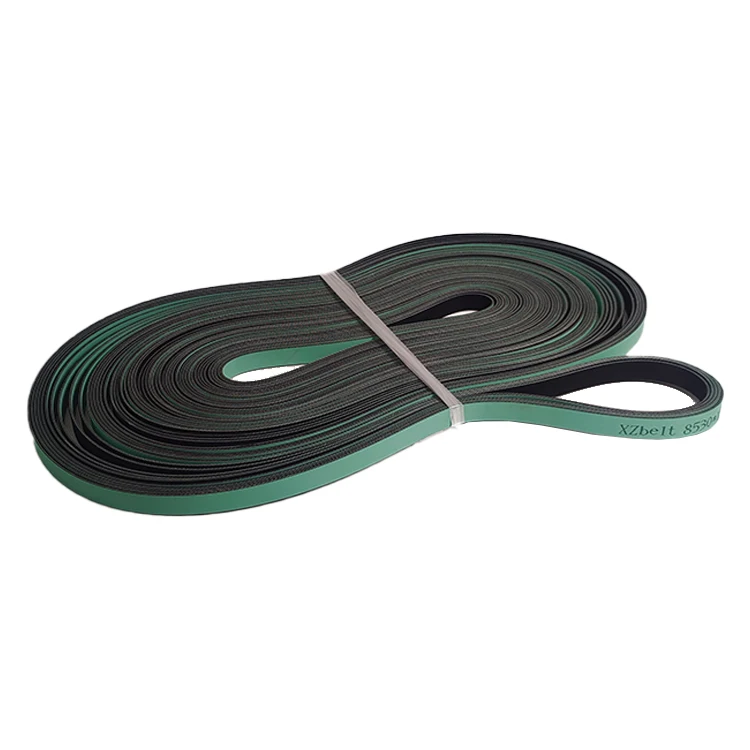

TC power transmission belt
333
Nylon polyamide power transmission belt is conttructured as three layers, NBR+Polyamide+NBR. It has features of light weight, high
strength, low enlogation, good oil and wear resistant, and energy saving and so on. The belt color can be customized, generally color has green/yellow, light green/yellow, green/ black, ligh green/green and so on. It is widely used for yarn processing, paper production, printing industry and so on.
strength, low enlogation, good oil and wear resistant, and energy saving and so on. The belt color can be customized, generally color has green/yellow, light green/yellow, green/ black, ligh green/green and so on. It is widely used for yarn processing, paper production, printing industry and so on.

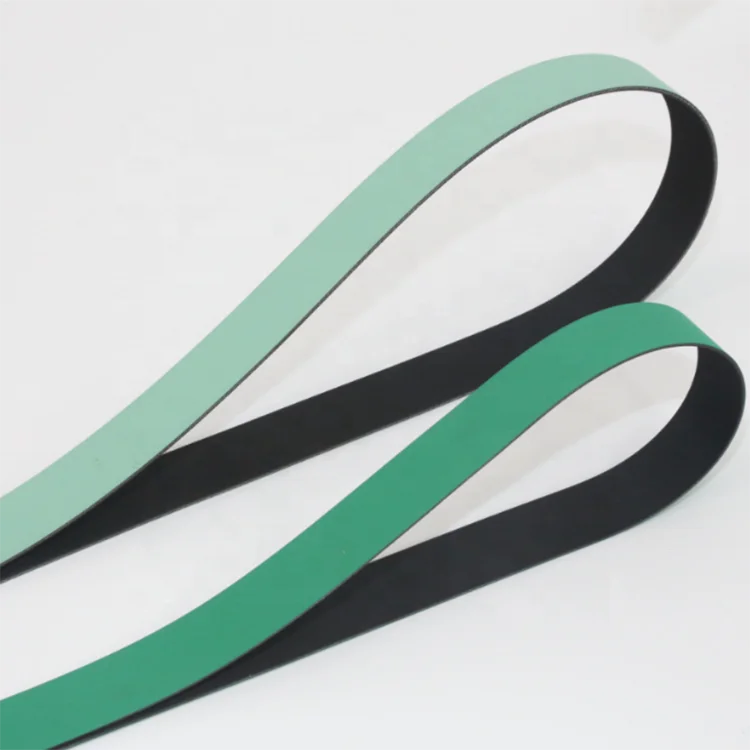

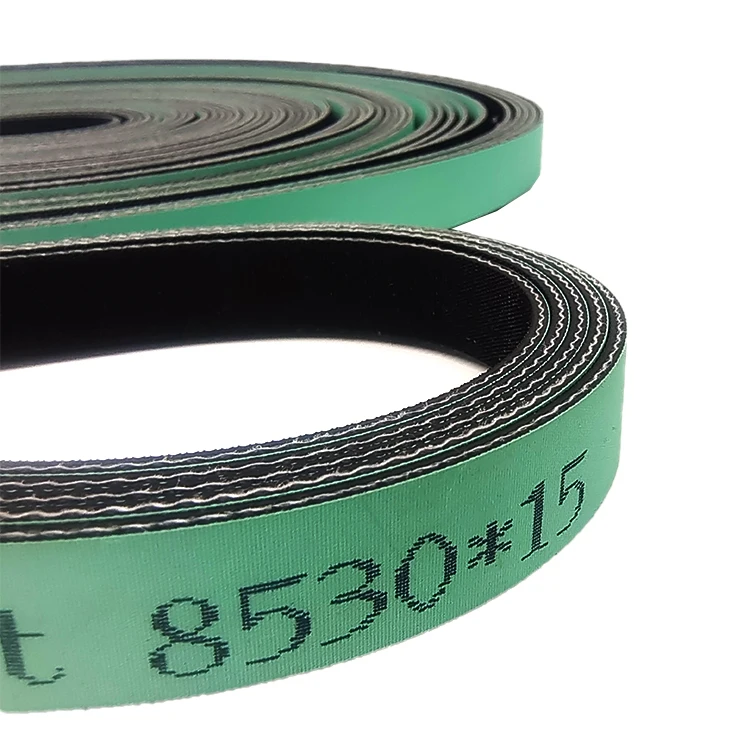

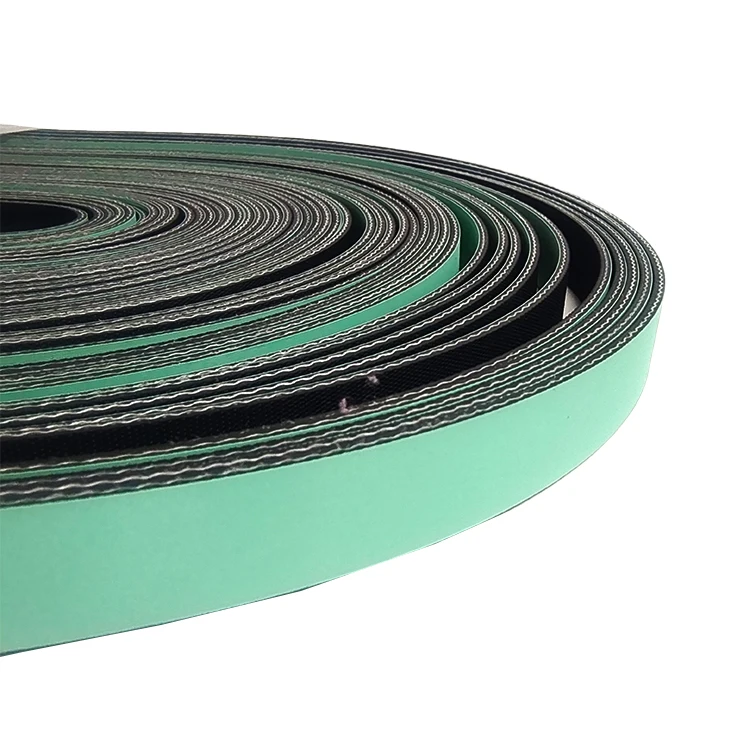

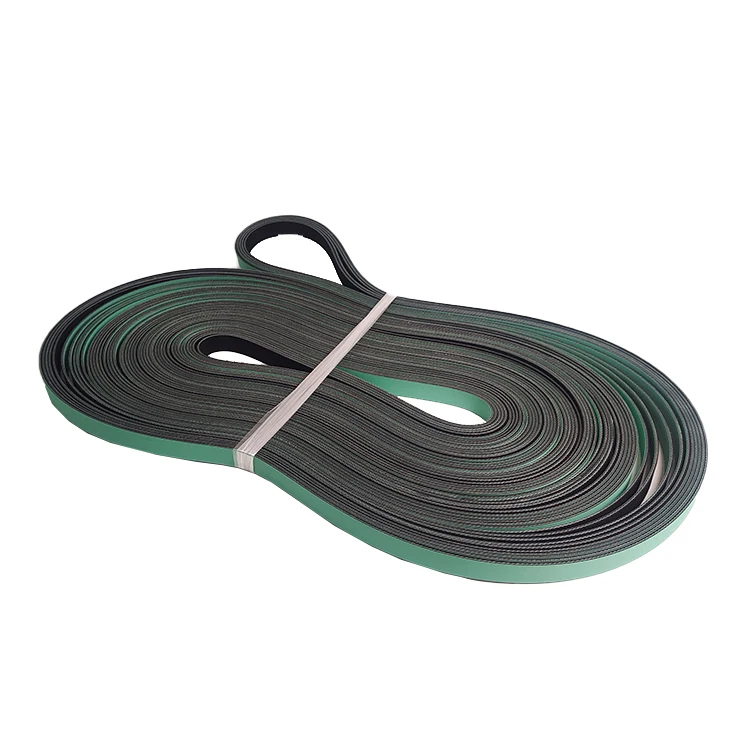

Detailed Photos
Product Paramenters

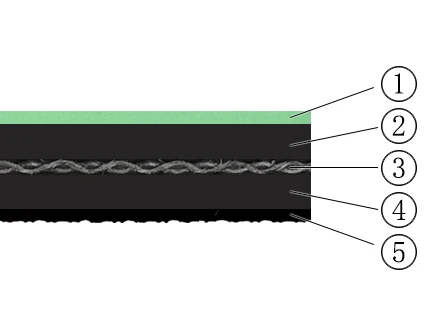

Product Construction | ||||
1 | External side material | XNBR | ||
1 | External side surface pattern | Mat | ||
1 | External side color | Light green | ||
2,4 | Material | TPU | ||
3 | Traction side material | Polyamide | ||
5 | Pulley side material | XNBR | ||
5 | Pulley side surface pattern | Fine structure | ||
5 | Pulley side color | Black | ||
Technical Data | ||
Thickness of belt (mm) | 2.5 | |
Mass of belt (belt weight) (kg/m²) | 2.9 | |
Tensile force for 1% elongation per unit of width (N/mm) | 20.3 | |
Coefficient of friction (running side / stainless steel slider bed) | 0.4 | |
Operatig temperature range (°C) | -20-70 | |
Minimum Pulley diameter (mm) | 50 | |
Drive determination | Double sided power transmission | |
Joint method | Finger joint | |
Maximum width | 500mm | |
Product Features
Flat belts with tension members made of highly polyamide sheet have especially strong edges, are laterally stiff and robust.
damping characteristics.
It is widely used for yarn processing, wood industry, paper production, printing industry and so on.
Contact us
Xuanze Industrial Drive Systems (Shanghai) Co., Ltd.,
Xuanze Industrial is a production of industrial conveyor belt, belt, to help tape and technology development of modern science and
technology enterprises, the company has a standard production workshop of 2,000 square meters, the company employees 40 people, sales staff of five. With more than 10 industrial belt patents, our company develops and produces seamless PU tapes to break the
monopoly of the industry in Europe and the United States. It has surpassed Europe and the United States in application. SIBR-5M
synchronous silicone tape developed for the hygiene products industry, silicone and timing belt with high bonding strength, no
cracks, no dust. Break Japan's NITTA monopoly on the hygiene products industry, our company's imports of silicone conveyor belt wear resistance, anti-expansion force, the advantages of high visual detection accuracy.
technology enterprises, the company has a standard production workshop of 2,000 square meters, the company employees 40 people, sales staff of five. With more than 10 industrial belt patents, our company develops and produces seamless PU tapes to break the
monopoly of the industry in Europe and the United States. It has surpassed Europe and the United States in application. SIBR-5M
synchronous silicone tape developed for the hygiene products industry, silicone and timing belt with high bonding strength, no
cracks, no dust. Break Japan's NITTA monopoly on the hygiene products industry, our company's imports of silicone conveyor belt wear resistance, anti-expansion force, the advantages of high visual detection accuracy.
Certifications
XZ belt has got many paents, and we are authorized as High-tech Enterprise by Shanghai Government.

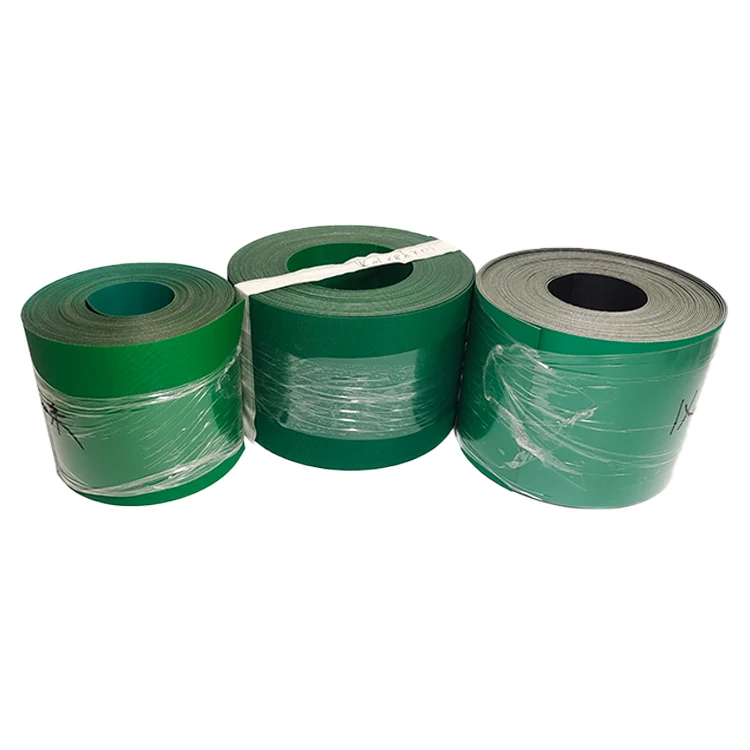

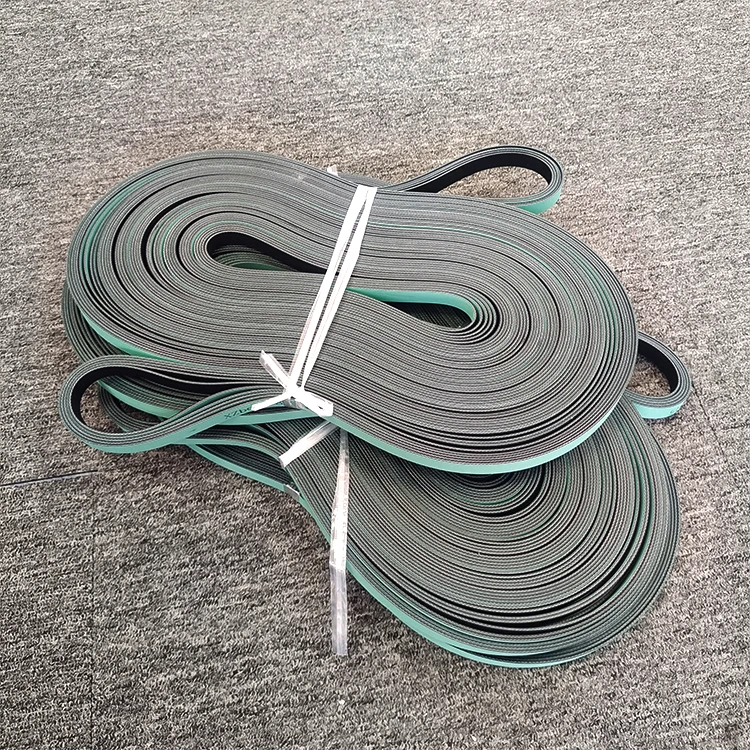

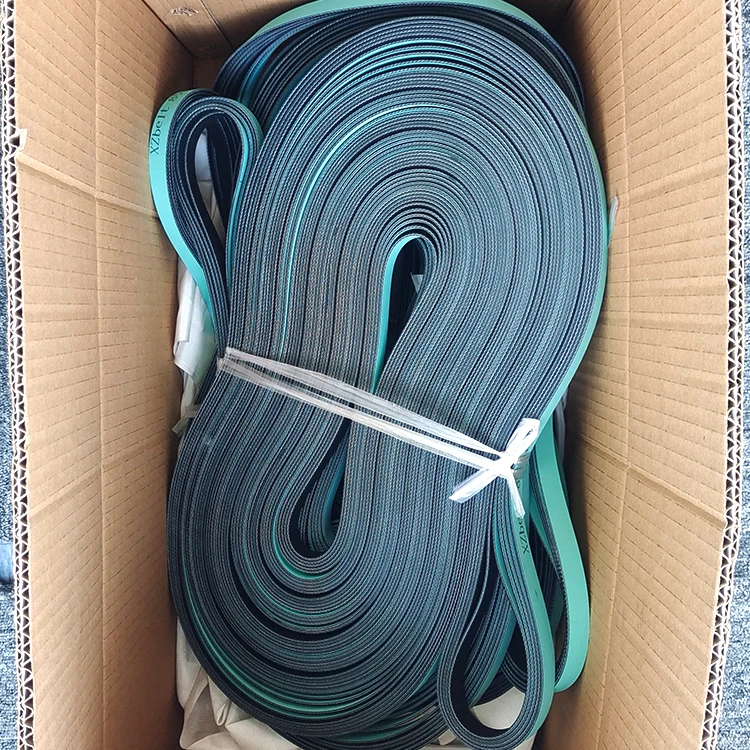

Packaging&Shipping
XZ will customized every customer's parcel package, try to reduce the parcel volume to save freight cost.
FAQ
1.Is your company a manufacturer or a trading company?
We are manufacturers and have our own factory located in Kunshan.
2.What is your lead time?
Generally it takes 3 to 5 days. The exact delivery time depends on the specific items and demanded quantity.
3.What terms does your company use in our international trade?
We usually do business in EXW works and door-to-door express . But if you have special requirement, we can also do in your convenience.
4.Can I get a sample first?
Of course, you can get a sample first, I make sure you will reorder and be happy with our high quality sample products.
5. Does your company provide OEM service?
Sure. Not only color, thickness, but also texture and design.
