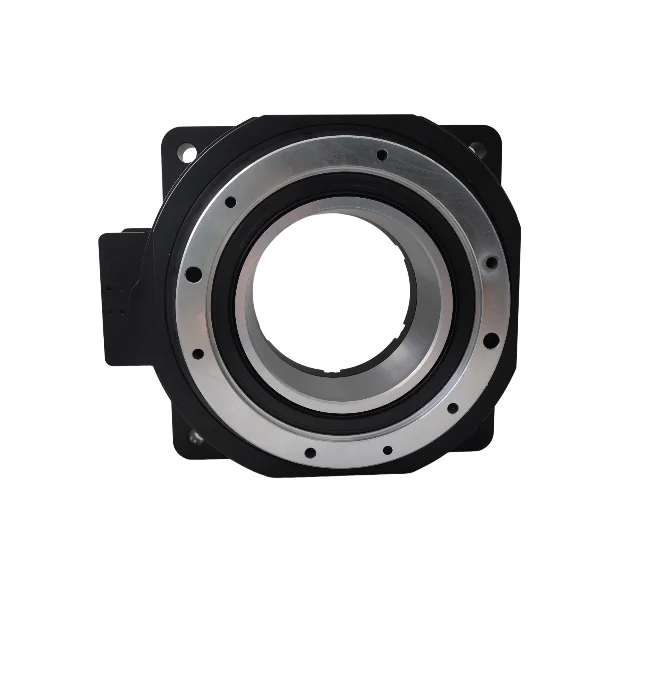

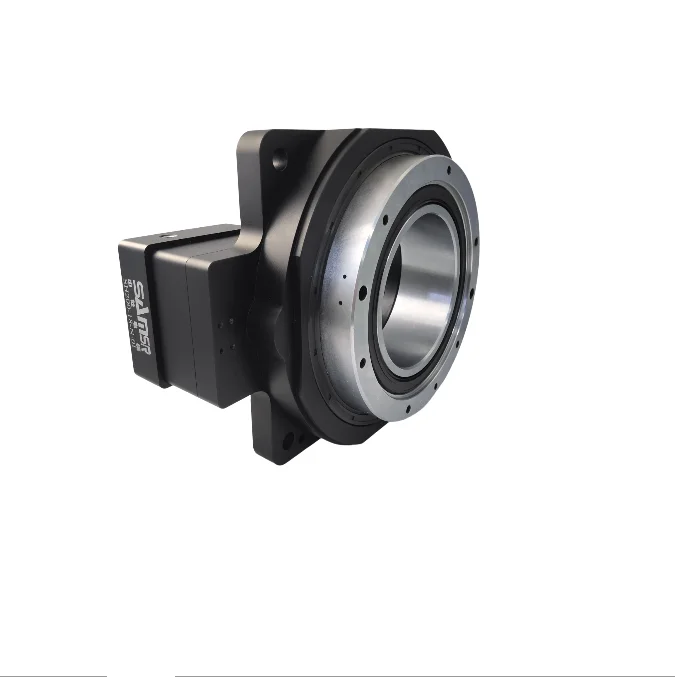

85 Hollow Shaft Rotating Actuator 10 18 ratio hollow actuator for nema 23 stepper motor 400w servo motor

Product Overview

Description

All Products Link:

https://szmelike.en.alibaba.com/productlist.html?spm=a2700.shop_index.88.7.688e185dhZuaeN





85 Hollow Shaft Rotating Actuator 10 18 ratio hollow actuator for nema 23 stepper motor 400w servo motor

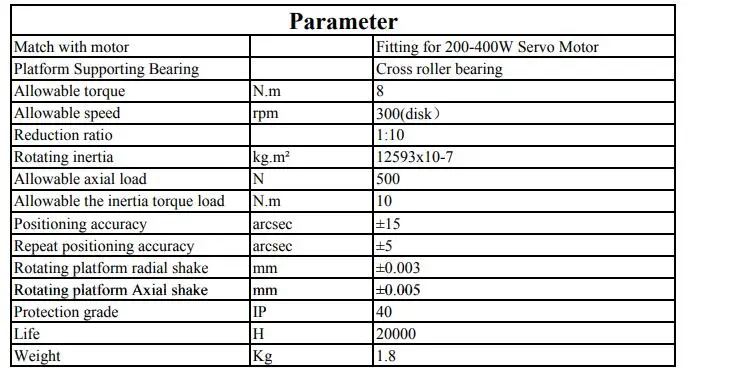

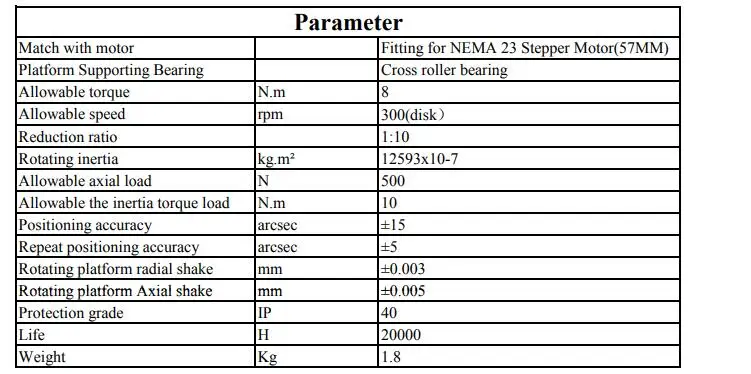

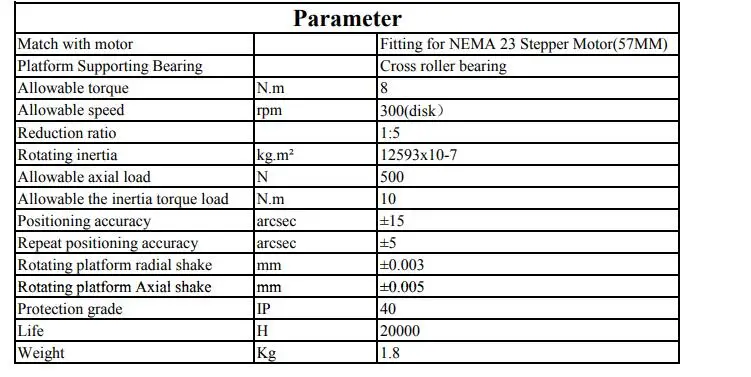

Parameter
Match with motor		Fitting for NEMA 23 Stepper Motor/400W Servo Motor
Platform Supporting Bearing		Cross roller bearing
Allowable torque	N.m	8
Allowable speed	rpm	300(disk)
Reduction ratio		1:5/1:10
Rotating inertia	kg.m²	12593x10-7
Allowable axial load	N	500
Allowable the inertia torque load	N.m	100
Positioning accuracy	arcsec	±15
Repeat positioning accuracy	arcsec	±5
Rotating platform radial shake	mm	±0.003
Rotating platform Axial shake	mm	±0.005
Protection grade	IP	40
Life	H	20000
Weight	Kg	1.8









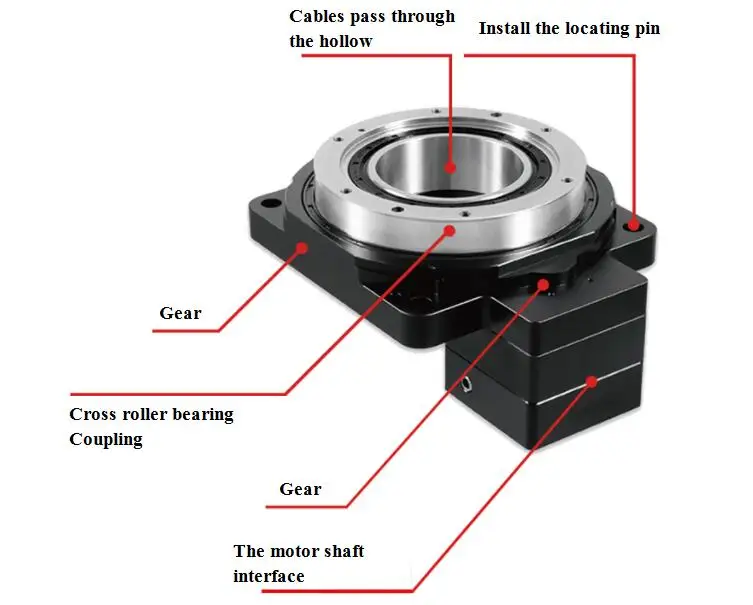

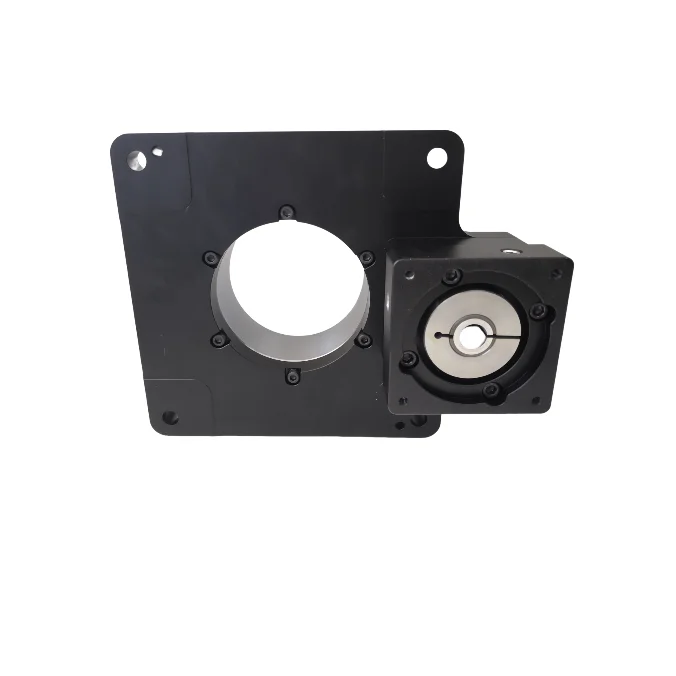

Production Detail

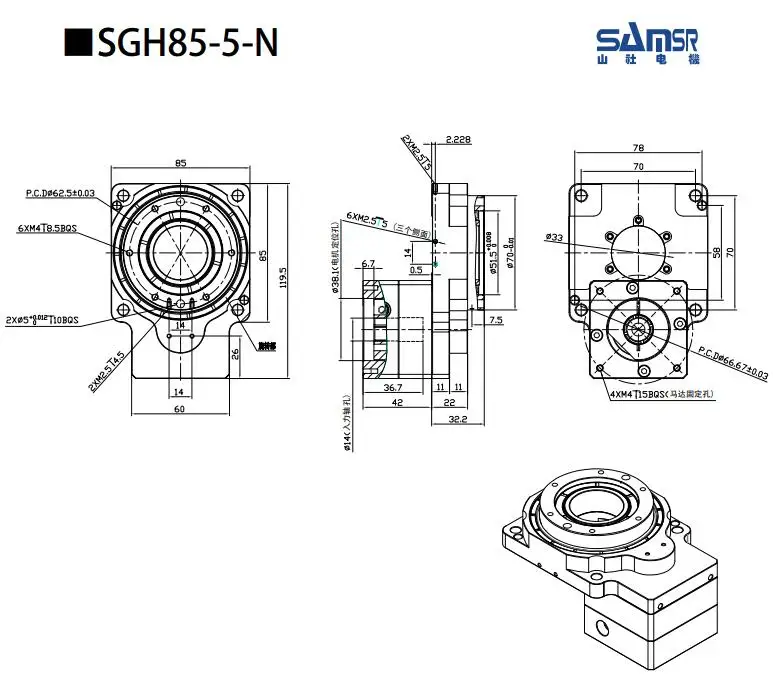

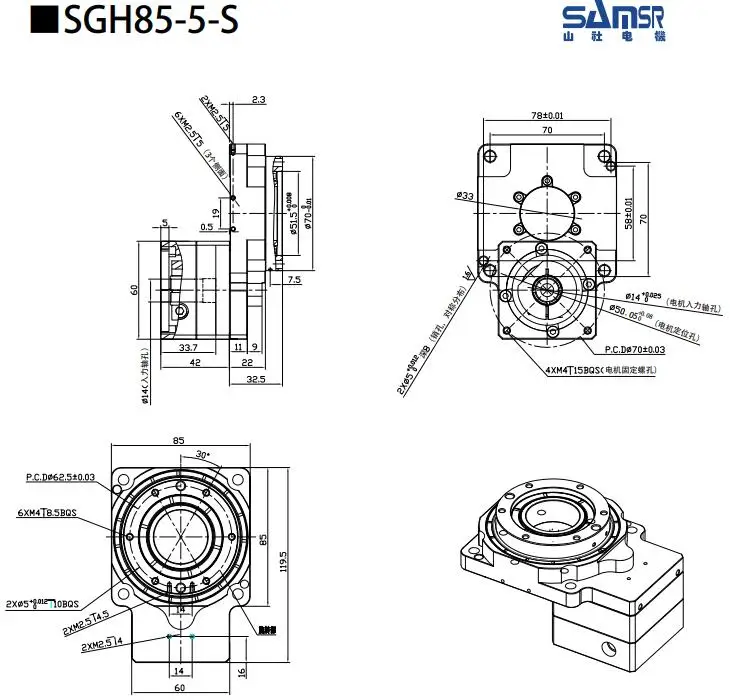

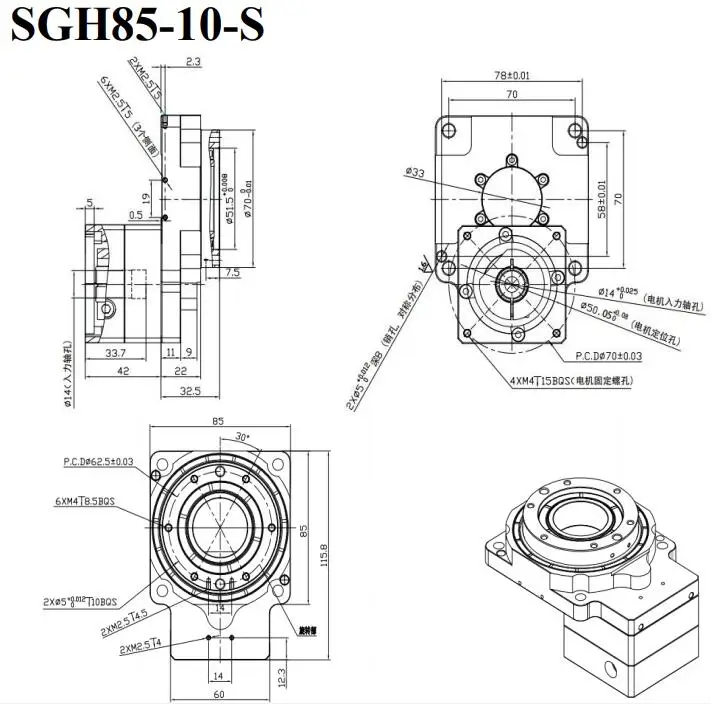

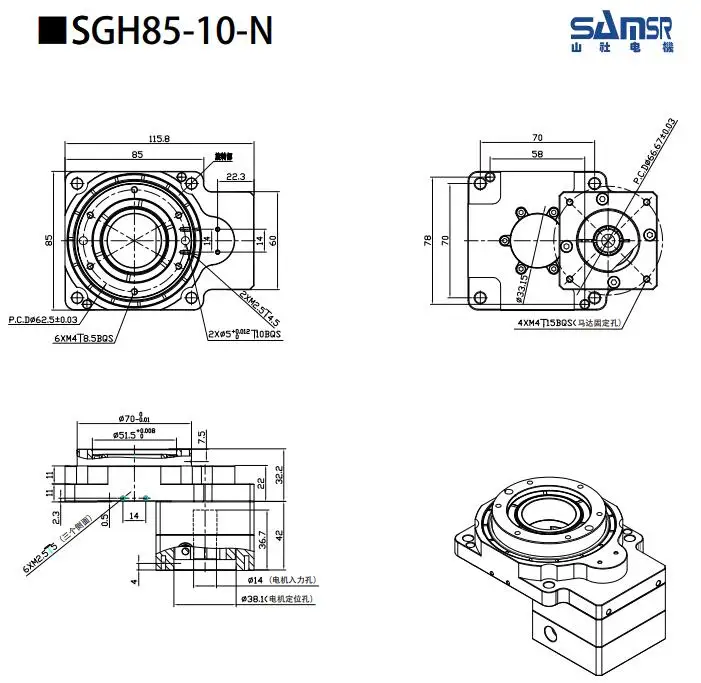

Dimension(Unit:MM)







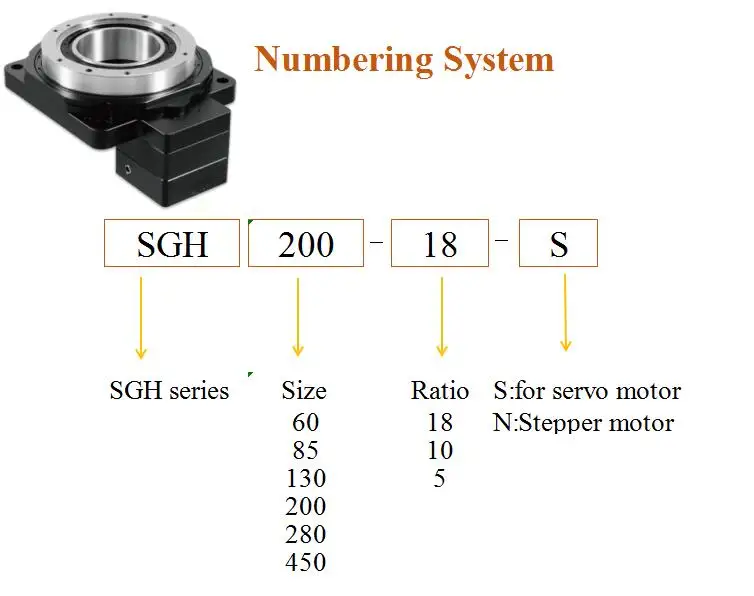

Specifications:

    SGH85-5-N

SGH85-5-S

SGH85-10-N

SGH85-10-S

Proucts Order



Model		SGH60	SGH85	SGH130	SGH200
Reduction ratio		5/10	5/10/15	10/18	10/18
Match with motor		NEMA 42/ 50W	NEM23/ 400W	NEM23/ 400W	NEM34/ 750W
Platform Supporting Bearing		Cross roller bearing	Cross roller bearing	Cross roller bearing	Cross roller bearing
Max Axial load	N	1930	4800	8400	12500
Allowable torque	N.m	12/7.5	41/27	60/37	115/68
Allowable inertia torque	N.m	24/15	82/54	120/74	230/136
Allowable speed		200rpm	200rpm	200rpm	200rpm
Rotating inertia	kg.m²	4300x10-6	3500x10-6	15780x10-6	108150x10-6
Repeat positioning accuracy	arcsec	±5	±5	±5	±5
Temperature	°	25~90	25~90		25~90
Rotating platform radial shake	mm	0.003	0.003	0.003	±0.003
Rotating platform Axial shake	mm	0.005	0.005	0.005	±0.005
Protection grade	IP	IP40	IP40	IP40	IP40
Life	H	2000	2000	2000	20000
Weight	Kg	0.5	1.3	2.5	10/8
