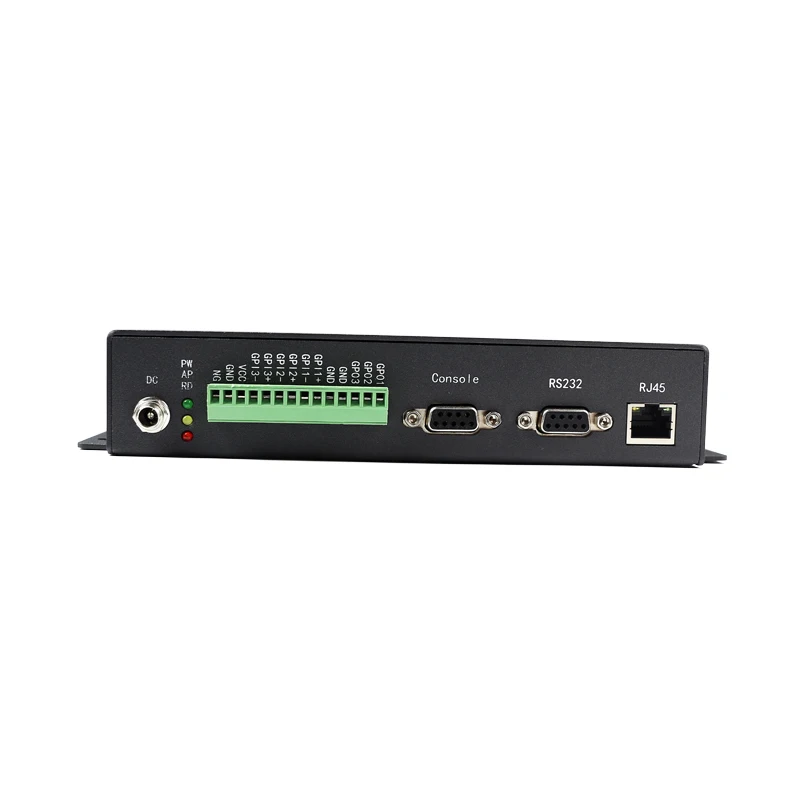

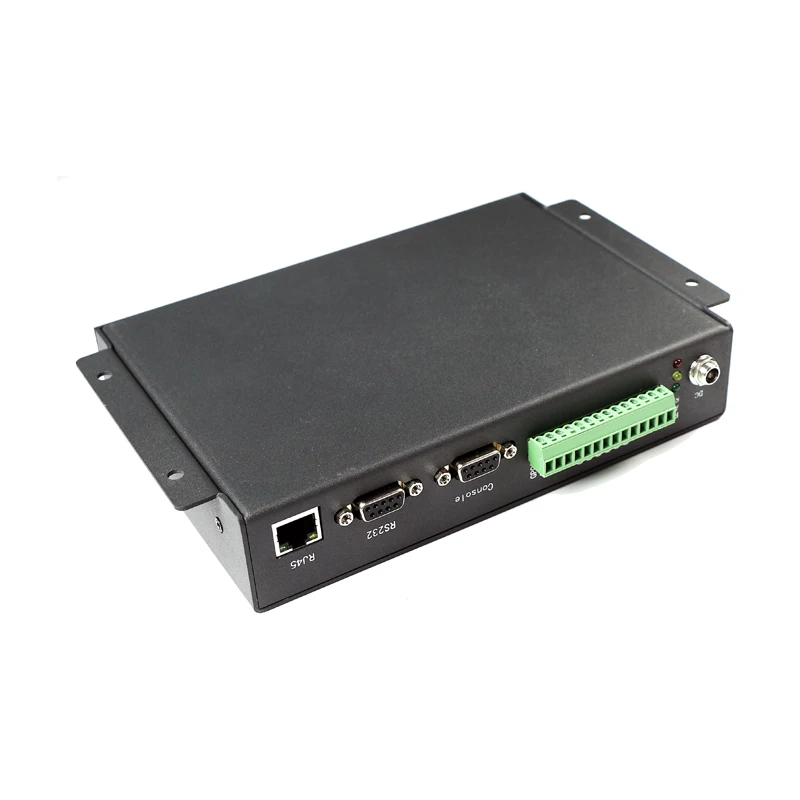

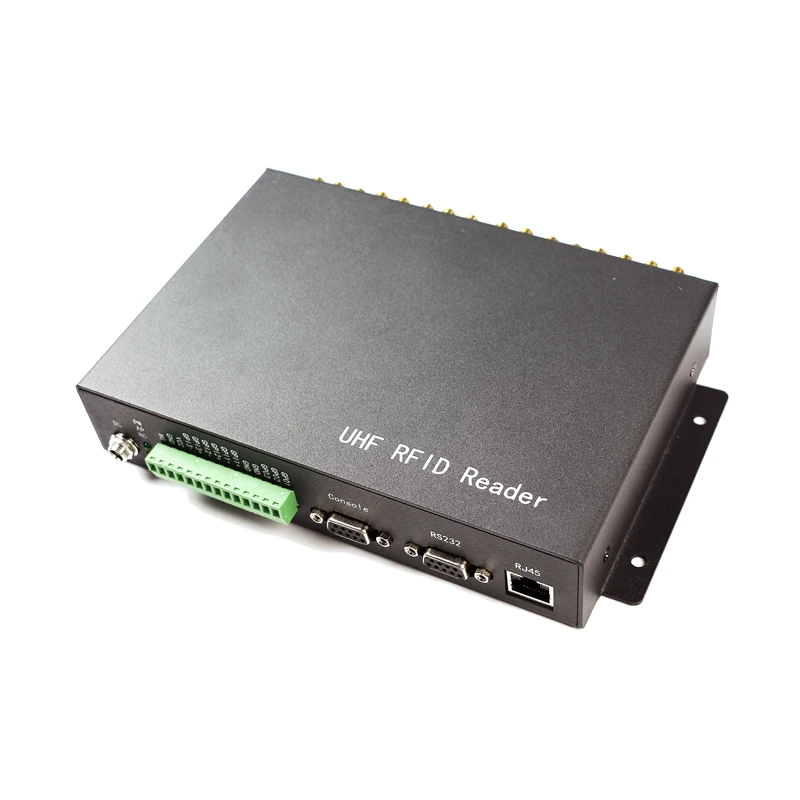

16 Channel Ports Long range Fixed Reader UHF RFID ISO18000 6C/B Protocol Tag Scanner
- Category: >>>
- Supplier: Xiamen OPP IOT Technologies Co. Ltd.
Share on (1600229995992):
Product Overview
Description
Product Description
The synopsis of the reader
The OP1601 is a low profile, high-performance 16-port RFID reader designed for both indoor and outdoor applications. Adopt Impinj IndyR2000 chip, with high-performance multi-tag identification algorithms.
OPP1601 has built-in Linux operating system, which not only meets the complex customer business requirements, but also responds to various label operations independently and quickly. Multi-tag reading performance is excellent, supporting intensive reading, large capacity tag reading and writing, received signal strength detection (RSSI). It has reliable network adaptability, supports a variety of network protocols, and is easy to deploy large-scale applications.
OPP1601 has built-in Linux operating system, which not only meets the complex customer business requirements, but also responds to various label operations independently and quickly. Multi-tag reading performance is excellent, supporting intensive reading, large capacity tag reading and writing, received signal strength detection (RSSI). It has reliable network adaptability, supports a variety of network protocols, and is easy to deploy large-scale applications.
Product Introduction
RFID Reader series: OP801
Mechanical electrical performance | |
Dimension：（MM） | 215（L）*158（W）*38（H） |
Weight：（KG） | 1.26±0.02KG（net weight） |
Shell | dark gray, sheet metal, durable |
Performance Index | |
Tag / Transponder Protocols | EPCglobal Gen 2 (ISO 18000-6C)、ISO 18000-6B (optional) |

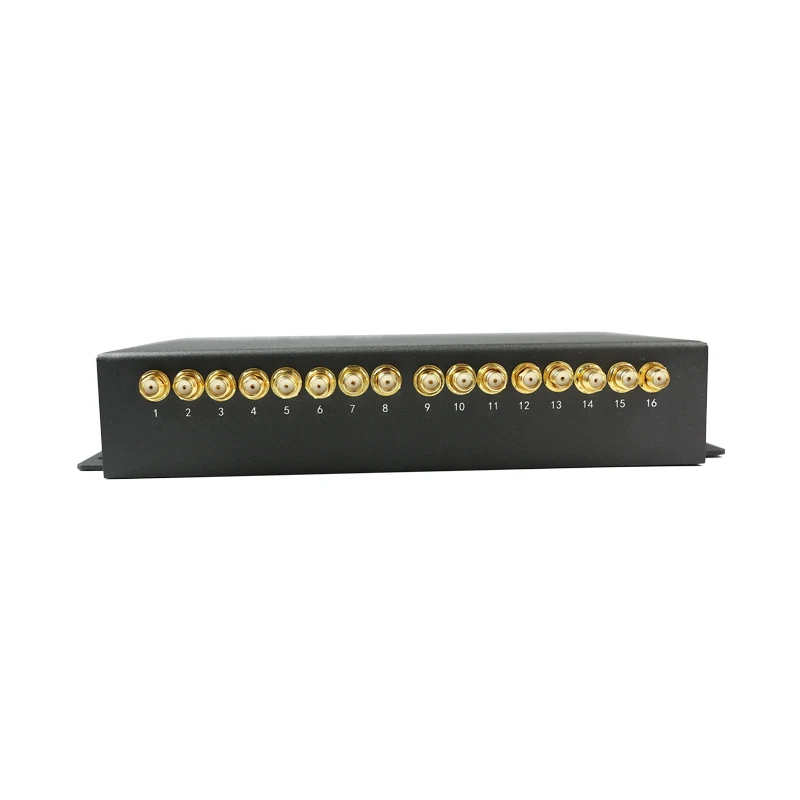

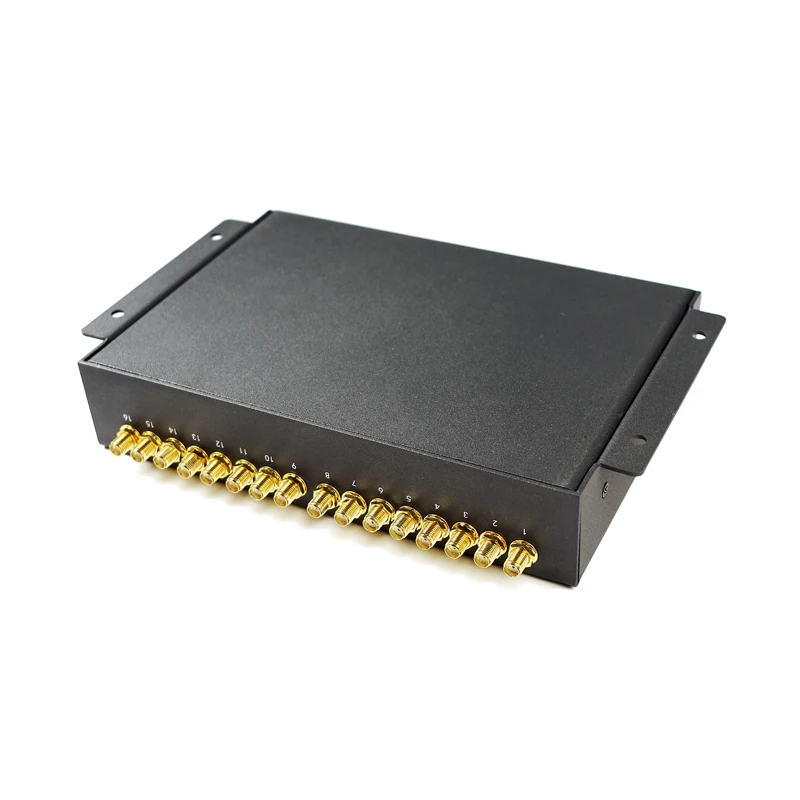

RF Connector | 16 SMA-K antenna connectors |
Frequency | 865~868MHz/902～928MHz（Can be adjusted according to different countries or regions） |
Frequency modulation | FHSS or fixed-frequency, can be set by software |
RF output | from 0 dBm to 33 dBm* with +/-1dBm |
Reading distance | 9dbi Antenna configuration, typical read range: 15 to 25 m (depends on tag) |
Peak inventory speed | > 700 tags/sec |
Tag Buffer Size | 200,000tags @ 96 bit EPC |
Tag RSSI | Supported |
Antenna Detector | Supported |
Working mode | the principal and subordinate mode /off-line working mode/Trigger mode |
Power | With 220V AC input, the output of +12 V/5A DC power converter |
input / output (GPIO) | 3 inputs, 3 outputs(4 inputs, 8 outputs optional) |
communication interface | RS232、RJ45 |
Operating System | Linux |
Environment | |
Operating Temp | -20～+55℃ |
Storage Temp | -20～+85℃ |
Humidity | 5%～95%RH，Non-condensing |
