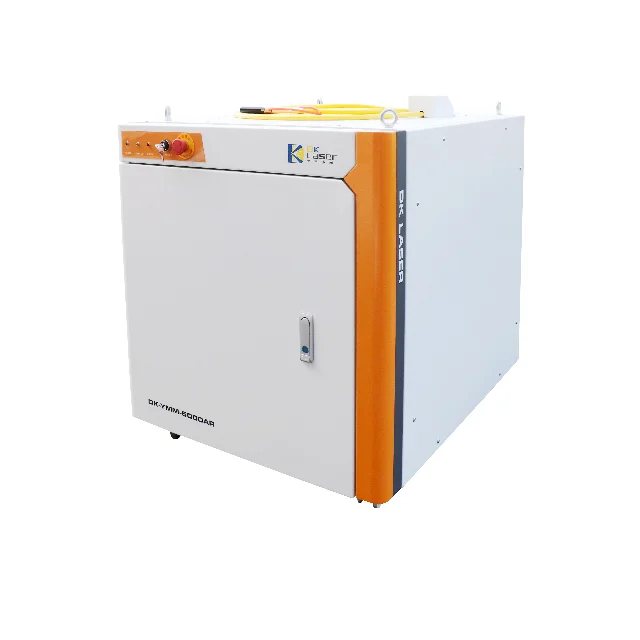

6000W DK CW Fiber Laser Source with high beam quality and Anti reflection
6000W DK CW Fiber Laser Source with high beam quality and Anti-reflection
6000W DK CW Fiber Laser Source with high beam quality and Anti-reflection
6000W DK CW Fiber Laser Source with high beam quality and Anti-reflection
6000W DK CW Fiber Laser Source with high beam quality and Anti-reflection

6000W DK CW Fiber Laser Source with high beam quality and Anti reflection

Share on (1600230071981):


Price:$46,875.00

Quantity:


Product Overview

Description



Specification


Product Name

CW Fiber Laser Source
Application

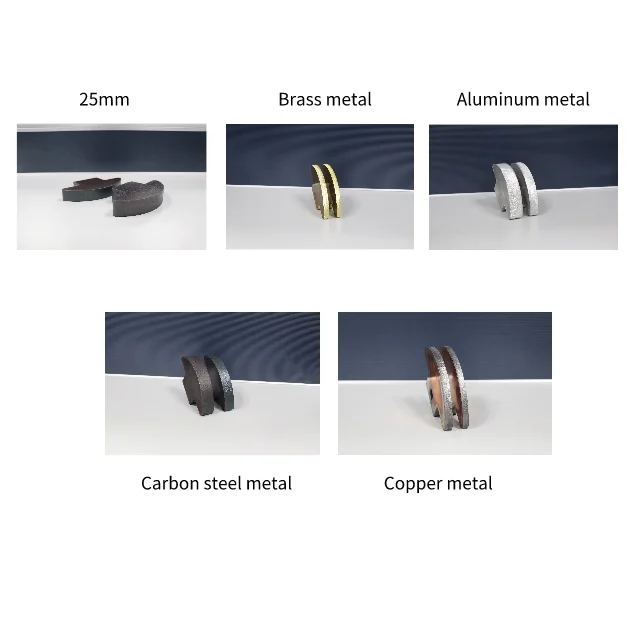

cutting metal
Laser model
DK-YMM 6000AR
Laser brand
DK
Warranty
2 years
Operation Mode
CW/Modulation
Polarization State
Random
M2
<10@100μm
Beam Quality
BPP(mm·mrad)
≤3.4@100µm
Output Power
6000W
Output Fiber Diameter
100µm（50,200µm Customizable）
Max. Modulation Frequency
5kHz
 Rise/Fall Time
<20μs
Power Range
10%~100%
 Output Power Instability
≤1.5%

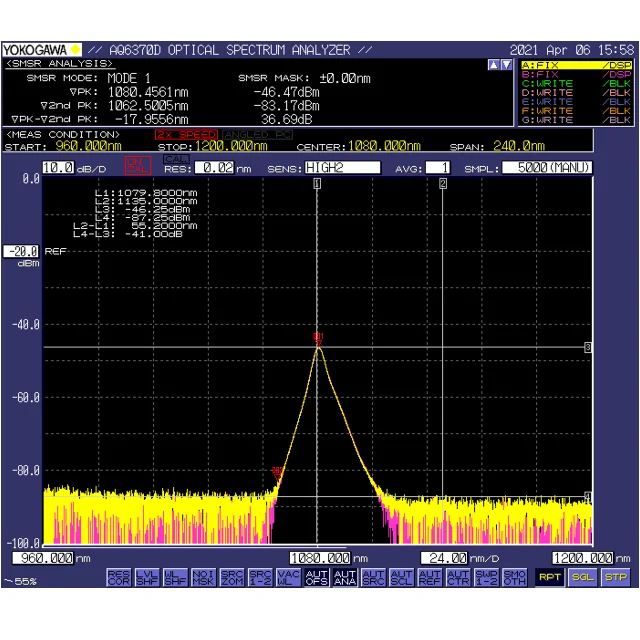

Center Wavelength
1080±10nm
3dB Spectral Width
<6nm
Indicated Light Wavelength
635nm
Indicated Light Power
>0.3mW
Operating Voltage
380V
Operating Frequency
50Hz
Laser Power Consumption
<20kW
Output Fiber Length
20m Customizable）
Cooling
Water Cooling
Dimensions
1100mm×710mm×1350mm
Weight
360kg
Operating Temperature
10℃~40℃
Storage Temperature
-15℃~60℃
Relative Humidity
20%-80%


Product Description

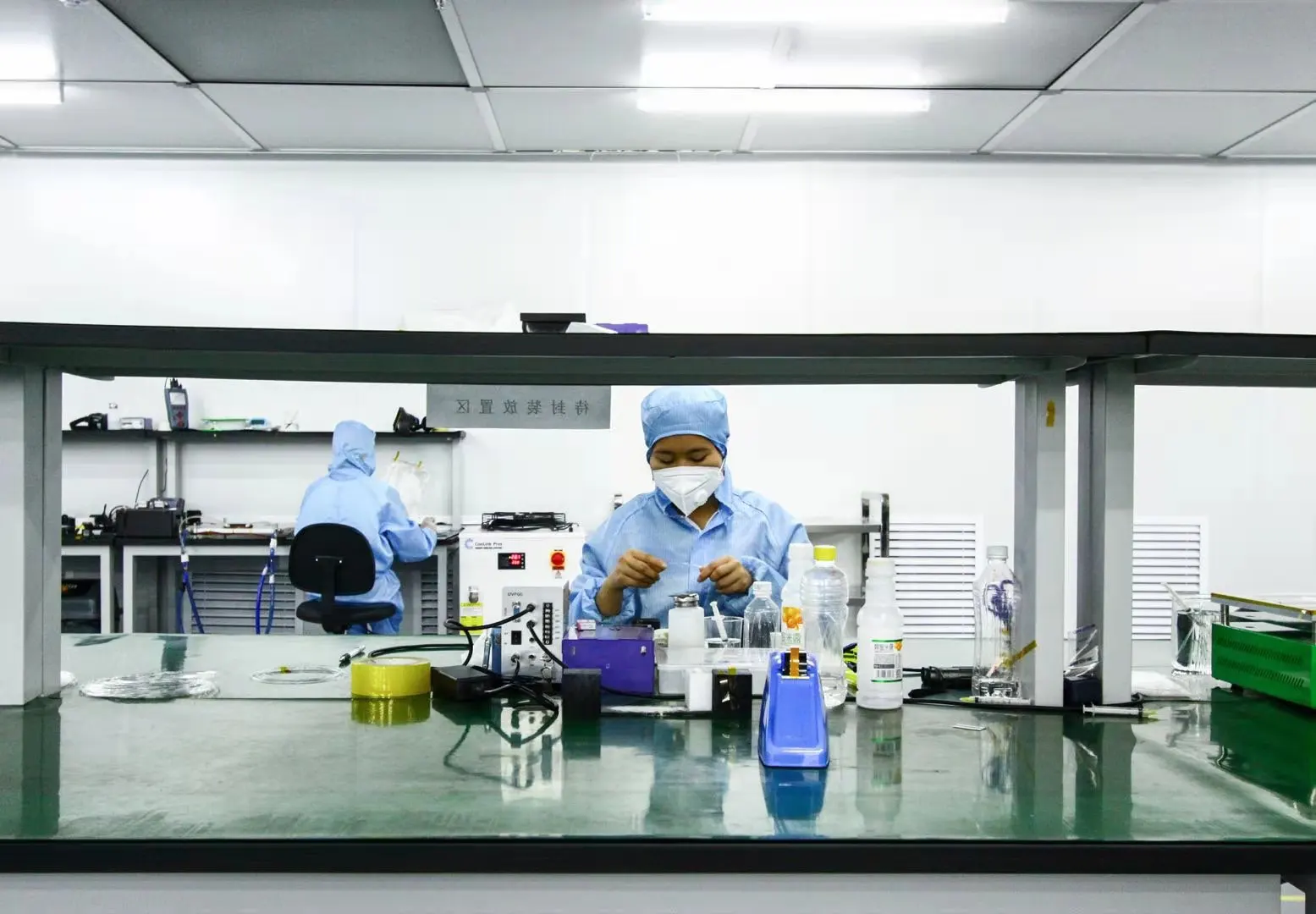

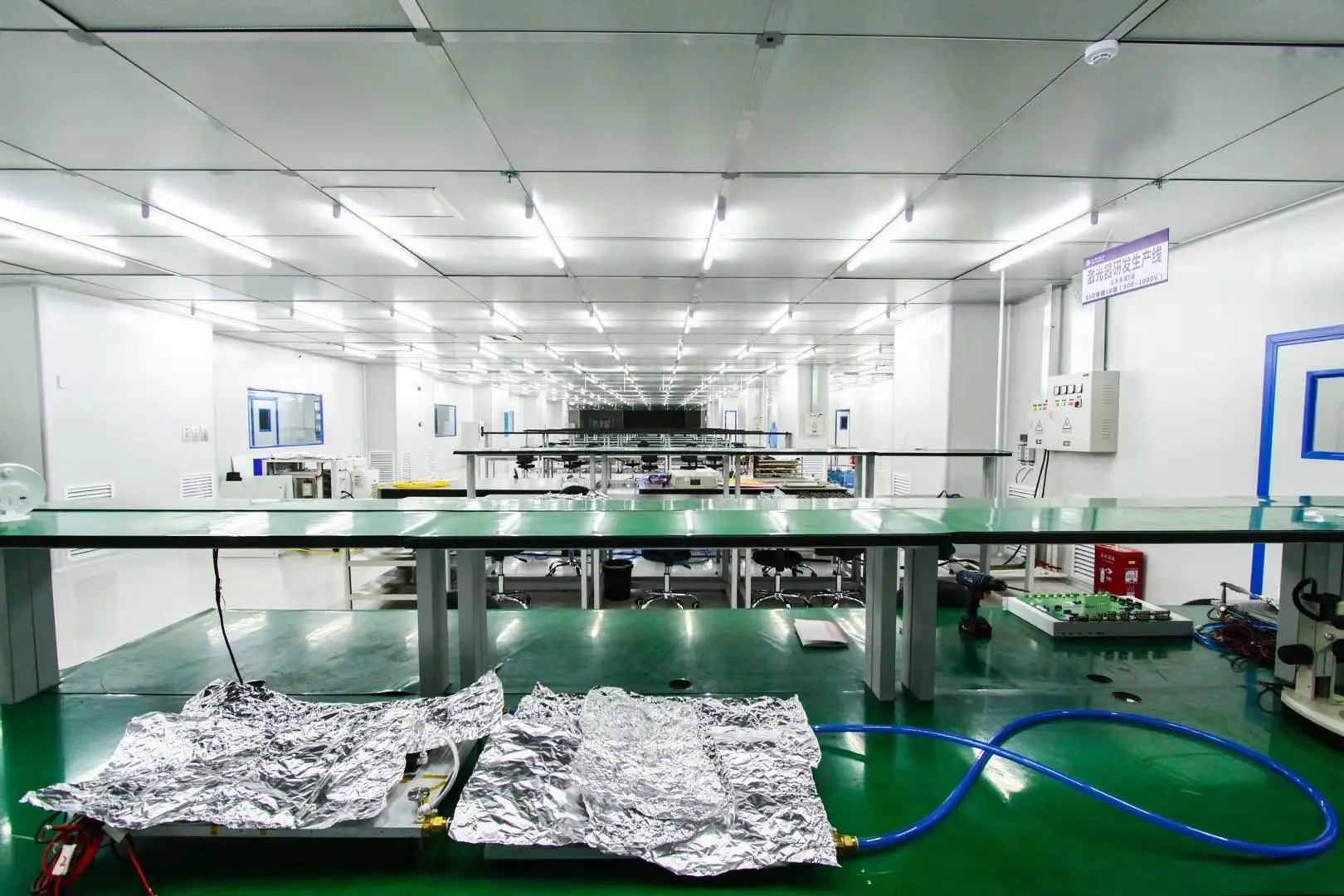

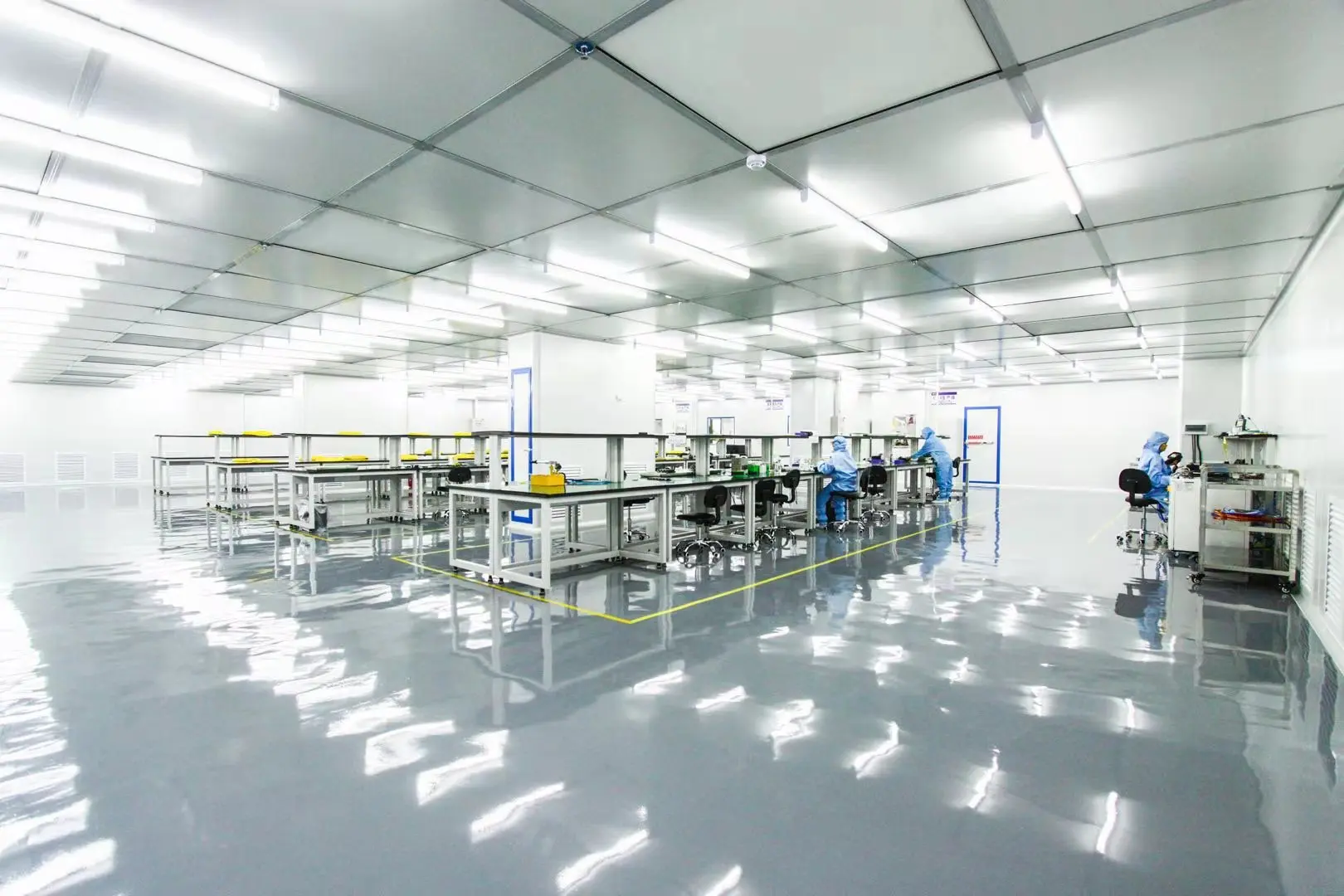

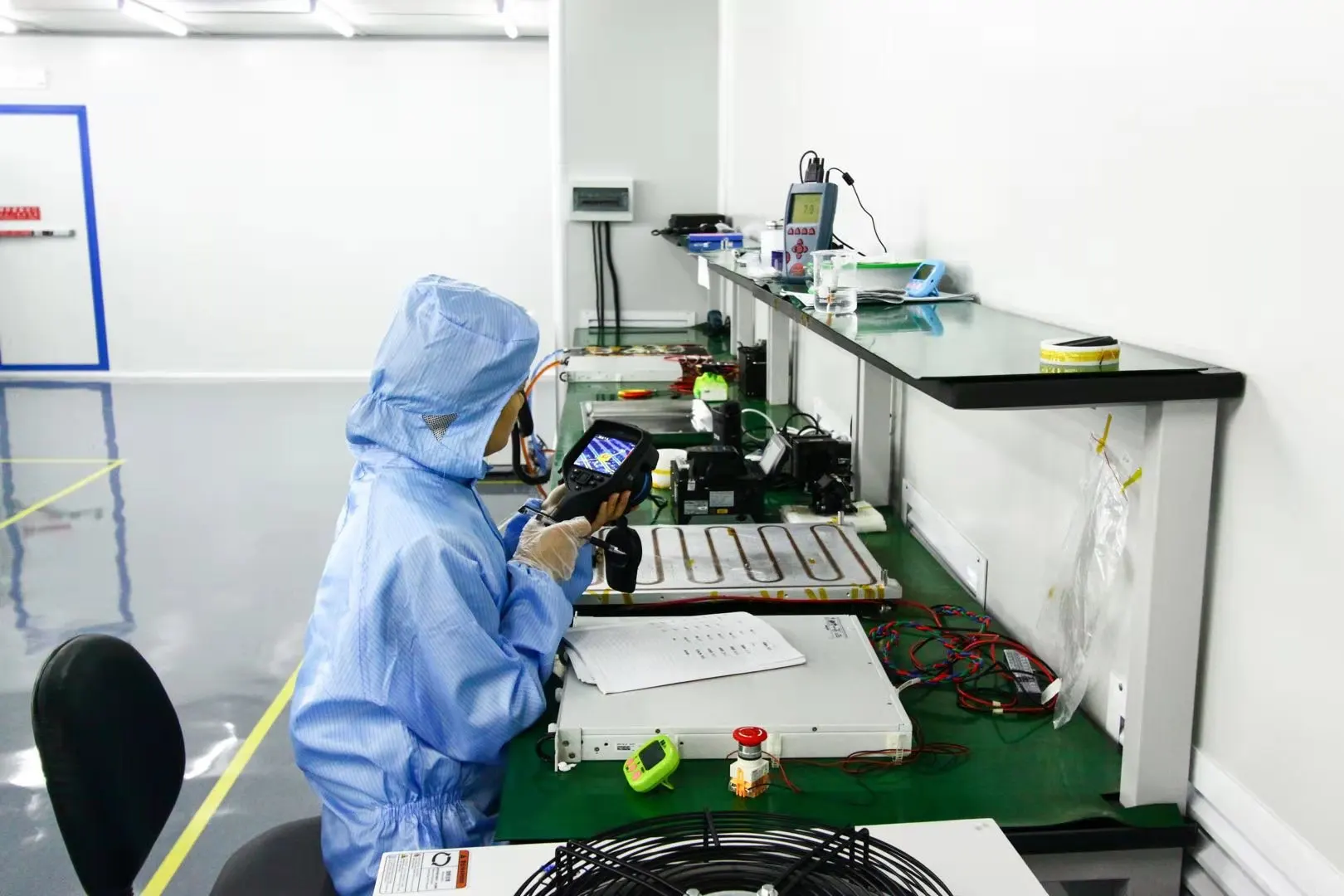

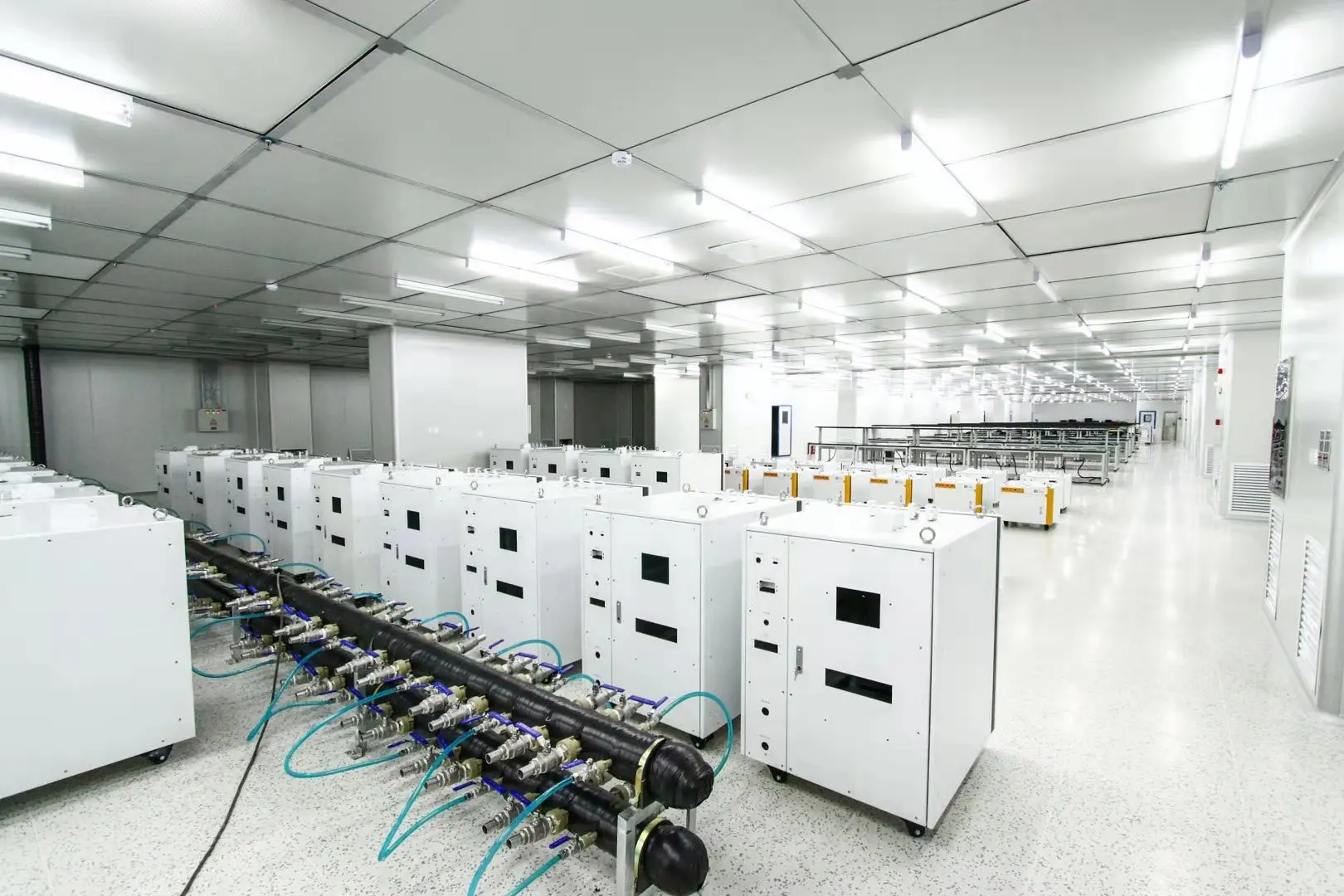

Company Profile




Wuhan Kaipusi Tec Co.,Ltd, a high-tech company that locates in the Wuhan Optical Valley, an enterprise which is professionally engaged in laser-related equipment and customized products. Kaipusi actively introduces varies of talents based on years of laser industry, from different product designs to operation experiences, and also be able to meet the special needs of customers to the greatest extent and cost control. The main products of Capstone relate with the fiber laser products that contains the cutting, welding and marking processes. Capstone also supplies different kinds of solutions based on laser cladding, laser additive manufacturing and other applications.






Why Choose Us？
1.Total solutions Kaipusi not only sell laser products , but also provide total solutions for whatever needs the end user composes；
2.Close to request Kaipusi can get all the market information all over the world . We know exactly what they need in each area and we are ready to cooperate with different customers
3.Connecting Kaipusi have global resources , which can provide high performance cost products all over the world


Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ


Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free but won’t pay the cost of freight.

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.

Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.

Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order,10~15 days for the bulk.

Q:How to choose suitable model?
A:Please provide a photo of the product you used before or tell us your needs, we will help.

Q:What's your MOQ?
A:Normally one piece. If more, we can talk about discount. You can mix it with other laser machine parts shipping together .
Q: What is your terms of payment ?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, the rest 50% before shippment.

Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
