Stock Refractory 1700c high temperature Sintered Kiln Used Corundum Mullite sagger boat crucible
- Category: >>>
- Supplier: Lianyungang Baibo New Material Co. Ltd.
Share on (1600230280963):
Product Overview
Description
Product Description

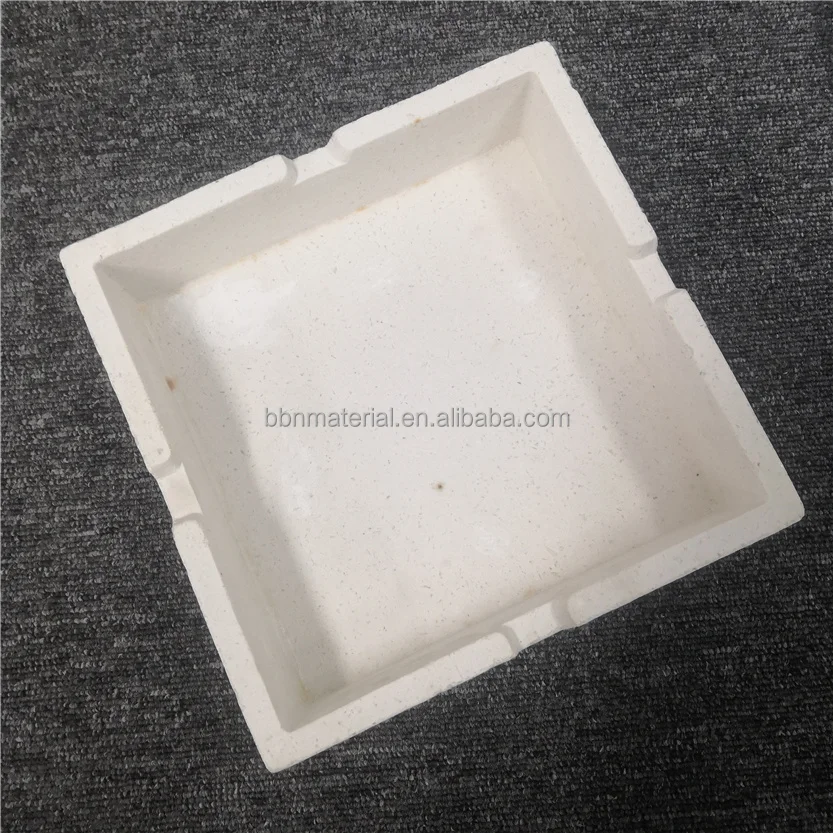

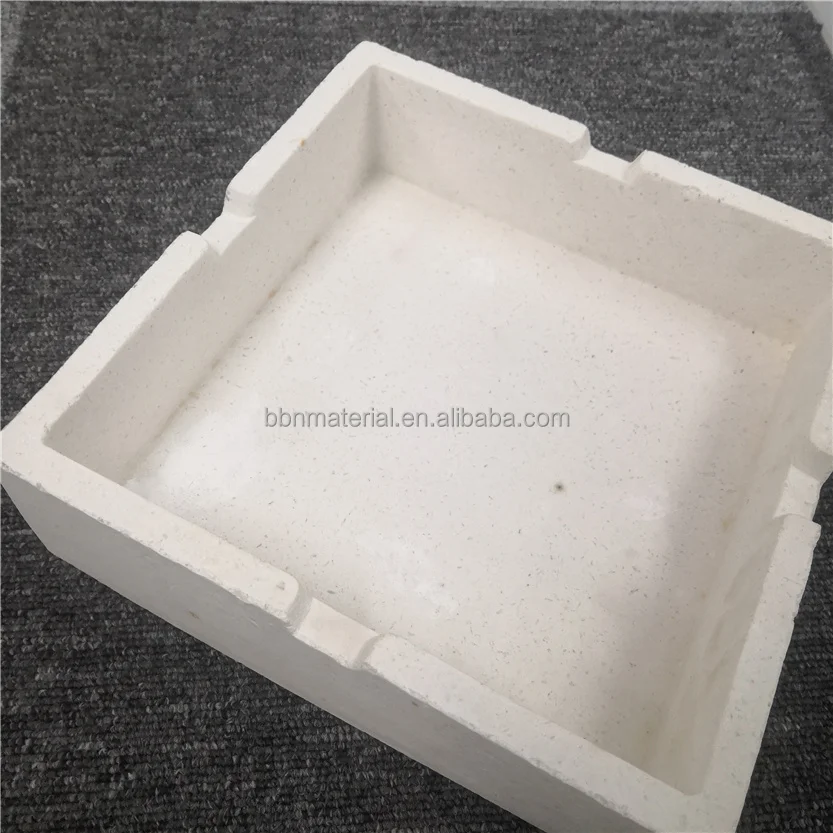

refractory mullite sagger plate for kiln furnace
Material: Cordierite-mullite ceramic
Cordierite is a magnesium alumina silicate material, which has very low linear expansion, low coefficient of thermal expansion and excellent resistance to thermal shock.Cordierite is also a ceramic used in heat shock applications that would crack and shatter most other ceramic materials.
Kiln furniture is made of cordierite because it will survive thousands of heating and cooling cycles.
Advantages of cordierite mullite ceramic sagger
1). High temperature resistance.
2). Strong thermal shock stability
3). Resisting corrosion and stripping
4). Long working life
5). Effectively reduce probability of product's deformation, slag stripping etc defects.
Applicatons of cordierite mullite ceramic sagger slab
Main purpose of crucible and sagger is as a container for analysis and firing of material and product applied in various industries. For example: analysis of coal, melting of the metal, analysis and firing of chemical raw materials, analysis and melting of glass, analysis and firing of rare earth materials and mineral,firing of high
temperature items such as ceramic products and melting of single-crystal raw materials.
Chemical & Physical Analysis
Chemical & Physical index | cordierite | Dense cordierite | cordierite-mullite | Mullite | Corundum-mullite | ||
composition(%) | SiO2 | 45-55 | 45-55 | 35-45 | 25-38 | 20-32 | |
Al2O3 | 30-38 | 33-43 | 40-50 | 50-65 | 65-73 | ||
MgO | 10-15 | 5-13 | 3-13 | - | - | ||
K2O+Na2O | <1.0 | <1.0 | <1.0 | <1.0 | <1.0 | ||
Fe2O3 | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 | ||
Thermal Expansion Coefficient | <2 | <4 | <4 | <5 | <7 | ||
Specific Heat J/kg.K | 830-900 | 850-950 | 850-1000 | 900-1050 | 900-1100 | ||
Working Temperature ℃ | <1300 | <1300 | <1350 | <1450 | <1500 | ||

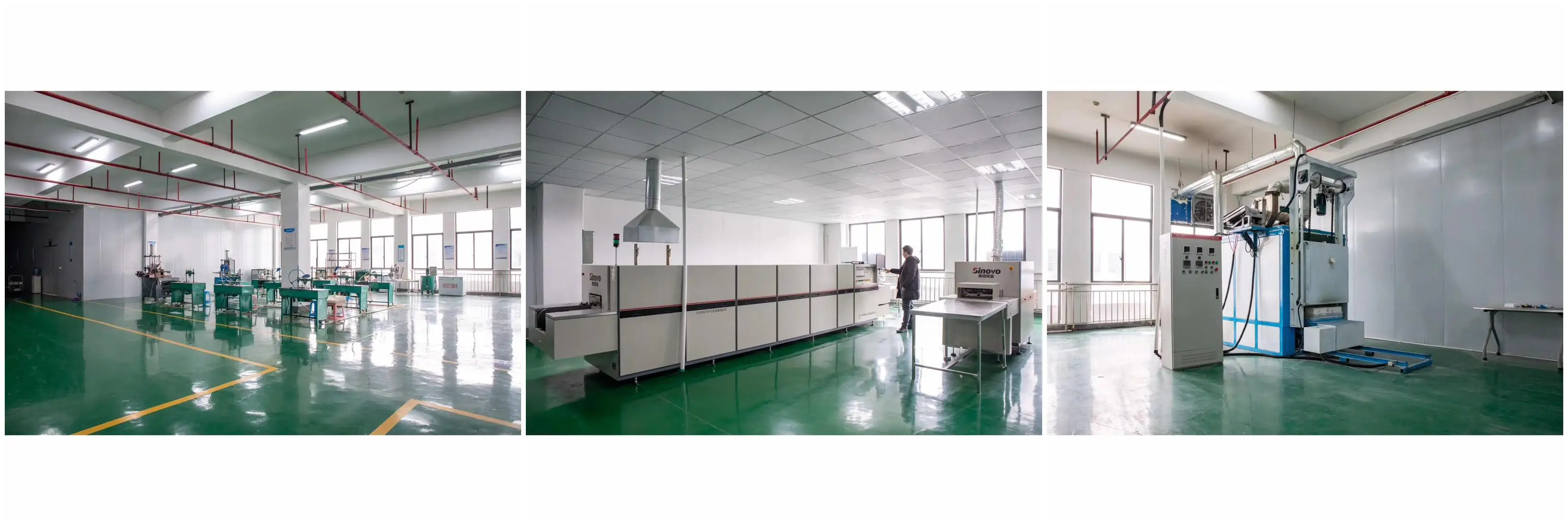

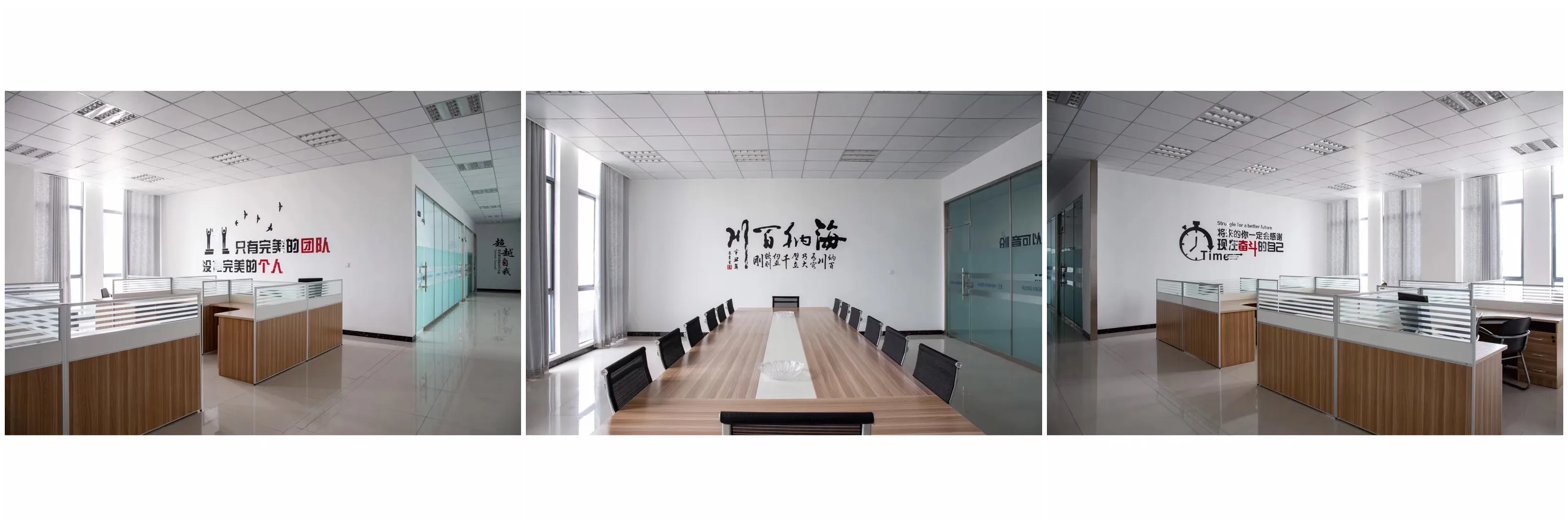

Our Company
Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt and we have been offering our products and services to our clients from more than 103 countries or regions.
Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than 1000 clients, and we have gotten good reputation from our clients.

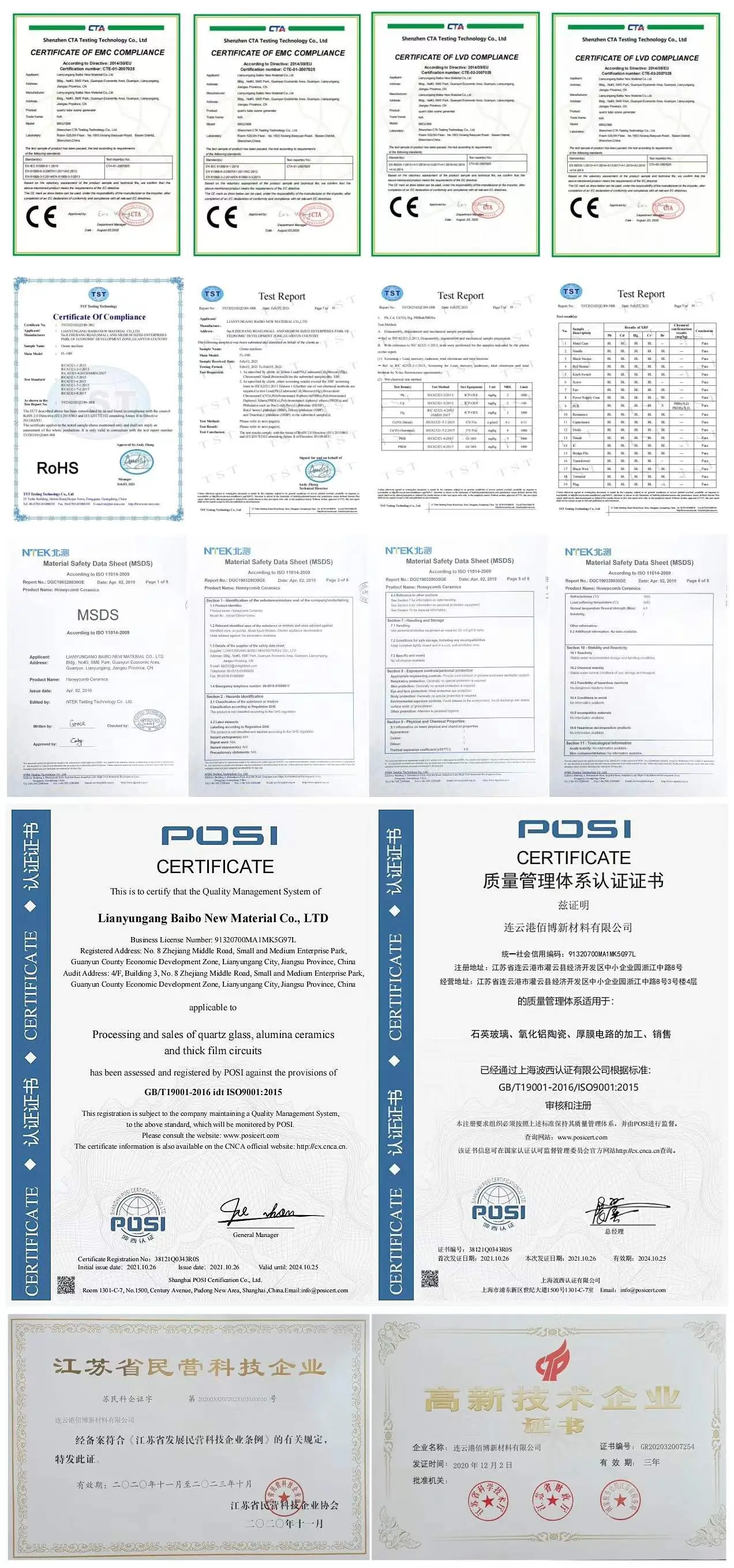

Certifications
Our Service
Packing & Delivery
FAQ
1：What products and service can you offer us?
Answer: With the development more than 20 years, now we have 6 business division and we are supplying Quartz Glass (Tube,Rod,Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractoryceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartztube/ceramic plate ozone generator and porous metal fiber felt. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 103 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do?
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
Answer: With the development more than 20 years, now we have 6 business division and we are supplying Quartz Glass (Tube,Rod,Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractoryceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartztube/ceramic plate ozone generator and porous metal fiber felt. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 103 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do?
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
