New M8 Alloy Soldering Metal Soldering Handle DIY Set STM32/STC OLED/LED T12 Digital Controller Electric Soldering Irons
- Category: >>>
- Supplier: Shenzhen Weishang Power Network Technology Co. Ltd.
Share on (1600230768552):
Product Overview
Description

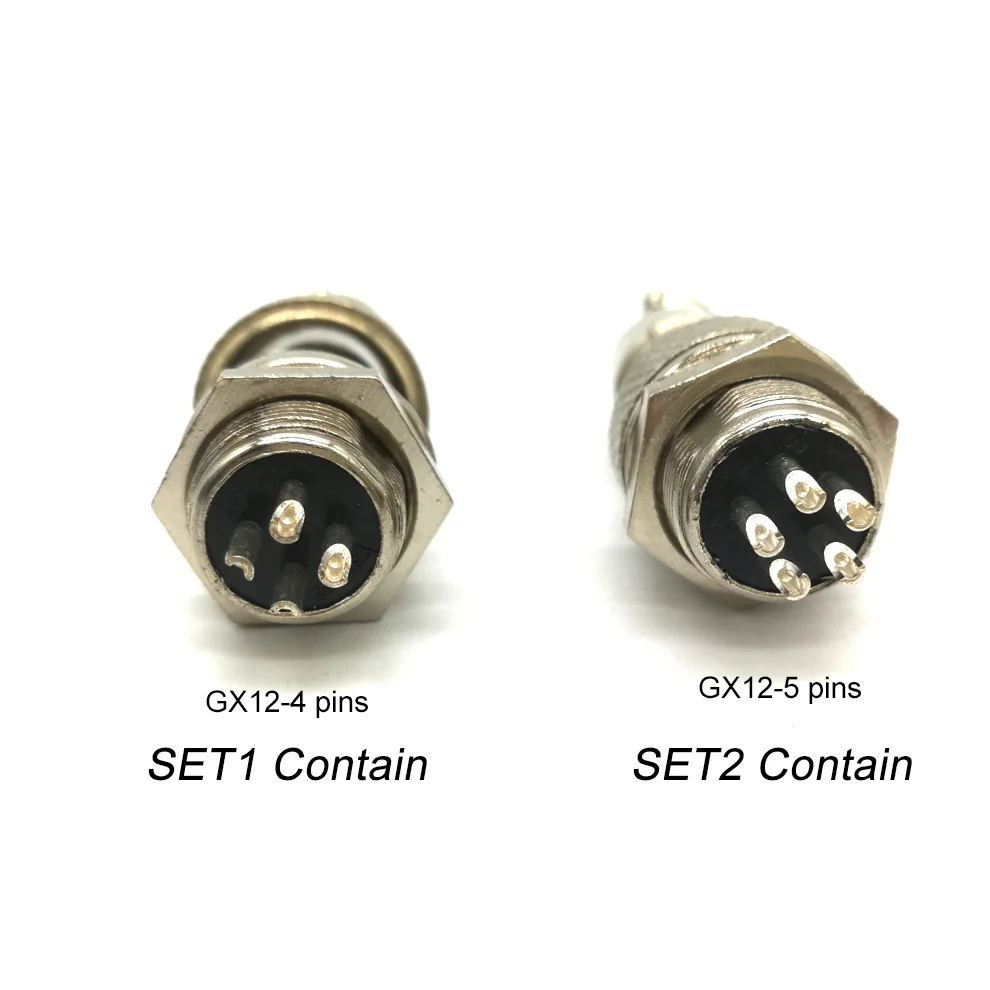

NOTE:Contains 5 components, please use the corresponding components according to the functional requirements of the controller!
Handle installation
Different controllers and handles are installed differently. We recommend the QUICKO controller, which is more convenient for 4 cores.
if you order 5pin use for t12-955 station
pls connect it as below:
1-> blue
2->white
3->green
4->black
5->red
Mercury vibration switch connect blue and green(Ground wire)
NTC connect white and green(Ground wire)
Handle installation
Different controllers and handles are installed differently. We recommend the QUICKO controller, which is more convenient for 4 cores.
if you order 5pin use for t12-955 station
pls connect it as below:
1-> blue
2->white
3->green
4->black
5->red
Mercury vibration switch connect blue and green(Ground wire)
NTC connect white and green(Ground wire)
Product Description

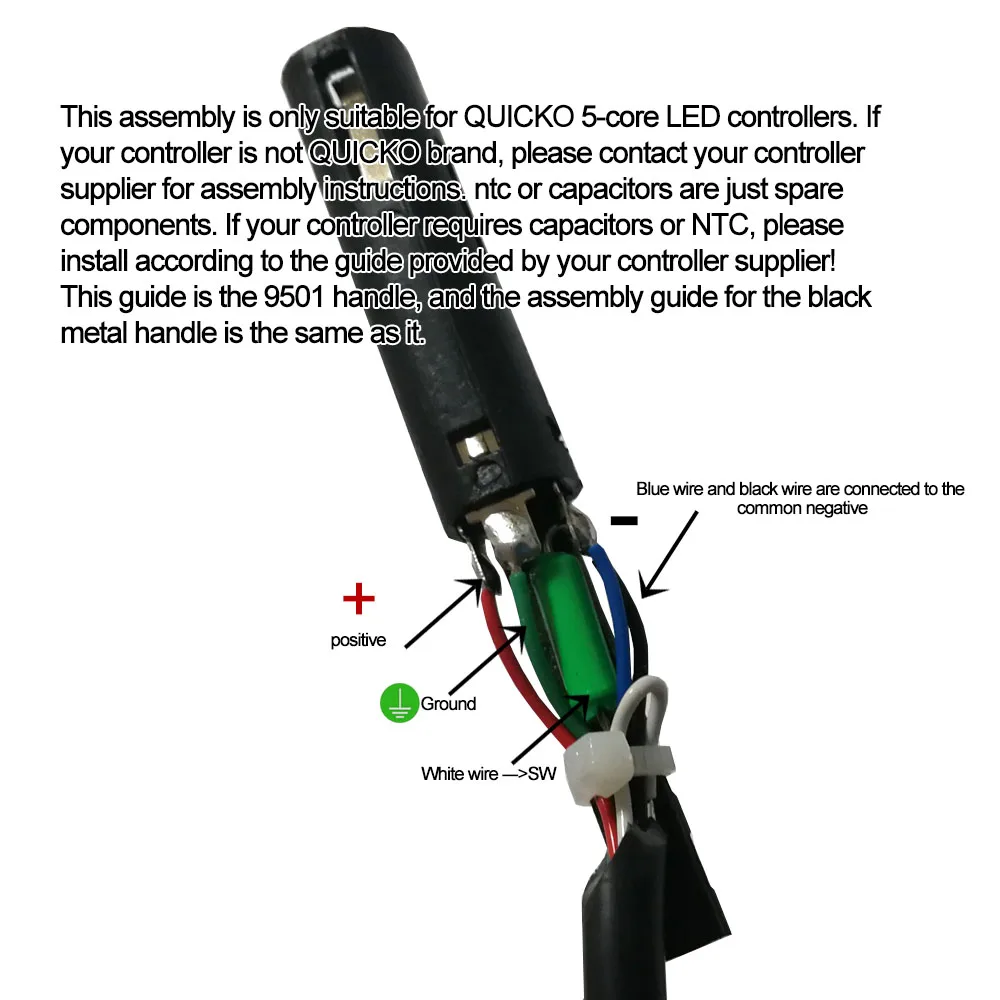

This assembly is only suitable for QUICKO 5-core LED controllers. If your controller is not QUICKO brand, please contact your controller supplier for assembly instructions. ntc or capacitors are just spare components. If your controller requires capacitors or NTC, please install according to the guide provided by your controller supplier! This guide is the 9501 handle, and the assembly guide for the black metal handle is the same as it.
Specification
item | value |
Condition | New |
Machine Type | Welding Manipulator |
Applicable Industries | Machinery Repair Shops, Home Use |
After Warranty Service | Online support |
Local Service Location | None |
Showroom Location | None |
Video outgoing-inspection | Not Available |
Machinery Test Report | Not Available |
Marketing Type | Ordinary Product |
Warranty of core components | Not Available |
Core Components | PLC |
Place of Origin | China |
Warranty | Unavailable |
Key Selling Points | High Productivity |
Weight (KG) | |
Voltage |
