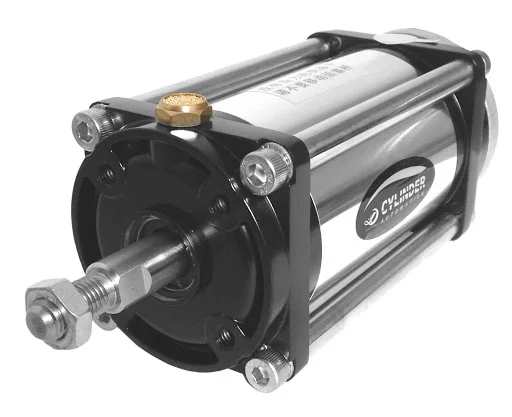

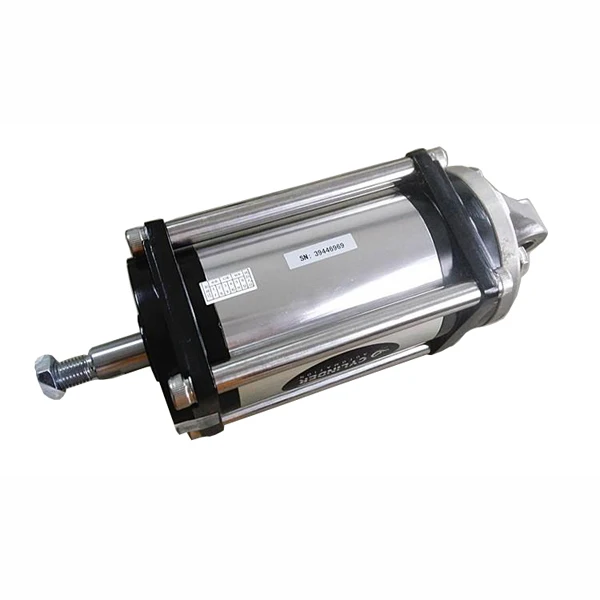

Custom single acting pneumatic cylinder small pneumatic cylinder pneumatic cylinder manufacturers
- Category: Pneumatic Cylinders >>>
- Supplier: Wenzhou Safely Machinery Co. Ltd.
Share on (1600231027239):
Product Overview
Description
NFC Series
Acting Type | Single Acting/Double Acting |
Bore Size (mm) | 40~200 |
Stroke (mm) | 8~320 |
Working Medium | Clean Air (No Oil, No Water) |
Working Pressure (MPa) | 0.003~0.8 |
Working Temperature (℃) | -2~60 |
Bearing Type | Dry Bearing |
Installation | Basic type, P type, L type, F type, R type, T type |

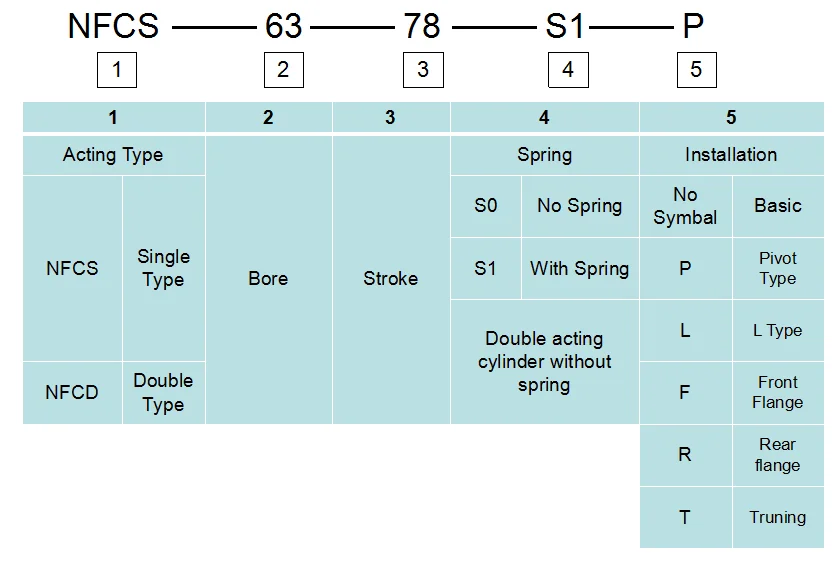

How to order
NSC Series
Acting Type | Single Acting/Double Acting |
Bore Size (mm) | 40~200 |
Stroke (mm) | 48~320 |
Working Medium | Clean Air (No Oil, No Water) |
Working Pressure (MPa) | 0.002~0.8 |
Working Temperature (℃) | -2~60 |
Bearing Type | Linear Ball Bearing |
Installation | Basic type, P type, L type, F type, R type, T type |

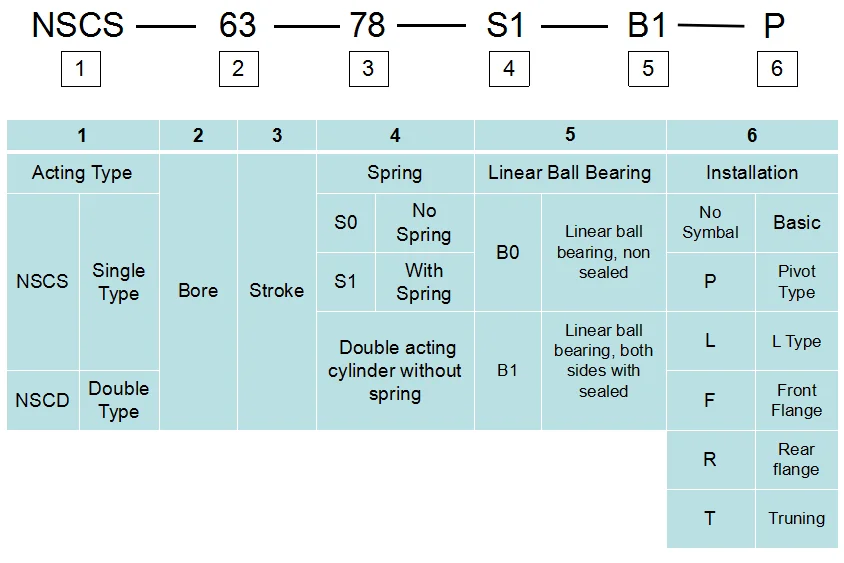

How to order
Specification
item | value |
Condition | New |
Warranty | 3 months |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , Other |
After Warranty Service | Video technical support, Online support |
Local Service Location | None |
Showroom Location | None |
Video outgoing-inspection | Not Available |
Machinery Test Report | Not Available |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Bearing |
Standard or Nonstandard | Nonstandard |
Structure | Piston Cylinder |
Power | Pneumatic |
Body Material | Steel |
Place of Origin | China |
Zhejiang | |
Product name | ISO Standard Pneumatic Cylinders |
Application | Machinery |
Working medium | Clean Air |
Type | Single Action |
Working Pressure | 0.002~0.8 |
Working Temperature | -2~60 Degree |
