Jinan Grace Industry CO.,Ltd
Dear Customers,
Important:
This machine included shipping charge, if your country side individual can’t import goods, then find a company which can import for you, if your country individual can import then no problem by sea delivery. If it not allowed then please let us know we need check courier delivery charge for you, this way no need custom clearance from your side.
After you place order please leave us information about below requests:
1.Please advise us your machine voltage (220v 50-60hz or 110v 60hz).
And your plug type (better to send us a photo of it to confirm before producing machine or after order).
2. which is your nearest seaport name (we offer sea freight free, after it arrive at seaport need your side to make custom clearance and to
get machine from seaport, our forwarder agency can do that for you if you don't have this experience. Machine is quite small within 1cbm, value
also not high, so these cost will not more there side).
3. Machine production time should be 3-5 working days around, shipping to different seaports time also different, usually from 18-35days around to USA, to other countries usually 30-45days around,kindly noted of time, thanks.
Note: Each time the machine color maybe different with our listing due to painting reason, we need paint many sets together in one time, sorry for inconconvenience.
Quotation Sheet
|
|

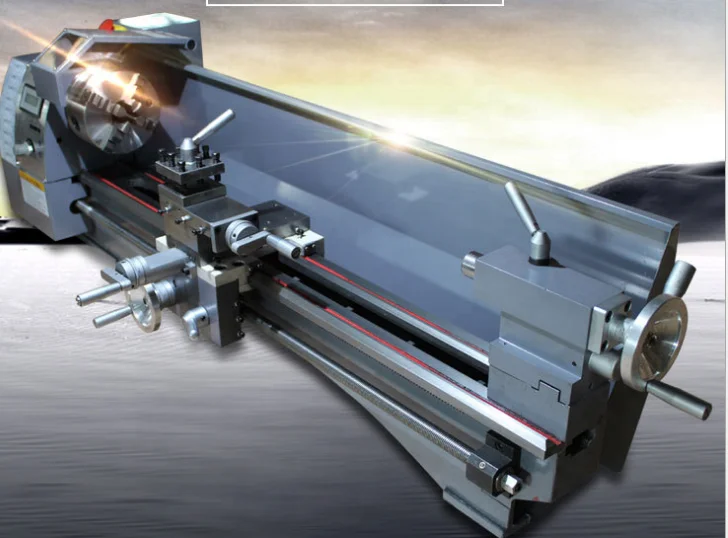

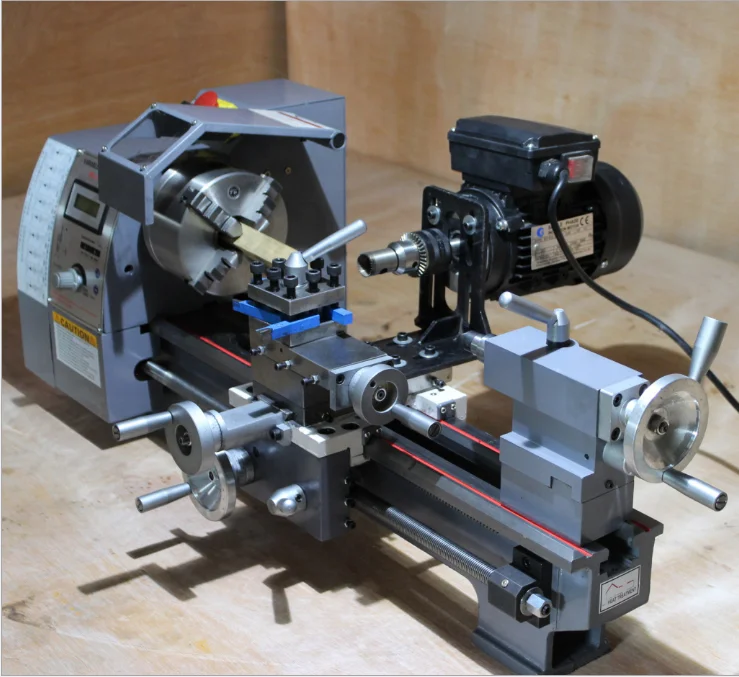

Manual desktop Metal Lathe Machine |
MOQ:1 SET Packaging: standard export package Delivery: 10-15 working days after getting payment Warranty: One year Certificate: CE
|
Model
|
210mm
|
Max swing over bed
|
210mm
|
Max swing over carriage
|
210mm
|
Through hole diameter
|
38mm |
Max milling length (distance between centers)
|
800mm
|
Spindle speed
|
0~3000rpm±10% |
Spindle power |
850W |
Voltage |
220V, single phase, 50-60HZ/110v 60hz |
Net weight |
83KG |
Gross weight |
90KG |
Machine dimension |
1250x400x480MM |
Packing size
|
1300X450X530mm (Export veneer wooden case) |
Standard chuck dimension:
3-jaw, diameter 125mm.
Optional accessories:
1. Stand
2. Steady rest
3. Follow rest
4. Face plate
5. 4-jaw chuck diameter 160mm
6. Live center
7. Halogen lamp
8. Thread chasing dial
Accessories:
