smart ecg pulse temperature multiparameter monitor

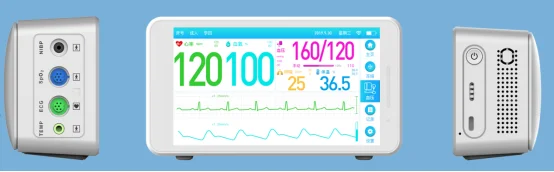

Name

Description

Power key

Press this button to turn On/Off the monitor.

Alarm LED

Flash when alarms happen.

Test paper port

Insert the test paper into the port to test Blood glucose.

Type-C input connector

Link to the external power rated 5V/2A.

Charging LED

It turns green when the external power is connected with
the monitor.

LCD area

Display measurement data and touch screen for operation.

NIBP cuff connector

Link to the NIBP cuff.

SpO₂ sensor connector

Link to the SpO2 sensor.

ECG cable connector

Link to the ECG cable.

TEMP probe connector

Link to the temperature probe.

Speaker holes

Play Alarms voice and key tone hrough these holes.

Function

Title

Description

Pace

on/off
♦ On: When “On” is selected, a detected pacemaker signal is indicated
by a "|" symbol above the ECG waveform.
♦ Off: When “Off” is selected, the pacemaker analysis is disabled.

Wave Gain

x0.25, x0.5, x1, x2
Adjust the amplitude of the ECG waveforms. A “1mV” scale is
displayed at the right side of each ECG waveform, the height of the
1mV bar is directly proportional to the ECG waveform amplitude.

Lead Type

3 Lead,5 Lead

Notch

On /Off
Determines whether filter or not.
♦ On: When “On” is selected, the monitor protects the signals from
the noise generated by the power line.
♦ Off: When “Off” is selected, there is no filtering for outside signals.

Filter

Diagnostic, Monitor, Surgery
The filtering enables clearer and more detailed waveforms. There are
three filter methods for selection.
♦ Diagnostic: The monitor displays the ECG waveforms without filter;
♦ Monitor: It effectively filters the artifacts that might cause false
alarms;
♦ Surgery: This filter is used to reduce the artifacts and interference
from electrosurgery equipment.
The selected filter is applied to both channels, but the filter label is
merely displayed above the first ECG waveform.

HR Source

HR comes from “ECG”, “SpO₂”, “Auto”.
♦ ECG: HR is always calculated from ECG.
♦ SpO2: If the ECG signal is seriously interfered, you can select SpO2,
which means PR will be derived from PLETH waveform.
♦ Auto: The priorities for heart rate calculation are:ECG, SpO2.

ECG
Calibration

On /Off
♦ On:the monitor will have a self-calibration for ECG waves.
♦ Off:self-calibration will stop.

Wave Speed

12.5mm/s, 25mm/s,

Sensitivity

High, Medium, Low

Wave Speed

12.5mm/s, 25mm/s

Apnea Time

Off, 10s, 15s, 20s, 25s, 30s, 35s, 40s
Apnea Time Determines whether the patient’s cessation of breath is
an apnea event.

Wave Gain

x0.25, x0.5, x1, x2, x4

Wave Speed

6.25 mm/s, 12.5 mm/s, 25 mm/s

Unit

mmHg, kPa

Mode

Aanual, Auto, Continuous
♦ Manual: Measurement on demand;
♦ Auto: Continually repeated measurements at set intervals;

Period

Off, 1min, 2min, 3min, 4min, 5min, 10min, 15min, 30min, 60min,
90min, 2hour, 3hour, 4hour, 8hour
Period is adjustable only when mode is “Auto”. Different time intervals
can be selected to determine the interval between automatic
measurements.

Pneumatic
Test

check/off
It is used to detect whether the air path leaks. When the cuff is
connected, this function can be used to start the air path inflation
process, so as to find whether the air path is in good sealing condition.
If the air leakage test is passed, the system will not give any prompt; if
not, there will be corresponding error prompt in the noninvasive blood
pressure parameter area.

NIBP
Calibration

On/off

NIBP Reset

Restore the initial settings of the pressure pump.

Unit

℃, ℉

Sensor Type

2.25K,10K
It depends on the type of temperature probe.
