High Precision Benchtop Digital Variable Speed Metal Lathe Mini Lathe 750w with Cheap Price

Share on (1600231657134):


Price:RUB 454,682.91

Quantity:


Product Overview

Description

Product Description



High Precision Benchtop Digital Variable Speed Metal Lathe Mini Lathe 750w with Cheap Price





Max. Swing over bed mm
400mm
Max. Swing over toolpost mm
220mm
Swing in gap/Gap length mm
700mm/260mm
Max workpiece length mm
750mm/ 1000mm/1500mm/2000/3000mm
Width over bedways mm
394mm
Main motor power kW
7.5kW
Diameter spindle bore mm
52mm
Spindle nose
C6
Spindle speed r/min
11-1400 r/min
Spindle speed
22
Tailstock quill taper
No 5 MT
Quill diameter/Quill travel Tailstock mm
75/150mm
No. of Vertical and Longitudinal feed mm
45
Distance from spindle center to tool support surface mm
26mm
Travel of tool carrier
X 348mm/Z 700,950,1450,1950,2950mm
Size & weight
2650/2920/3420/3920/4920 × 1225 × 1300mm 2100/2150/2400/2610/3100kg(750/1000/1500/2000/3000)
Standard configuration

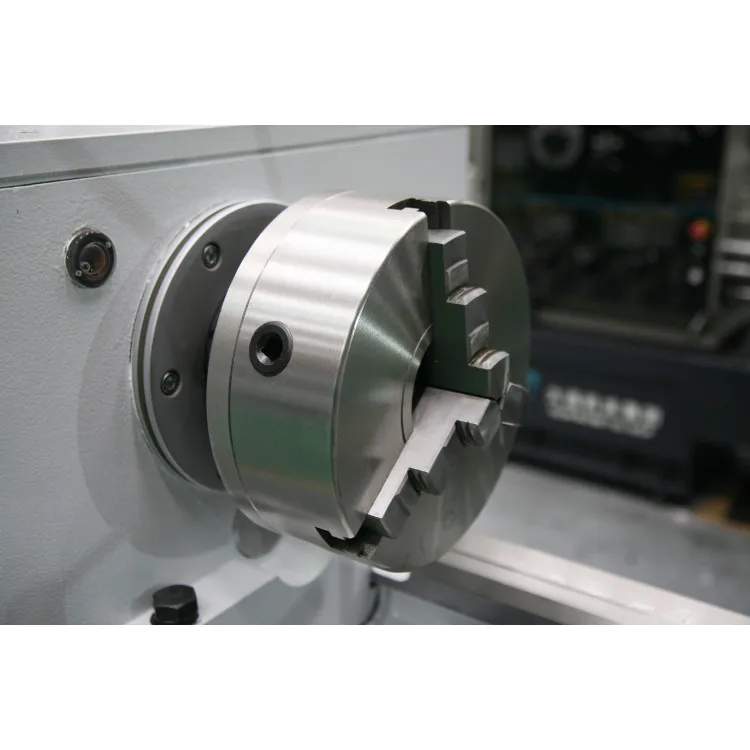

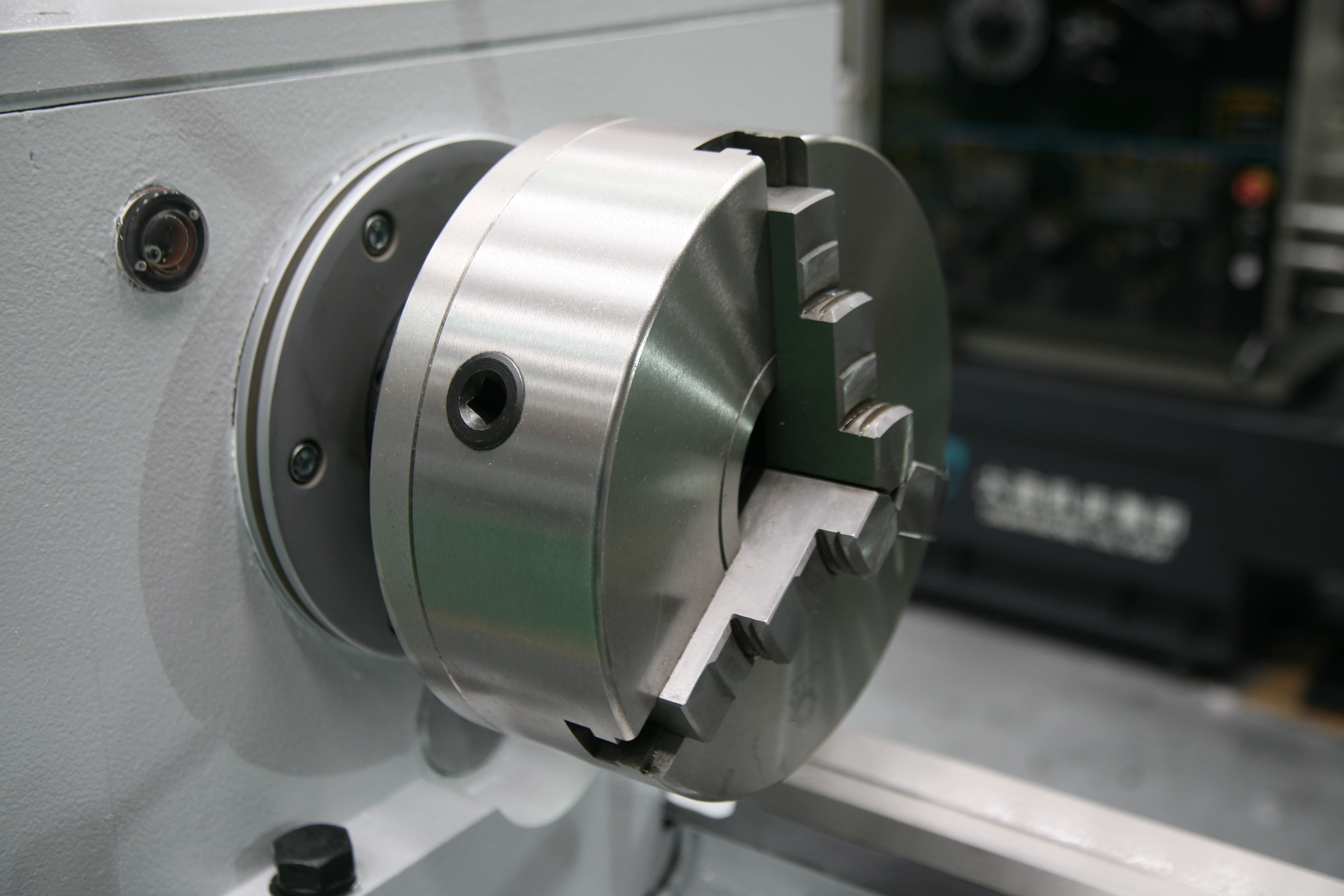

3-jaw chuck 250mm, 4-position tool holder,
Manual tailstock,Thread indicator,
Tailstock dead top parts,
Working lighting,
Automatic lubrication system of guide rail,
Automatic cooling system, Centre rest, Follow-rest, A set of keys and tools for machine tool maintenance,
Lubrication gun,
English documents
Optional configuration
3-jaw chuck, 4-jaw chuck,
11kw main motor,
Taper ruler,
DRO,
Flat plate,
Centre rest,
Follow-rest,
live center,
quick-change tool holder
