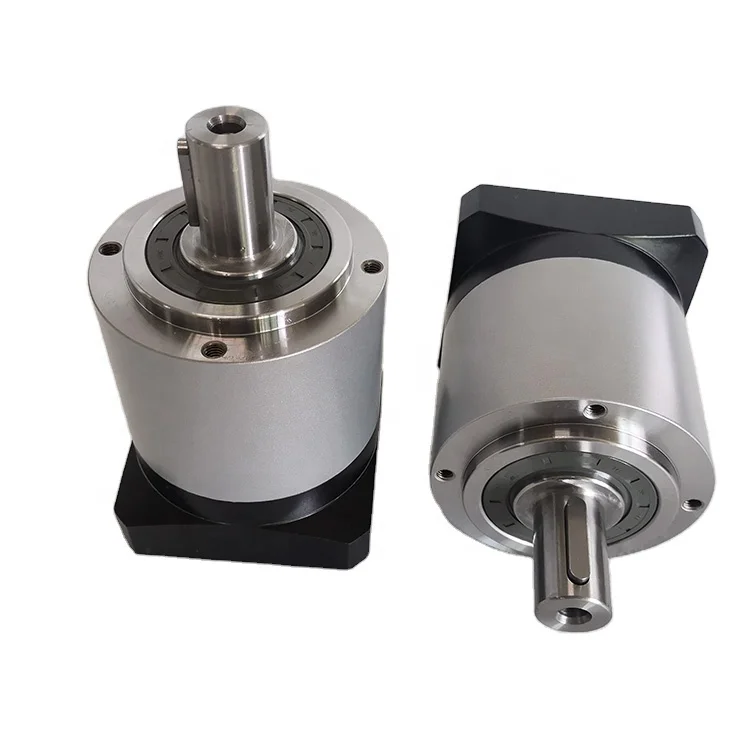

VRL Hybrid Planetary Reduction Stepper Motor Ratio 3 5 10 Planetary Gearbox Nema 17 Step Motor Gear Reducer
- Category: >>>
- Supplier: Jiangsu Fenghua Transmission Technology Co. Ltd.
Share on (1600231758913):
Product Overview
Description
Product Description

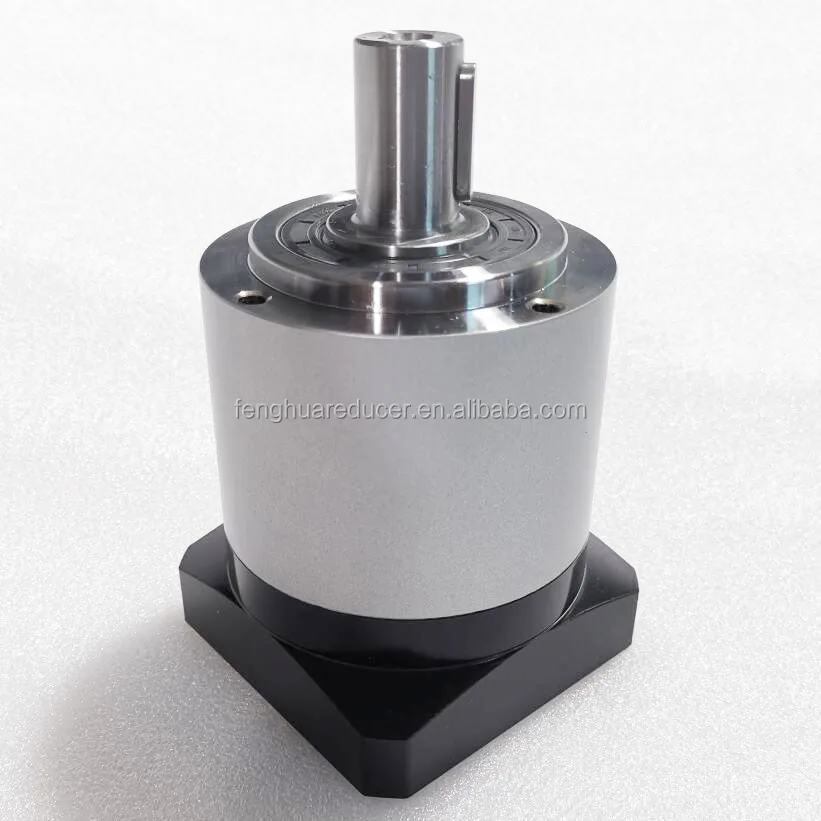

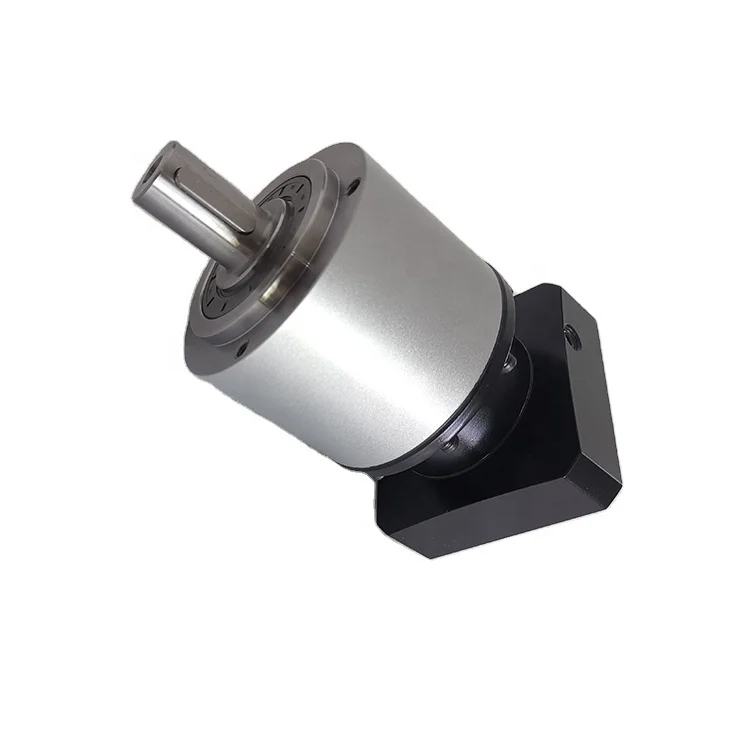

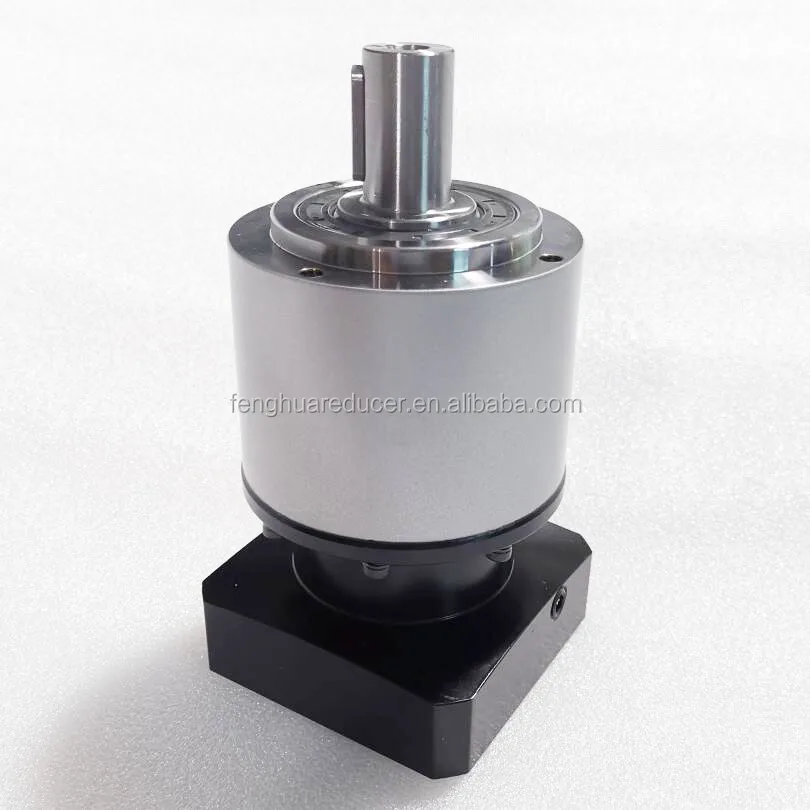

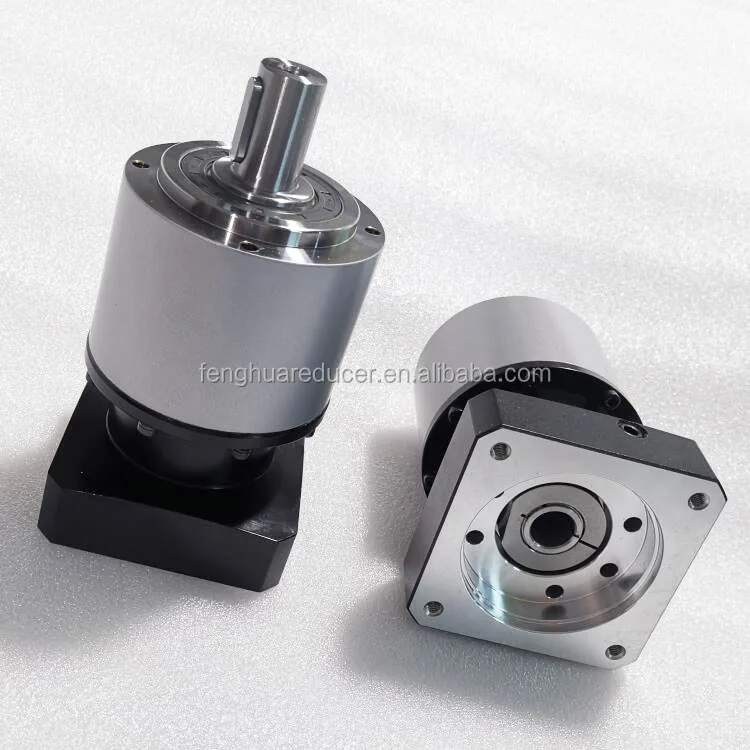

VRL Planetary Gear Box NEMA23 Stepper Motor
Speed Reducer for CNC machine
VRL has full dimensions,matching the dimensions of any brands of servo motors and stepper motors.It can directly replace the similar models of other brands on the market. High quality of machined planetary helical gears contribute to VRL reducer running more quietly and more effectively. Fenghua VRL planetary reducers are widely used in CNC machines,injection molding machines, linear slides, pick and place automation, gantries, cutting and welding machines, etc.

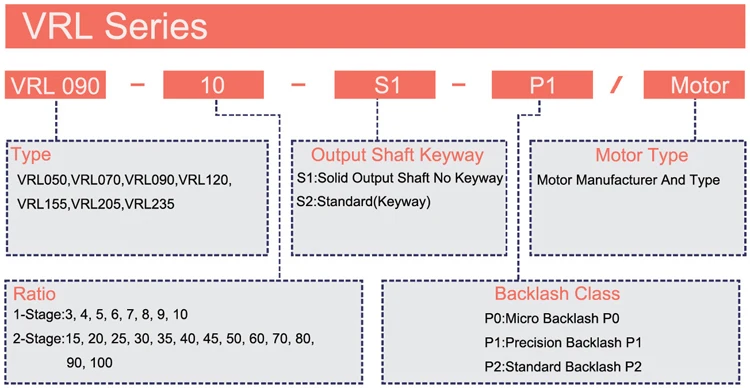

VRL precision planetary gearheads have two stage reduction ratio:single stage and double stage.
Single stage ratio: 3,4,5,6,7,8,9,10
Double stage ratio:15,20,25,30,35,40,45,50,60,70,80,90,100
Model | VRL050, VRL070, VRL090, VRL120, VRL155, VRL205, VRL235 |
Ratio | 1:3~1:100 |
Precision | P1: L1 ≤ 4arcmin ; L2 ≤ 6arcmin P0: L1 ≤ 2arcmin ; L2 ≤ 4arcmin |
Torque | 14~2000Nm |
Using Life | 20000h |
Efficiency | 94%~97% |
(1)Quiet operation
Helical gears contribute to reduce vibration and noise(2)High precision
Standard backlash is arc-min,ideal for precision control
(3)High rigidity&torque
High rigidity&high torque were achieved by uncaged needle roller bearings

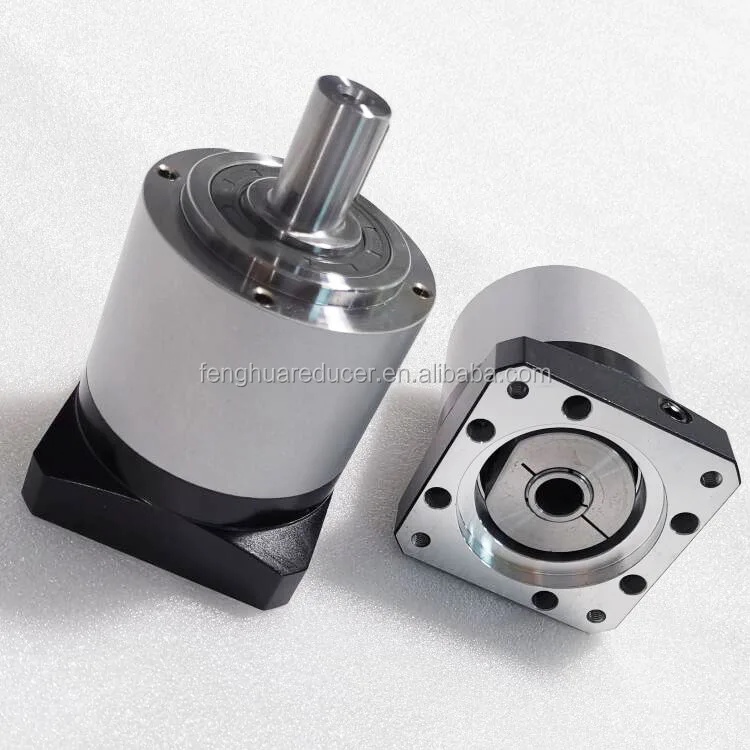

(4)Adapter-bushing connection
Can be attached to any motor all over the world
(5)No grease leakage
Perfect solution using high viscosity anti-separation grease.
(6)Maintenance-free
No need to replace the grease for the life of the unit.Can be attached in any position.
Paramenters

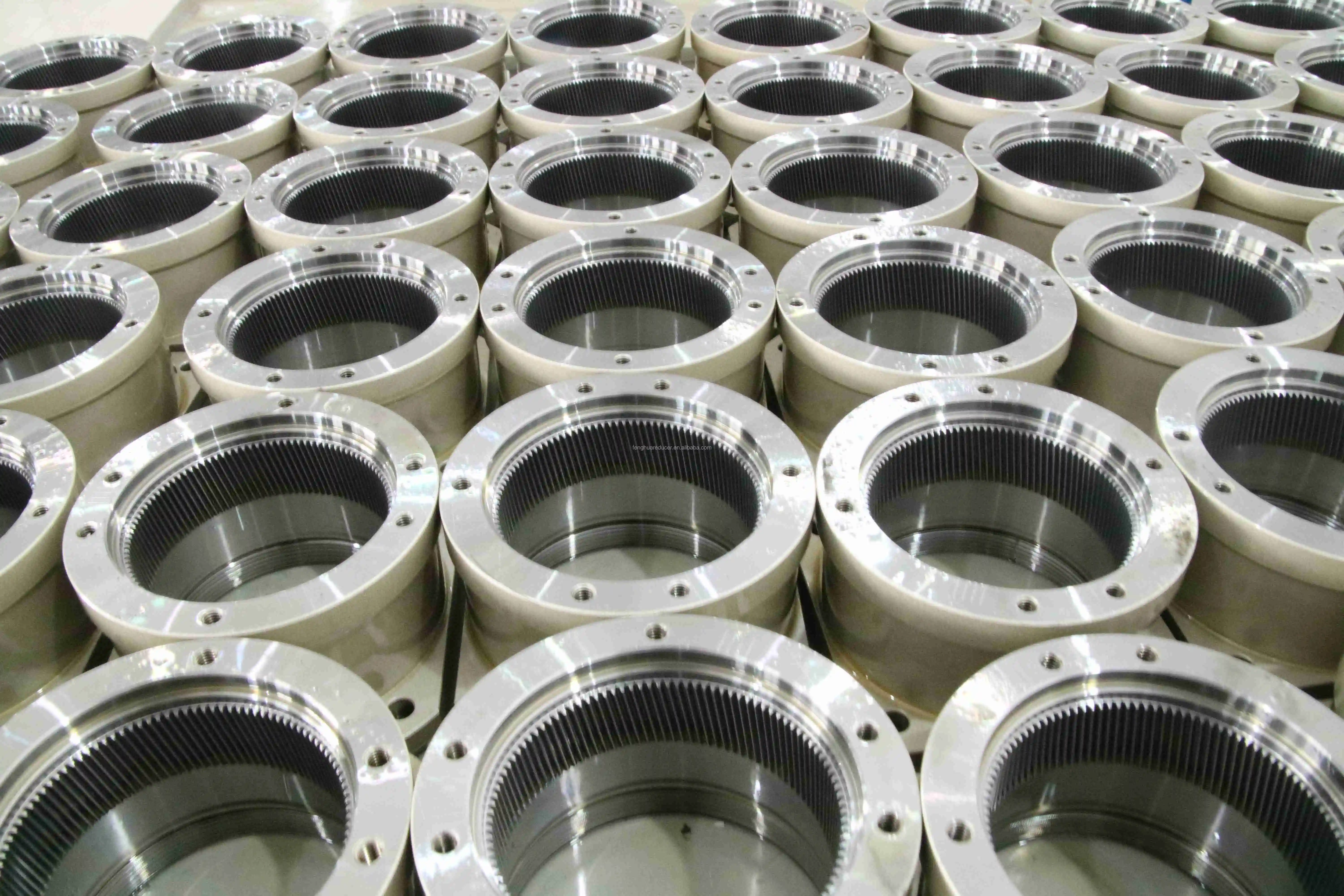

Detailed Images

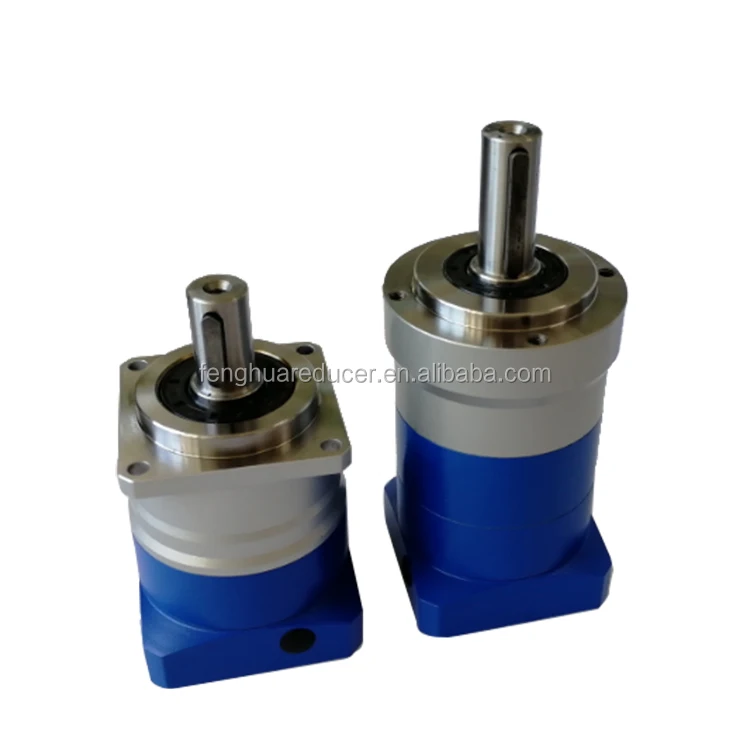

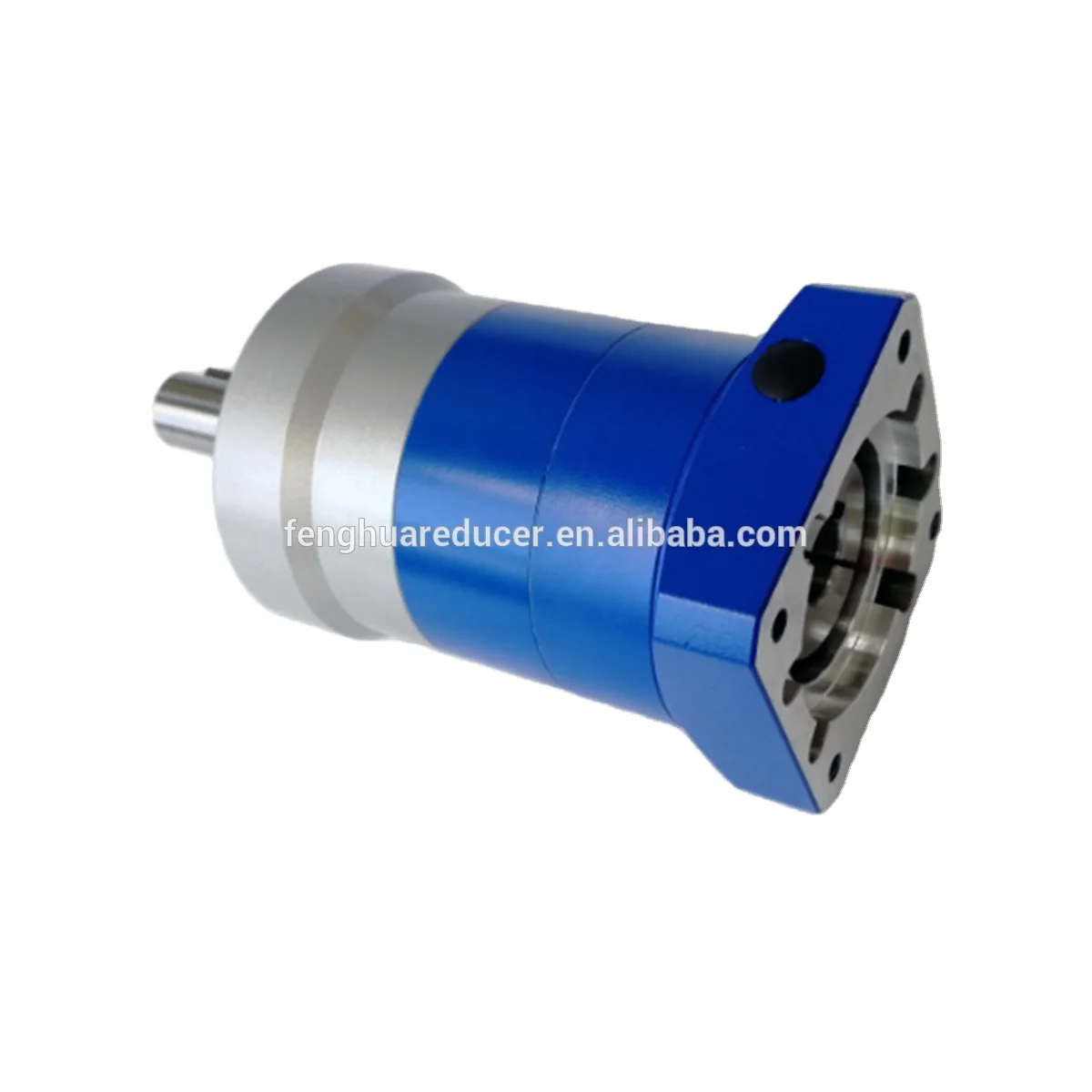

Related Products
Size Information
Why Choose Us
(1) Factory directly supply, advantage price, short delivery time, professional technical service.
(2) The complete range of products can provide customers with complete transmission solutions,
which saves customers time and effort in purchasing
(3) Can match any brands of servo motors, stepper motors and brushless DC motors, so it can replace
all brands of relevant reducers on the market.
(4) OEM and product customized service is available, meet your customized requirements.
(2) The complete range of products can provide customers with complete transmission solutions,
which saves customers time and effort in purchasing
(3) Can match any brands of servo motors, stepper motors and brushless DC motors, so it can replace
all brands of relevant reducers on the market.
(4) OEM and product customized service is available, meet your customized requirements.
