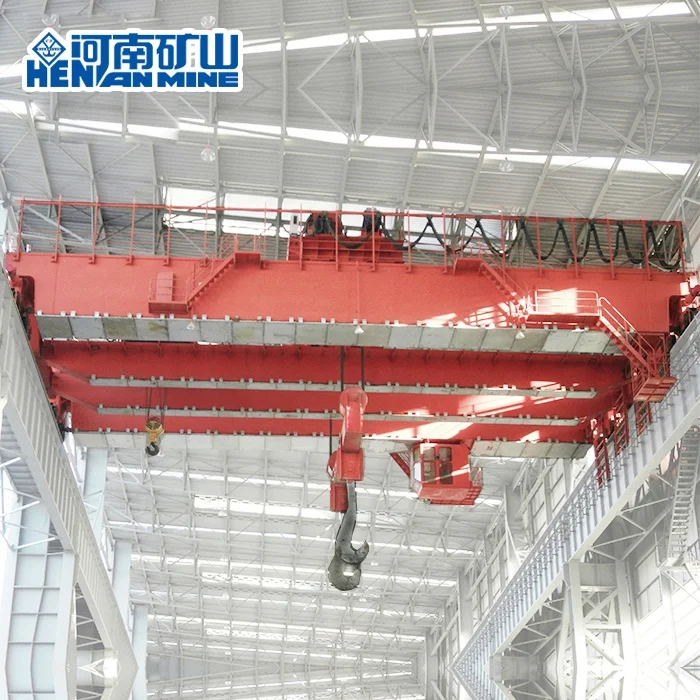

YZ model double girder overhead casting crane with bucket



 double girder overhead casting crane  is one of the main equipments in the continuous casting technology of  steelmaking. It is mainly used for pouring melted iron from additive bay of converter to converter; lifting melten steel from refining bay to refining furnace or lifting melten steel from melten steel bay to ladle turret of continuous casting machine.

The overall structure of foundry crane has the following forms: two girder and two rail, four girder and four rail, and four girder and six rail, etc. The form of two girder and two rail, four girder and four rail,  double girder overhead casting crane are mainly used for middle and large-tonnage foundry crane; the form of four-girder and six-rail and two trolley is mainly used for extra large-tonnage foundry crane.

Working condition of double girder overhead casting crane :

Working tempreture:-10~+60°C,

Work class:A7,A8

Power Source:3ph,380V,50HZ or other under customer requirement.



lifting capacity		100/32			125/32
working class		A7			A7
span		19	22	25	19	22
lifting height	main hook	18	20	25	24	20
	auxiliary	20	22	27	26	22
speed	main	6.8	6.8	8.6	9.5	7.6
	auxiliary	9.5	9.5	12	12	9.5
	trolley	37	37	41	42	36
	crane	68	68	77	77	77
main dimensions	H	4300	4300	4500	5150	5200
	H1	4500	4500	5000	5000	5000
	H2	1200	1200	1300	1350	1350
	BQ	13500	13800	14800	14800	14800
	K	7800	8000	9000	9000	9000
	b	410	410	410	410	410
limit dimension	H3	3500	3500	3500	380	380
	H4	1200	1200	1200	1200	1200
	S1	2000	2000	2000	2200	2200
	S2	3700	3700	3700	4100	4100
	S3	4100	4100	4100	4700	4700
	S4	1600	1600	1600	1600	1600
max wheel load		520	530	545	580	595
steel track recommended		QU120	QU120	QU120	QU120	QU120
power source		A.C 3phase 380V 50Hz~440V 60hz

Casting crane Safety feature:

Weight overload protection device,

Top quality long time bearing polyurethane materials buffer,

Crane traveling limit switch, Voltage lower protection function,

Emergency stop system,

Current overload protection system and so on!

Design and construction rules:

All the standards which is required for the crane is the Chinese standard of double girder overhead cast crane .



 Casting crane Lift metal smelter Painting:

Primer and finishing paint

Color: according to your demand.

Average thickness: about 100 microns.



 Casting crane lift smelter Ordering instructions:
1, what's the lifitng capacity?

2,what's the span of the crane(from rail center to rail center)

3,what's the lifting height?

4,what's the working time and frequency?

5,what speeds(lifting speed, travel speed) do you need?

6,what's the working industry voltage there?

7,what control methods do you need:cabin control, remote control or cabin+remote control?

8,what color do you need?

9,your other special requirements

we will make our best offer strictly as per your detailed requirements. And we will be clear about your requirements after reciving your kindly confirmations! So to make us make our best offer ,so please send us your kindly inquiry wiht the detailed infomation. thank you for your kindly cooperation in advance!

Welcome contact us by E-mail or online, you will receive our prompt and careful reply!

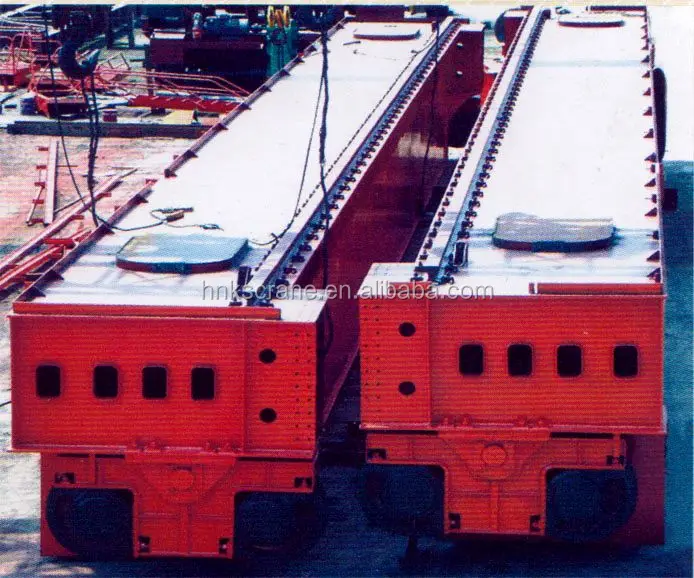

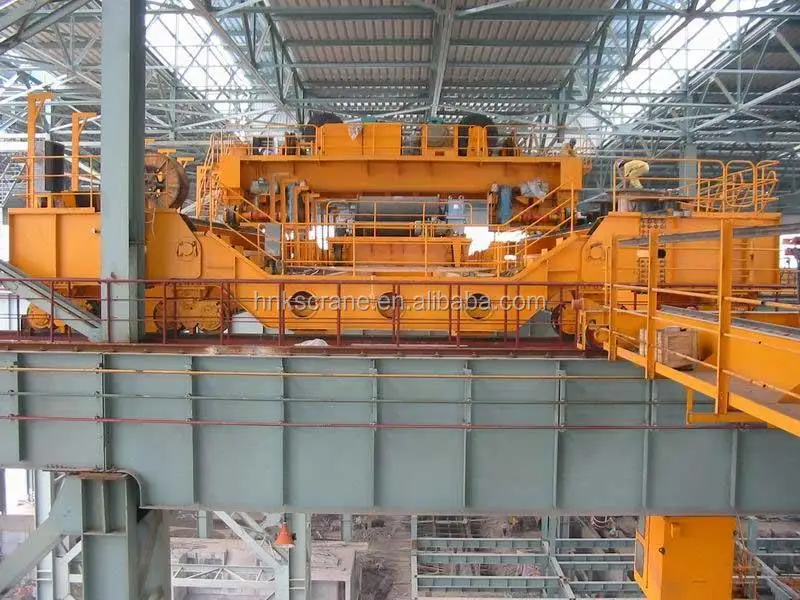

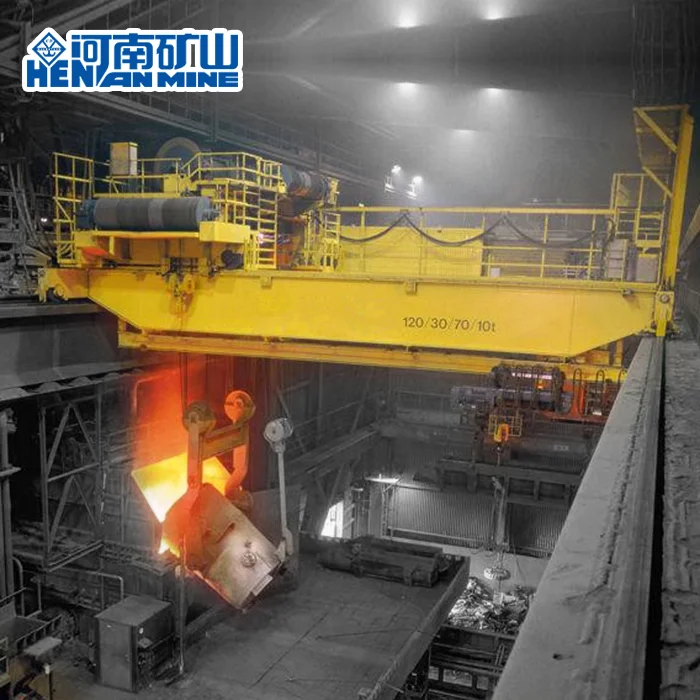

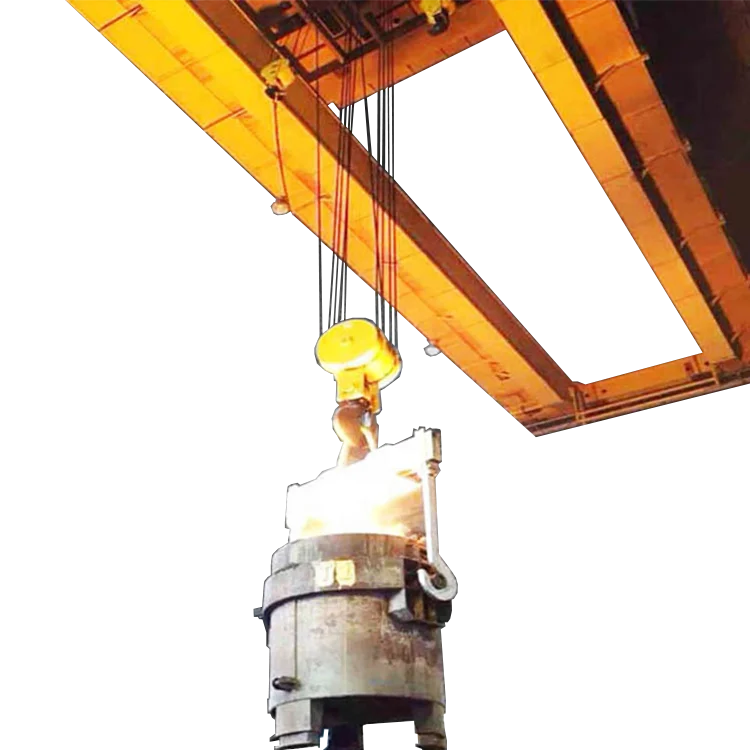

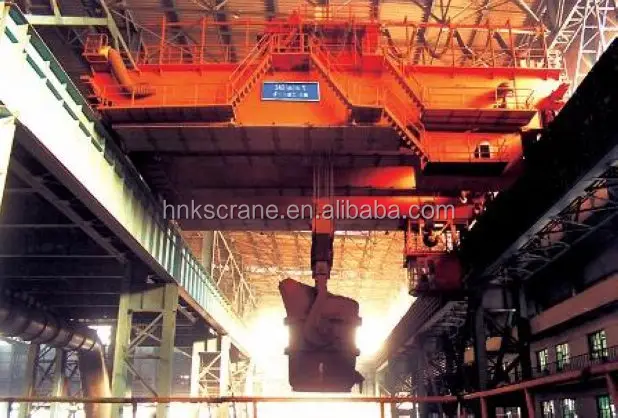

The photos of our double girder overhead cast crane:

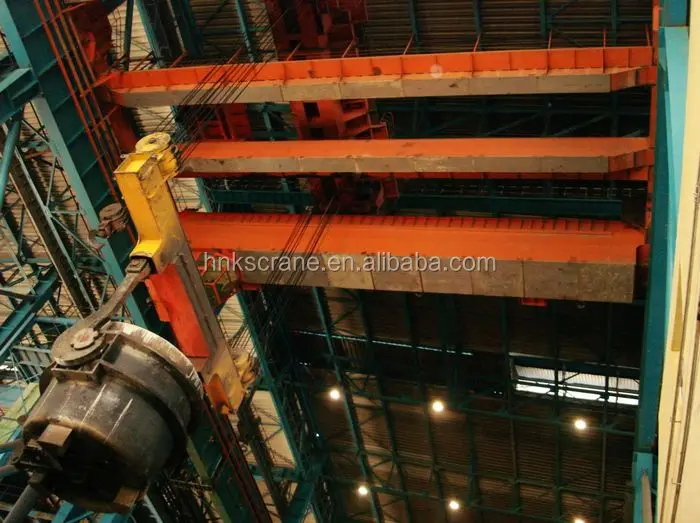

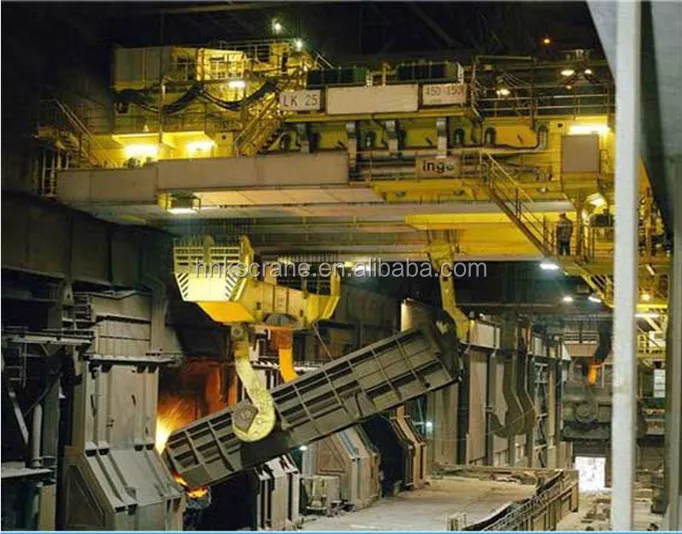

casting crane with buckets
