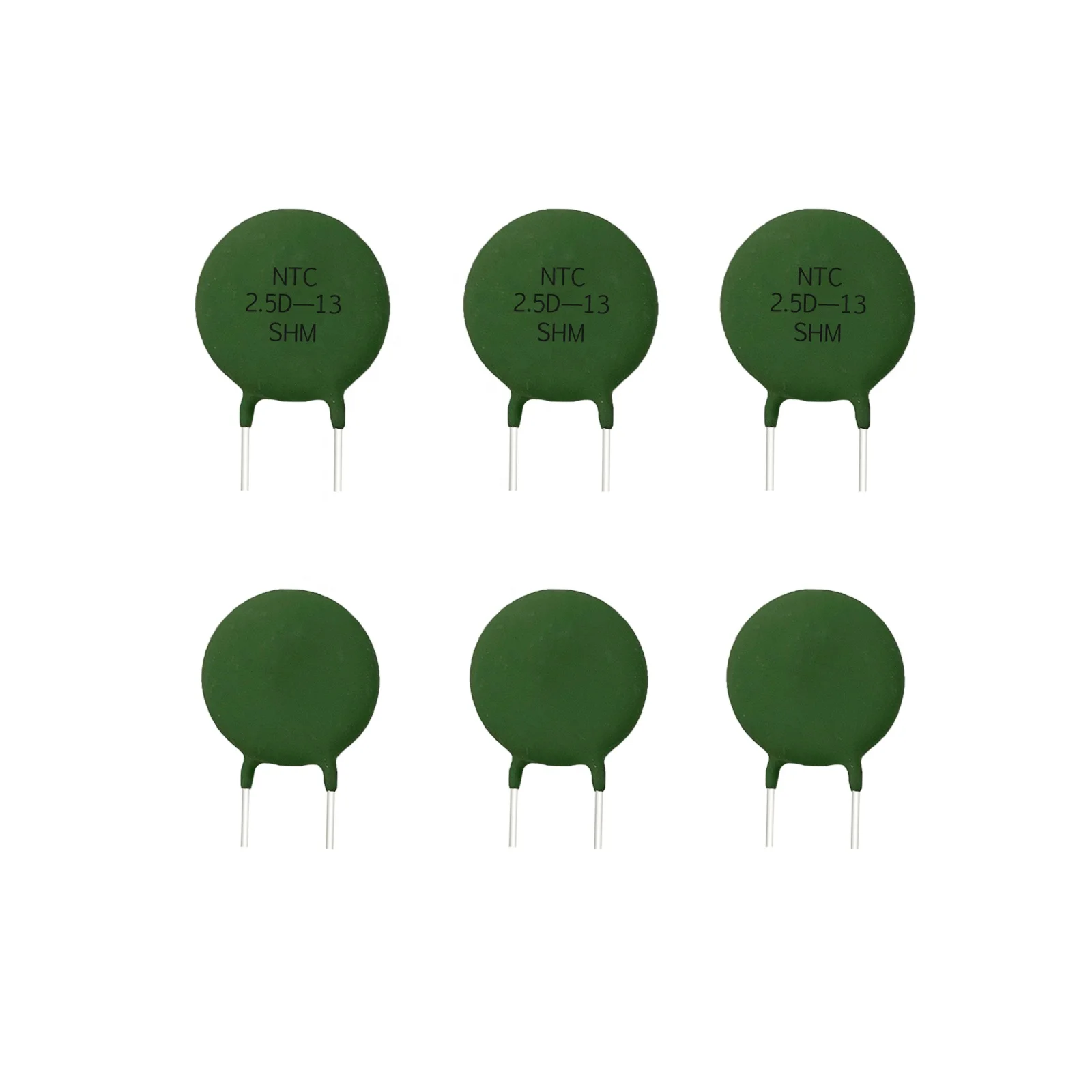

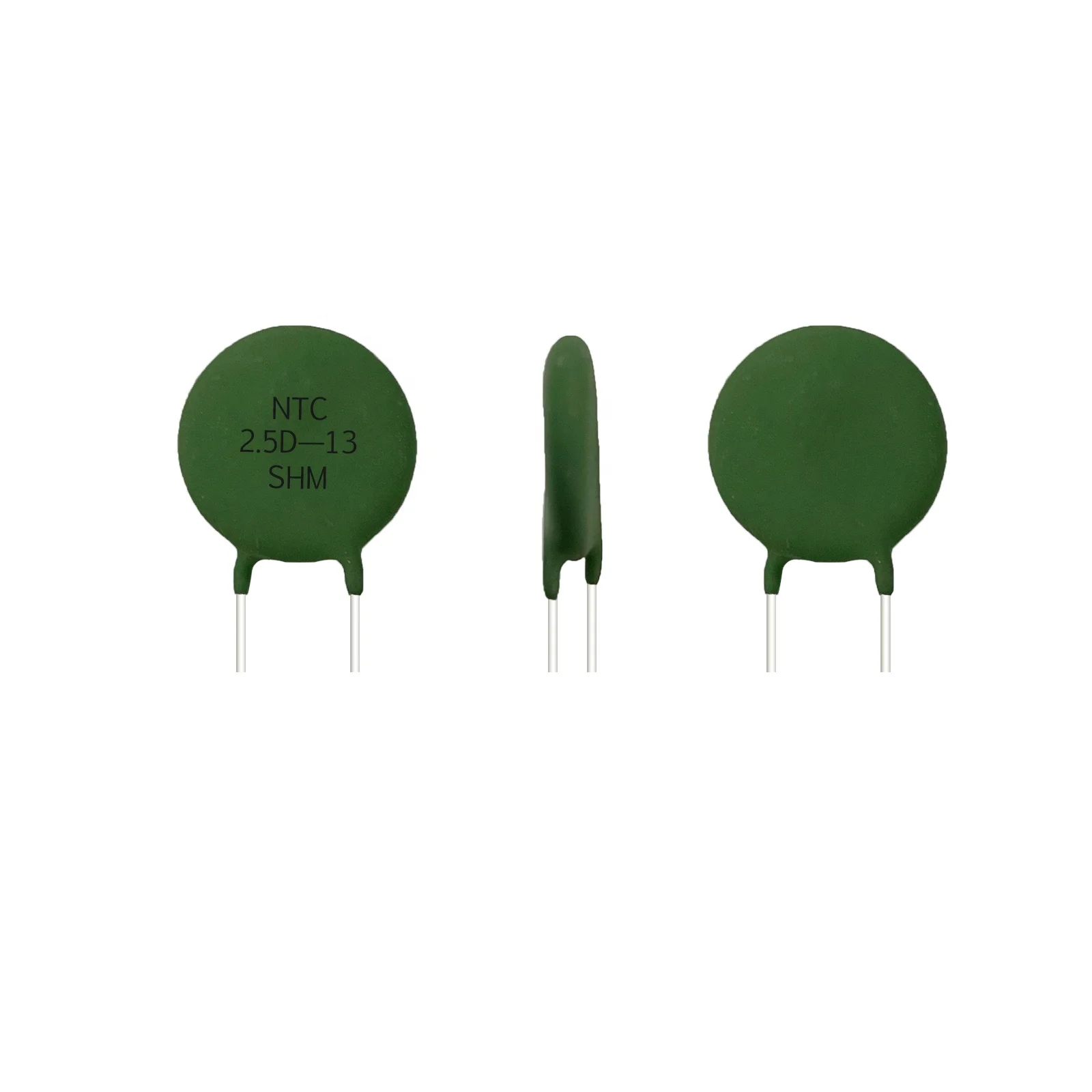

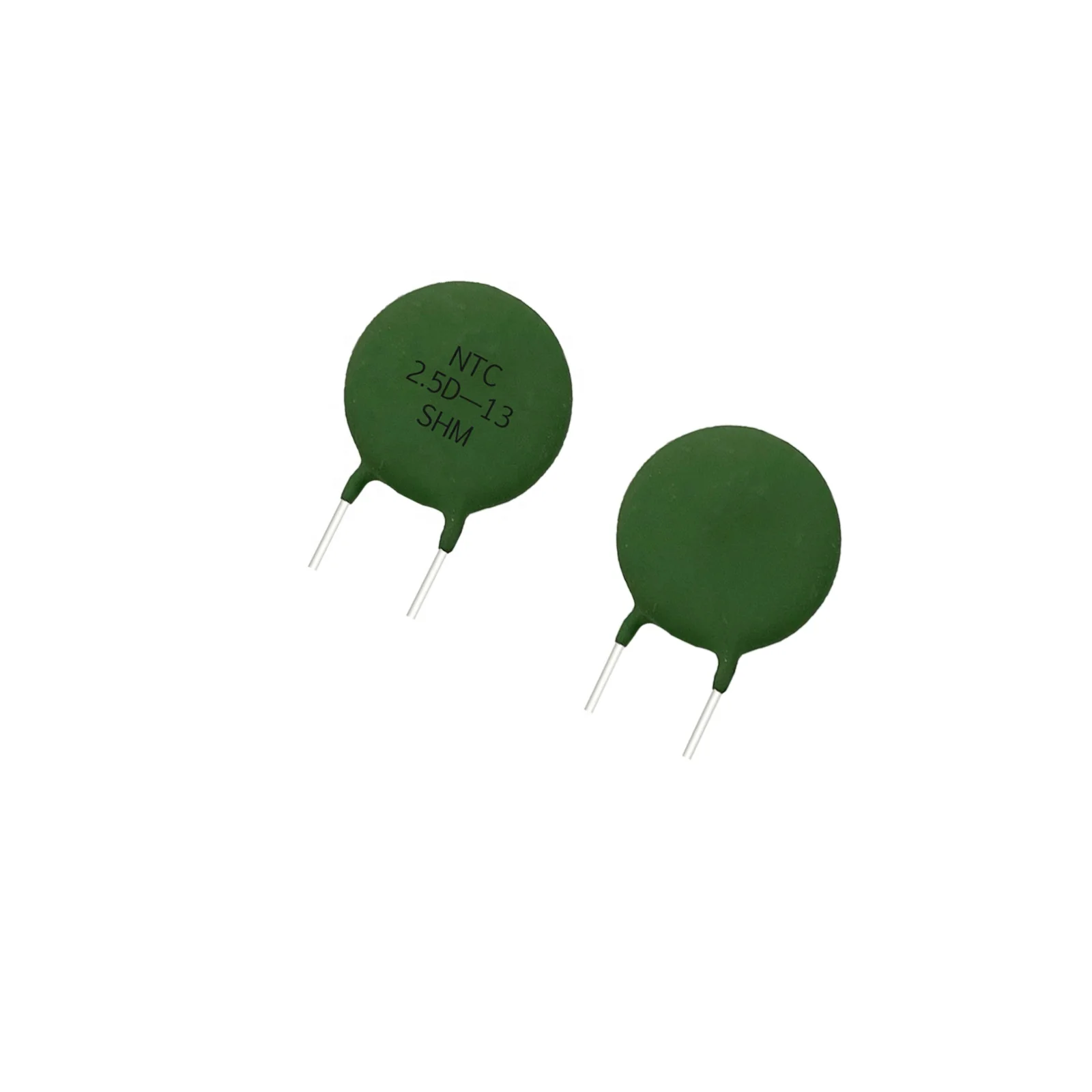

Original factory NTC thermistor power NTC 8D 9 thermistor
- Category: >>>
- Supplier: Guangdong South Hongming Electronic Science And Technology Co. Ltd.
Share on (1600232129178):
Product Overview
Description
Product Description
Product Paramenters
Place of Origin | Guang Dong China |
Brand Name | SHM |
Product Type | Power NTC thermistor |
Rated zero-power resistance @25℃ (Ω) | 2.5 |
Product Size | 13 |
Tolerance | ± 20% |
Lead Style | L |
Lead Diameter(mm) | 0.75±0.05 |
Lead Length | 3.5± 0.5 |
Packing Method | Bulk |
Lead Spacing(mm) | 7.5 |
Coating Material | Green silicone resin |
Maximum Steady Current @25℃ (A) | 6 |
Residual resistance at maximum steady current @25℃ (A) | 0.1079 |
B25/82(K) | 2700 |
Thermal Time Constant (s) | <70 |
Dissipation Factor (Mw/℃) | >13 |
Marking | General Marking |
Operating tempreture | -40℃ ~ +200℃ |
Approved Certifications | UL, CUL, CQC,TUV |
Company Profile
Exhibition
Certifications
Transport
FAQ
Q1: Are you manufacturer?
A1:Certainly, we are an orginal factory from ceramic powder to finished product with 32 years manufacturer experience.
Q2: Can I take sample order?
A2: Samples are free of charge to provide. We believe that try and test samples then making a big decision is a necessary step before we build up long term cooperation.
Q3: Can you offer the OEM for us?
A3: We don't support OEM orders, our brand SHM is one of the most famoue brand around the world.
Q4: How do you guarantee for the products quality?
A1:Certainly, we are an orginal factory from ceramic powder to finished product with 32 years manufacturer experience.
Q2: Can I take sample order?
A2: Samples are free of charge to provide. We believe that try and test samples then making a big decision is a necessary step before we build up long term cooperation.
Q3: Can you offer the OEM for us?
A3: We don't support OEM orders, our brand SHM is one of the most famoue brand around the world.
Q4: How do you guarantee for the products quality?
A4:We control the quality from very beginning. All employees are being professional training.Every working station has detailed employment instructions.These is also independent QC team who has fully time control the production quality.
Q5: How long is your delivery time?
A5:If the model we have in stock, we could send out in 3 working days after receiving full payment.If no stock, delivery day will be 35 to 40 working days after confirming all the details.
Q5: How long is your delivery time?
A5:If the model we have in stock, we could send out in 3 working days after receiving full payment.If no stock, delivery day will be 35 to 40 working days after confirming all the details.
