3D Fiber Laser Engraving Machine Curved Surface Dynamic Focusing 50w fiber laser marking machine
- Category: >>>
- Supplier: Jinan Quality CNC Machinery & Equipment Co. Ltd.
Share on (1600232184221):
Product Overview
Description
3D Fiber Laser Engraving Machine Curved Surface Dynamic Focusing 50w fiber laser marking machine
Agency price can be negotiated！
3D Dynamic Focus Fiber Laser Marking Machine can not only mark 3D ( relief engraving ) on big flat surface , but also can engraving on undulating surface, curved surface .
With fiber laser source JPT 50w, it can mark on alomst all metals and some nonmetals.
Configurations:
♯ Beijing JCZ EZcad Dynamic focus Galvanometer scanner;
♯ Beijing JCZ EZcad3 control system;
♯ Beijing JCZ EZcad3 control system;
♯ Chinese JPT 50W fiber laser source;
♯ Laser type: 1064nm;
♯ Opex Field lens;
♯ Motorized auto focus;
♯ Up-down motorized outer-door;
♯ Industrial computer;
♯ Industrial computer;
♯ Foot switch;
♯ Air-cooling for control cabinet;
# Power supplier: 220V/110V, 1PH, 50HZ/60HZ.
♯ Air-cooling for control cabinet;
# Power supplier: 220V/110V, 1PH, 50HZ/60HZ.
# Rated power: 1000W
Machine Paramenters

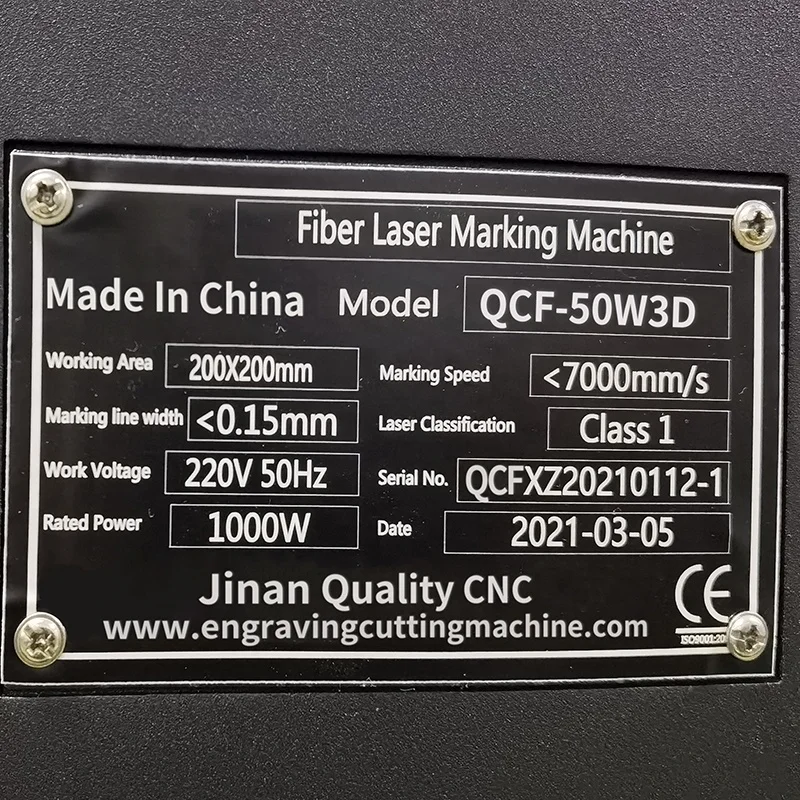

No | Product Name | Fiber Laser Marker QCF-50W3D |
1 | Laser Source | Chinese brand JPT |
2 | Continuous Rated Output Power | 50W |
4 | Wavelength | 1064nm |
5 | Beam Quality | M² ≤ 2 |
6 | Minimum Line Width | ≤0.15mm |
7 | Pulse Repetition Frequency | 20KHZ----100KHZ |
8 | Galvanometer Scanner | Beijing JCZ Dynamic focus |
9 | Field Lens | Opex |
10 | Control Software | Beijing JCZ EZCAD3.0 software |
11 | Marking Size | 200*200mm (110*110mm, 150*150mm, 300*300mm optional) |
15 | Marking Depth | Depend on materials |
16 | Marking Speed | ≤7000mm/s |
17 | Cooling Device | Build-in air-cooling |
18 | Working Tables | Aluminum alloy flat working table |
19 | Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc. |
20 | Graphic Format Supported | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
21 | JPT Laser Tube Lifetime | more than 100,000 hours |
22 | Warranty | JPT laser source: 24 month warranty period |
23 | Computer | Industrial computer with Beijing EZCAD3.0 controlling system |

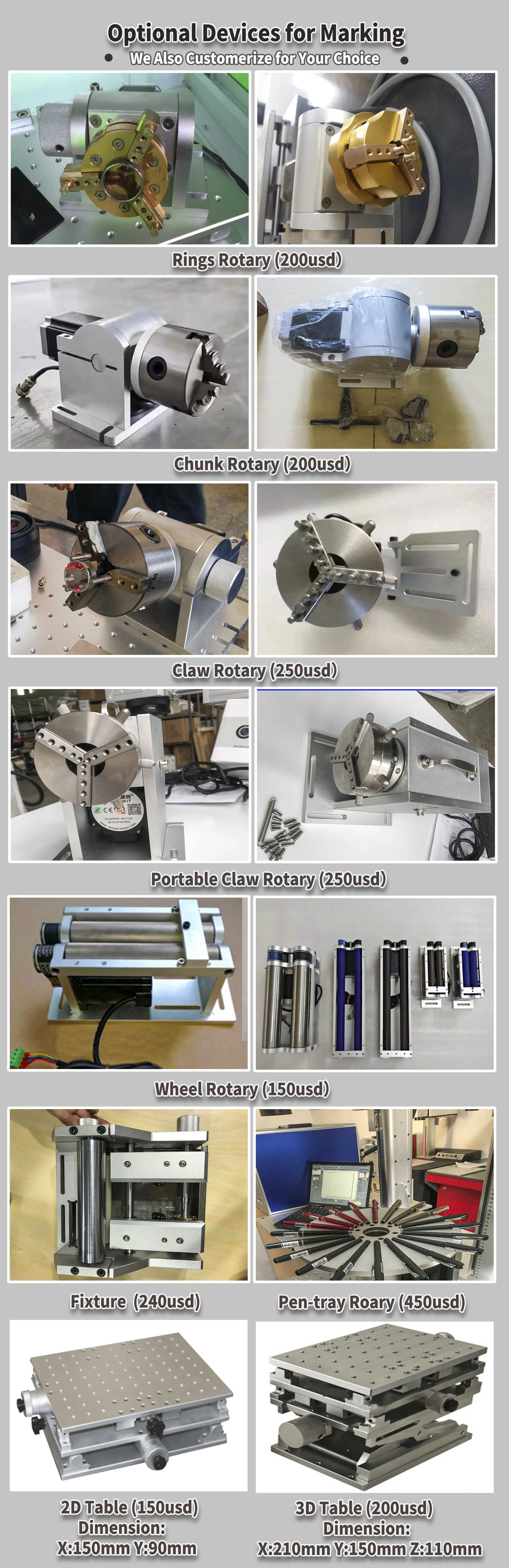

24 | Optional Functions | Rotary device |
25 | Consumed Power | <1000W |
26 | Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
27 | Working Environment | Clean and dust-free or dust-less |
28 | Working Voltage | 220V±10%/50Hz or 110V±10%/60Hz or customized |
29 | Gross/Net Weight | 140kgs/170kgs (with exporting wooden box) |
30 | Packing Size | 1700*800*650mm |
Machine Description
Machine Configurations
JPT fiber laser source:
Lifespan: more than 100,000 hours
Warranty: 24 months.
Controlling cabinet with Beijing JCZ mainboard and Taiwan Meanwell Switch power supplies
Connectors:
Foot switch; Rotary; Main power.

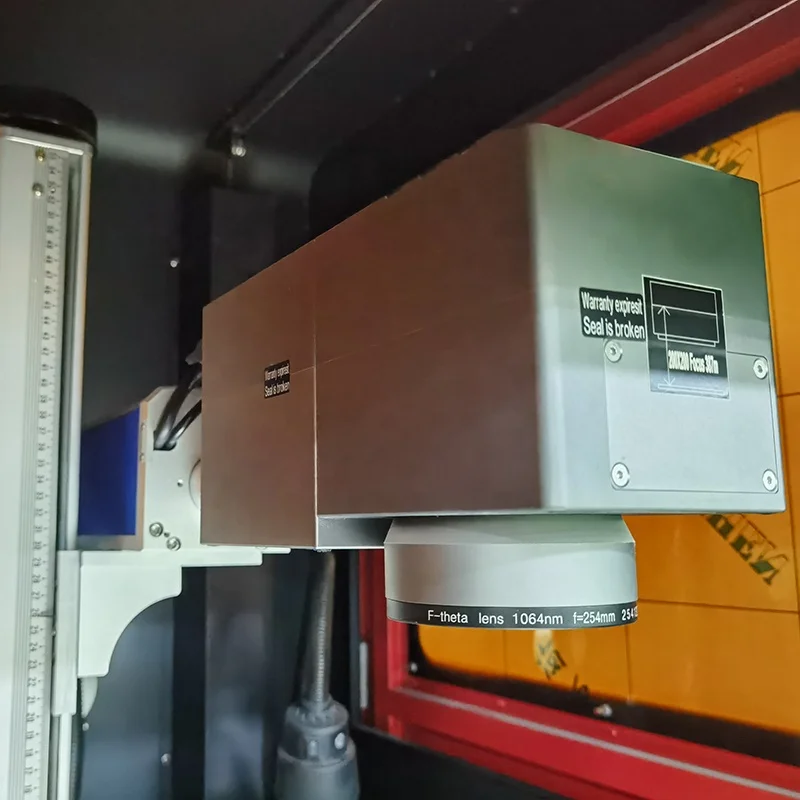

Beijing JCZ EZcad Galvanometer scanner:
Special for 3D relief engraving , big- area engraving and curve engraving.
Light path system:
Scientific design, high luminous efficiency, good after-sales maintenance.
Motorized auto focus:
Easy to find the focus position.
Just make the 2 red pointors together, and this level is focus level.
Just make the 2 red pointors together, and this level is focus level.
Total/main power, Scan head and Fiber laser switches:
The humanized control panel is simple and easy to operate.
Cable connector with scanner：
.Dust-proof design and rigorous mechanism ensure long-term stable operation of the machine.
Industrial computer:
More fast and stable operating

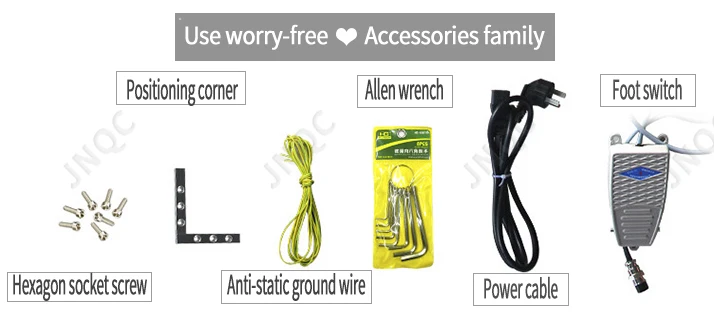

Parts with delivery
Optional Configurations
Zample Show
Application Industries:
1. Aluminium sheet stripped surface: No deformation, fine marking, color marking.
2. Metal depth marking.
3. Stainless steel color marking: marking different colors by setting the parameters.
4. PCB, ABS, Plastic without yellow color.
5. Light transmission paint keyboard: easy to make it previous to light.
6. Electronic, semiconductor components, ITO precision machining: the pulse can be adjusted to get best facula, and make the power balance.
7. Color marking and black marking on stainless steel.
8. Black marking and deep marking on nonferrous metal,like copper,alumina,aluminum.
9. Excellent marking effect on plastic or other sensitive material.
10. Semi-conductor & electronics industry applications
11. Customade converyor belt for mass marking with more high efficient work and saving labours.
Application Materials:
2. Metal depth marking.
3. Stainless steel color marking: marking different colors by setting the parameters.
4. PCB, ABS, Plastic without yellow color.
5. Light transmission paint keyboard: easy to make it previous to light.
6. Electronic, semiconductor components, ITO precision machining: the pulse can be adjusted to get best facula, and make the power balance.
7. Color marking and black marking on stainless steel.
8. Black marking and deep marking on nonferrous metal,like copper,alumina,aluminum.
9. Excellent marking effect on plastic or other sensitive material.
10. Semi-conductor & electronics industry applications
11. Customade converyor belt for mass marking with more high efficient work and saving labours.
Application Materials:
Metal materials: stainless steel,aluminium,copper,silver, gold, carbon steel etc;
Non-metal materials: plastic,pvc,rubber,glass,stone,wood,feather,jewelry etc.
Related Machines
Desktop fiber laser
Desktop fiber laser
Desktop fiber laser
Desktop fiber laser
Desktop Mopa fiber laser
Desktop co2 laser
Portable split fiber laser
Portable split fiber laser
(stainless steel cover)
Portable split co2 laser
Portable fiber laser
Portable + handhelder fiber laser
Desktop integrated fiber laser
Portable fiber laser
Portable + handhelder fiber laser
Desktop integrated fiber laser
Semi-enclosed fiber laser
Semi-enclosed fiber laser
Semi-enclosed fiber laser
Enclosed fiber laser
Enclosed fiber laser
Enclosed fiber laser
Customer Feedbacks
FAQ
Q1: What is the difference between the 2D laser marking machine and 3D laser marking machine ?
1). 3D means Dynamic focusing, compare with ordinary 2D laser machine, 3D laser marking machine adopts different galvo head.Ordinary 2D scanning head only have two mirrors, but 3D scanning head have three mirrors. The third mirrors can move forward and backward. This is the key technology of 3D laser marking machine.
2). 3D laser marking machine outstanding functions are deep engraving, relief engraving and curve metal marking.3). When 2D laser need to mark curve surface, it should be added one rotary fixture. However,3D laser marking machine can mark curve metal directly. Higher speed and higher precision. Mostly, easy to operation.
4). 3D laser marking machine is coming with 3D galvanometer head and 3D software. Other parts almost the same as 2D laser marking machine.
5). control card, lens and software is different.
6). 2D Fiber Laser Marking Systems.The 2-axis deflection units can be used to deflect a laser beam in X and Y directions. This produces a two-dimensional area allowing a laser to be directed at any position. This area is known as the “marking field” as shown in the diagram. Deflection is performed by two mirrors, each of which is moved by a galvanometer scanner. The deflection unit has a beam input, into which the laser beam is fed, and a beam output, through which a laser beam is emitted from the unit after deflection.
3D Fiber Laser Marking Systems In a 3-axis sub module the laser beam first enters a moving lens – the Linear-Translator-Module. A moving lens diverges the beam rapidly before it passes one or two focusing lenses. Then the beam hits a deflection unit that directs the laser towards any x-y position inside the marking field.
